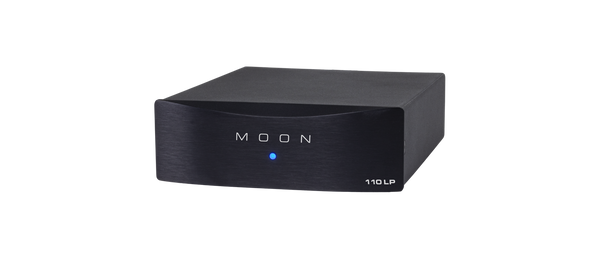

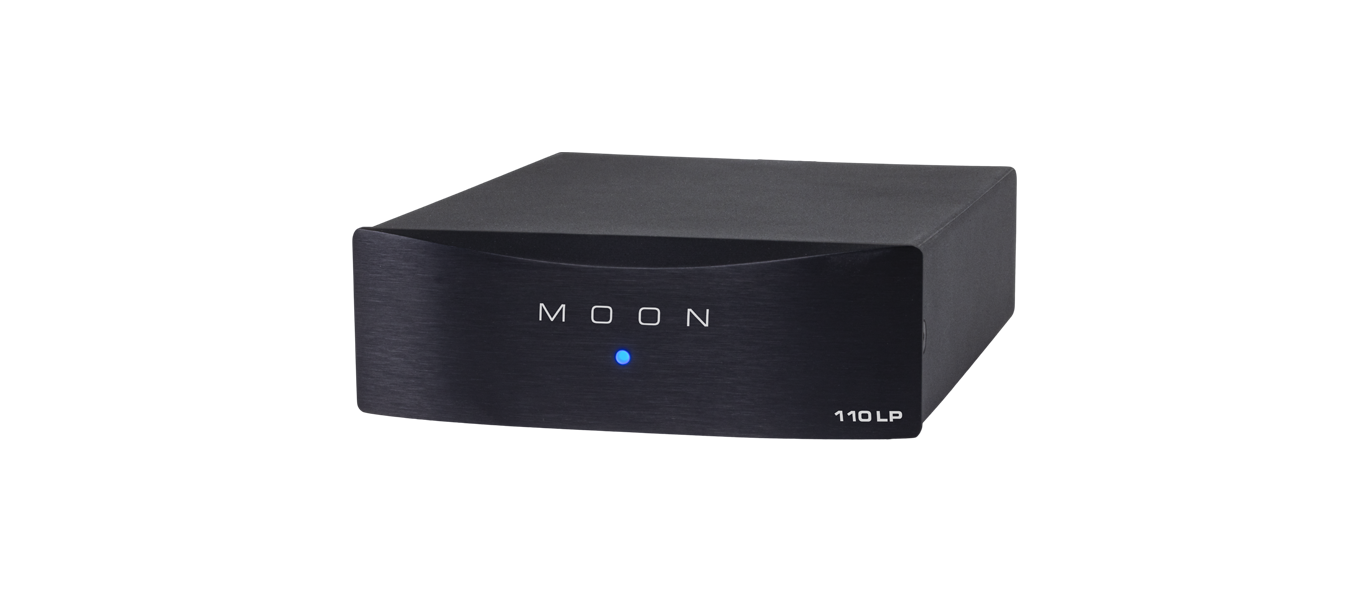

Simaudio 110LP V2 Moon Phono Preamplifier
Sound Quality
Developed with award-winning technologies used in our more exotic phono preamplifiers, the MOON 110LP v2 represents another leap forward in sound quality and affordability.
Dynamic
Enjoy all of the MOON sonic characteristics available at a lower cost than ever; fast, tight, extended bass response, a natural open midrange, and airy extended high frequencies. This is achieved through the combination of an improved power supply and an enhanced circuit layout. Another benefit is an increased input overload margin for trouble free use.
Convenient & Flexible

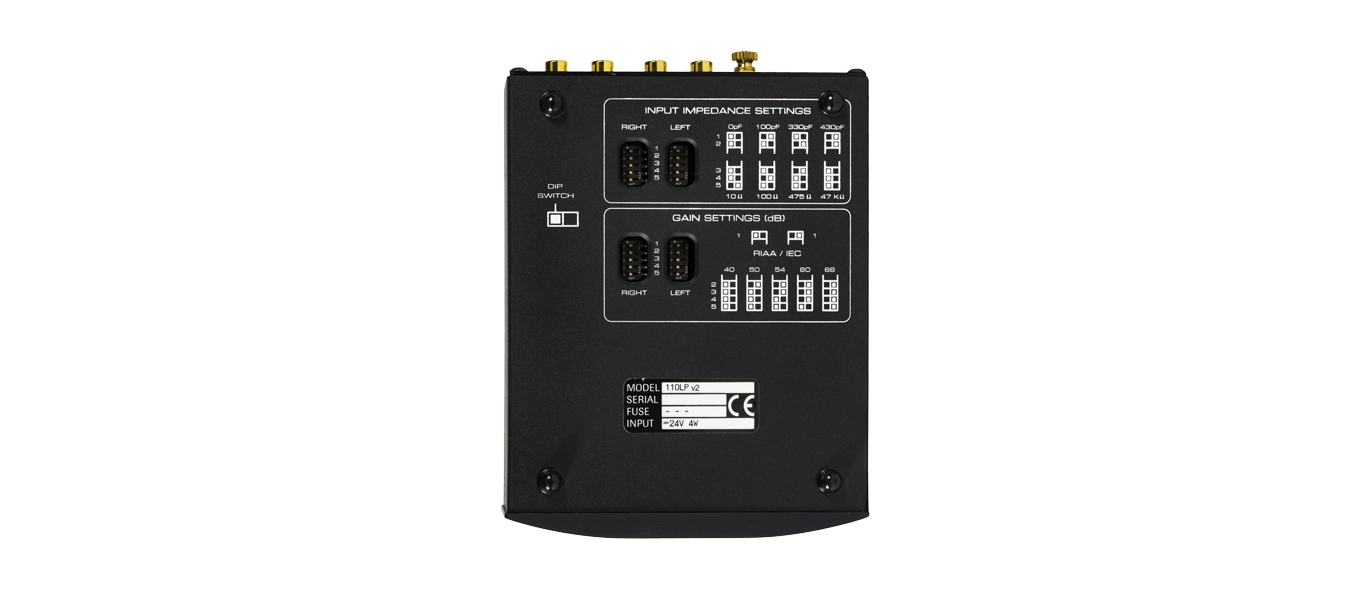

In a matter of just a few seconds, you can easily configure under the unit each of these four parameters: gain, curve, resistance and capacitance. As a result, replacing your cartridge will not render the MOON 110LP v2 obsolete.
No compromise
This is one fabulous piece of equipment. No other entry-level phono preamp I ve heard betters its design, its construction, or, most important, its sound.
Thom Moon, SoundStage! Network
Design features
End-user adjustable impedance loading (47k , 475 , 100 , 10 )
End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
End user selectable curve (IEC/RIAA)
Four layer PCB tracings using pure copper for low impedance characteristics
Inductive DC Filtering for a significantly lower noise floor

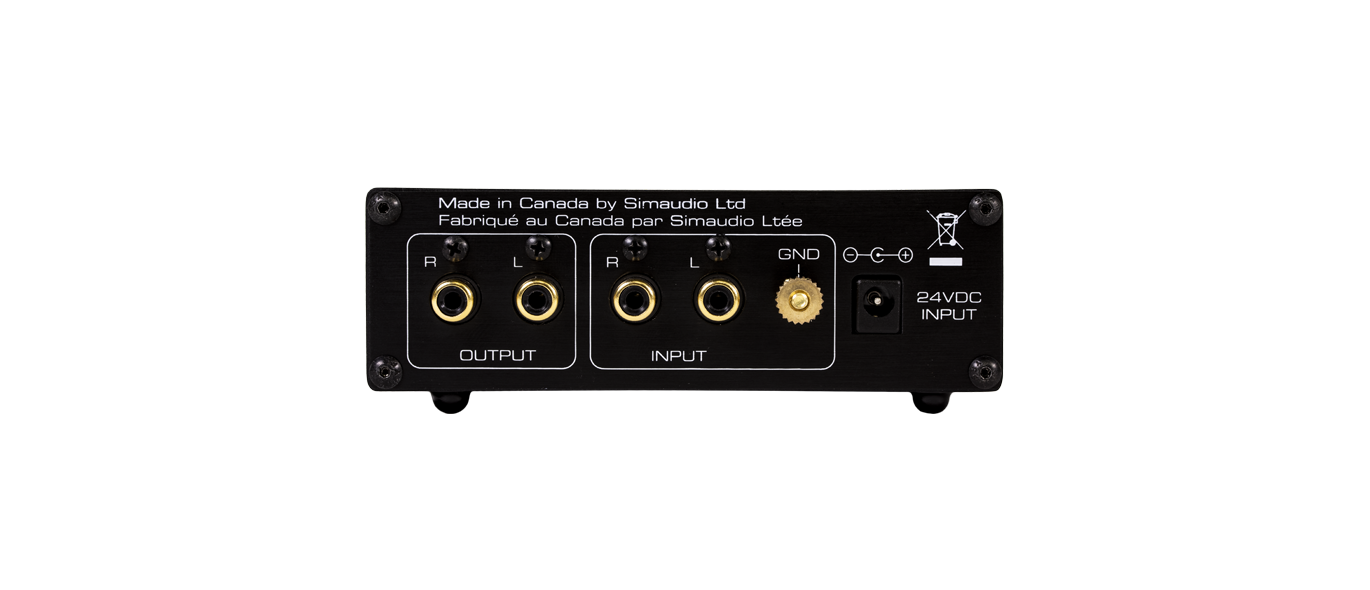

Compact, rigid all-aluminum chassis with gold-plated RCA connectors
Designed to be powered up at all times for optimal performance
Specs
Circuit Layout
Mirror-image symmetrical circuit
Single-ended inputs
1 pair (RCA)
Input Impedance - Adjustable
10 / 100 / 475 / 47k
Input Capacitance - Adjustable
0 / 100pF / 330pF / 430pF
Gain Level - Adjustable
40dB / 50dB / 54dB / 60dB / 66dB
Curve
IEC / RIAA
Signal-to-noise Ratio (full scale @40 dB gain)
104 dB
Signal-to-noise Ratio (full scale @60 dB gain)
87 dB
Frequency Response
20Hz - 20kHz ( 0.5dB)
Intermodulation Distortion
0.002%
THD (20Hz - 20kHz)
0.002%
Power Consumption @ idle
2 W
AC Power Requirements
100-240V 50Hz / 60 Hz
Shipping Weight
3.3 lb / 1.5 kg
Dimensions (W x H x D)
5.0 x 1.65 x 6.5 in
12.7 x 4.2 x 16.5 cm
In the Box:
The following accessories should be included inside the box with your unit:
External AC power supply
AC mains
Stick for under-panel dipswitches settings
Warranty and product registration information (USA and Canada only)
