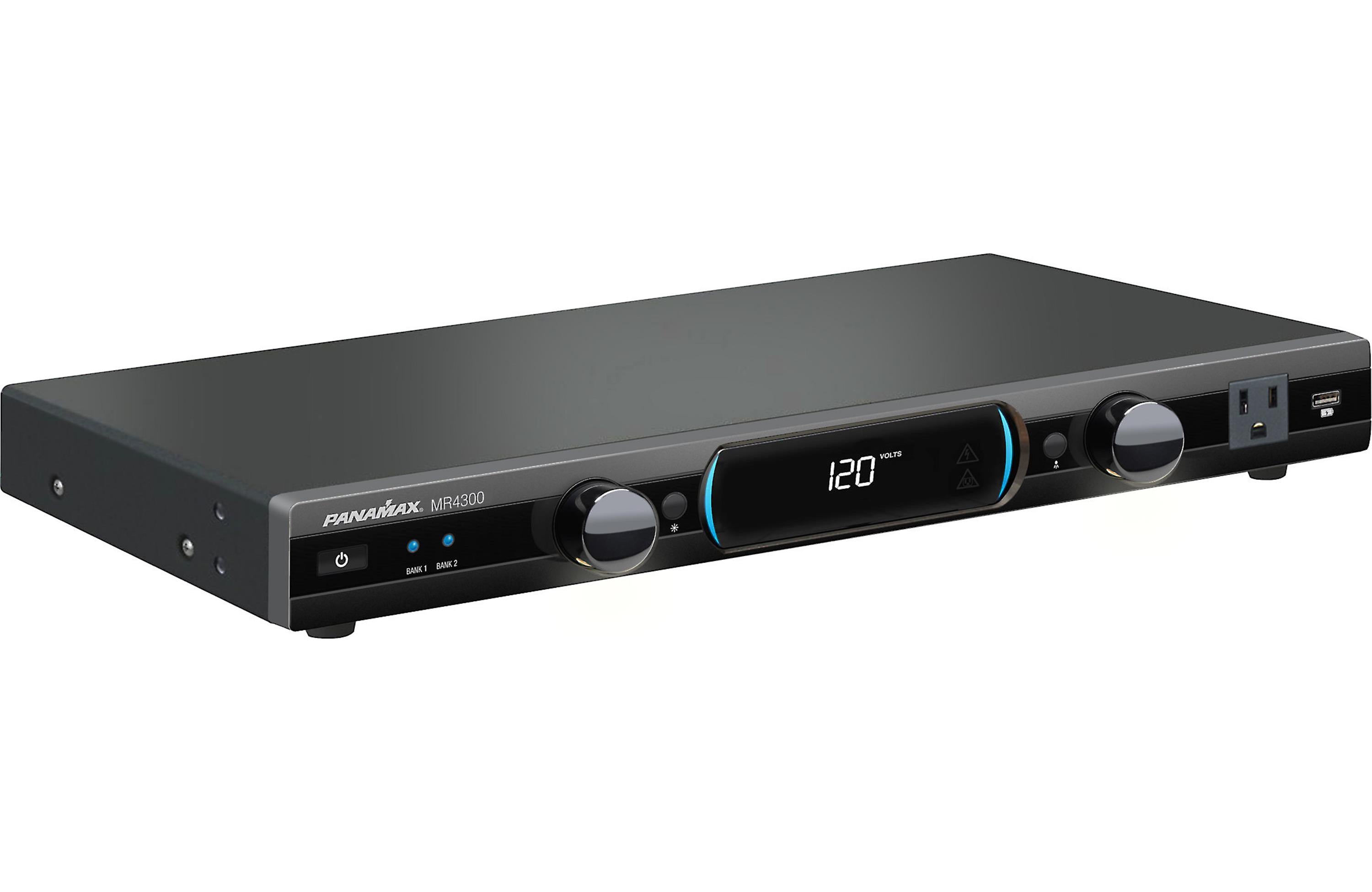

Panamax MR4300 Power Conditioner and Surge Protector

by Panamax
UPC: 50616008938
$349.95

SKU MR4300

Product Qualifies for FREE Ground Shipping

Panamax MR4300 Power Conditioner and Surge Protector

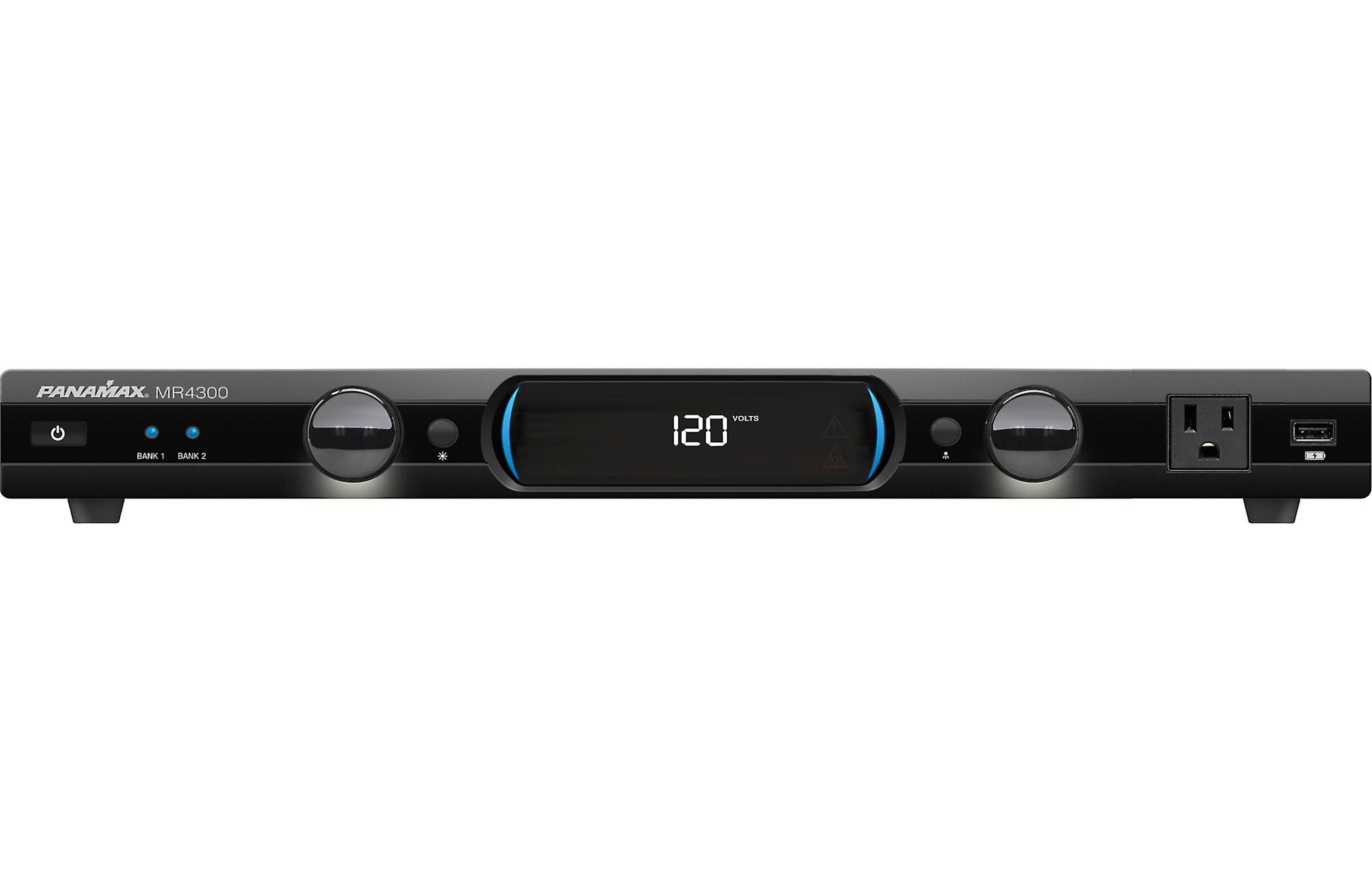

Panamax’s MR Family of products offers several layers of surge protection. Panamax’s patented Automatic Voltage Monitoring (AVM) technology continuously monitors the incoming power. In case of an undervoltage or brownout (too little electricity) or an overvoltage (too much electricity) a flashing red lightning bolt will be displayed and power to the equipment is automatically turned off. When voltage returns to a safe level, power to the equipment is automatically reconnected.

The other layer of surge protection Panamax offers is our exclusive Protect or Disconnect™ technology. This ultra fast protection circuitry completely protects your equipment from surges such as lightning. When overwhelmed with extreme catastrophic events, Panamax permanently disconnects AC power to equipment. All Panamax products offer this core protection technology.

Protecting a complete system may sometimes require that signal wires coming out of the wall be protected as well. Panamax has you covered there too. Universal ultra low-loss coaxial protection (as well as LAN/Ethernet) protection prevents signal lines from carrying damaging surges while maintaining full high-definition and high-speed Internet signals to your equipment for your connected life. See our product demonstration page for some

Specs
AC Protection

Voltage Protection Rating (UL 1449 3rd Edition, 3,000A) 330V
Under-voltage shutoff 100V ±2V
Thermal Fusing Yes
Single Pulse Energy Dissipation 1575 Joules
Response Time < 1ns
Protection Modes L-N, L-G, N-G
Protect or Disconnect Circuitry Yes
Over-voltage shutoff 135V ±2V
Nominal Discharge Current (UL 1449 3rd Edition) 3,000A
Maximum Current Rating 15A (1800W)
Line Voltage 120V, 50/60Hz
Initial Clamping Level 200V Peak, 141VRMS
Automatic Voltage Monitoring Circuit

Linear Level 3 Noise Filtration

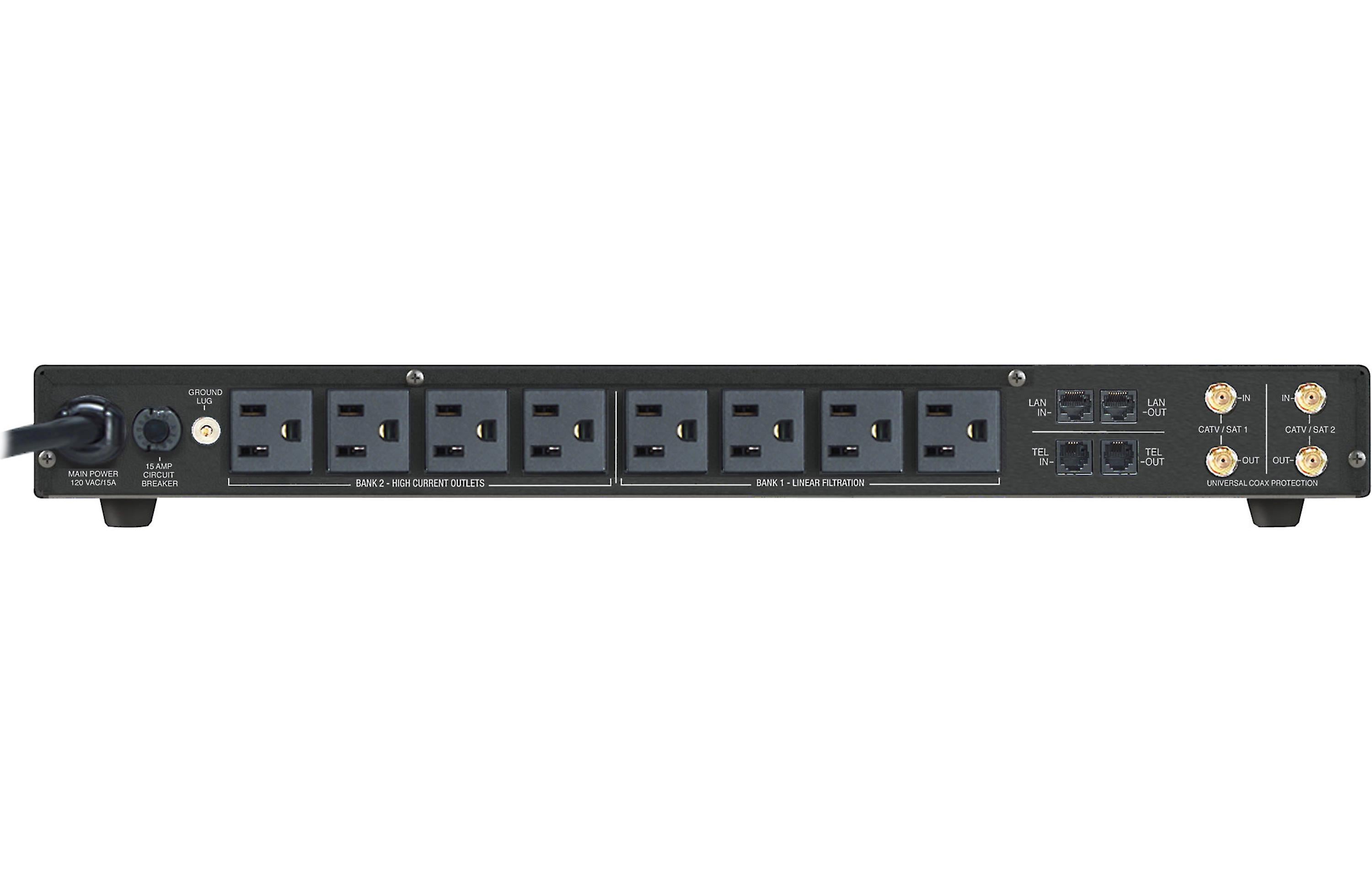

Bank 1
-70dB min. @ 100kHz
-65dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -80dB @ 150kHz
Bank 2 - High Current, Low Impedance
-50dB min. @ 100kHz
-60dB min. @ 250kHz
-45dB min. @ 500kHz
Max filtration: -63dB @ 250kHz

General

Weight 6.5 lbs.
Rack Ears Included
Dimensions 6”l x 17”w x 1.75”h, 2.19”h with feet

LAN Protection

Wires Protected 8-Wires
Jacks RJ-45
Compatibility 10/100/1000bT
Clamping Level 62V ± 6V @ 1 mA

TEL Protection


Wires Protected 2 Wires, 1 Pair (4, 5)
Jacks RJ-11
Fuseless/Auto-Resetting Yes
Clamping Level 260V

Universal Coax Protection

Shielded Yes
Insertion Loss < 0.5 dB
HD 1080 i/p Ready Yes
Frequency Range 0 MHz - 2.2 GHz
Connections Female "F", Gold Plated
Clamping Level 75V
Bidirectional Yes
