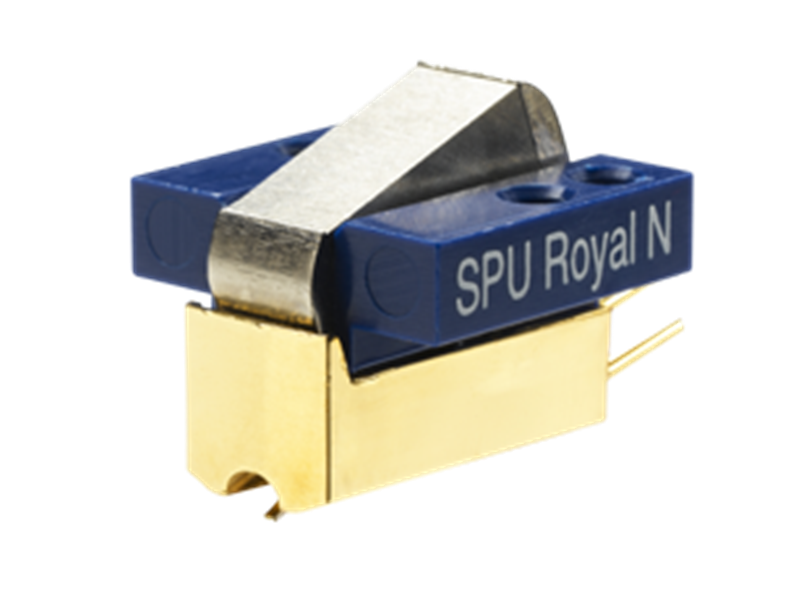

Ortofon SPU Royal N SPU Phono Cartridge

by Ortofon
UPC: 5705796240177
Call for Availability


Product Qualifies for FREE Ground Shipping

  • The SPU Royal N provides the same sound reproduction properties as the SPU Royal GM series

    - The addition of Ortofon s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
    - Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
    - High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.

    The SPU Royal N is sold without the integrated headshell unit.

    Listeners who wish to mount the SPU Royal N on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Royal N to recreate an authentic and functional SPU cartridge. NB: Vintage SPU-type headshells are no longer available.

    Technical data

    Output voltage at 1000 Hz, 5cm/sec. - 0.2 mV
    Channel balance at 1 kHz - < 1 dB
    Channel separation at 1 kHz - > 25 dB
    Channel separation at 15 kHz - > 20 dB
    Frequency range at - 3dB - 20-60.000 Hz
    Frequency response - 20-20.000 Hz + 1,5 / - 0 dB
    Tracking ability at 315Hz at recommended tracking force *) - 70 m
    Compliance, dynamic, lateral - 8 m/mN
    Stylus type - Nude Ortofon Replicant 100
    *) Typical value

    Stylus tip radius - r/R 5/100 m
    Tracking force range - 2.5-3.5 g (25-35 mN)
    Tracking force, recommended - 3.0 g (30 mN)
    Tracking angle - 20
    Internal impedance, DC resistance - 6 Ohm
    Recommended load impedance - > 100 Ohm
    Coilwire material - Electrum
    Cartridge colour - Black
    Cartridge weight - 13 g
