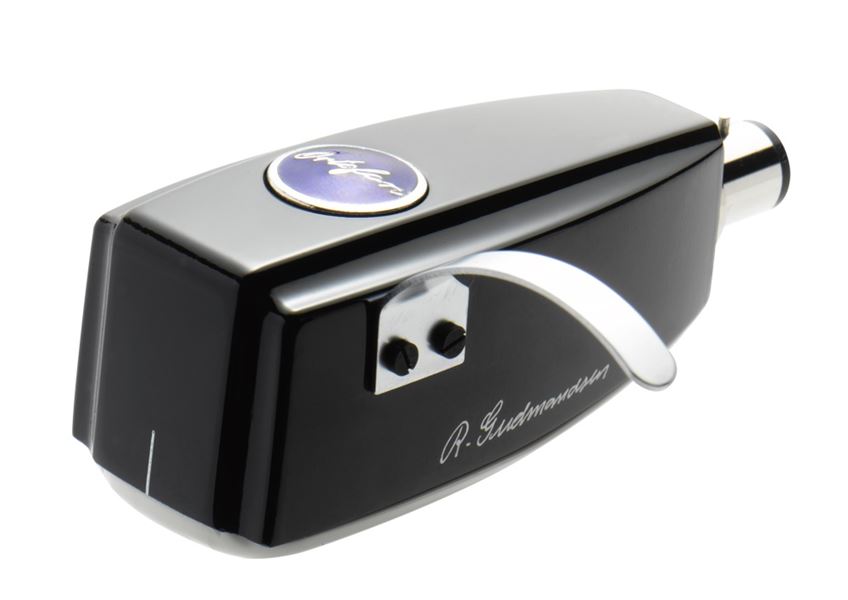

Ortofon SPU Meister Silver GM MKII SPU Phono Cartridge

by Ortofon
UPC: 5705796240269
Call for Availability
$1,955.00

SKU SPUMeisterSilverGMMKII

Product Qualifies for FREE Ground Shipping

RETURN POLICY
  • NO RETURNS ON ALL PHONO CATRIDGE PURCHASES
  • The SPU Meister Silver GM MkII has been improved on coil winding material, stylus and magnet.

    Features:

    The cartridge has been outfitted with high purity multi-conductor 6 nines Silver wire (of a purity of 99,9999 %) for a more open and revealing high end presentation.

    The nude elliptical stylus tip mass has been decreased by a factor of more than 50%, resulting in increased tracking ability and reproduction of microdynamic detail.

    The generator system has been revised to produce a slightly higher output to ensure compatibility with a wider range of moving coil transformers and active MC preamplifiers.

    Specs
    Technical data

    Output voltage at 1000 Hz 5cm/sec - 0,3 mV
    Channel balance at 1 kHz - < 1 dB
    Channel separation at 1 kHz - > 20 dB
    Channel separation at 15 kHz - > 10 dB
    Frequency range at -3 dB - 20-25 kHz
    Frequency response 20 - 20 kHz - +2 / -1 dB
    Tracking ability at 315 Hz at recommended tracking force *) - > 70 m
    Compliance, dynamic, lateral - 8 m/mN
    Stylus type - Nude elliptical
    Stylus tip radius - r/R 8/18 m
    *) Typical value

    Equivalent stylus tip mass - 0,45 mg
    Tracking force range - 3.0-5.0 g (30-50 mN)
    Tracking force recommended - 4.00 g (40 mN)
    Tracking angle - 20
    Internal impedance, DC resistance - 3 Ohm
    Recommended load impedance - > 10 Ohm
    Coilwire material - Silver, 6-nines
    Cartridge body material - Wooden Powder
    Cartridge colour - Silver/Black
    Cartridge Weight - 31.5 gram
