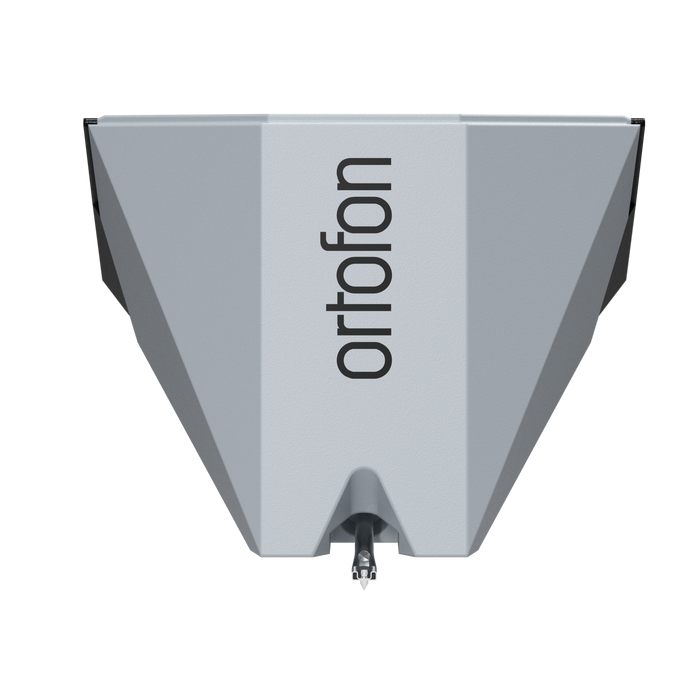

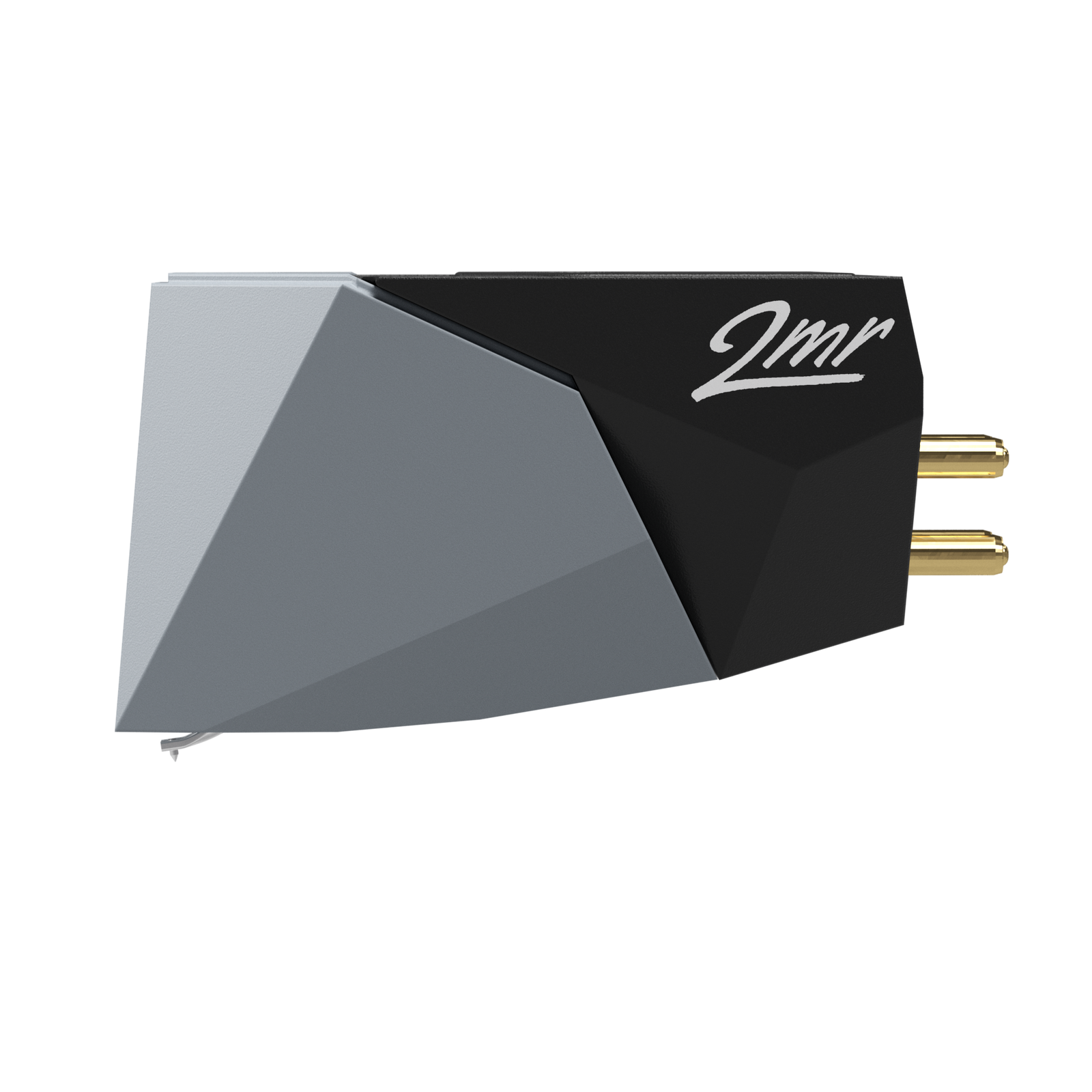

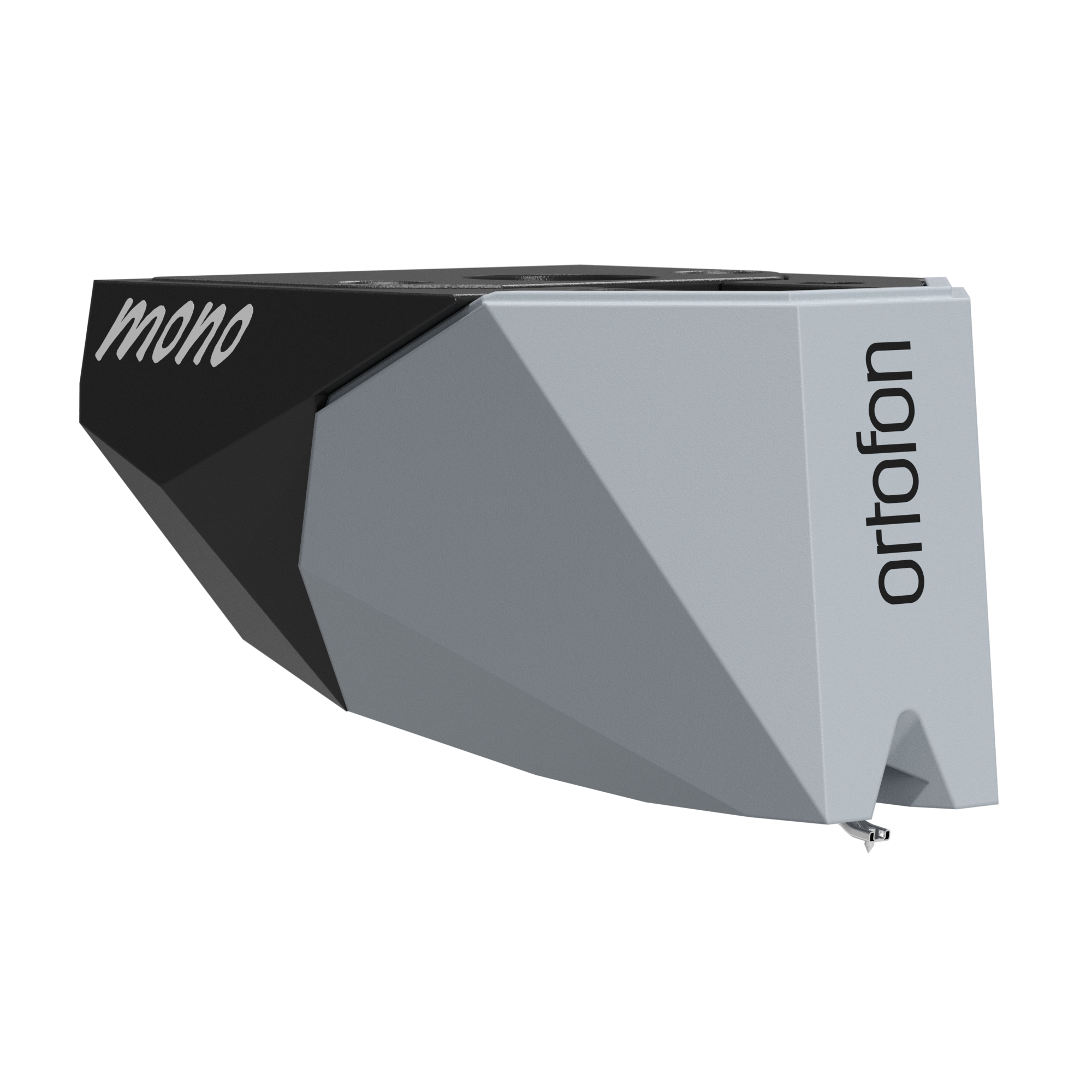

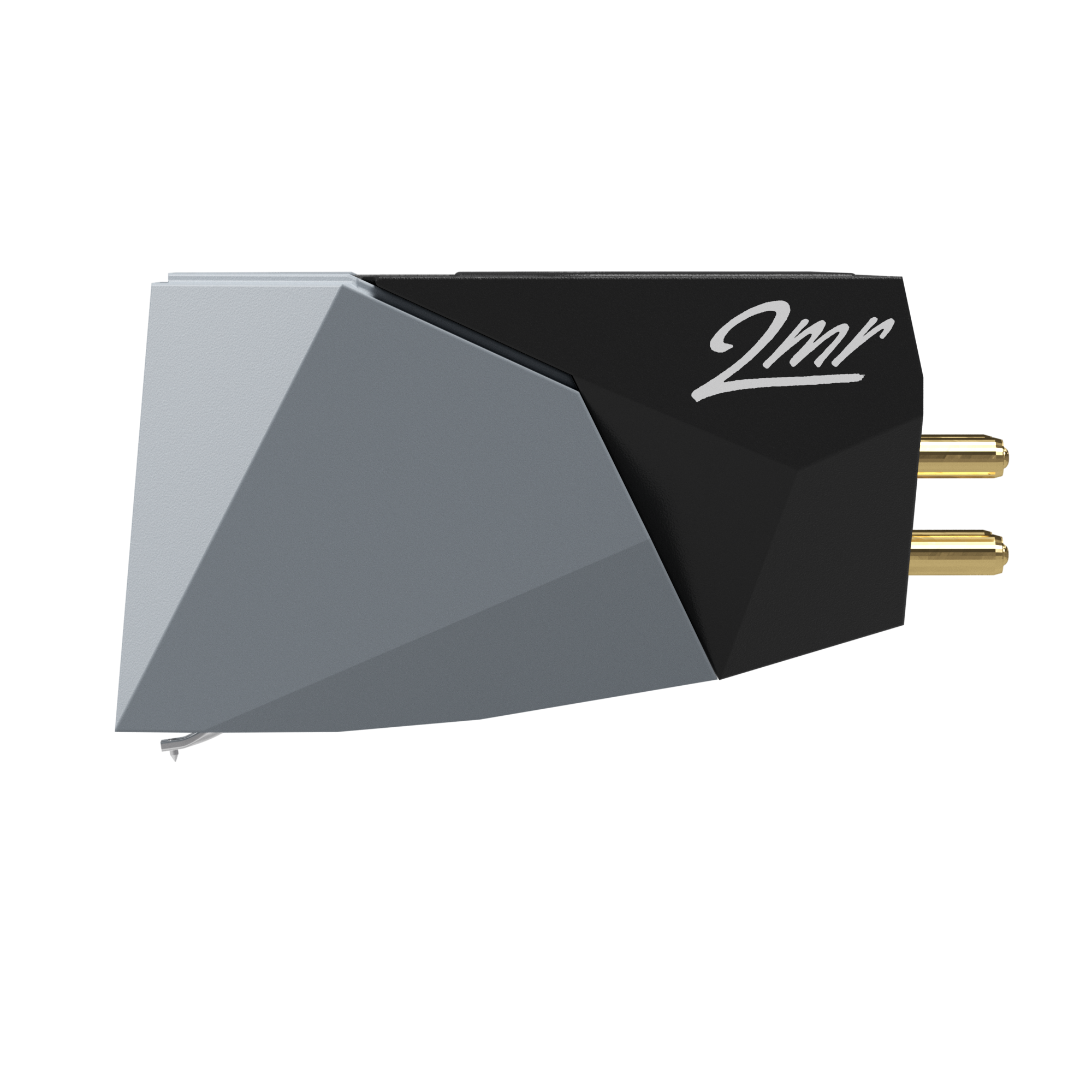

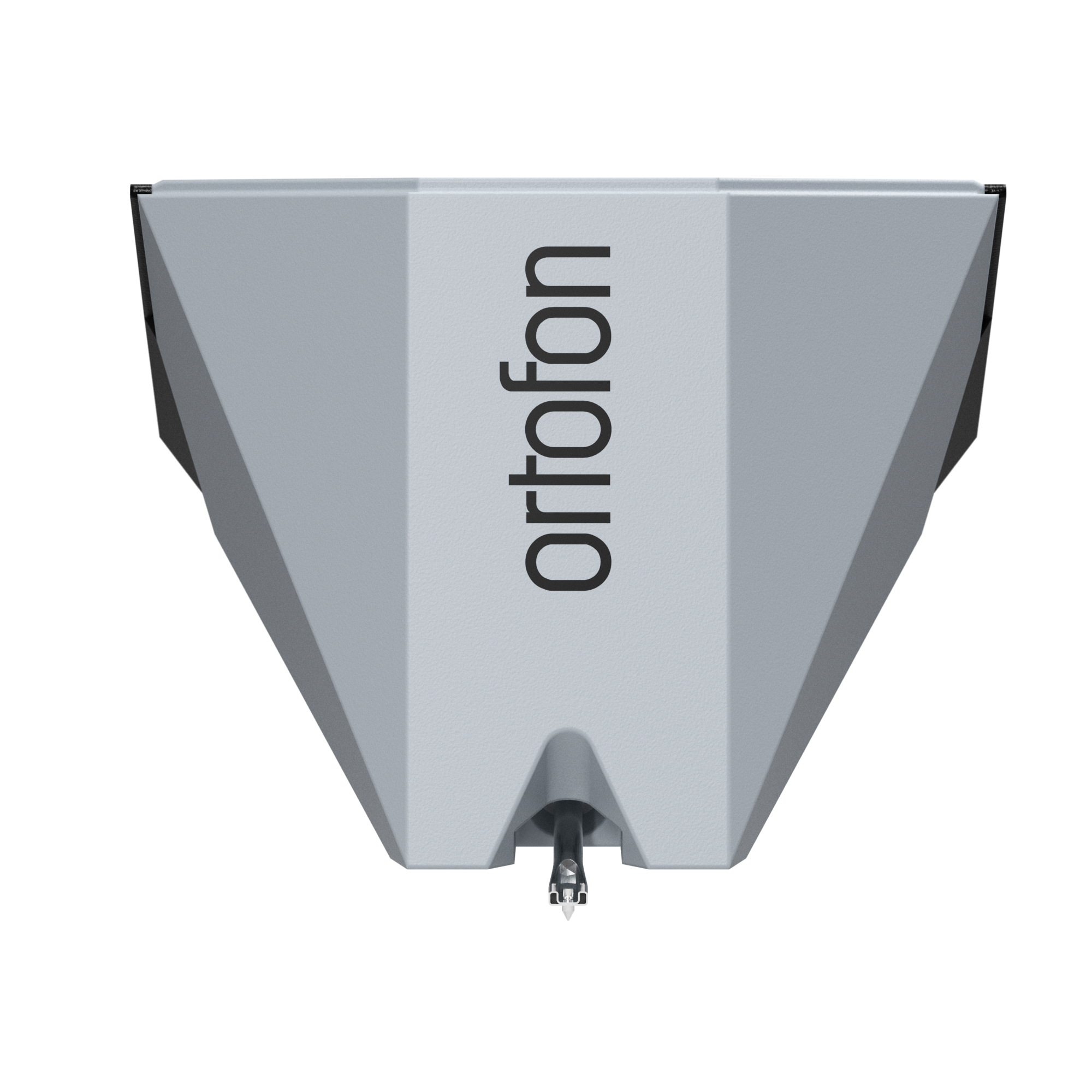

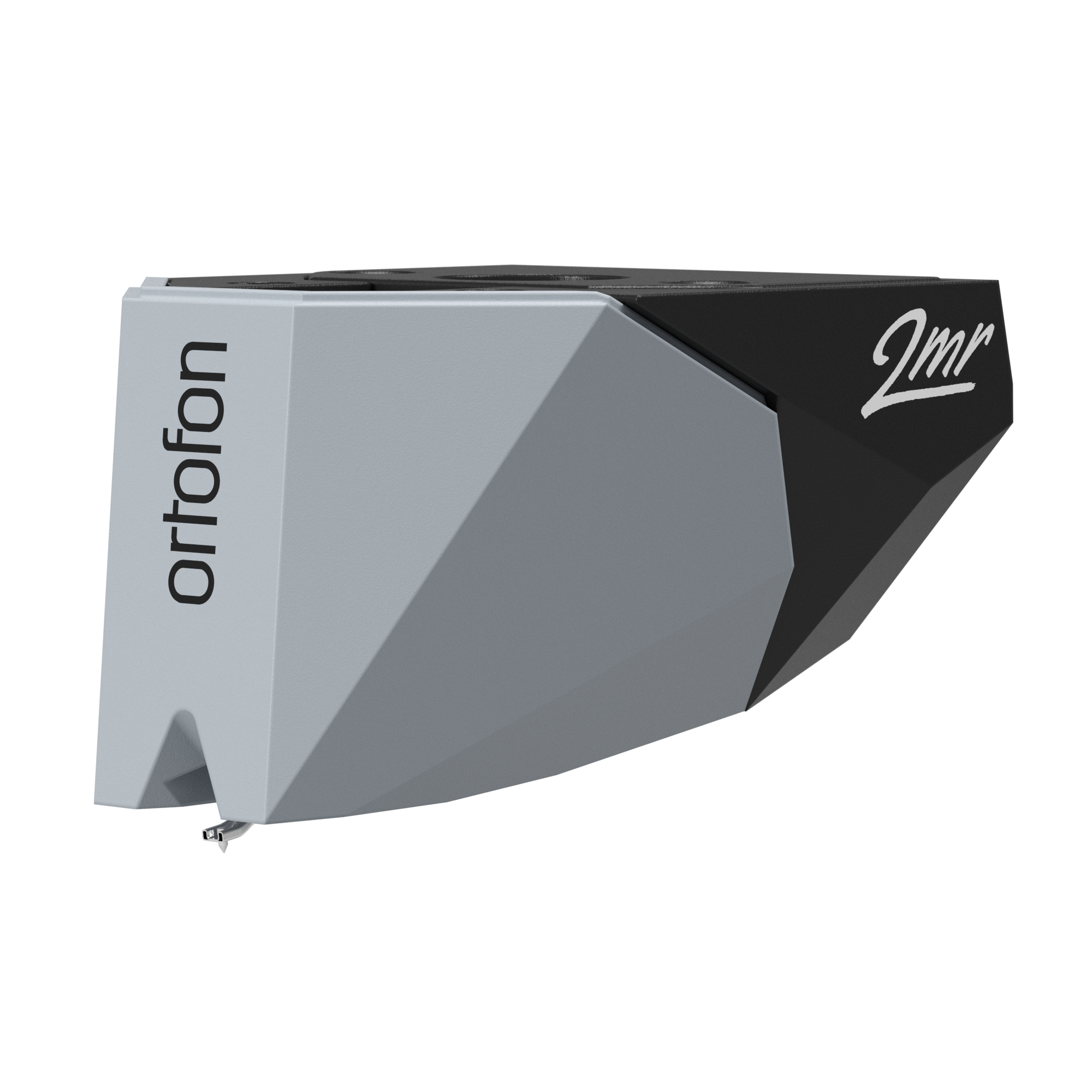

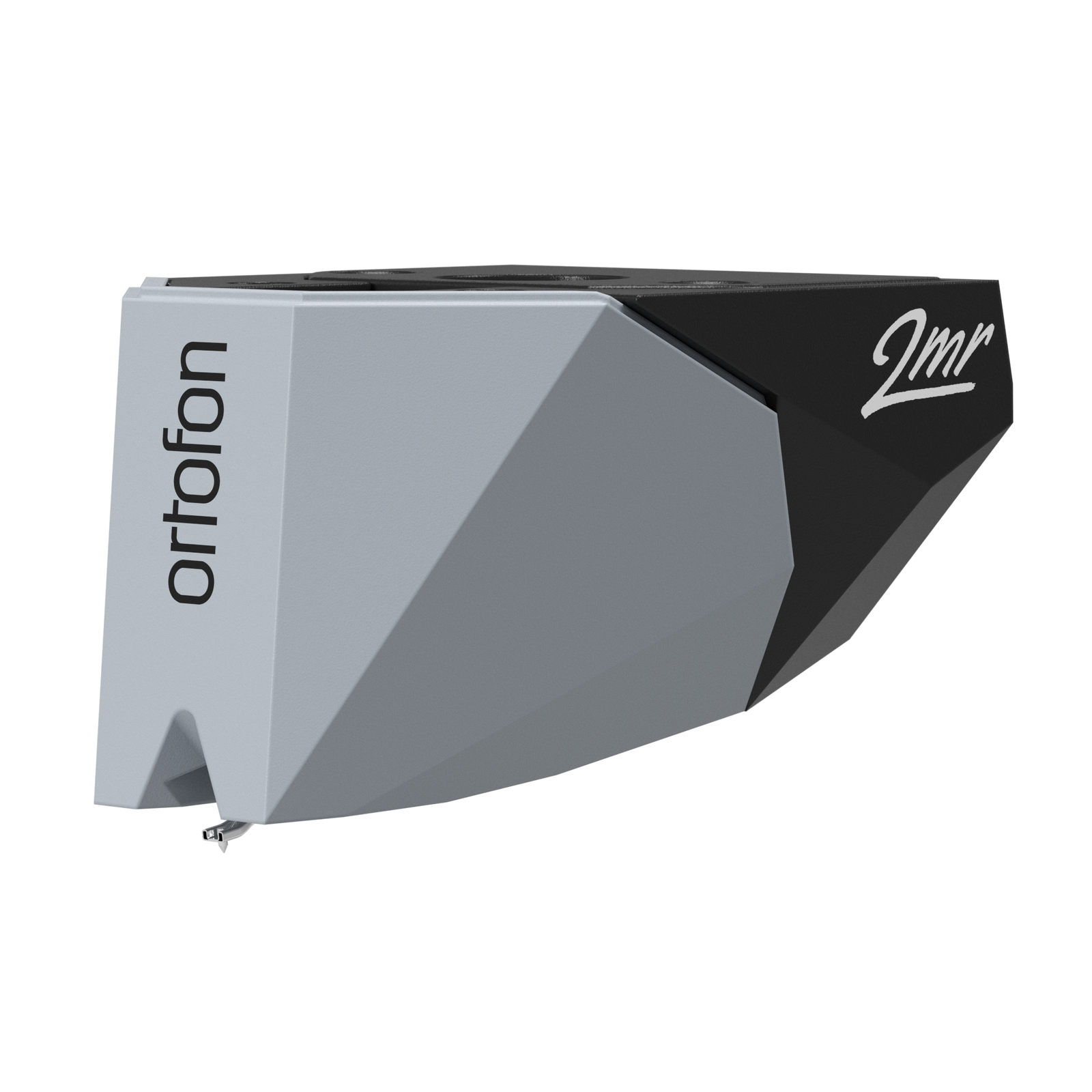

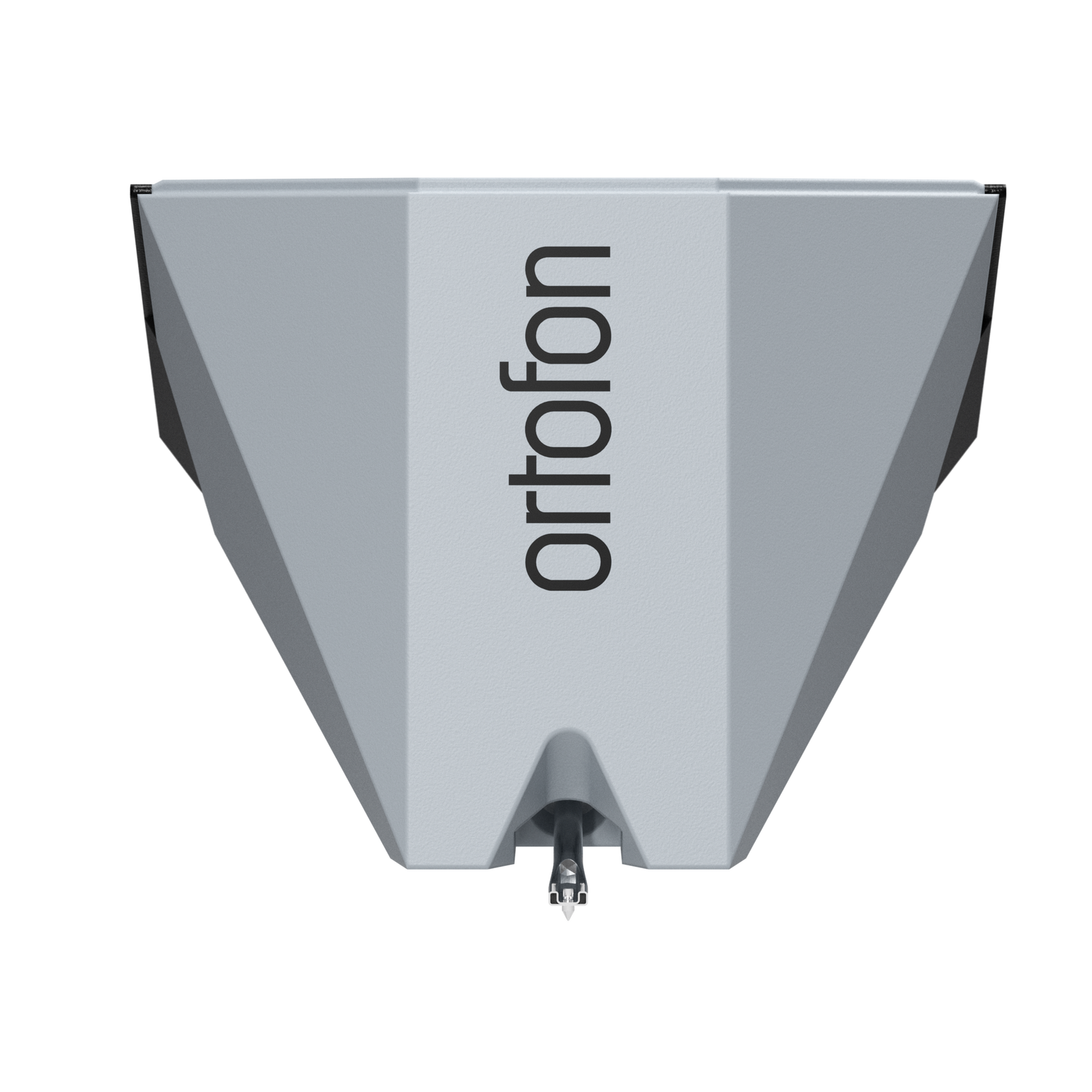

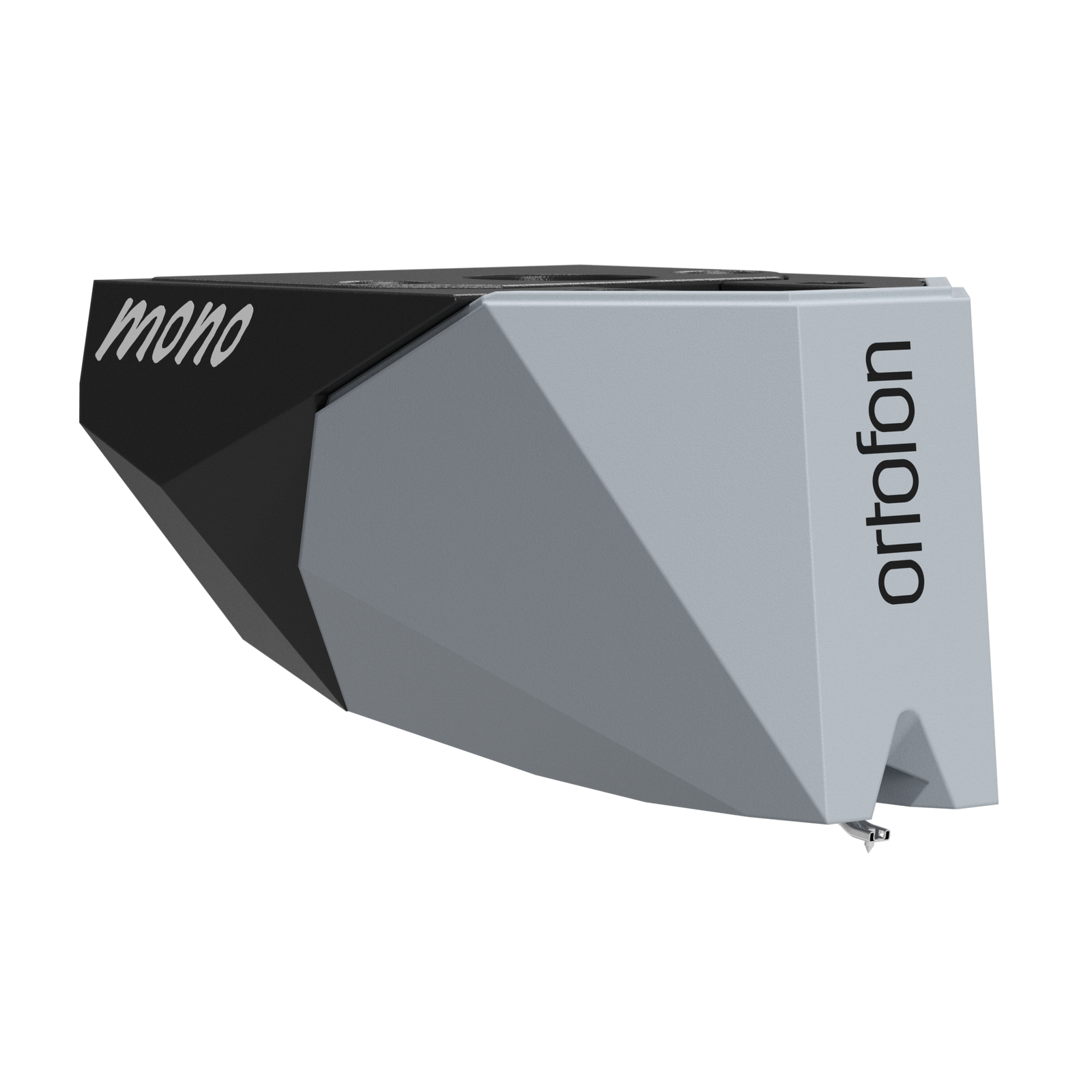

Ortofon 2MR 78 Moving Magnet Phono Cartridge for Rega Turntables

Ortofon 2MR Mono Moving Magnet Phono Cartridge for Rega Turntables

Presenting the Ortofon 2MR cartridges
Ortofon 2MR features a specially designed cartridge housing tailored for turntables and tonearms like Rega matching their requirement for low-form factor cartridges. With its narrow cartridge housing, it seamlessly integrates without a need for modifications or spacers under the tonearm, enabling quick and easy mounting with just two screws. Ortofon 2MR cartridges features unique to Ortofon technologies like: High performance quad coil motor system with split pole pins, Proprietary Ortofon premium and high-end rubber dampers plus full compatibility with the Ortofon 2M series styli.
Authentic sound reproduction
2MR continues the 2M Series' commitment to authentic sound reproduction. A high-performance motor system featuring quad coils and split pole pins minimizes eddy current losses, enhancing channel balance and accuracy. This innovation results in a clean, detailed, and true-to-life sound, faithfully capturing the nuances of your cherished vinyl collection.
More than just a cartridge
2MR cartridge are for those who value an authentic immersive listening experience when listening to their music. 2MR lets you rediscover your vinyl collection with enhanced clarity and precision.
2MR cartridge key features
• Slimline cartridge body effectively eliminates the need for tonearm spacers, shims or modifications on turntables needing a low form factor cartridge.
• High-performance motor system incorporating unique to Ortofon quad coils with split pole pins, delivering a clean detailed and true-to-life sound.
• 100% compatibility with the 2M styli Ortofon 2MR use the well-known 2M styli.
• Standard half inch mounting quick and easy mounting on the tonearms with just two screws.
• Full range setup 2MR ranges from Mono to Premium: 2MR Red to High-end: 2MR Black LVB 250

Specs

Model 2MR 78
Output voltage at 1 kHz 5 cm/sec. 4 mV
Tracking ability at 315 Hz 70 μm
Compliance, dynamic, lateral 22 μm/mN
Cantilever material Aluminum
Stylus type Spherical
Recommended tracking force 1.8 g
Load resistance 47 kOhm
Load capacitance 150 – 300 pF
Cartridge weight 6 g
Cartridge height 14 mm
