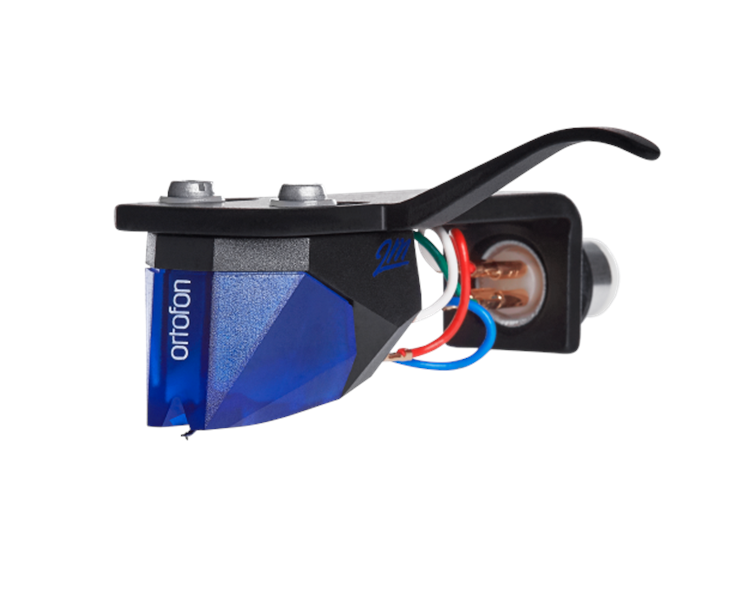

Ortofon 2M Blue Cartridge Mounted on Black SH-4 Headshell

by Ortofon
UPC: 5705796080483
Save 23%
Original price $299.00
Current price $229.00

SKU 2mBlueSH-4Black

Product Qualifies for FREE Ground Shipping

  • Ortofon 2M Blue Cartridge Mounted on Black SH-4 Headshell

    Next level authenticity with the 2M Blue
    The goal for any cartridge should be to reproduce the sound as close to the artists vision as possible, and the 2M blue takes you further on this journey of authenticity. With the 2M Blue, you get serious about listening to vinyl.

    The 2M Blue features a Nude Elliptical diamond and split pole pins with a copper wire.

    Designed for easy mounting of the cartridge, and for the weight and size to fit the most common turntables on the market today. The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

    The 2M Blue adds more dynamics and resolution, sounds more open and reproduces more details compared to the 2M Red model.


    Output voltage at 1000 Hz, 5cm/sec.  -   5.5 mV
    Channel balance at 1 kHz  -   1.5 dB
    Channel separation at 1 kHz  -  25 dB
    Channel separation at 15 kHz  - 15 dB
    Frequency response  -  20-20.000 Hz + 2 / - 1 dB
    Tracking ability at 315Hz at recommended tracking force  -  80 µm
    Compliance, dynamic, lateral  -  20 µm/mN
    Stylus type  -  Nude Elliptical
    Stylus tip radius  -  r/R 8/18 µm
    Tracking force range  -  1.6-2.0 g (16-20 mN)
    Tracking force, recommended  -  1.8 g (18 mN)
    Tracking angle  -  20°
    Internal impedance, DC resistance  -  1.3 kOhm
    Internal inductance  -  700 mH
    Recommended load resistance  - 47 kOhm
    Recommended load capacitance  -  150-300 pF
    Cartridge colour, body/stylus  -  Black/Blue
    Cartridge weight  -  7.2 g
    Premounted cartridge weight - 16.7 g
