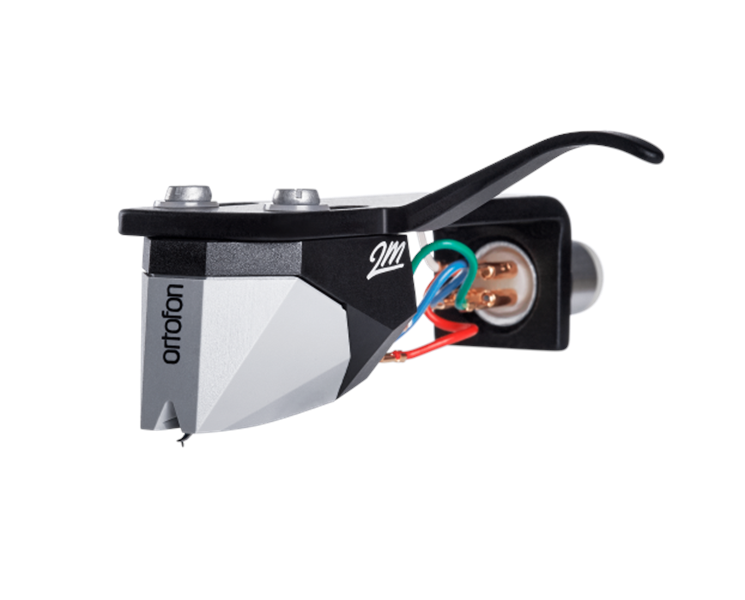

Ortofon 2M 78 Cartridge Mounted on SH-4 Headshell

by Ortofon
UPC: 5705796080353

SKU 2m78SH-4

Product Qualifies for FREE Ground Shipping

  • Ortofon 2M 78 Cartridge Mounted on SH-4 Headshell

    The 2M 78 features an improved engine, which provides a high level of sonic accuracy. The stylus' tip is a Spherical diamond that is perfect for playback of 78 rpm shellac records, which require a larger stylus profile. The cartridge body is manufactured from Hopelex, which ensures high rigidity while eliminating unwanted resonances.

    2M 78 uses a strapped output to deliver the same output signal from both sets of pole pins. This effectively eliminates the need for mono-specific equipment, making it possible to enjoy true mono reproduction on any stereo playback system.

    The 2M Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.


    2M 78 Technical data
    Output voltage at 1000 Hz, 5cm/sec. - 4 mV
    Frequency response - 20-20.000 Hz + 3 / - 1 dB
    Tracking ability at 315Hz at recommended tracking force - 70 µm
    Compliance, dynamic, lateral - 18 µm/mN
    Stylus type - Spherical
    Stylus tip radius - R 65 µm
    Tracking force range - 1.6-2.0g (16-20 mN)
    Tracking force, recommended - 1.8 g (18 mN)
    Internal impedance, DC resistance - 700 Ohm
    Internal inductance - 350 mH
    Recommended load resistance - 47 kOhm
    Recommended load capacitance - 150-300 pF
    Tracking angle - 20°
    Cartridge color, body/stylus - Black/Grey
    Cartridge weight without screws - 7.2 g
    Premounted cartridge weight - 16.7 g

    Replacement stylus unit - 2M 78 (interchangeable with 2M Mono)

    Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.

    2M Series styli interchangeability:
    The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:
    - 2M Red, 2M Blue and 2M Silver
    - 2M Bronze and 2M Black
    - 2M Mono and 2M 78

    Compatibility with Rega brand TT/TA:
    REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.
    Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.
    3.2 - 4 mm spacers should be enough for 2M cartridge.
