Naim Audio NAP 200 DR 2 Channel Power Amplifier

Call for Availability


Product Qualifies for FREE Ground Shipping

Naim Audio NAP 200 DR 2 Channel Power Amplifier

NAP 200 DR
The original Naim Audio amplifier.

First designed by Naim Audio founder Julian Vereker in 1971, the NAP 200 has Naim Audio musicality written into its DNA. As our first production amplifier, no single product encapsulates our philosophy better. Its design is simple and uncompromising, with a single-minded focus on one thing: creating an enduring musical connection with the listener.

More recently the NAP 200 has benefitted from the years of research that went into the NAP 500 amplifier. Many of the developments from the 500 Series project have helped to revitalize its electronic design and componentry bringing significant and hard-earned gains to performance. Beneath this new technology however, it retains the values which helped to make it an icon: simplicity, focus and sheer musicality.

New Technology
The NAP 200 has been revitalized and reintroduced in 2015 with the addition of a Naim Audio DR (Discrete Regulator) module to power its partnered Naim Audio preamplifier. This comes alongside small improvements to some internal componentry and layout that combine to lift its musical performance even further than the original.

70W per channel output into 8 Ohms
Large custom-designed transformer providing 300VA of transient power
Internal power supply to allow direct connection of a NAC 152 XS, NAC 202 or NAC 282 preamplifier

Technology & Craft

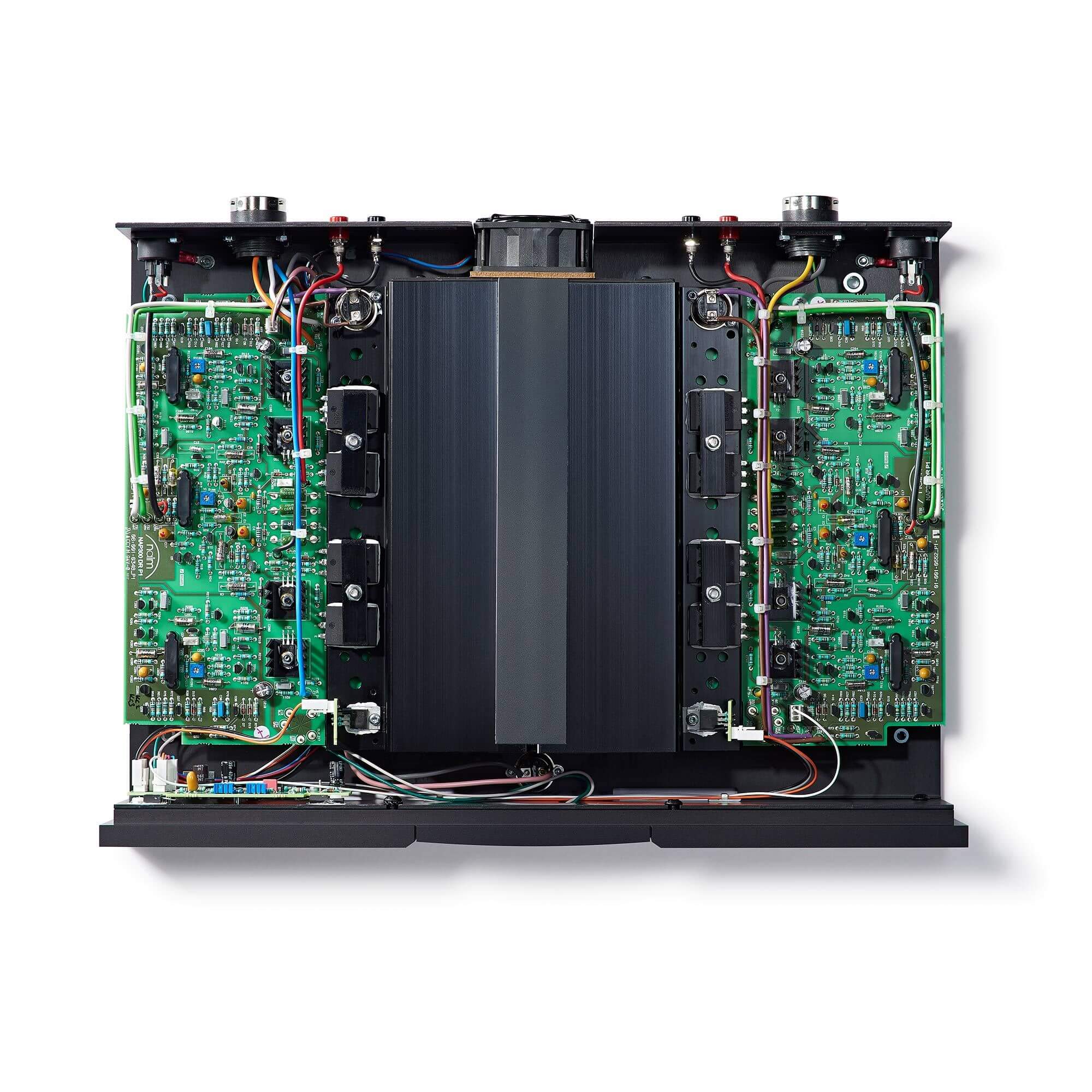

Like the flagship NAP 500, the NAP 200 uses a new circuit design with improved earthing arrangements built on a very high quality, anti-resonance main audio circuit board. Anti-vibration, resonance-controlling feet serve to protect the sensitive internal components from microphonic vibration and unwanted external interference.
A new, top-quality 430VA toroidal transformer provides more than 300VA of transient power. Separate windings provide dedicated left and right channel rectified power supplies with two smoothing capacitors per channel. The NAP 200 also has a separate winding providing a preamplifier power supply. This enables it to be used in a two-box amplifier configuration with a Naim Audio preamplifier such as the NAC 202. The Naim Audio NAP 200 is stable into any load and can drive a 2-ohm load for long periods of time.


Audio Inputs
Input Impedance 18kΩ
Analogue Input 1 x 4-pin DIN

Audio Outputs
Minimum Load Impedance 2Ω

Power Outputs Naim pre-amplifier

Frequency Response -3dB at 3Hz - 50kHz

Gain +29dB

Case Black powder coated
Front Brushed and black anodized

Shipping Weight 14.2kg

Shipping Dimensions 240 x 590 x 500 mm

Weight 11.6 kg

Dimensions (HxWxD) 87 x 432 x 314 mm

Mains Supply 100V, 115V, 230V; 50 or 60Hz

Power Consumption 11VA

Speaker Outputs
Power Output 70W/channel, 8Ω

Transient 300VA

Speaker Outputs L & R, 4mm “banana” sockets

Supplied with
SNAIC, Power-Line Lite mains cable (UK denominations only)
