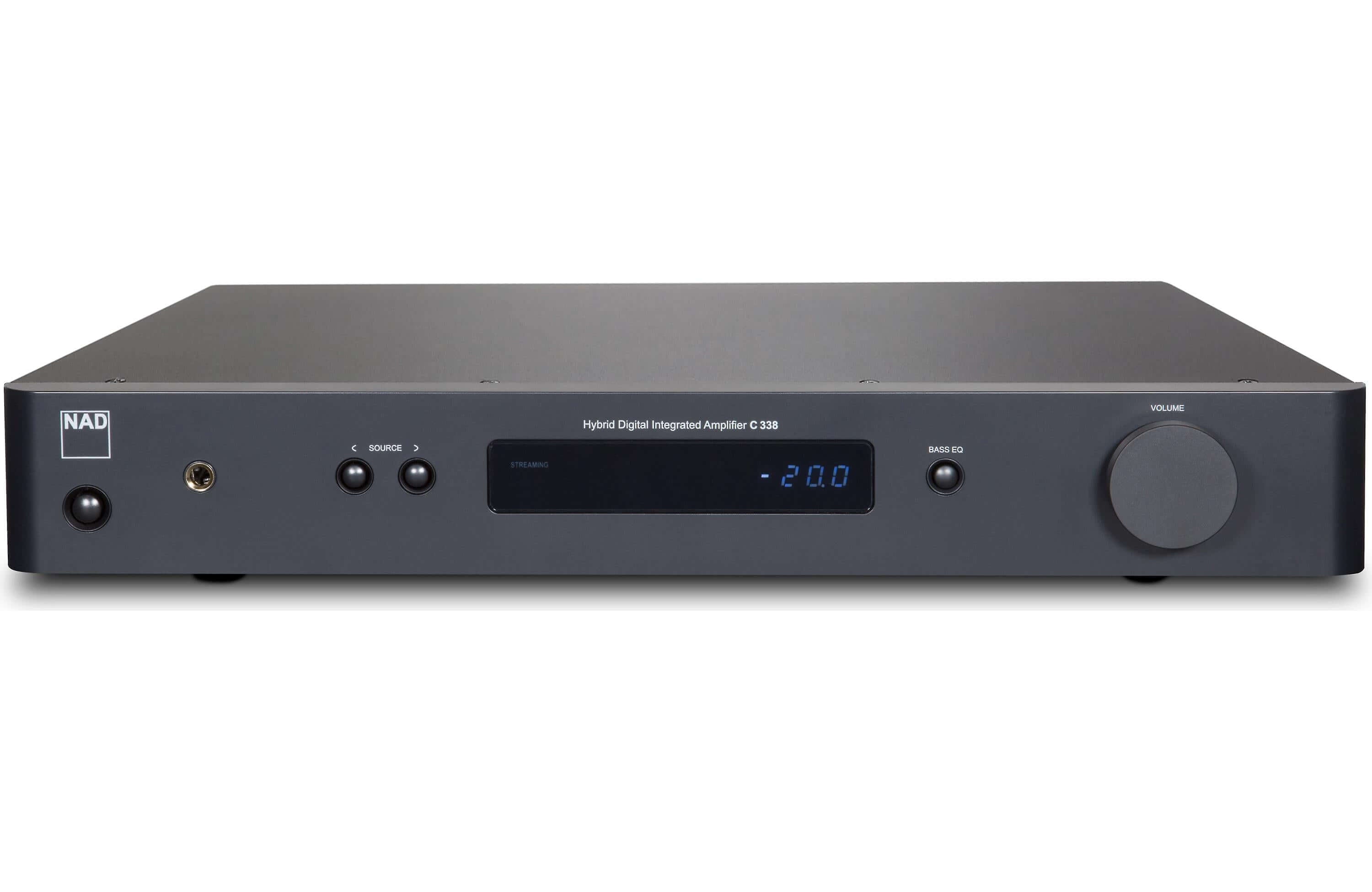

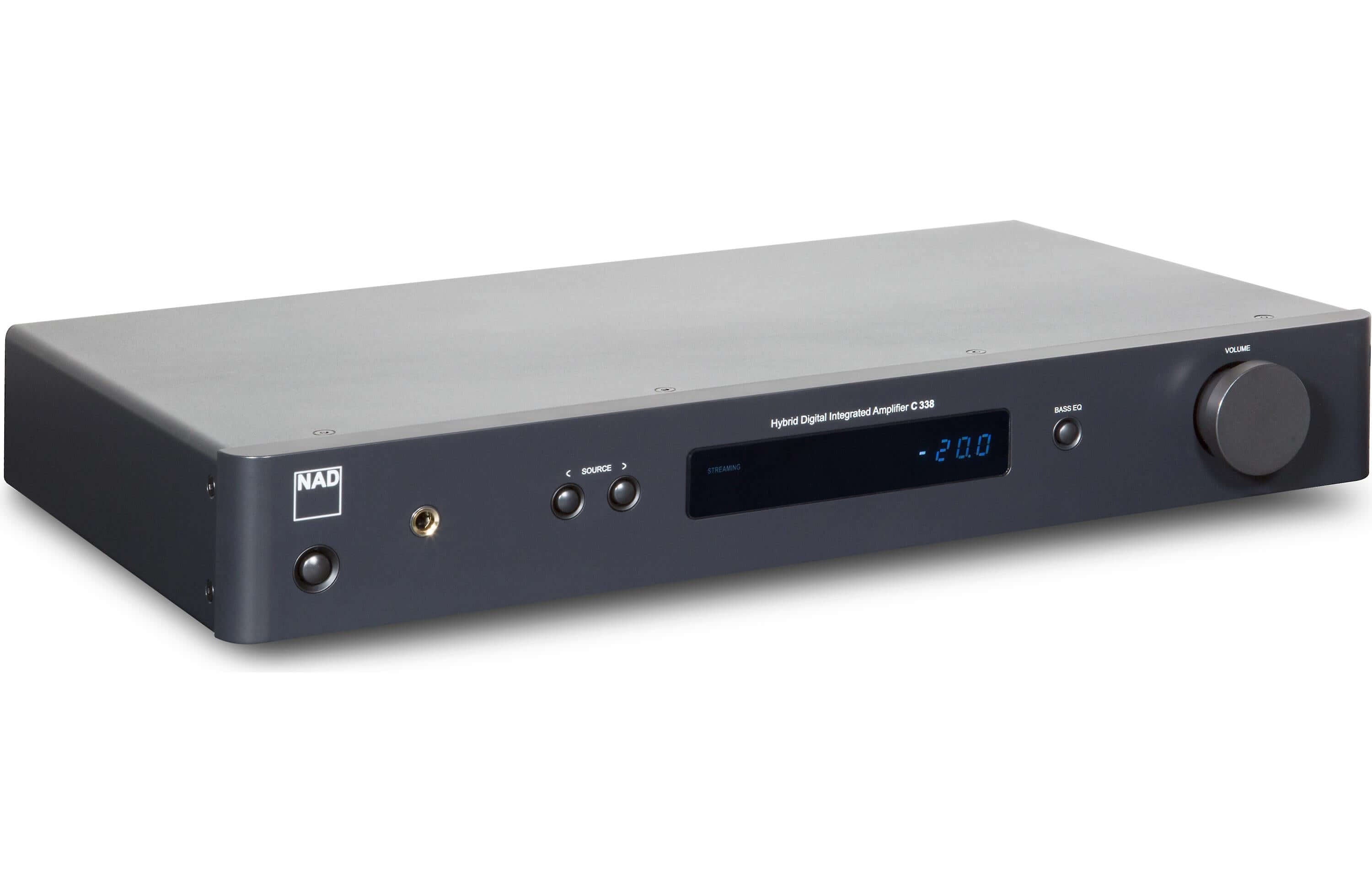

NAD Electronics C 338 Hybrid Digital Integrated Amplifier
NAD's Most Versatile Amplifier Ever with Chromecast built-in and Hybrid Digital Technology
The C 338 adds big sound to your favourite music sources and brings incredible flexibility to any stereo system. The first-ever hi-fi amplifier to have Chromecast built-in, the C 338 allows you to stream and cast music directly from a mobile device or any music streaming app, letting you enjoy your music wirelessly. With Bluetooth also natively integrated, the C 338 can wirelessly connect to any smartphone, tablet, or Bluetooth-enabled device within range so you seamlessly stream your favourite music apps or libraries in high-fidelity. Add a turntable using the phono input and experience the warmth of vinyl collections with the room-filling sound of NAD s Hybrid Digital amp technology. Power, volume, source selection, and device settings are all controlled using the intuitive interface of the NAD Remote App for iOS and Android.
Introducing the NAD C338
Getting the Basics Right
Built with NAD s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.
Hybrid Digital Amp Technology
The search for a high-performance Class D solution led NAD to Hybrid Digital , an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.
Efficient Class D Power
NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound not heat regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338 s highly efficient power supply with a customised Hypex UCD output stage to pump out 160 watts continuously and over 300 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.
Always Ready for Streaming
The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favourite apps on your phone, tablet or laptop to your stereo system. Plus, with Bluetooth integrated and its added flexibility, your music streaming possibilities are truly limitless with the C 338.
Built-in Phono Stage for Vinyl Listening
Connect a turntable to the C 338 with its built-in phono preamp that applies the perfect amplification to your vinyl collection. Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

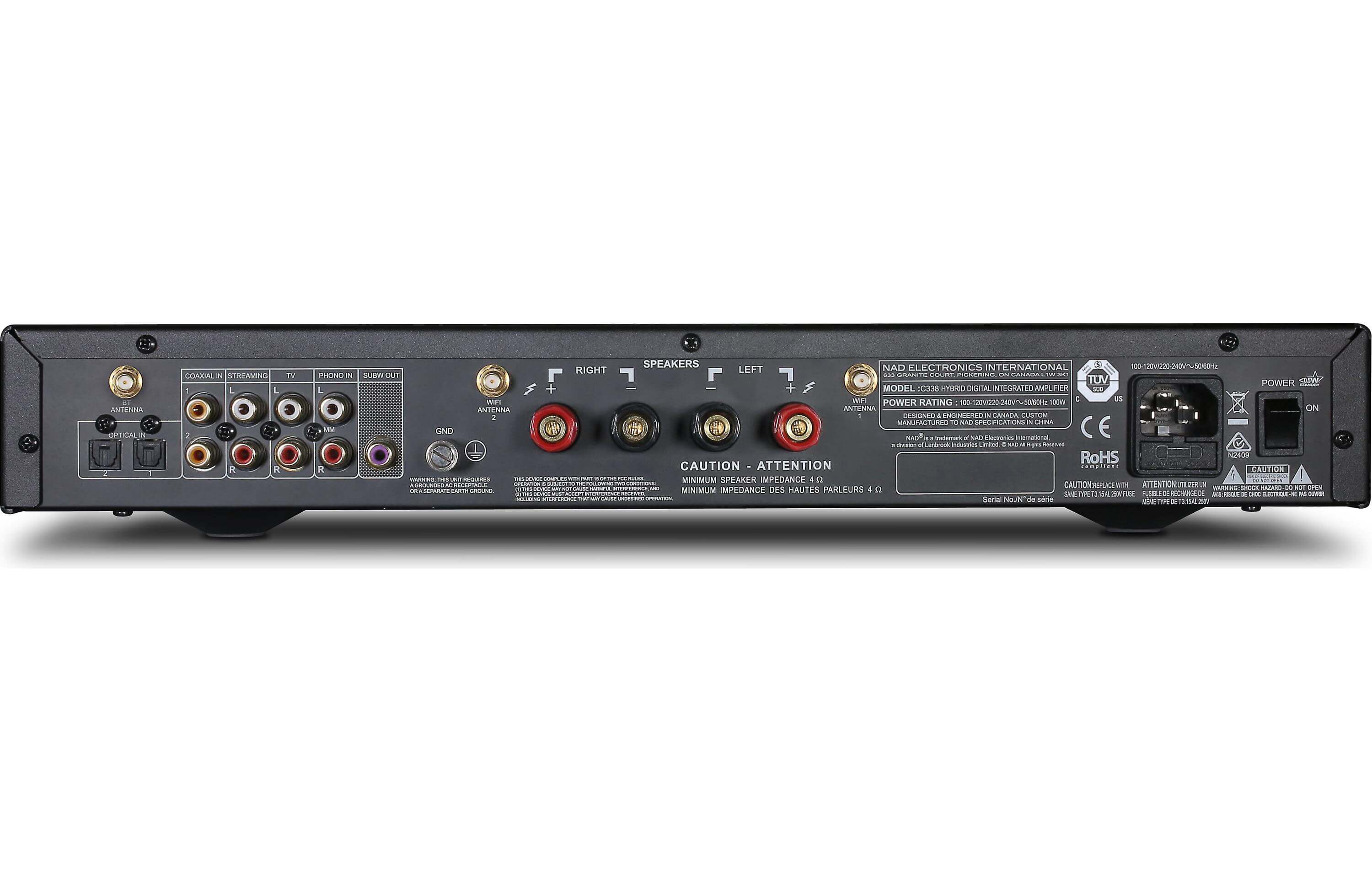

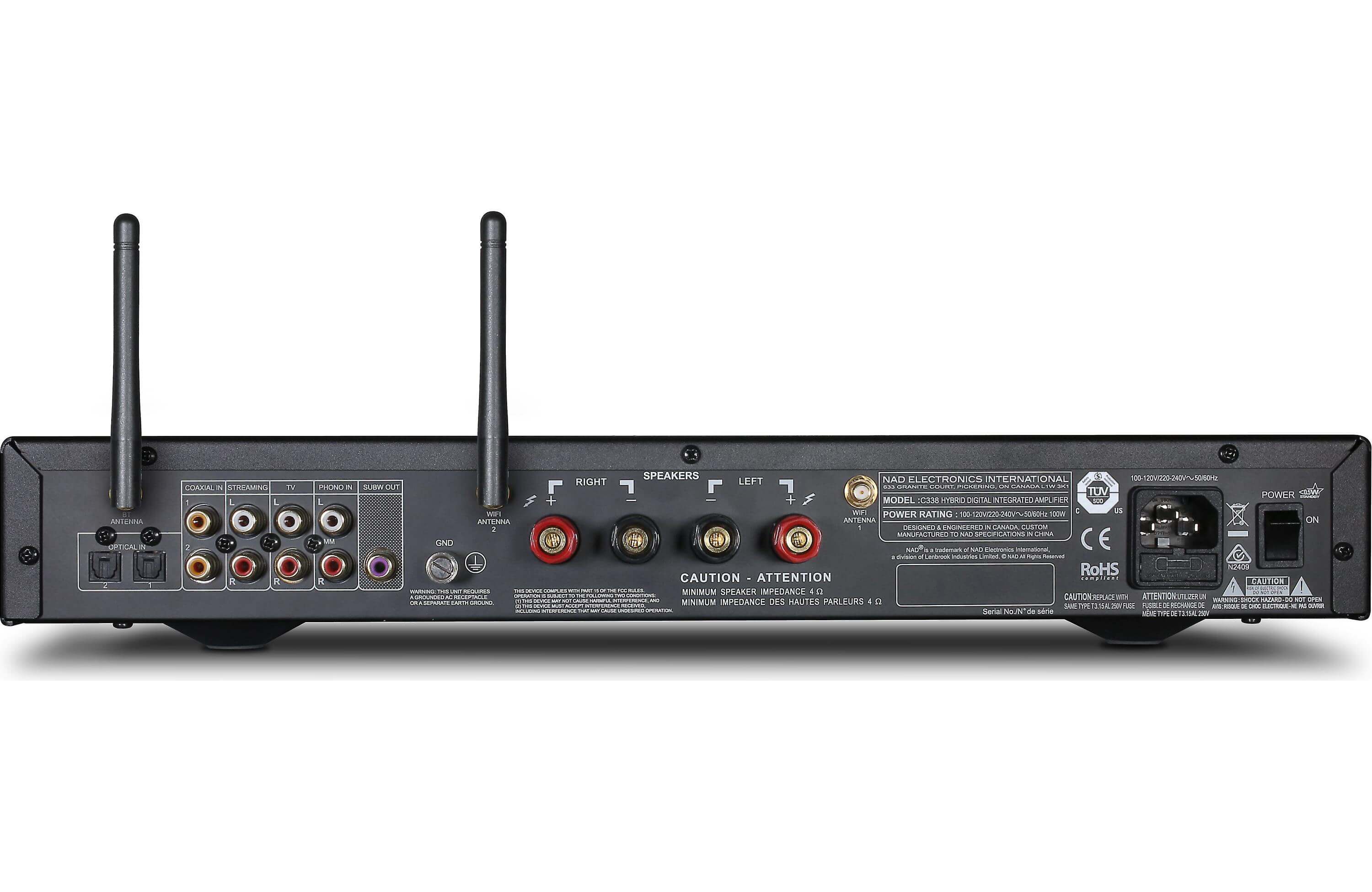

With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analogue source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.
50W x 2 Continuous Power into 8 or 4 ohms
90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
First hi-fi amplifier to feature Chromecast built-in Integrated Bluetooth for added music streaming flexibility
Built-in Phono Preamp for Turntables
Stereo Line, Optical Digital and Coax Digital inputs
NAD Remote App support for tablet and smartphone
Dedicated Headphone Amplifier
TV Audio Input
Continuous Output Power into 4 and 8 (Stereo)
>50W (at rated THD, 20-20kHz, both channels driven)
IHF Dynamic Power
<0.o3% (250mW to 50, 8 and 4
>98dB (A-weighted, 500mV input ref. 1W out in 8 )
>60W (at 1kHz 0.1% THD)
Peak output current
>18A (in 1 , 1 ms)
>300 (ref. 8 , 20Hz and 6.5kHz)
0.3 dB (20Hz-20kHz)
Input Sensitivity (For 50W in 8 )
Line In: 380mV, Digital In: 18%FS
Up to 192kHz/24bit
Dimensions (W x H x D)
435 x 70 x 285mm (17 1/8 x 2 13/16 x 11 1/4)
