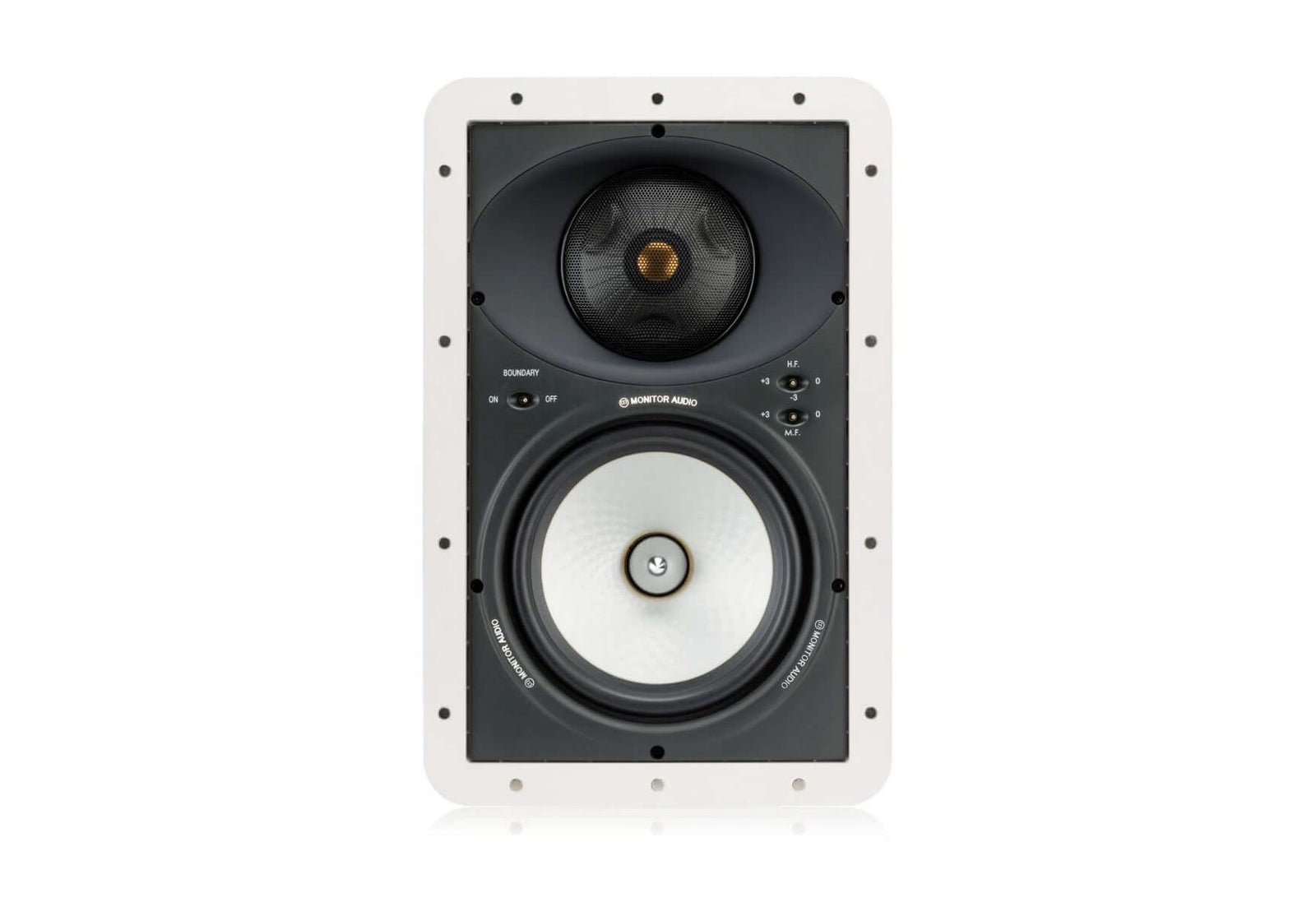

Configured with an 8-inch C-CAM® RST® bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM gold dome tweeter. 3-way design provides deeper bass, higher system output and greater power handling than the 200 Series 3-way models.Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
True 3-way designs.
High overall efficiency.
High frequency level adjustment (+/- 3dB).
Mid frequency level adjustment (+/- 3dB).
Boundary compensation control.
Audio match with CP range 200 & 300 models and Silver & Gold GX Series hi-fi speakers.
Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
Magnetic and easily removable steel grille.
All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
45 Hz - 30 kHz
Power Handling (RMS)
Recommended Amp Requirements
30 - 120 W
Drivers Unit Complement
8” C-CAM® cone bass driver featuring RST®, pivoting IDC module housing:
4” C-CAM RST inverted mid range driver
1” C-CAM gold dome tweeter
HF Level Switch (+3dB / 0dB / -3dB)
MF Level Switch ( +3dB / 0dB / -3dB )
Boundary Compensation Switch
Overall Dimensions:(including grille) (H x W)
441 mm x 288 mm
(17 3/8 inch x 11 5/16 inch)
Overall Depth:(including grille)
Cut Out Dimensions: (H x W)
387 mm x 234 mm
(15 1/4 inch x 9 3/16 inch)
(3 13/16 inch)
6 position Tri-Grip® dog leg fixings
Mineral Filled ABS Plastic
