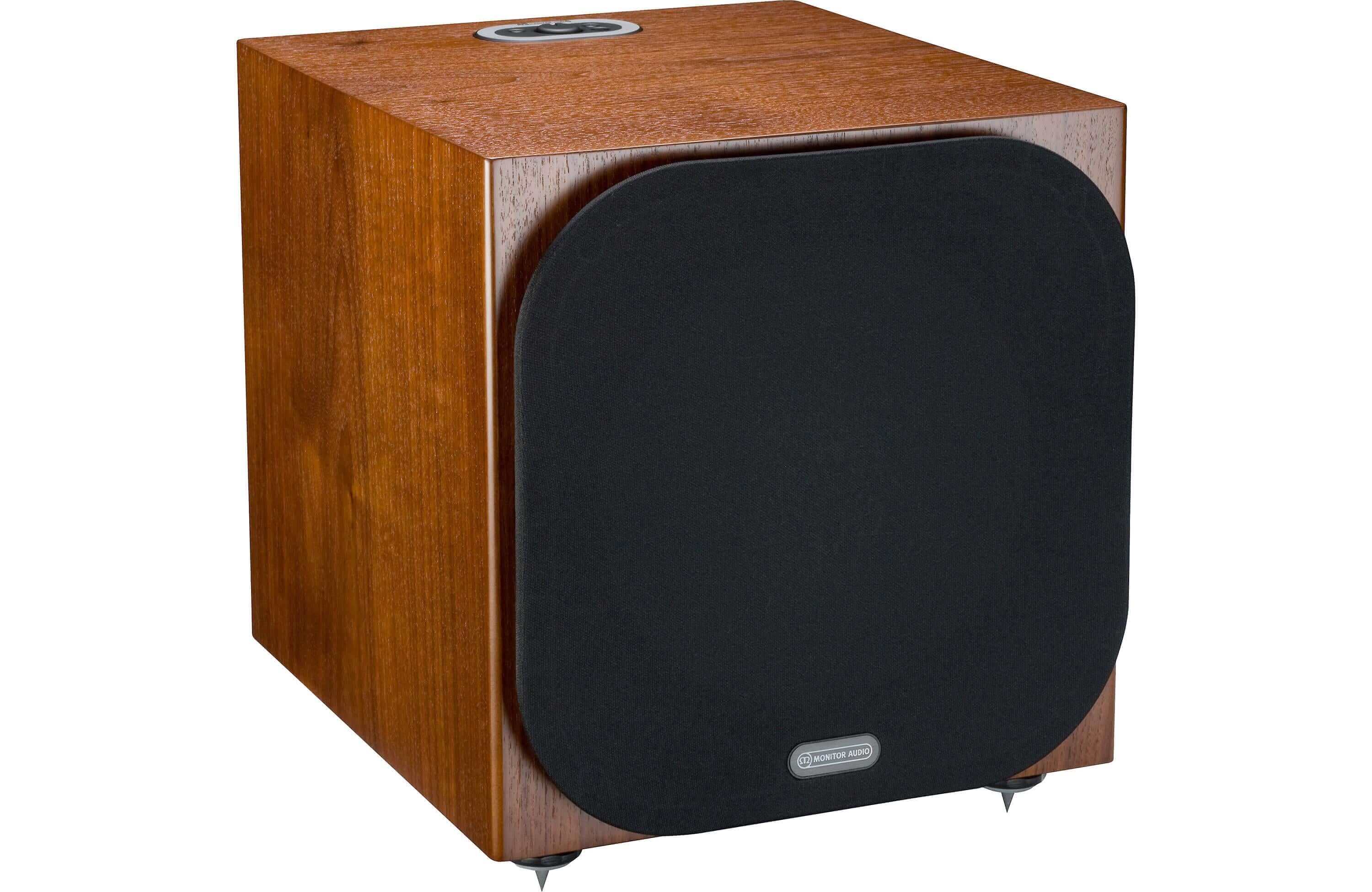

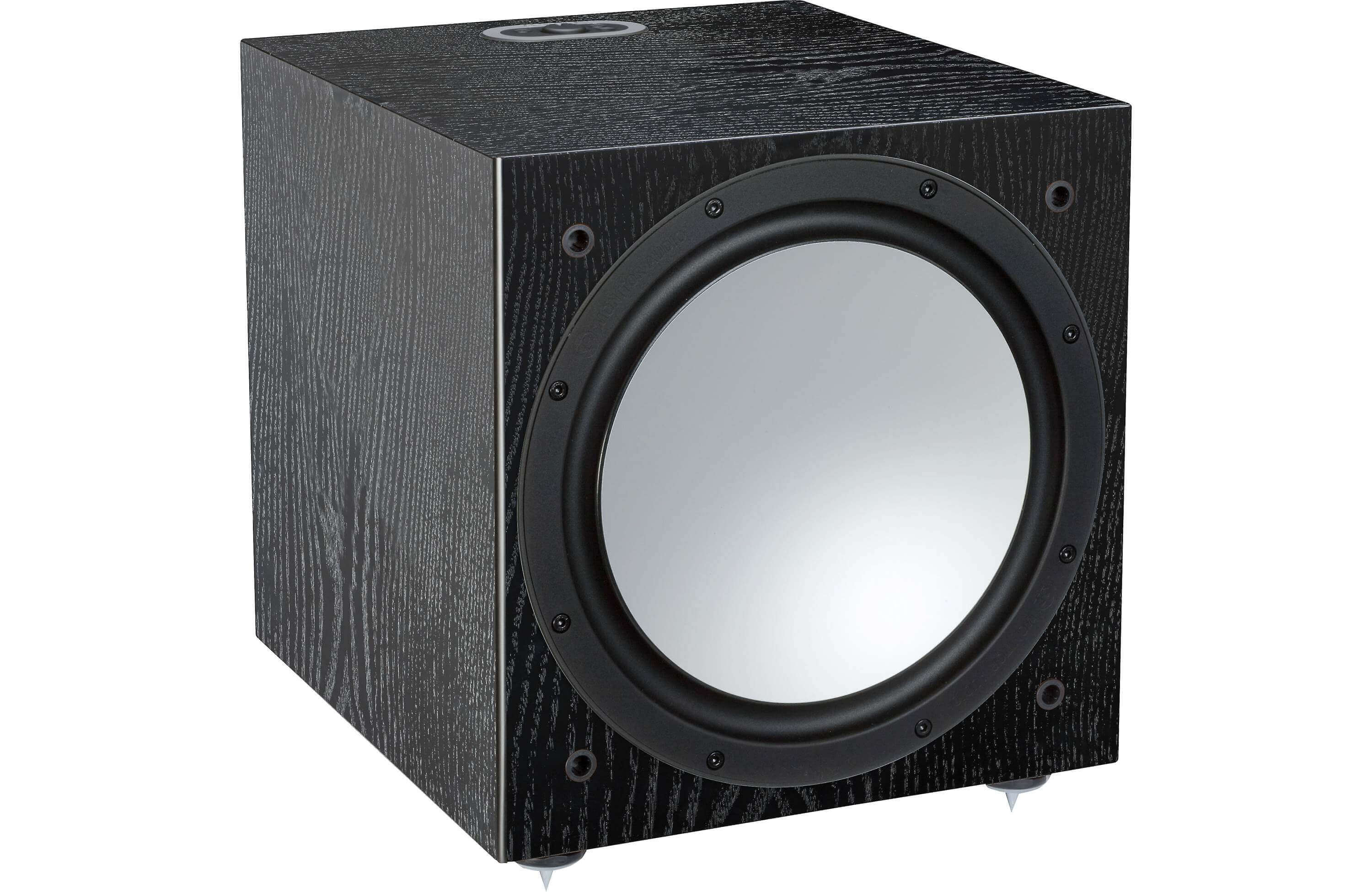

Monitor Audio Silver W-12 12 Inch Powered Subwoofer

by Monitor Audio
UPC:
Call for Availability
$2,200.00

SKU SilverW12BlackGloss

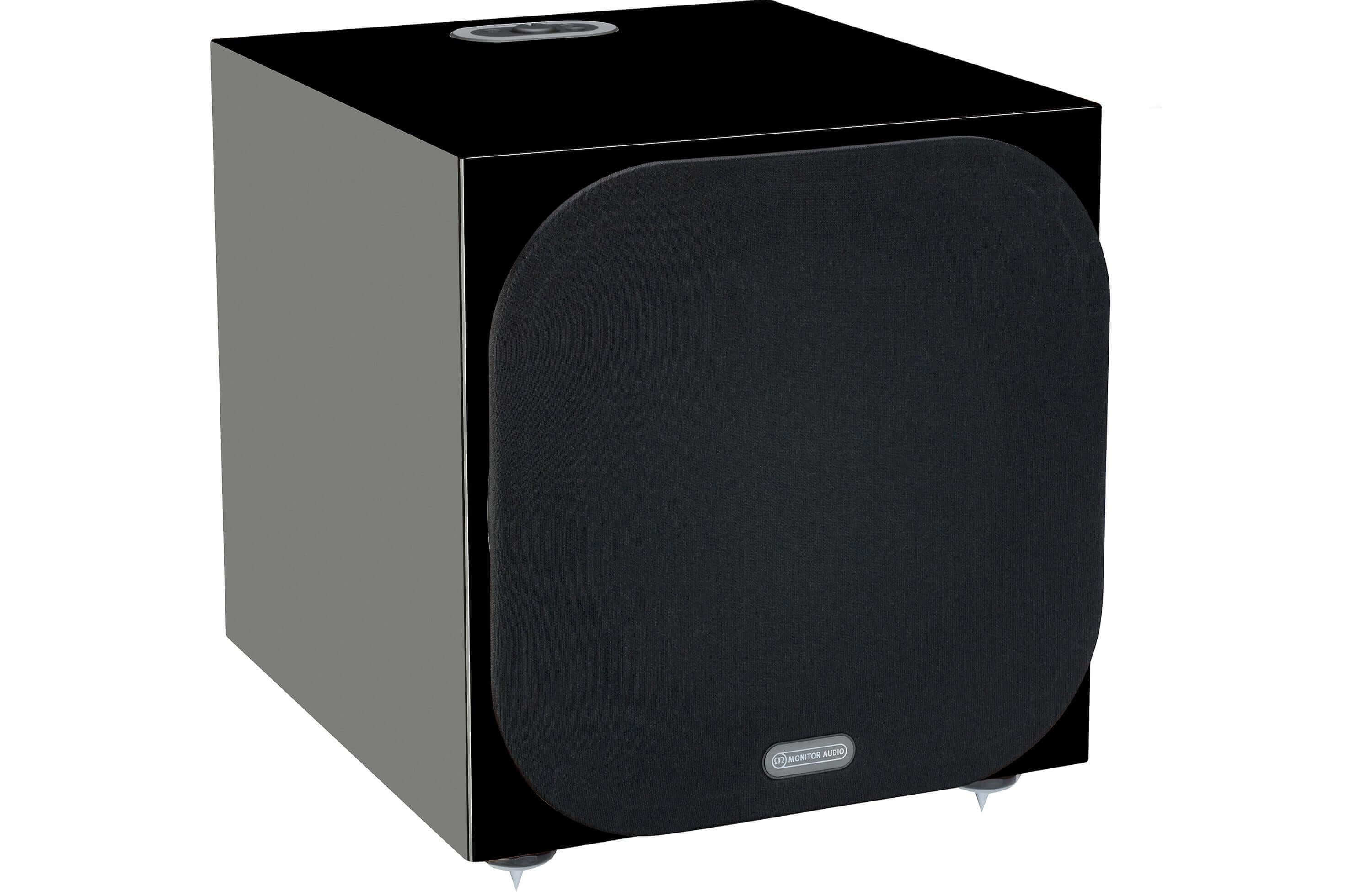

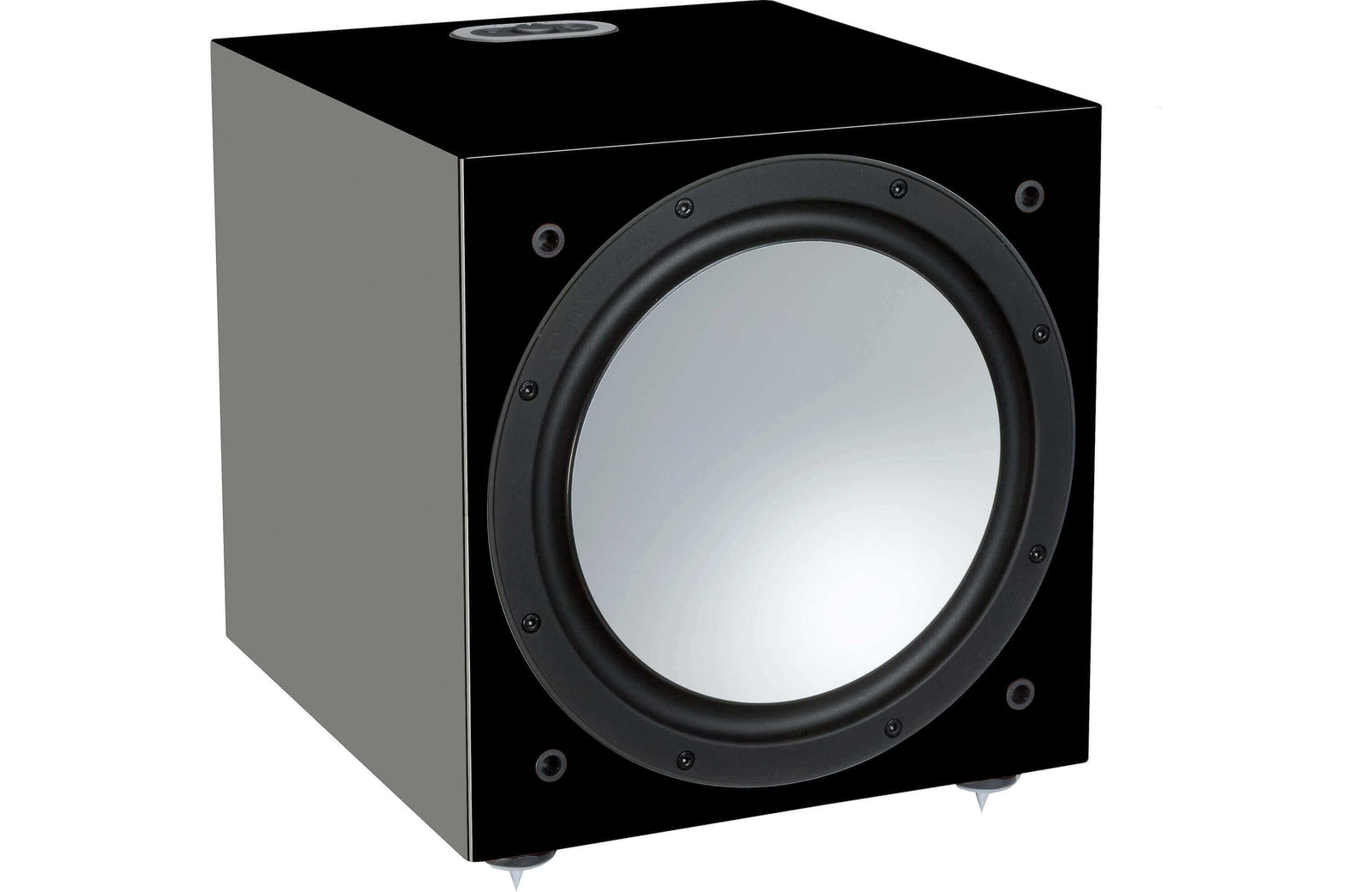

Color: Gloss Black

Product Qualifies for FREE Ground Shipping

Monitor Audio Silver W-12 12 Inch Powered Subwoofer

The Monitor Audio Silver Series subwoofer delivers seismic bass right down to 22 Hz using a powerful, long throw 12-inch driver.

The Silver W-12 s over-specified driver assembly employs a hugely powerful magnet system and massive voice coil to deliver immense power from the compact sealed cabinet. A heavy-duty diecast basket not only holds the massive system rigidly together, but also assists thermal sinking to keep the driver cool.

For the Silver W-12 subwoofer Monitor Audio specified a 500-watt Class-D amplifier and power-supply module from highly-regarded amplifier specialist Hypex; this provides incredible headroom and utilises advanced switch-mode power conversion techniques. A powerful DSP has been employed to deliver the best performance and filter characteristics, while running the unique APC (Automatic Position Correction) system. The APC is a completely in-house development, designed to automatically correct for room modes. It uses a microphone and test tones to calculate detrimental room modes and correct frequency response, optimising it for the room and position. This is a simple and quick automated process that is a complete revelation to the installer and ensures the user can enjoy the subwoofer quality without positioning restrictions.

At the heart of the Silver W-12 lies a sophisticated 32-bit micro-controller, monitoring performance thousands of times per second, ensuring the system can deliver the best possible bass. It will never become over-driven or distorted, even at maximum power.

Key Features

  • Ultra long-throw 12-inch driver featuring dished C-CAM cone
  • Triple suspension for ultimate linearity ensuring control at high power and excursions
  • Oversized black anodised 3-inch voice coil which provides high power-handling and low distortion
  • Powerful 500 W RMS Class-D amplifier with switching power supply provides instantaneous delivery of high current when required
  • DSP processing with all control features and crossover performed digitally
  • Automatic Position Correction plus automatic room setup feature using microphone for simple system optimization
  • USB for firmware updates
  • Three preset EQ mode settings (Music, Movie, Impact)
Specs

Lower Frequency Limit
20 Hz (Typical IEC room)

Upper Frequency Limit
40 120 Hz variable

Low Pass Filter Alignment
Active 4th order 24 db/octave

Amplifier Output
500 W continuous

Amplifier Classification
Class-D amplifier with switched-mode power supply (SMPSU)

Bass EQ Profiles
1: Movie
2: Music
3: Impact

Phase Control
0 & 180 degrees

Auto Sensing
Line Level >2 mV

Input Level Requirements
Standby after 20 minutes if no signal sensed

Drive Unit Complement
1 x 12" C-CAM subwoofer driver featuring triple suspension and 3" long throw voice coil

Trigger Input
5 12 V via 3.5 mm mono mini-jack socket

Cabinet Dimensions (Excluding Grille and Terminals (H x W x D))
340 x 340 x 380 mm (133/8" x 133/8" x 1415/16 )

Dimensions (Including Grille, Amp and Feet)
370 x 340 x 410 mm (149/16" x 133/8" x 161/8 )

Mains Input Voltage
110 120 Vac /
220 240 Vac 50/60 Hz (Electronically Auto selected)

Power Consumption
400 W / 0.5 W in Standby (ErP approved)

Weight (unpacked)
20.1 kg (44 lb 5 oz)

Sold As
Single Unit
