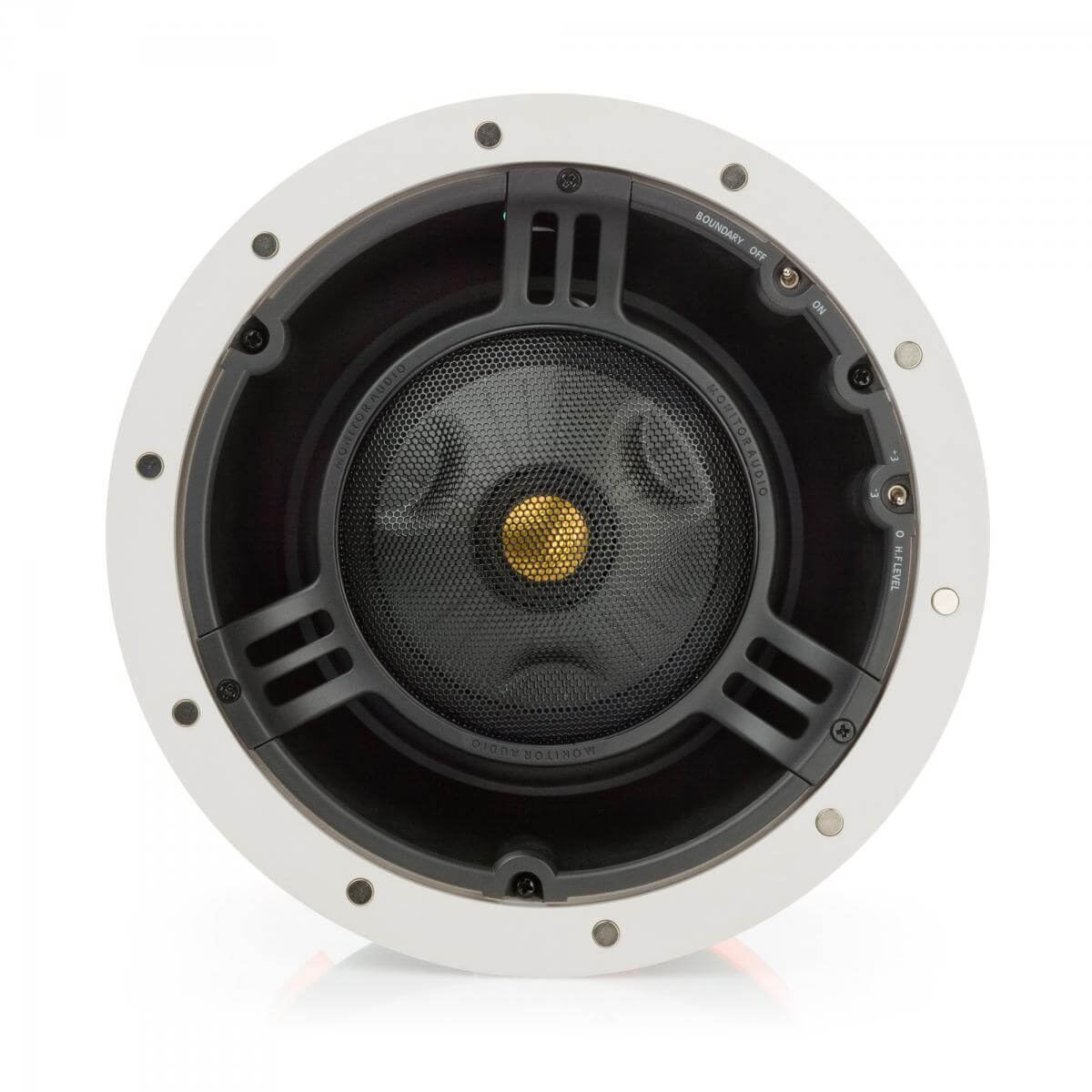

Monitor Audio CT280-IDC Trimless 200 8" Pivoting In-Ceiling Speaker (Each)

UPC: 5060028972463
Call for Availability
$500.00

SKU CT280-IDC
Features an 8-inch C-CAM® bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST® inverted midrange driver and a 1-inch C-CAM gold dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3dB /0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.

  • Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in  all directions. Easily directed during post install set-up.
  • C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
  • Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
  • True 3-way designs.
  • High overall efficiency.
  • High frequency level adjustment (+/- 3dB).
  • Boundary compensation control.
  • Audio match with CP range 200 models and Silver Series hi-fi speakers.
  • Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.
  • Magnetic and easily removable steel grille.
  • All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • All models are splash and humidity proof for installation in shower rooms or pool areas.
  • All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
  • Specs
    Frequency Response
    50 Hz - 30 kHz

    Impedance (Nominal)
    6 Ohms

    Sensitivity (1W@1M)
    90 dB

    Maximum SPL
    111.6 dBA

    Power Handling (RMS)
    120 W

    Recommended Amp Requirements
    30 - 120 W

    Drivers Unit Complement
    8” C-CAM® cone bass driver, pivoting IDC module housing: 4” C-CAM RST® inverted mid range driver 1” C-CAM gold dome tweeter

    Adjustment Controls
    HF Level Switch (+3dB / 0dB / -3dB) Boundary Compensation Switch

    Overall Diameter:(including grille)
    285 mm (11 1/4 inch)

    Overall Depth:(including grille)
    160 mm (6 5/16 inch)

    Cut Out Diameter
    247 mm (9 3/4 inch)

    Mounting Depth
    156 mm (6 1/8 inch)

    Fixing Type
    3 position Tri-Grip® dog leg fixings

    Construction Material
    Mineral Filled ABS Plastic

    Pre-Construction Bracket
    CB8 (Green)

    Weight
    3.42kg (7lb 8oz)
