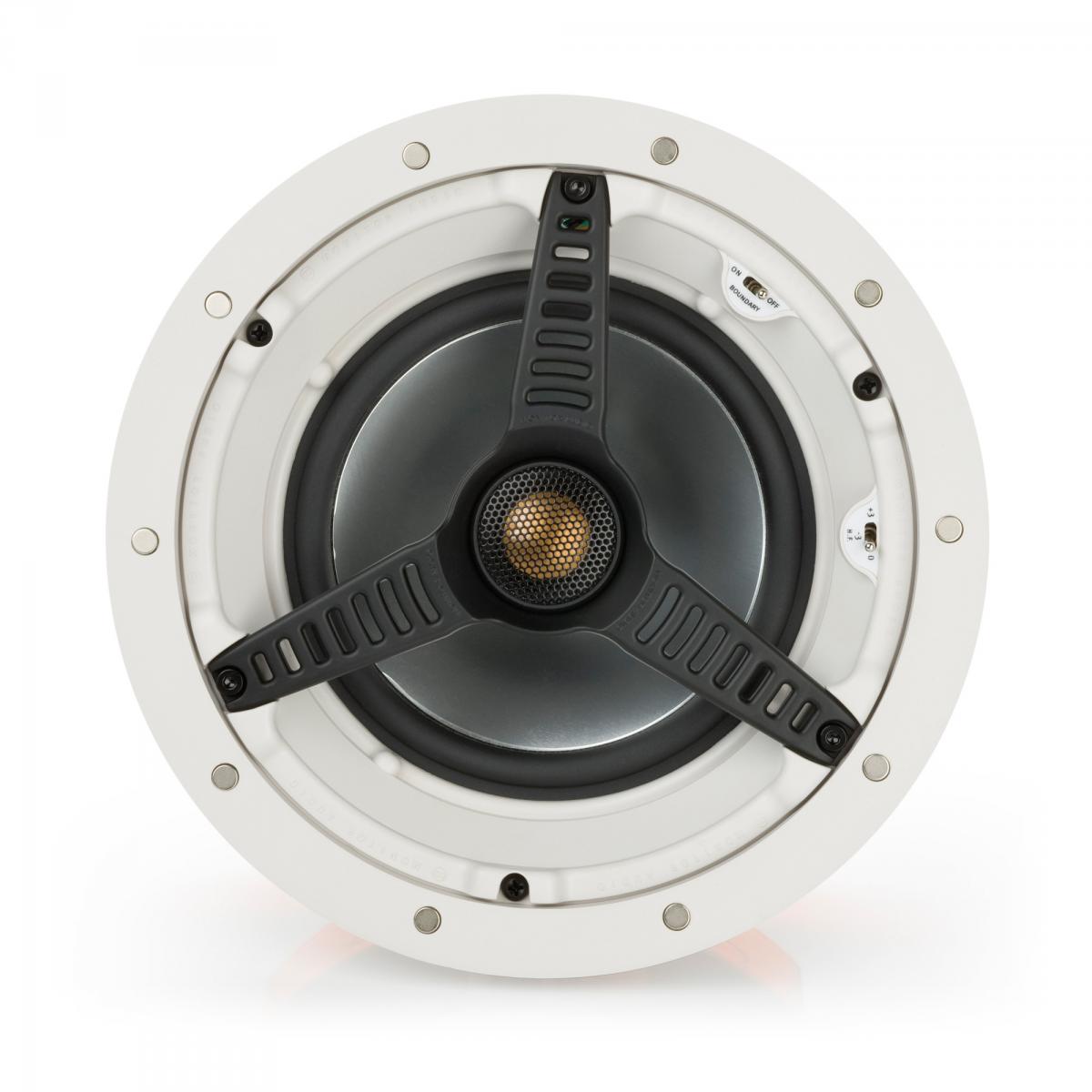

A 6.5-inch C-CAM bass driver and a more highly specified version of the C-CAM gold dome tweeter offer an extended high-frequency response to 30kHz, as well as higher output and power handling capacity than the 100 Series 2-way models. Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3dB / 0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.2-way design with pivoting C-CAM tweeters (15 degrees of play).
High overall efficiency.
High frequency level adjustment (+/-3dB).
Boundary compensation control.
Audio match with CP range 200 models and Silver Series hi-fi speakers.
Innovative Tri-Grip system providing three times the surface area and a better surface seal maximising bass response and mid-range clarity.

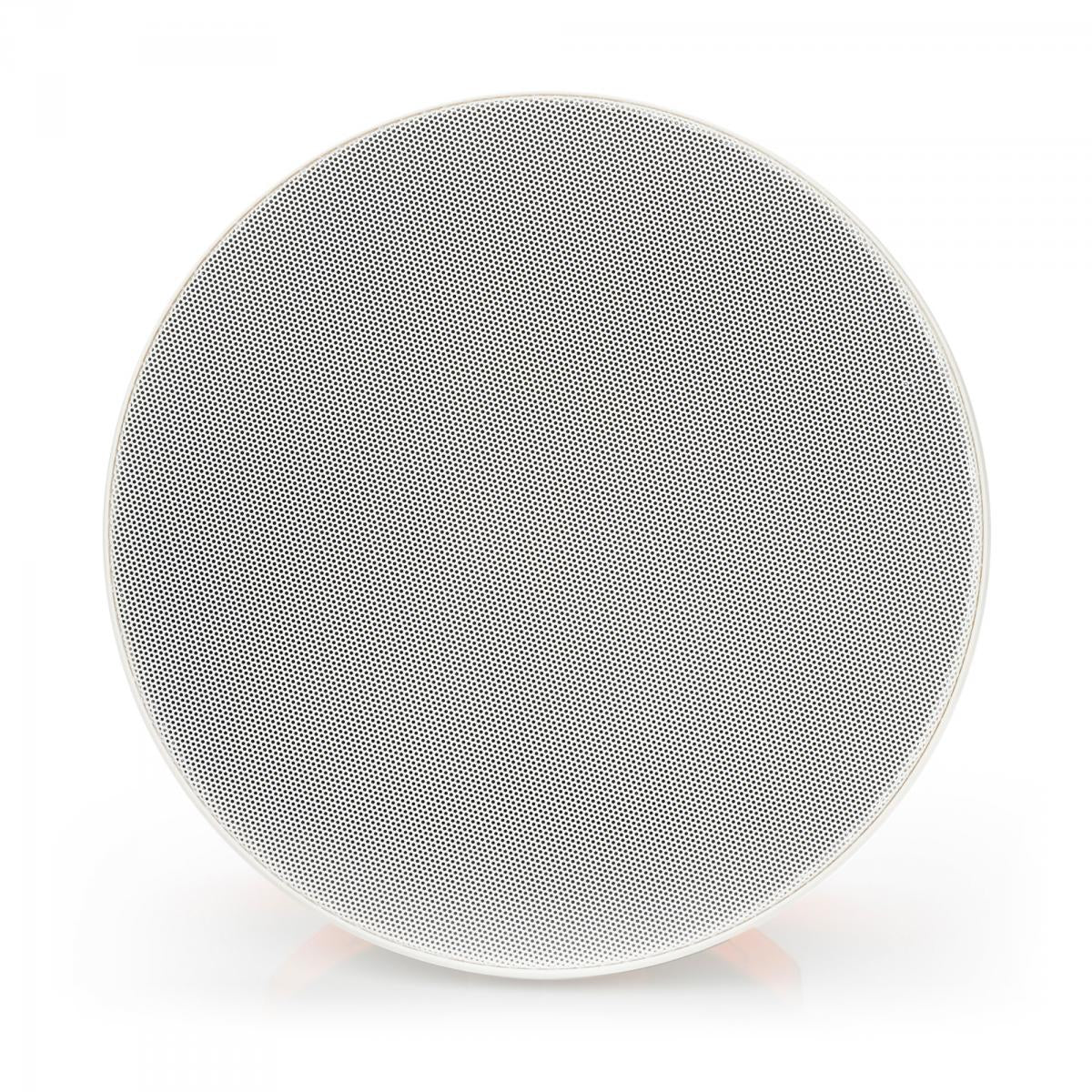

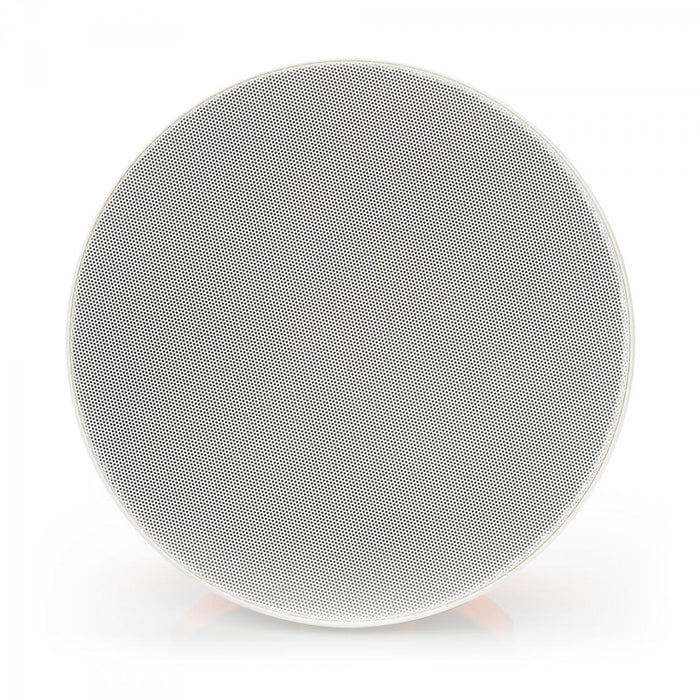

Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Splash and humidity proof for installation in shower room or pool areas.
Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
60 Hz - 30 kHz
Power Handling (RMS)
Recommended Amp Requirements
20 - 75 W
Drivers Unit Complement
6.5 C-CAM cone bass driver
1 C-CAM pivoting gold dome tweeter
HF Level Switch (+3dB / 0dB / -3dB)
Boundary Compensation Switch
Overall Diameter:(including grille)
(9 13/16 inch)
Overall Depth:(including grille)
(4 5/8 inch)
Cut Out Diameter
(8 1/4 inch)
(4 1/2 inch)
3 position Tri-Grip dog leg fixings
Mineral Filled ABS Plastic
2.04kg (4lb 8oz)
