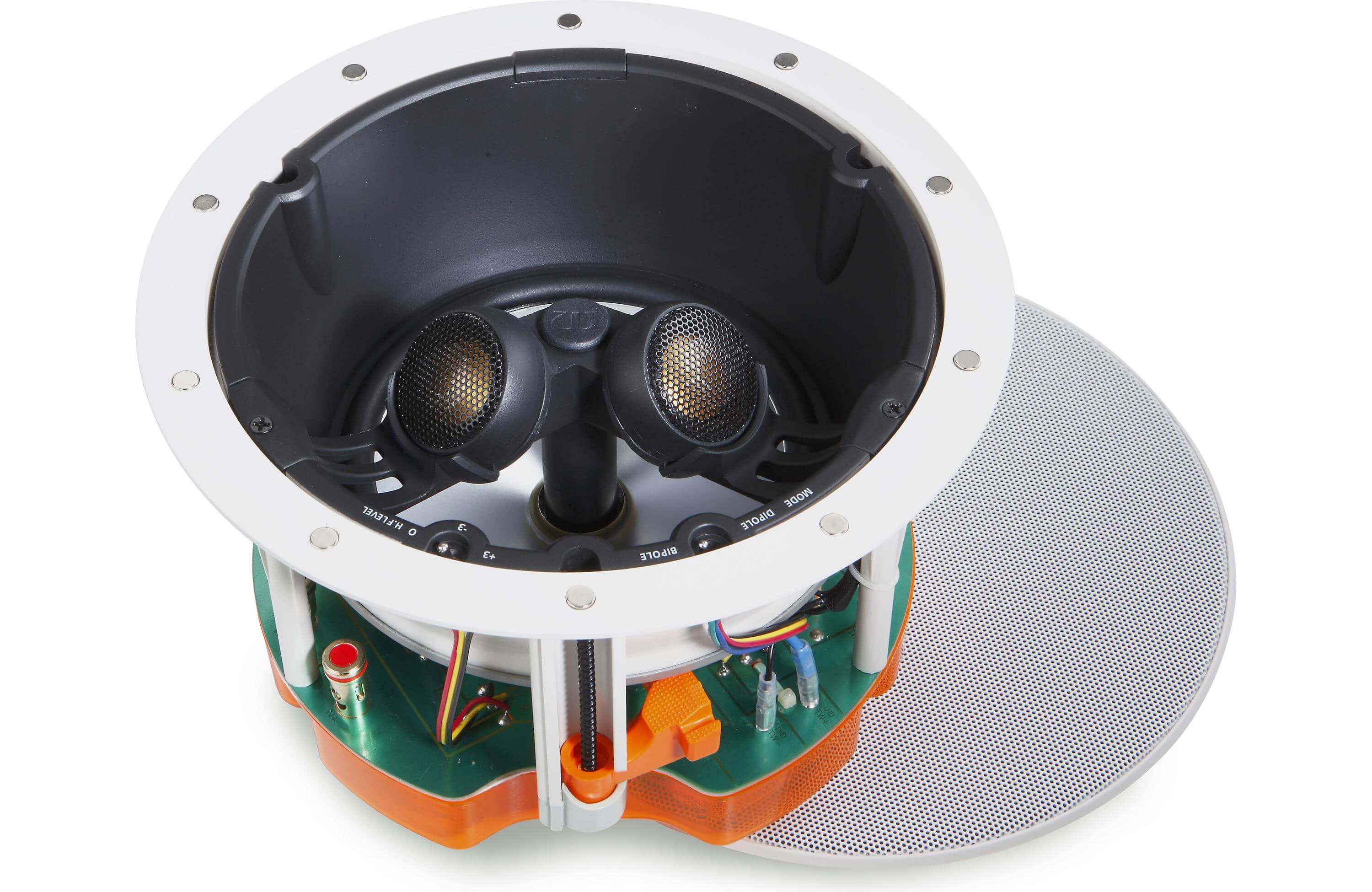

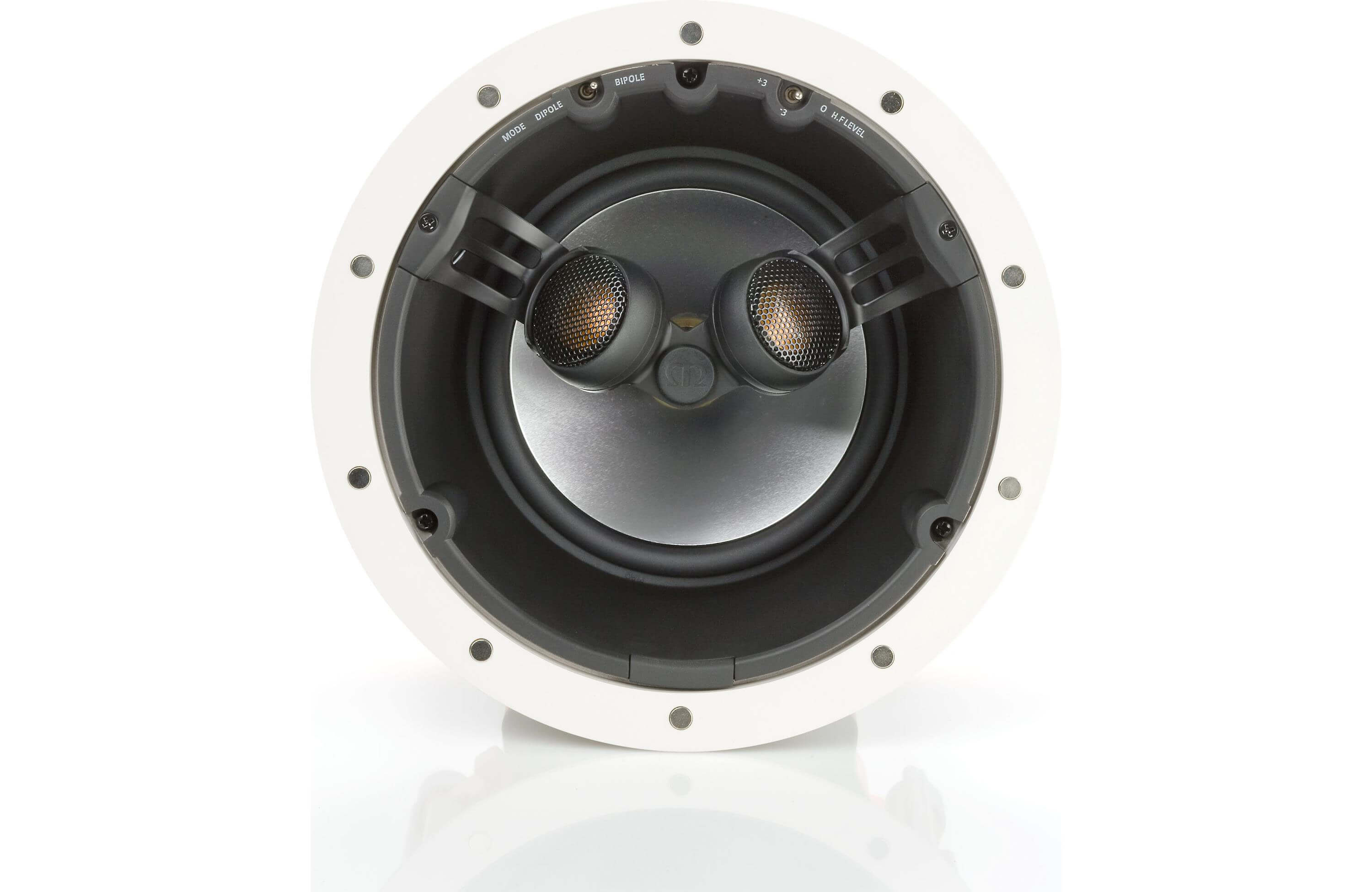

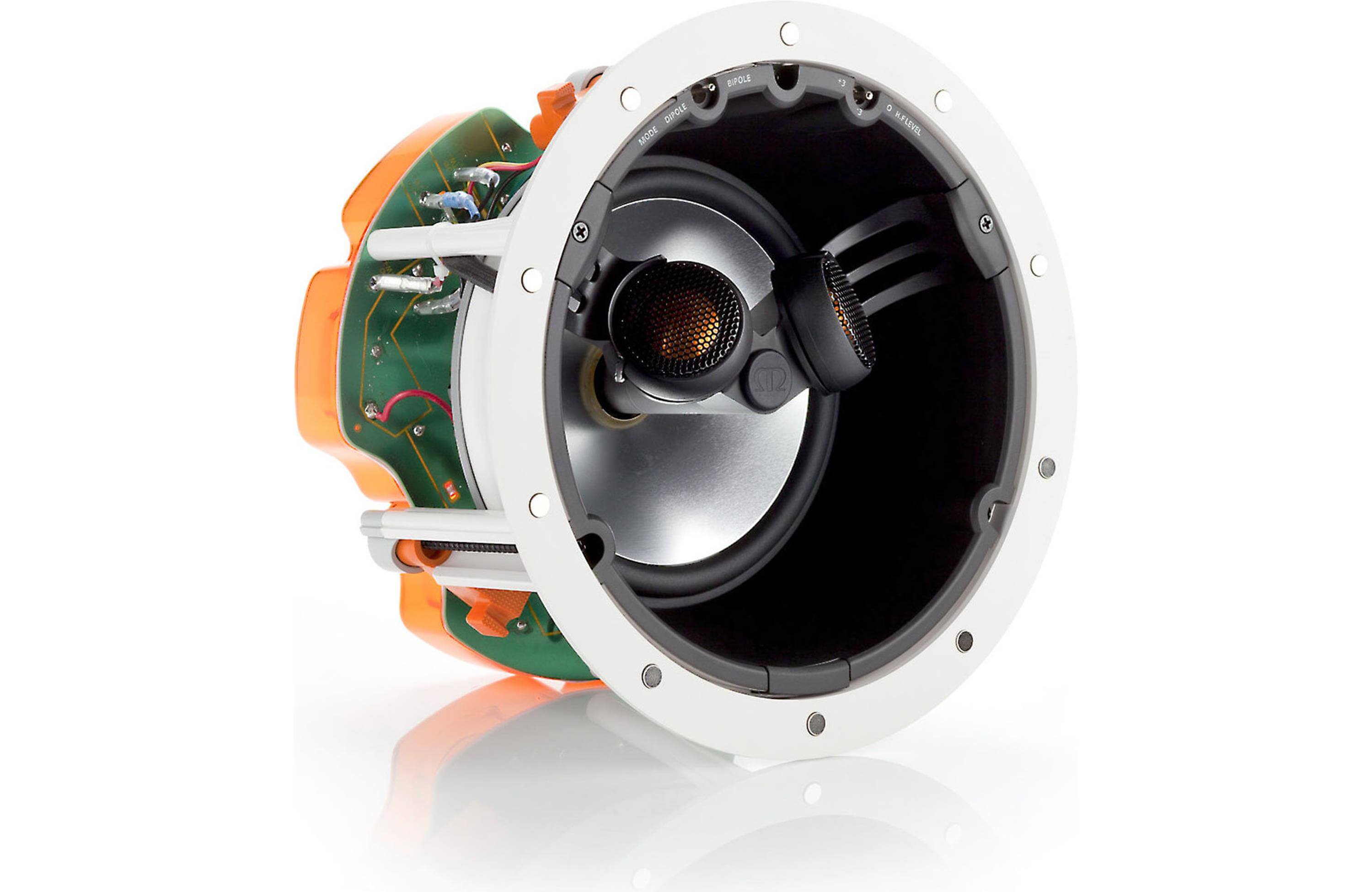

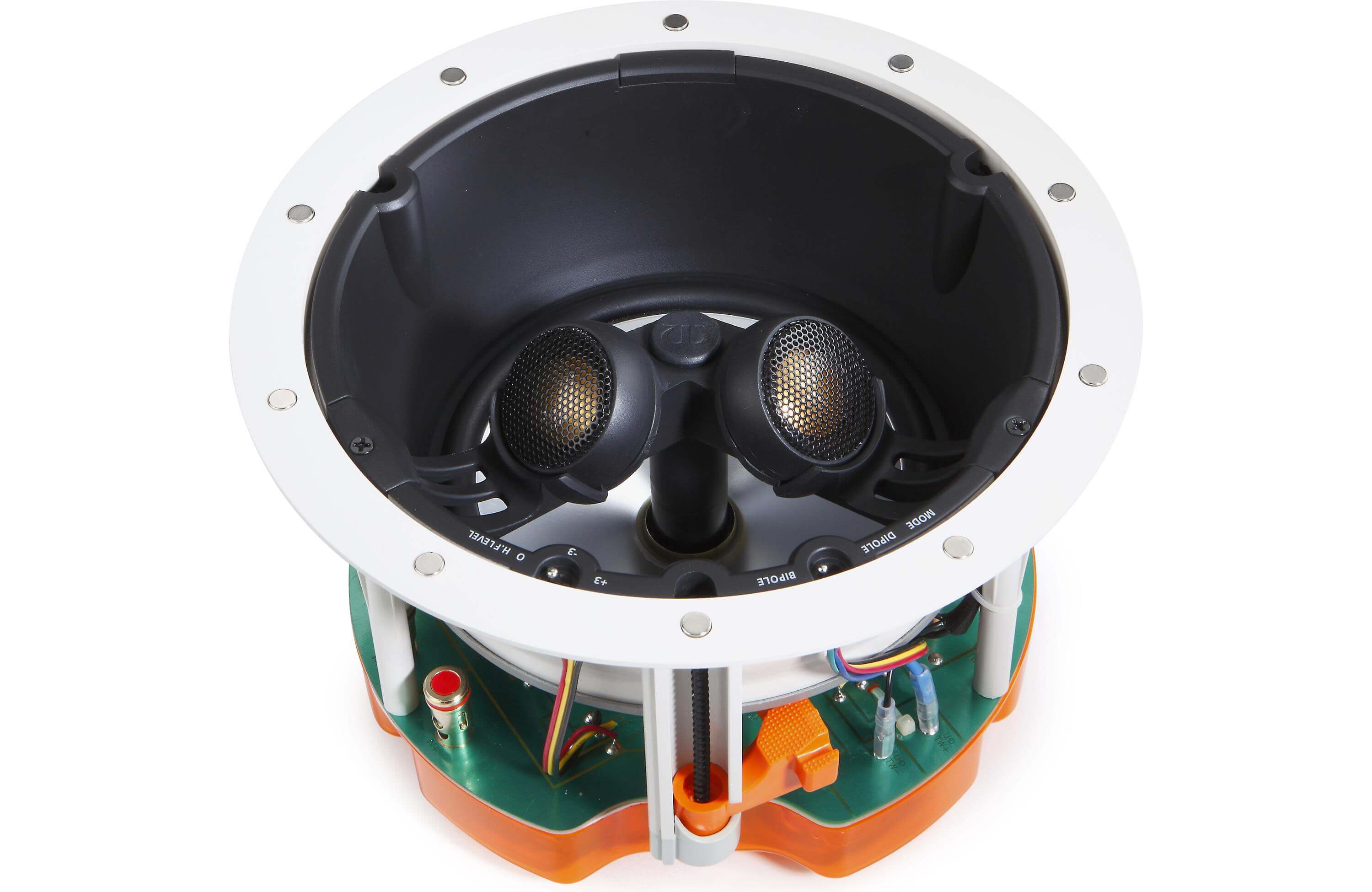

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound. Incorporates a 6.5-inch C-CAM® bass driver and dual 1-inch C-CAM gold dome tweeters mounted at a precise fixed-angle for optimised performance.Dual tweeter configuration for use in di-pole or bi-pole mode.
C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
High overall efficiency.
High frequency level adjustment (+/- 3dB).
Boundary compensation control.
Audio match with CP range 200 models and Silver Series hi-fi speakers.

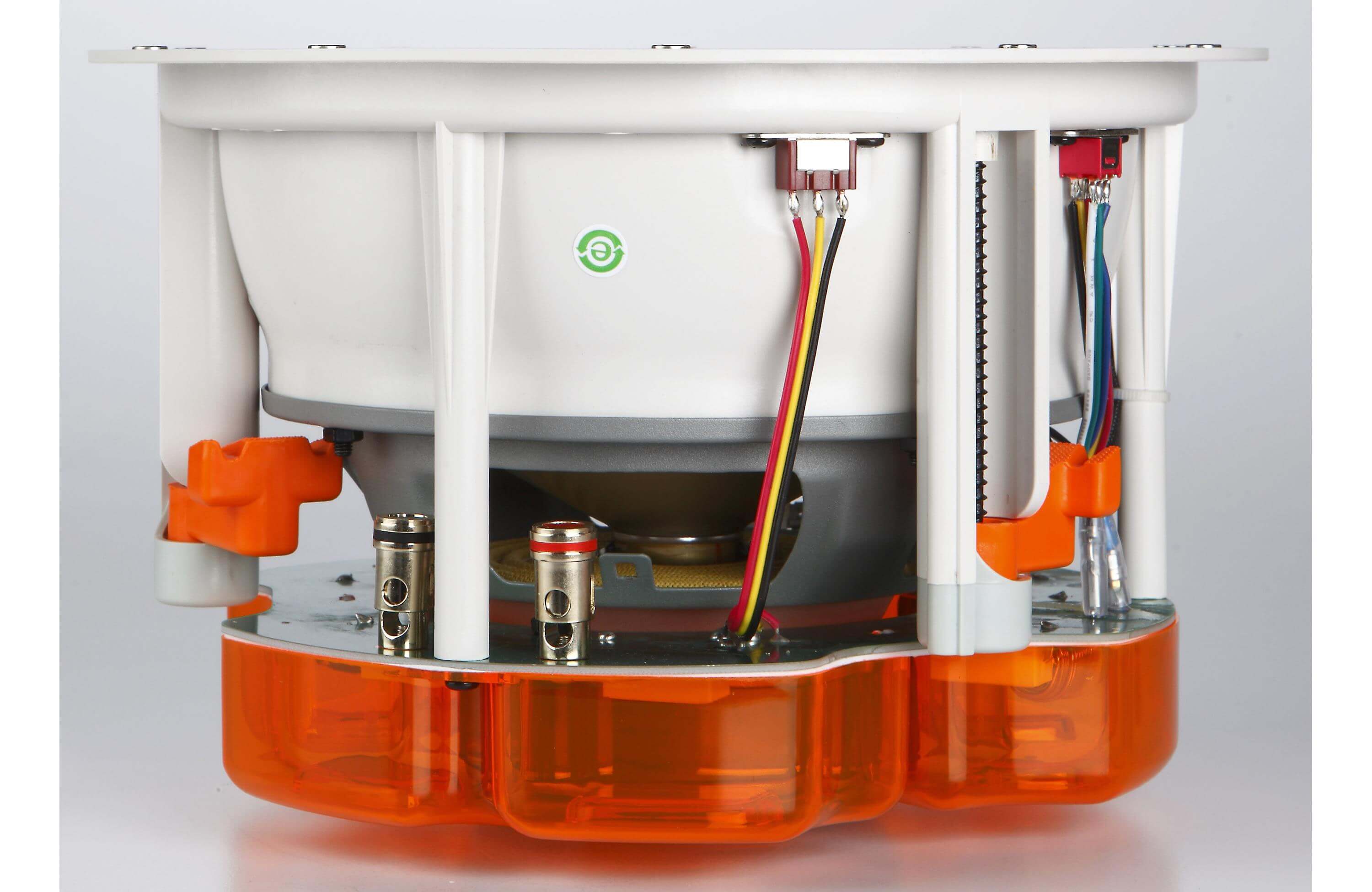

Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

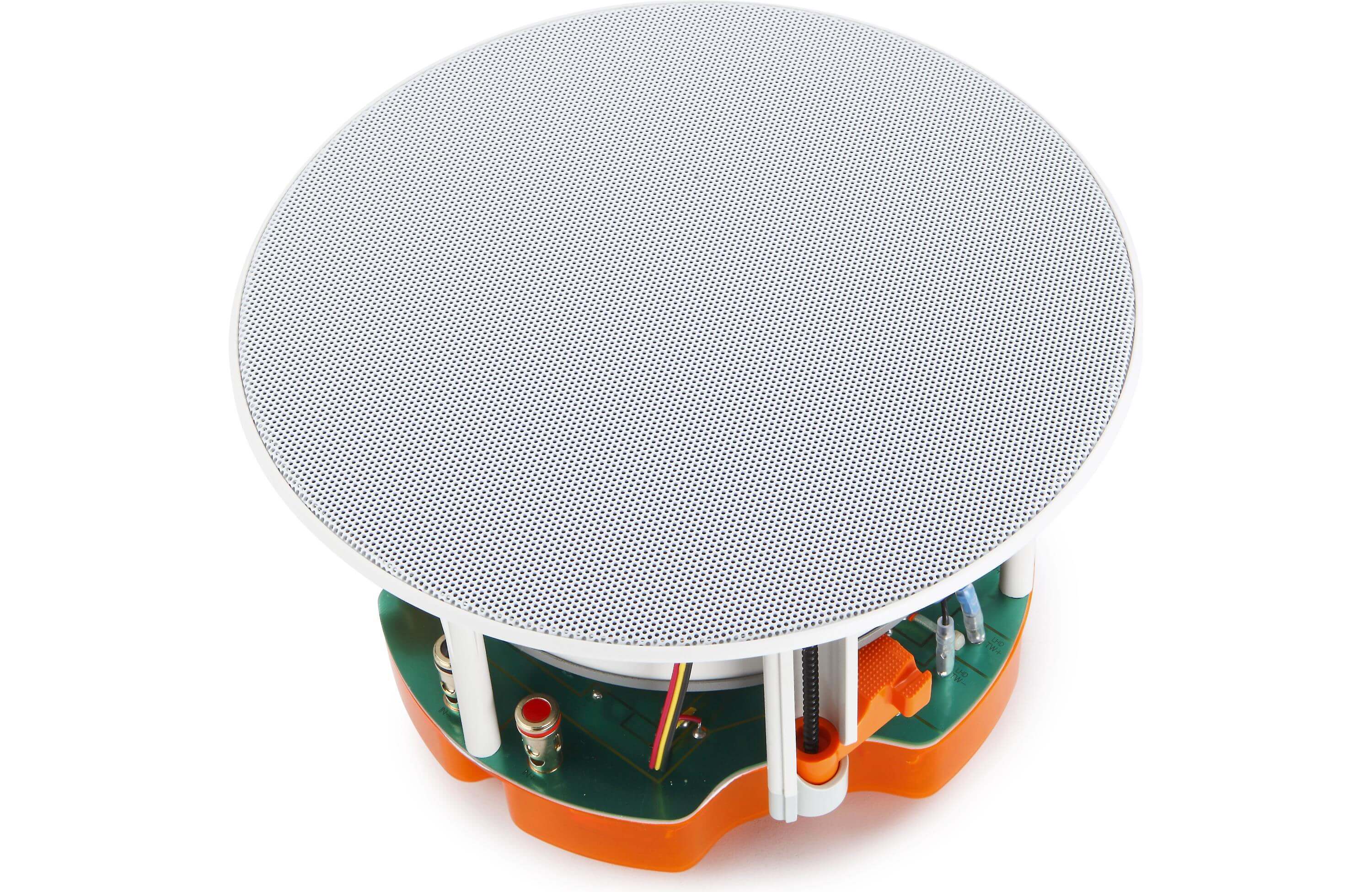

Magnetic and easily removable steel grille.
All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
All models are splash and humidity proof for installation in shower rooms or pool areas.

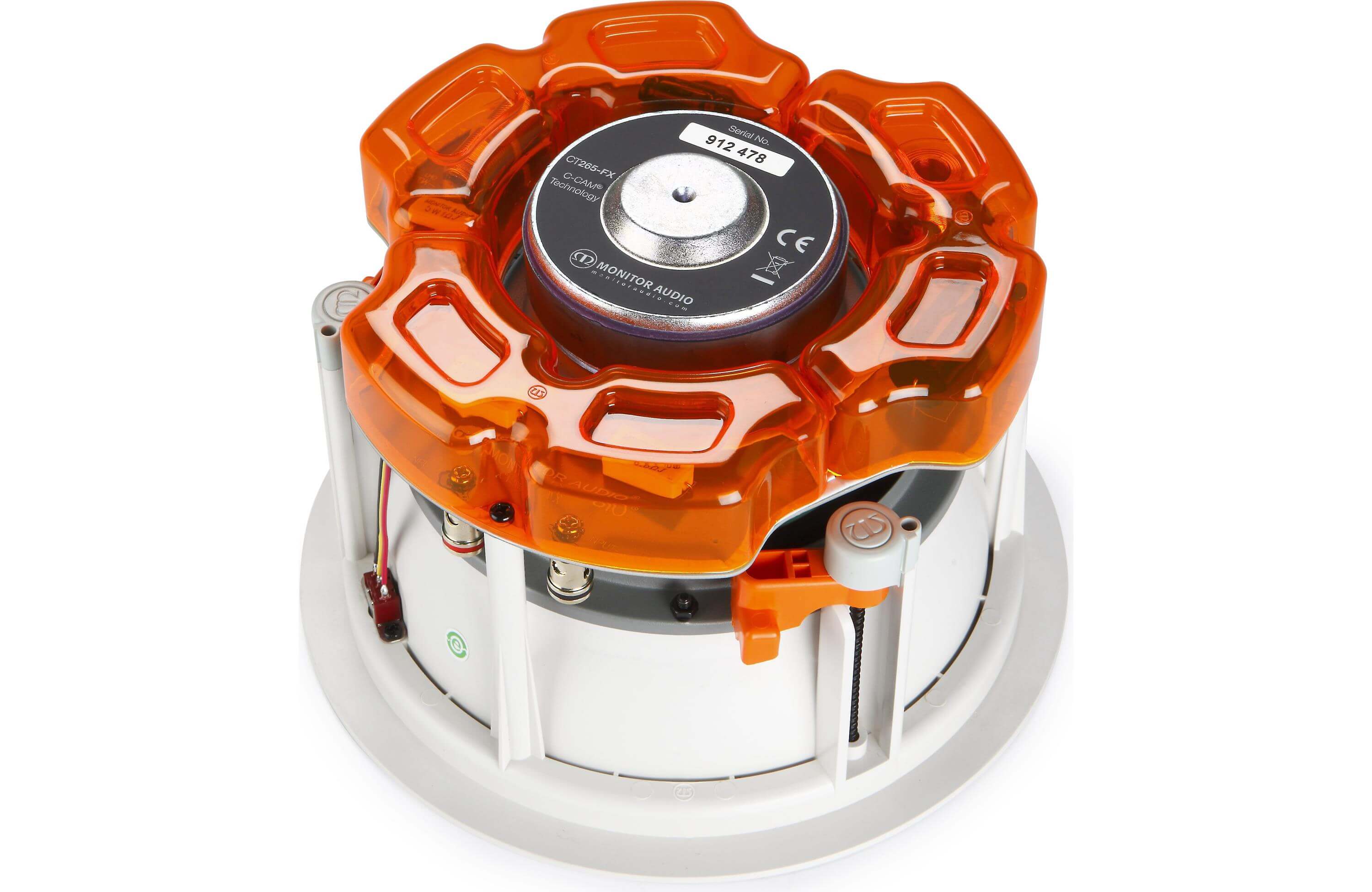

All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
60 Hz - 30 kHz
Power Handling (RMS)
Recommended Amp Requirements
20 - 85 W
Drivers Unit Complement
6.5” C-CAM® cone bass driver
2 x 1” C-CAM fixed angle gold dome tweeters
HF Level Switch (+3dB / 0dB / -3dB)
Bi pole / Di pole Switch
Overall Diameter:(including grille)
(9 13/16 inch)
Overall Depth:(including grille)
Cut Out Diameter
(8 1/4 inch)
(5 7/8 inch)
3 position Tri-Grip® dog leg fixings
Mineral Filled ABS Plastic
2.08kg (4lb 10oz)
