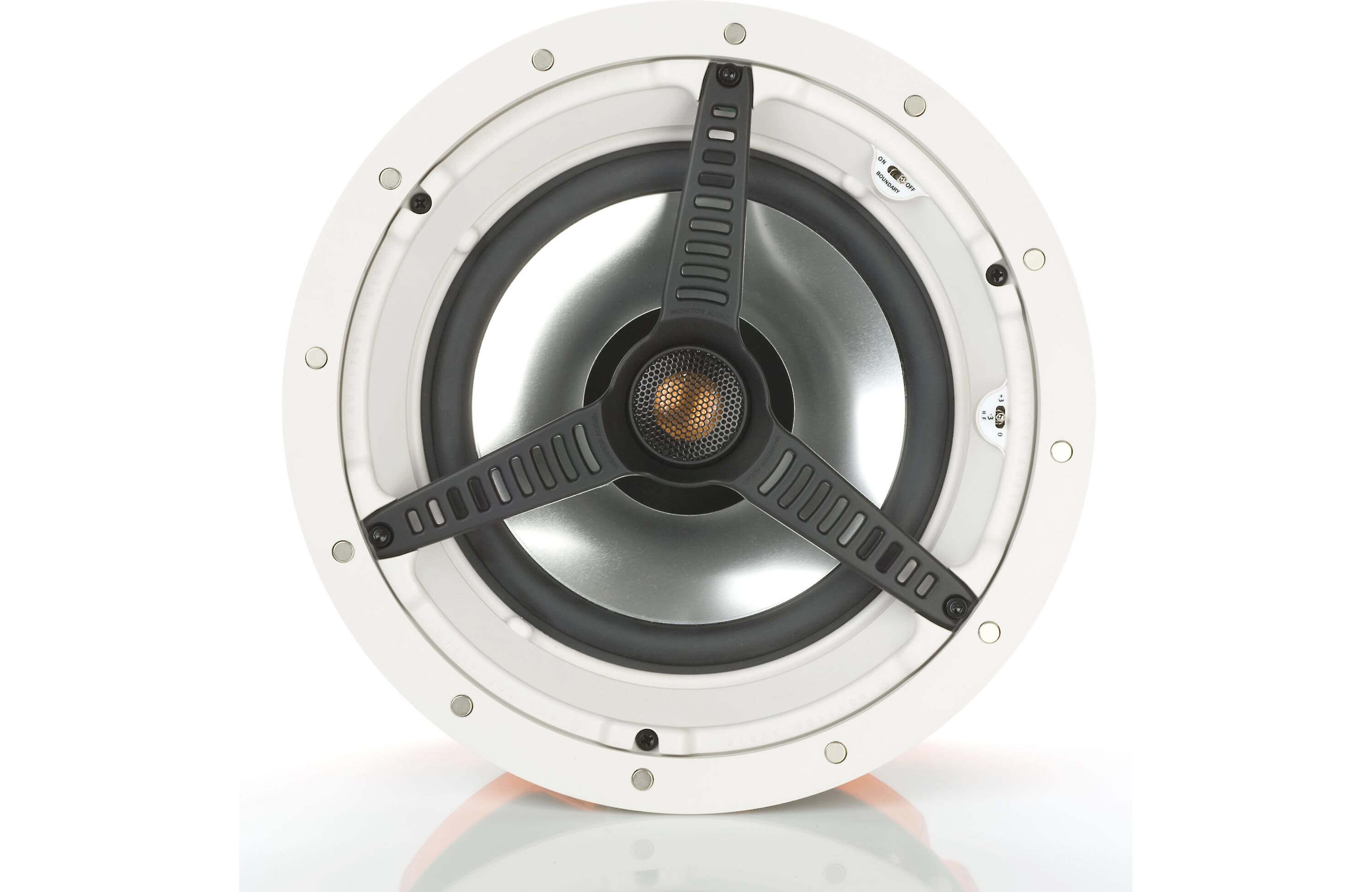

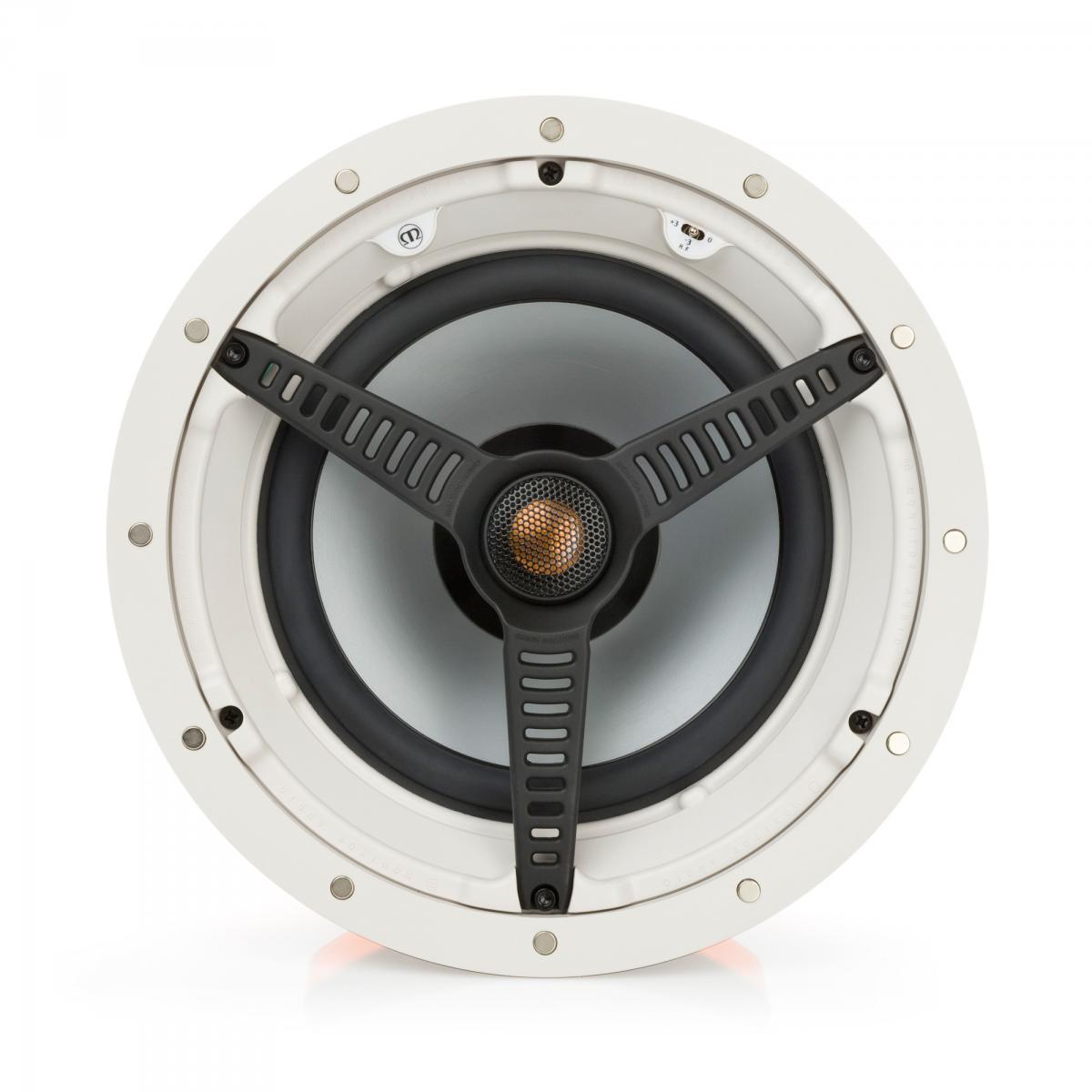

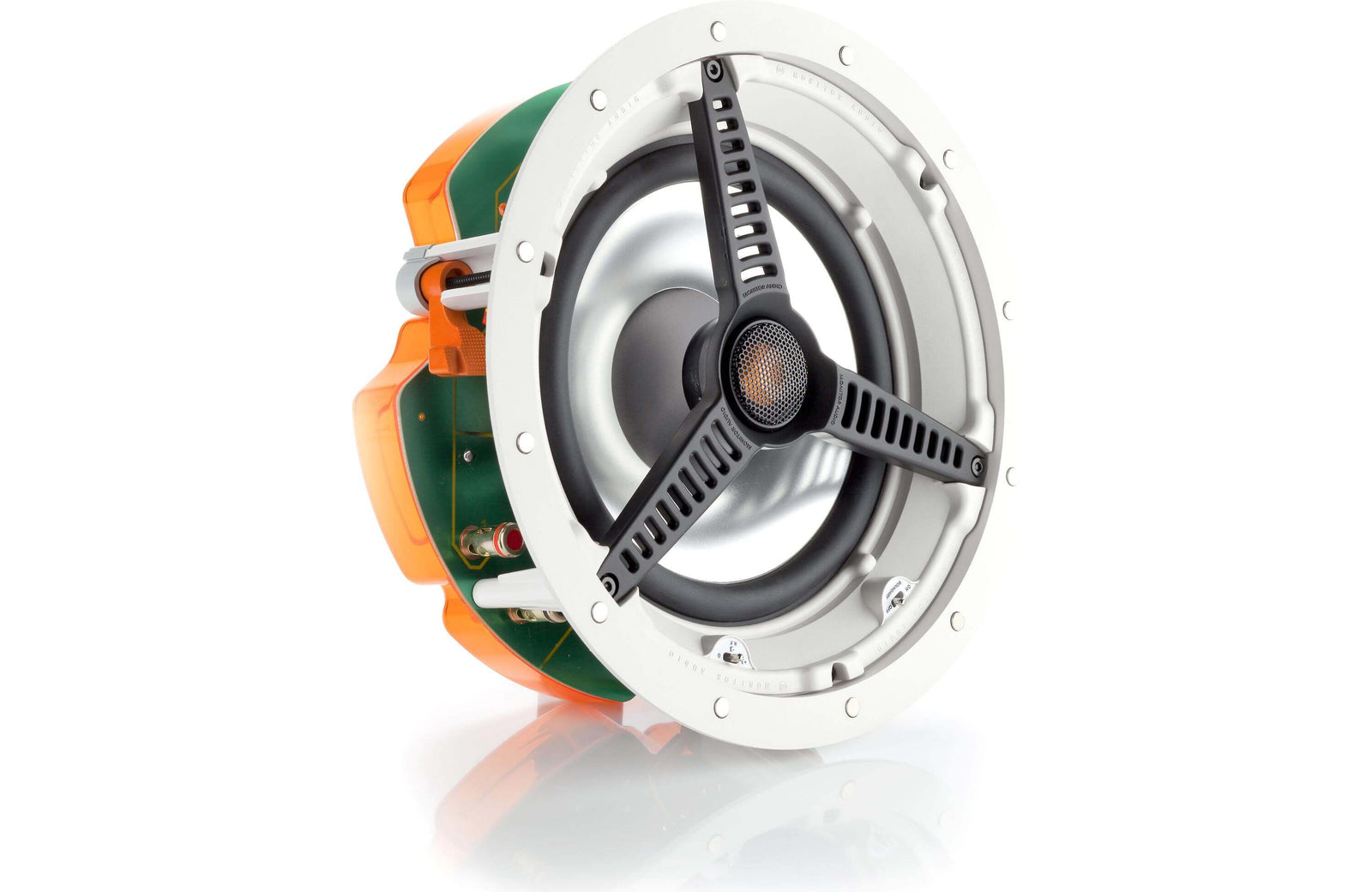

Incorporating an 8-inch MMP®II bass driver with Monitor Audio’s signature C-CAM® gold dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion. Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3dB / 0dB /-3dB) level adjustment.2-way design with pivoting C-CAM tweeters (15 degrees of play).
High overall efficiency.
High frequency level adjustment (+/-3dB).
Audio match with CP range 100 models, Climate 10, Bronze BX and Radius Series hi-fi speakers.
Our innovative Tri-Grip® fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

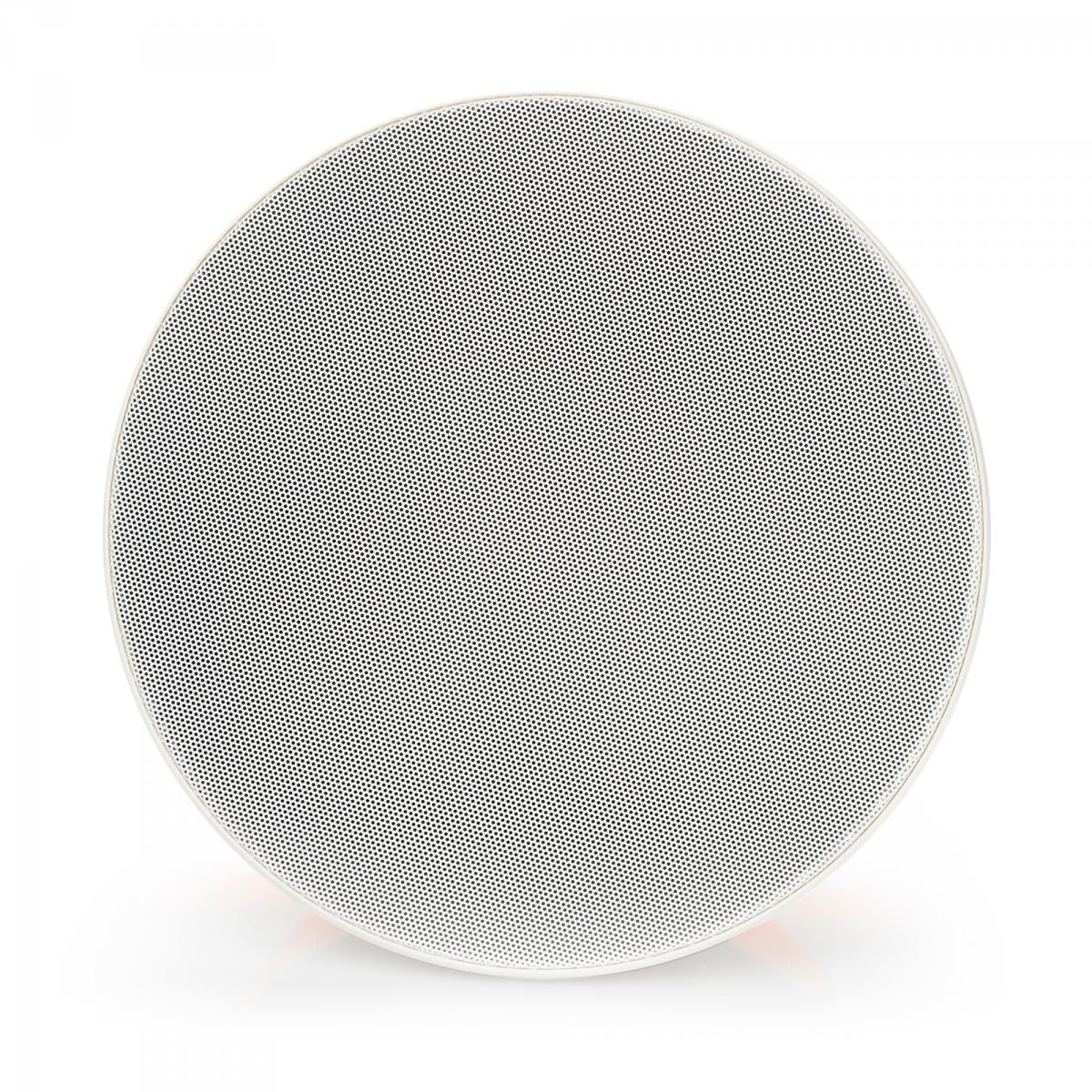

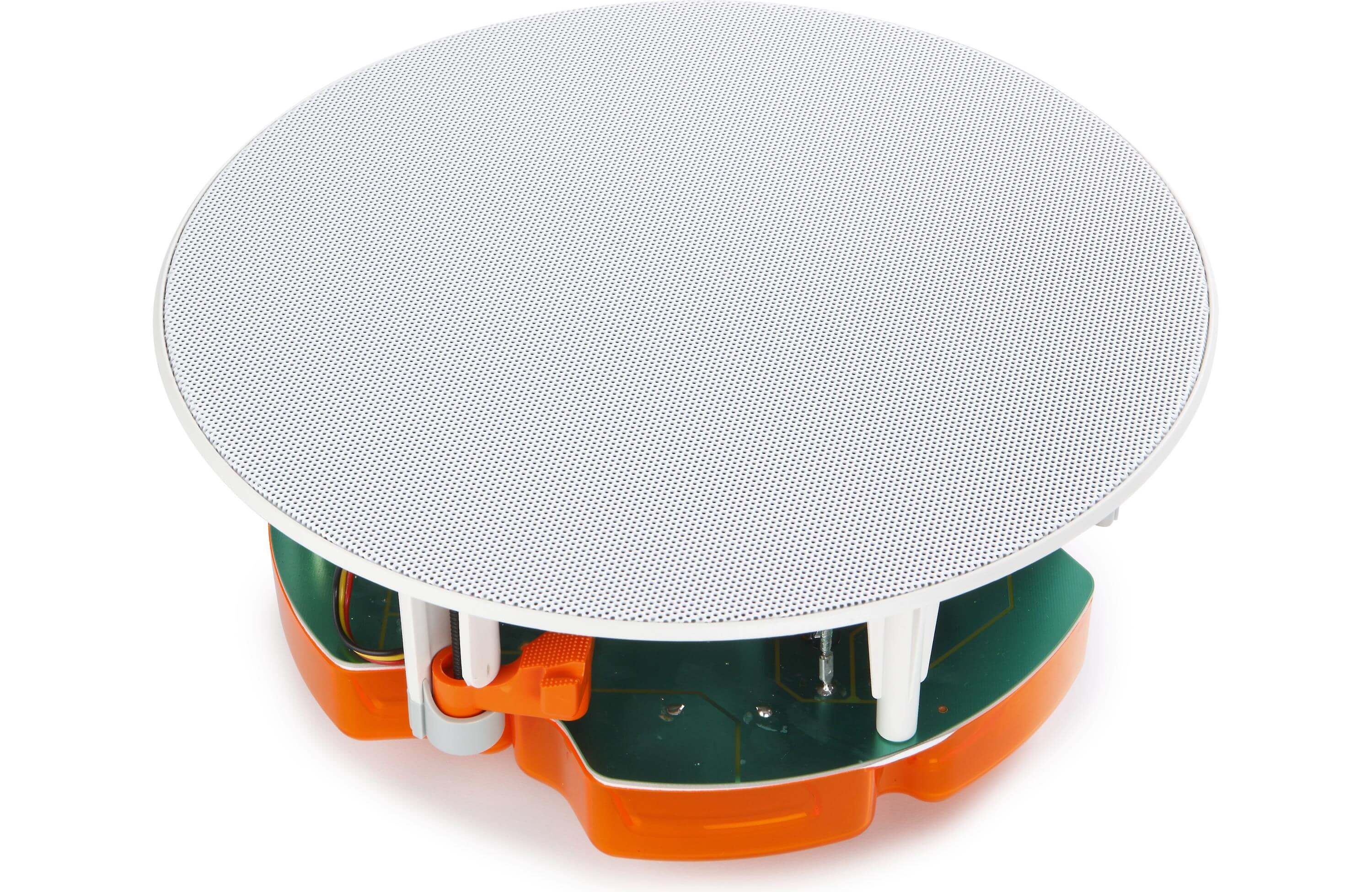

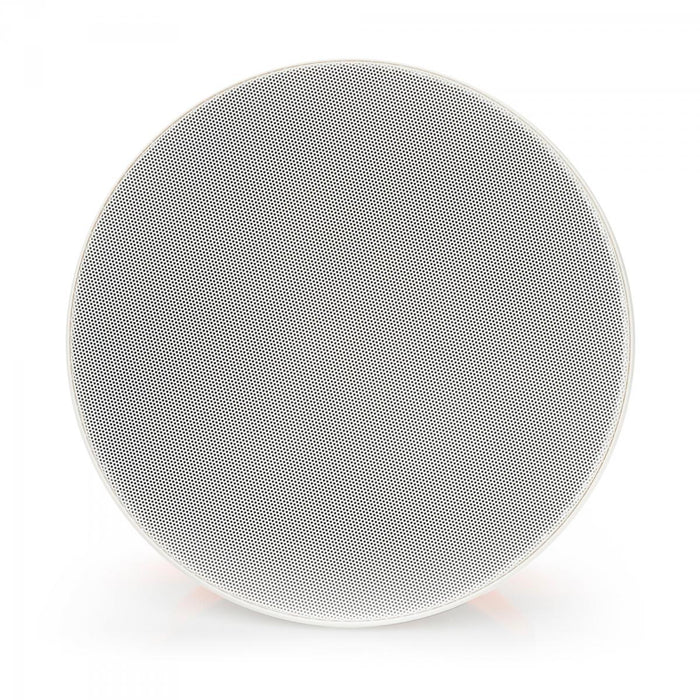

Magnetic and easily removable steel grille.
Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
Splash and humidity proof for installation in shower room or pool areas.

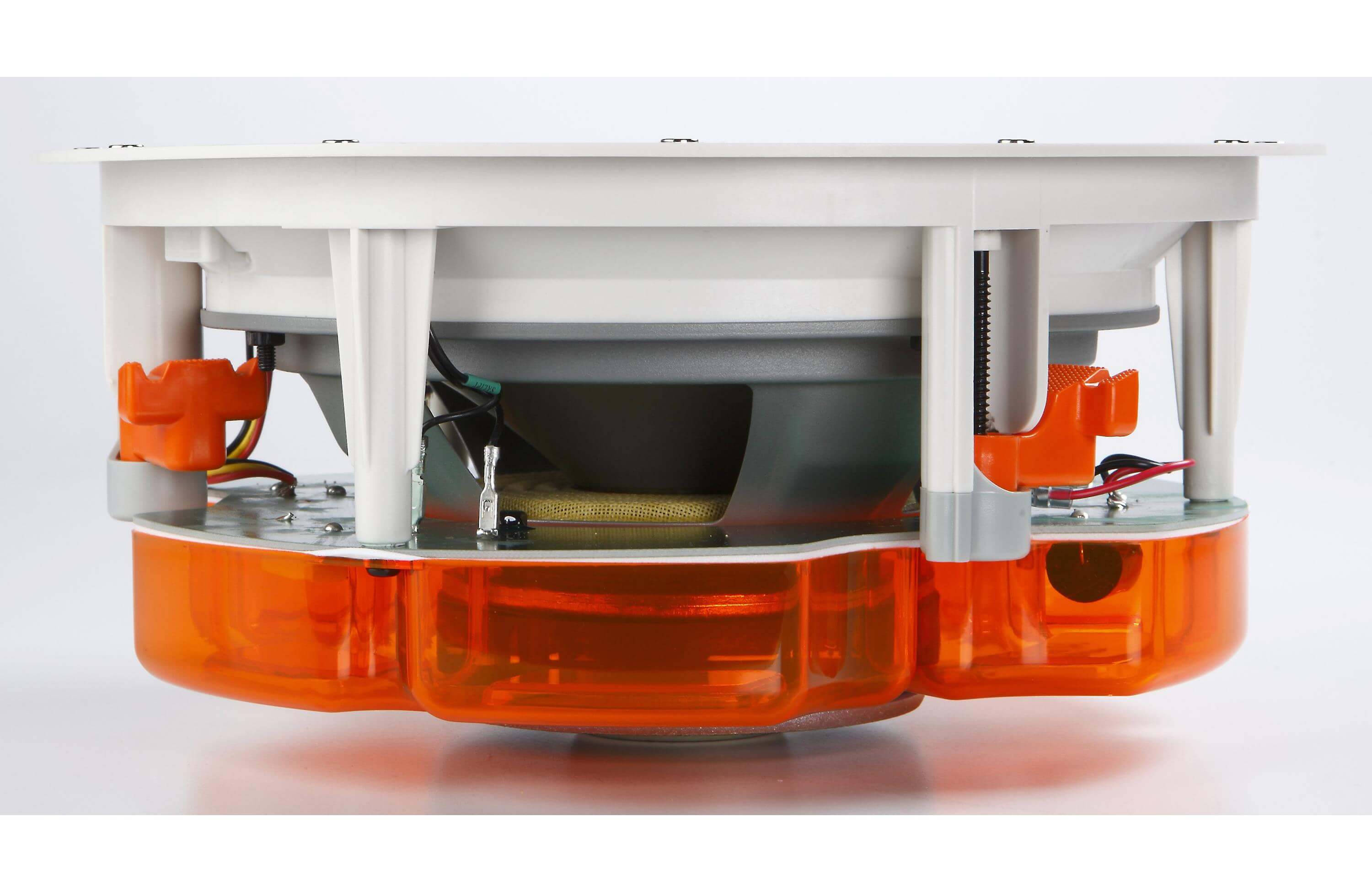

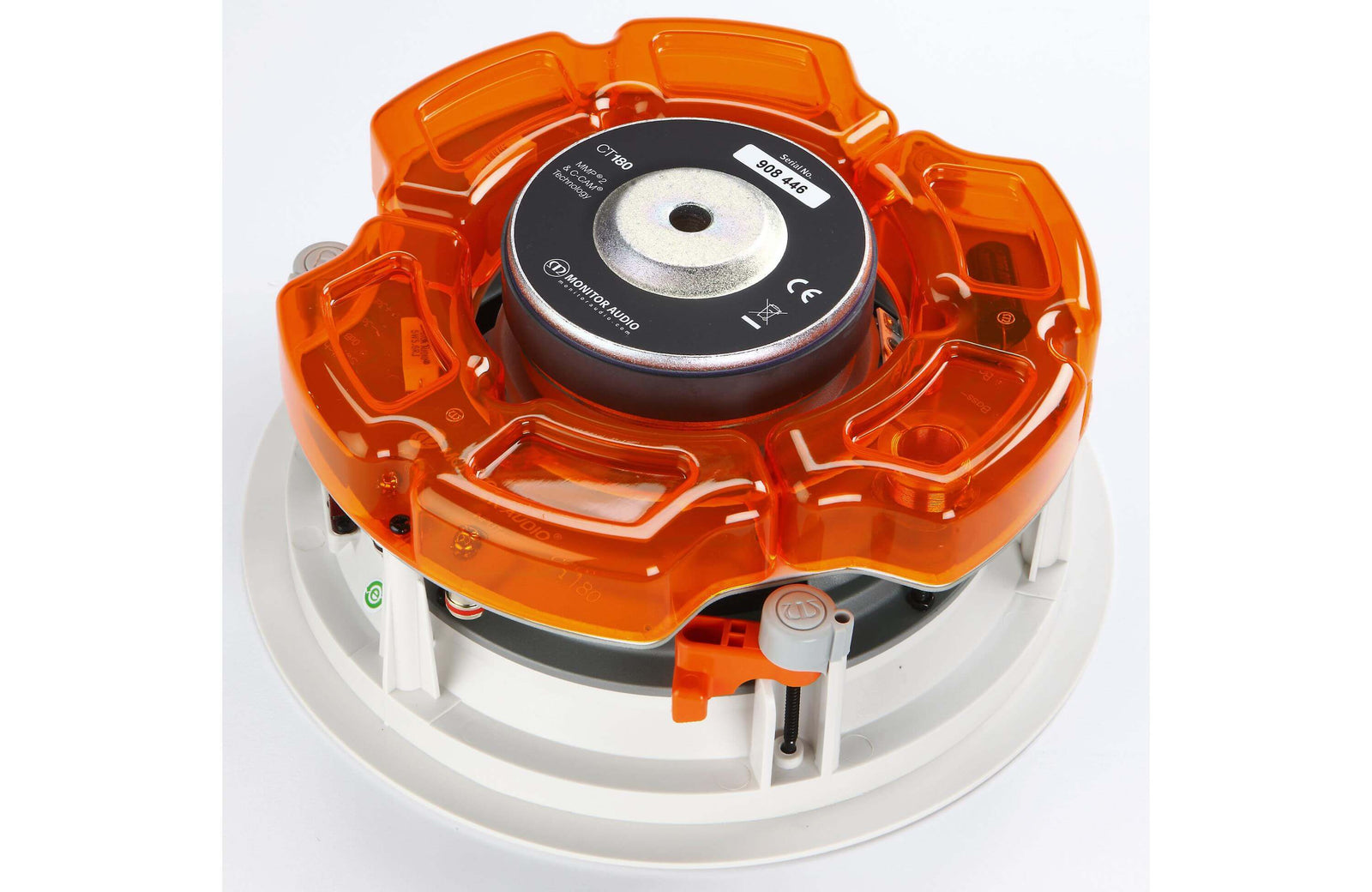

Features dust protection cover that is designed to prevent the ingress of dirt or dust into the driver and crossover.
50 Hz - 25 kHz
Power Handling (RMS)
Recommended Amp Requirements
30 - 120 W
Drivers Unit Complement
8” MMP®II cone bass driver
1” C-CAM® pivoting gold dome tweeter
HF Level Switch
(+3dB / 0dB / -3dB)
Overall Diameter:(including grille)
(11 1/4 inch)
Overall Depth:(including grille)
(4 15/16 inch)
Cut Out Diameter
(9 3/4 inch)
(4 3/4 inch)
3 position Tri-Grip® dog leg fixings
Mineral Filled ABS Plastic
