Monitor Audio CP-WT240LCR Controlled Performance In-Wall LCR Speaker (Each)

UPC: 5060028970636
Call for Availability
$650.00

SKU CP-WT240LCR

Product Qualifies for FREE Ground Shipping

Monitor Audio CP-WT240LCR Controlled Performance In-Wall LCR Speaker (Each)

The CP-WT240LCR is a multi-purpose speaker, for portrait or landscape applications as a high performance music or theatre satellite.

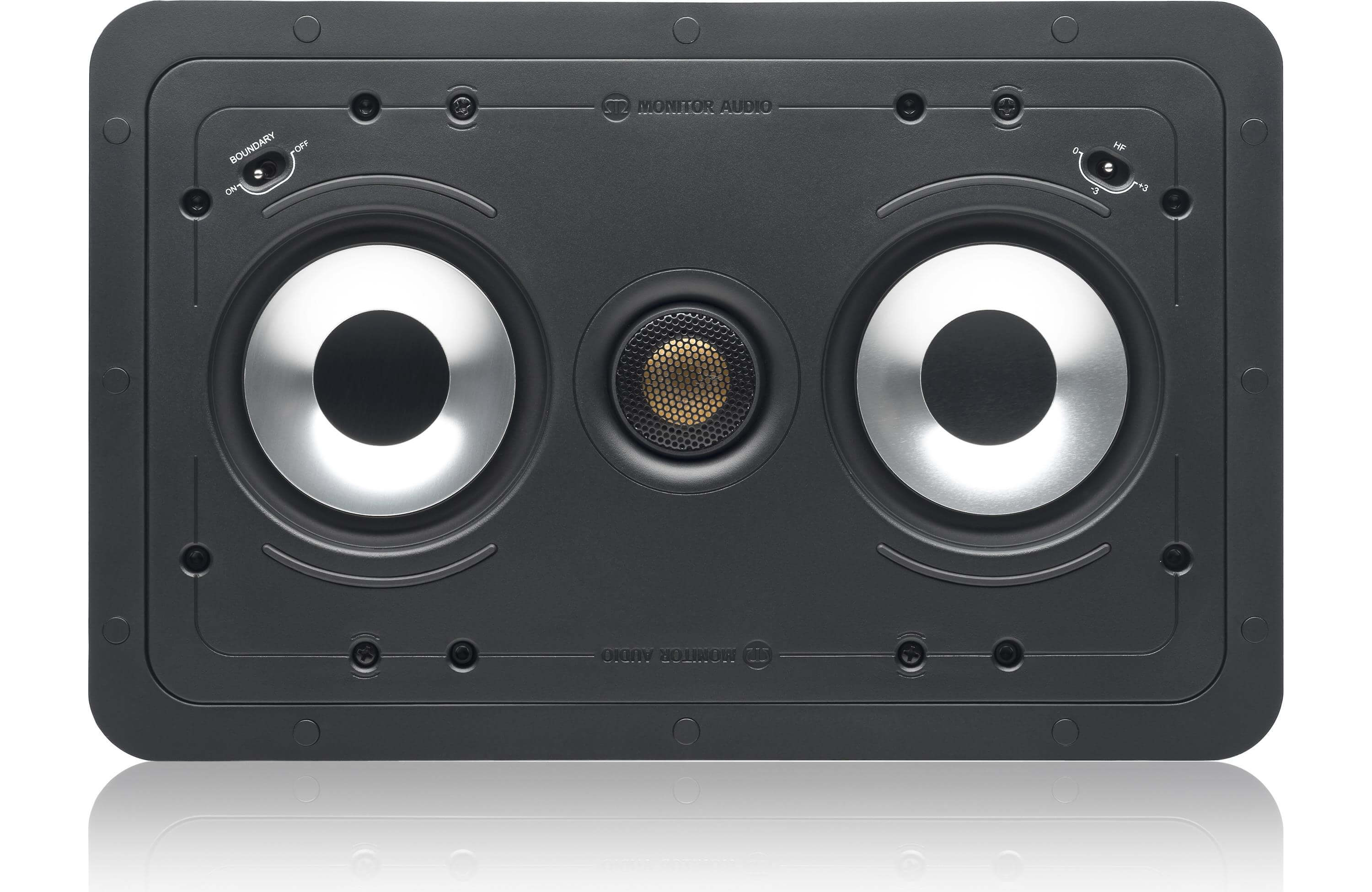

Utilizing twin 4" C-CAM drivers astride a C-CAM tweeter, the drivers offer greater radiating area working in tandem than a single 6" bass driver.

Technology

  • Pivoting C-CAM Gold Dome tweeter.
  • 2 x C-CAM bass drivers.
  • High overall efficiency.
  • High frequency level adjustment (+/-3 dB).
  • Boundary compensation controls.

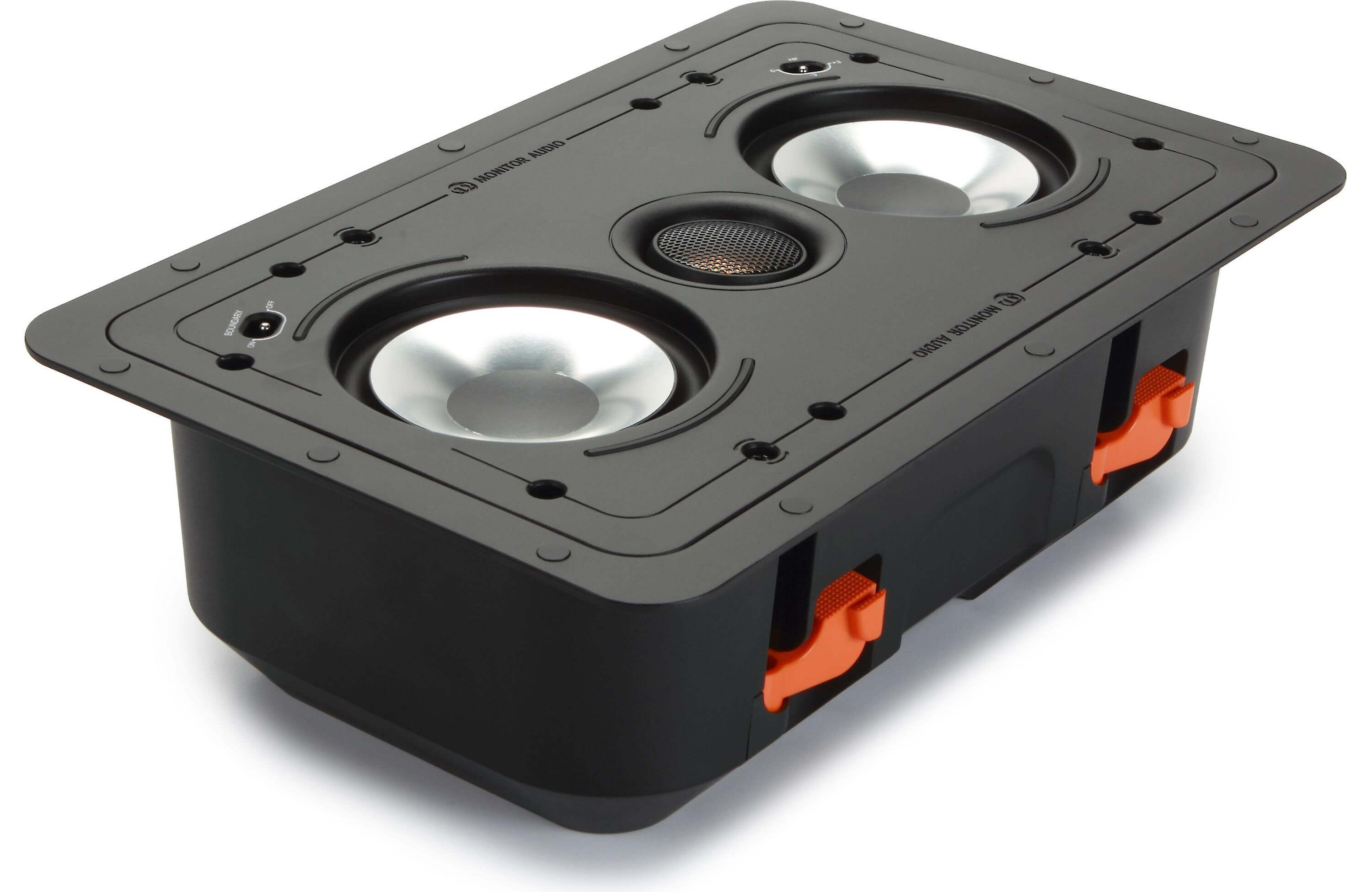

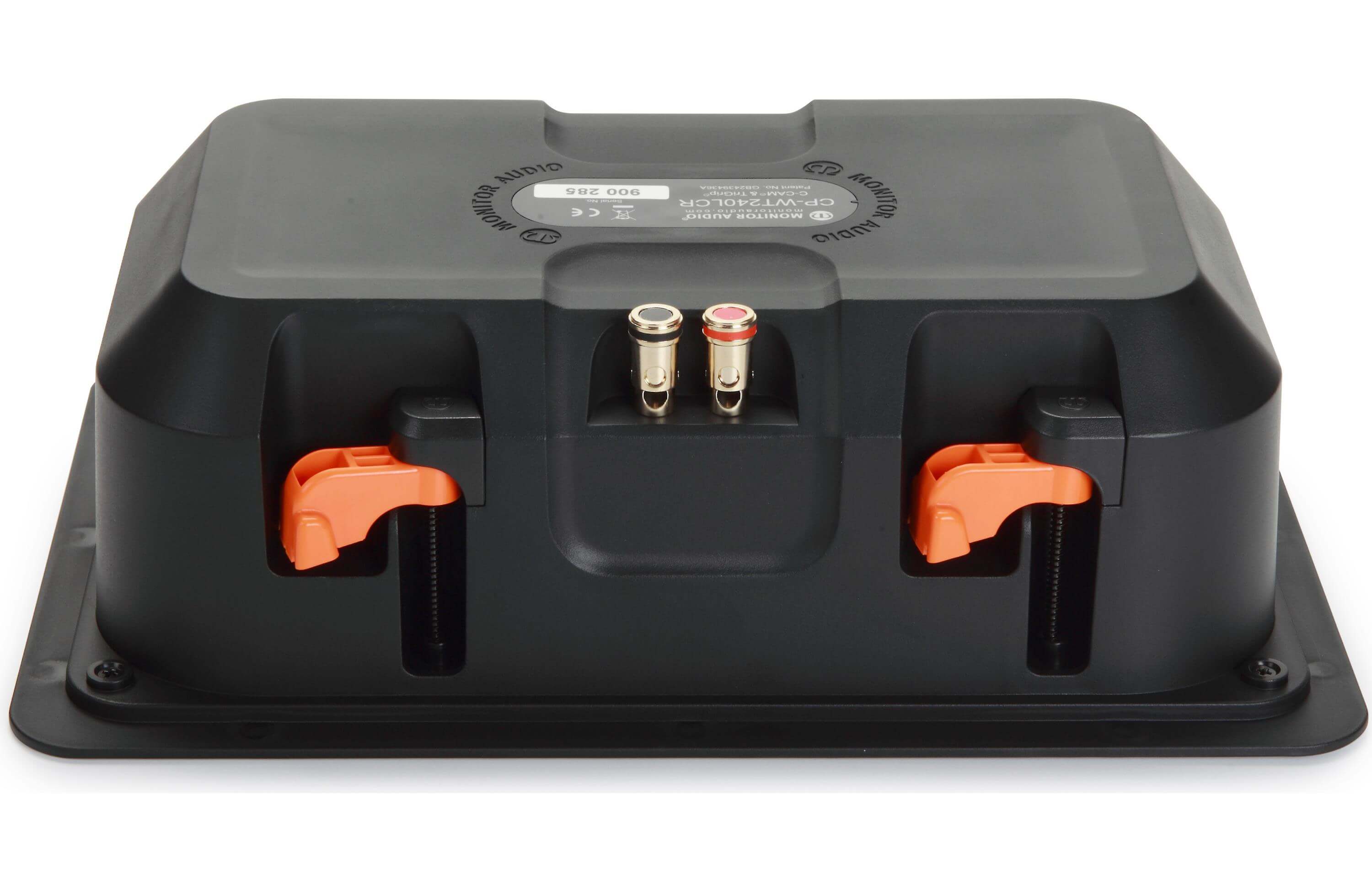

  • Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

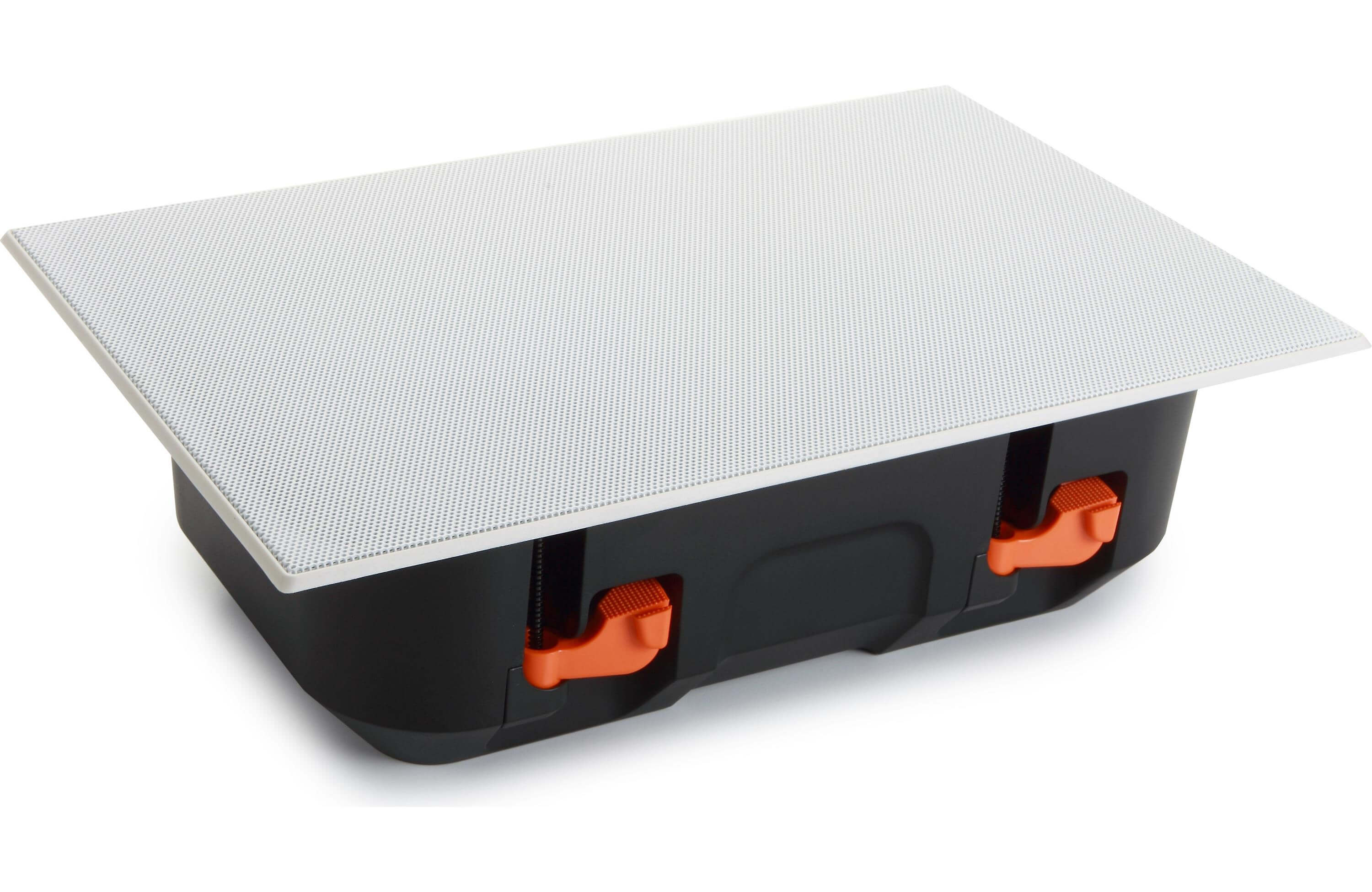

  • Magnetic and easily removable steel grille.
  • Paint-able surface to blend with the living environment. Additional scrim material is provided for trouble free painting.
  • Airtight enclosure design, which protects each precision-engineered driver system against the damaging ingress of dust and dirt.
Specs

Frequency Response
60 Hz – 25 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
88 dB

Maximum SPL
108.8 dBA

Power Handling (RMS)
100 W

Recommended Amplifier Requirements
20 – 100 W

Crossover Frequency
2.6 kHz @ 12 dB / Octave

Drive Unit Complement
2 x 4" C-CAM cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Boundary Compensation Switch

Overall Dimensions (H x W x D)
217 x 333 mm (8 9/16 x 13 1/16")

Overall Depth (Including Grille)
103 mm (4 1/16")

Cut-Out Dimensions
183 x 299 mm (7 3/16 x 11 3/4")

Mounting Depth
97 mm (3 13/16")

Fixing Type
4 position Tri-Grip dog leg fixings

Construction Material
Mineral Filled ABS Plastic (RoHS2 Compliant)

Weight
2.5 kg (5 lb 8 oz)

Pre-Construction Bracket
WB4LCR Pre-Construction Bracket (Dark Brown)

Sold As
Single Unit
