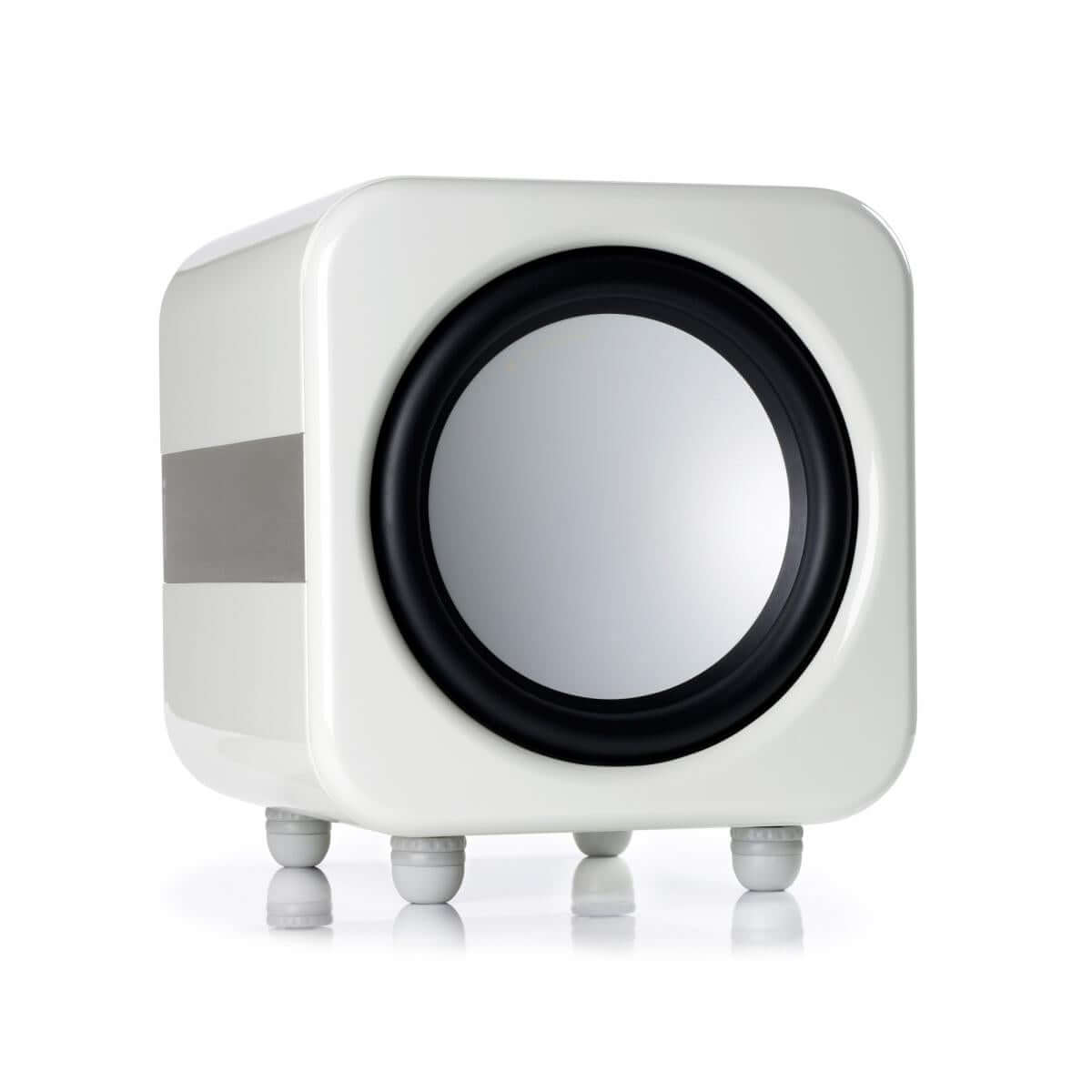

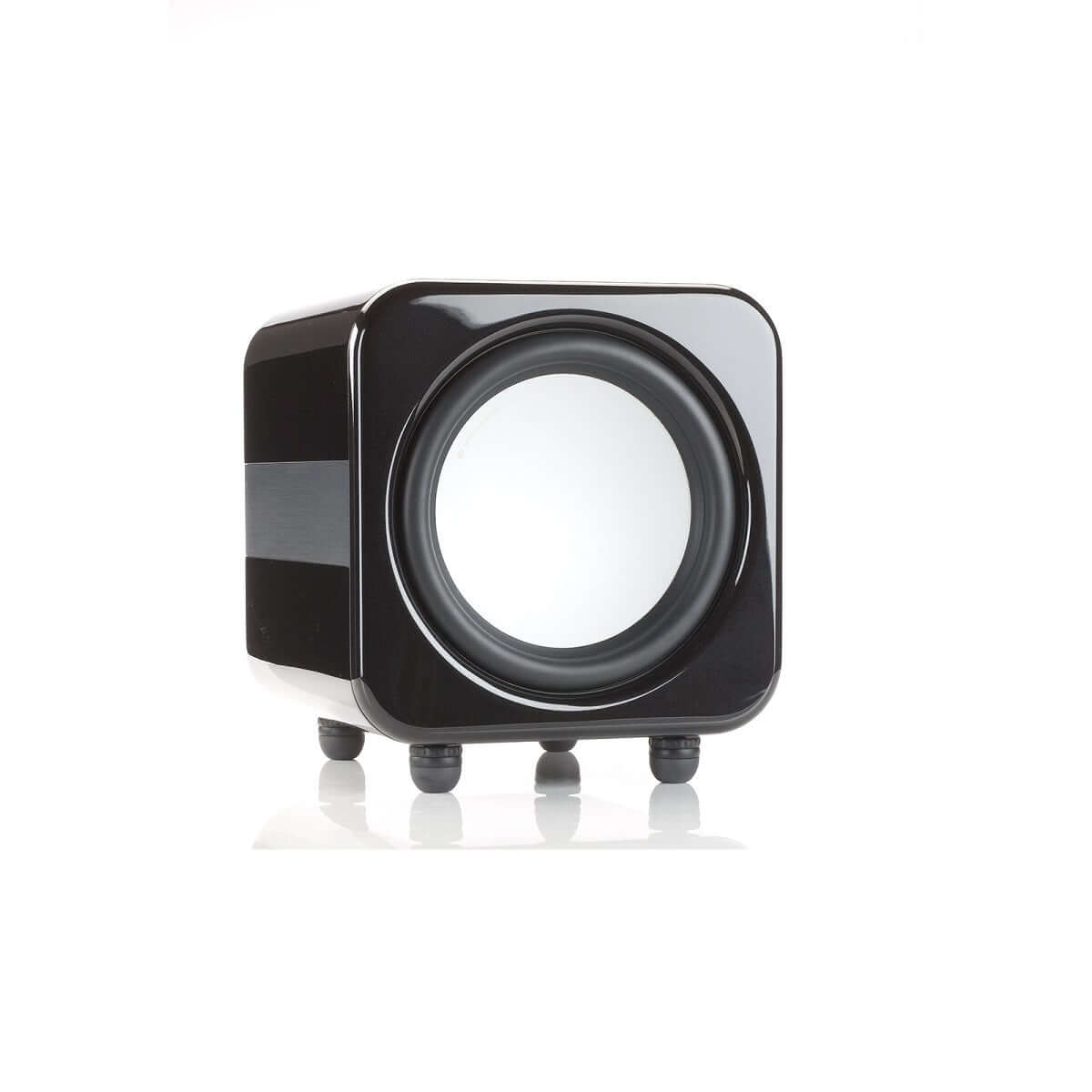

Monitor Audio AW-12 Apex Powered Subwoofer (Each)

UPC: 5060028977338
Call for Availability
$1,600.00

SKU AW-12Black
Compact, front-firing 12" Subwoofer with C-CAM driver and a 500 watt Class D amplifier. Combines the best of Monitor Audio technology in a stylish, compact, cabinet finished with aluminium side trims.

  • 12" Front-firing C-CAM® sub-woofer driver featuring triple suspension and 3" long throw voice coil.
  • 500 watt Class D amplifier
  • 12v trigger input allows for auto-activation when using a compatible A/V receiver or processor
  • High efficiency switch mode power supply
  • Compact sealed cabinet
  • Top-mounted control of volume and EQ are designed for easy setup and adjustment
  • Permanently fitted floor spikes can be covered with a heavy duty rubber cover for solid or hard wood flooring
  • Finished in luxurious metallic black high gloss or metallic pearl white high gloss
  • Specs
    Amplifier Output
    500 Watts (RMS) 1000 Watts (Peak)

    Low Frequency Limit
    27Hz (EQ1) 21Hz (EQ2)

    Upper Frequency Limit
    40 - 120Hz Variable

    Variable Low Pass Filter Alignment
    Active 4th order 24dB/octave (two-stage filter)

    Cabinet Specification
    Sealed Cabinet with 25mm M.D.F construction and internal bracing.

    Amplifier Classification
    Class-D amplifier

    Driver Compliment
    1 x 12" C-CAM® sub-woofer driver featuring triple suspension and 3" long throw voice coil.

    Dimensions: (H x W x D)
    340 x 340 x 410 mm
    (13 3/8 x 13 3/8 x 16 1/8 inch)

    Weight: (unpacked)
    22.56Kg (49.63lbs)

    Mains Input Voltage
    100 - 120 Vac, 220 - 240 Vac, 50/60Hz

    Input Impedance
    20K Ohms
