Martin Logan Motion XTW5-LCR Motion XTCI Series LCR In-Wall Speaker (Each)
The Sound of Invisibility:Folded Motion Tweeters XT

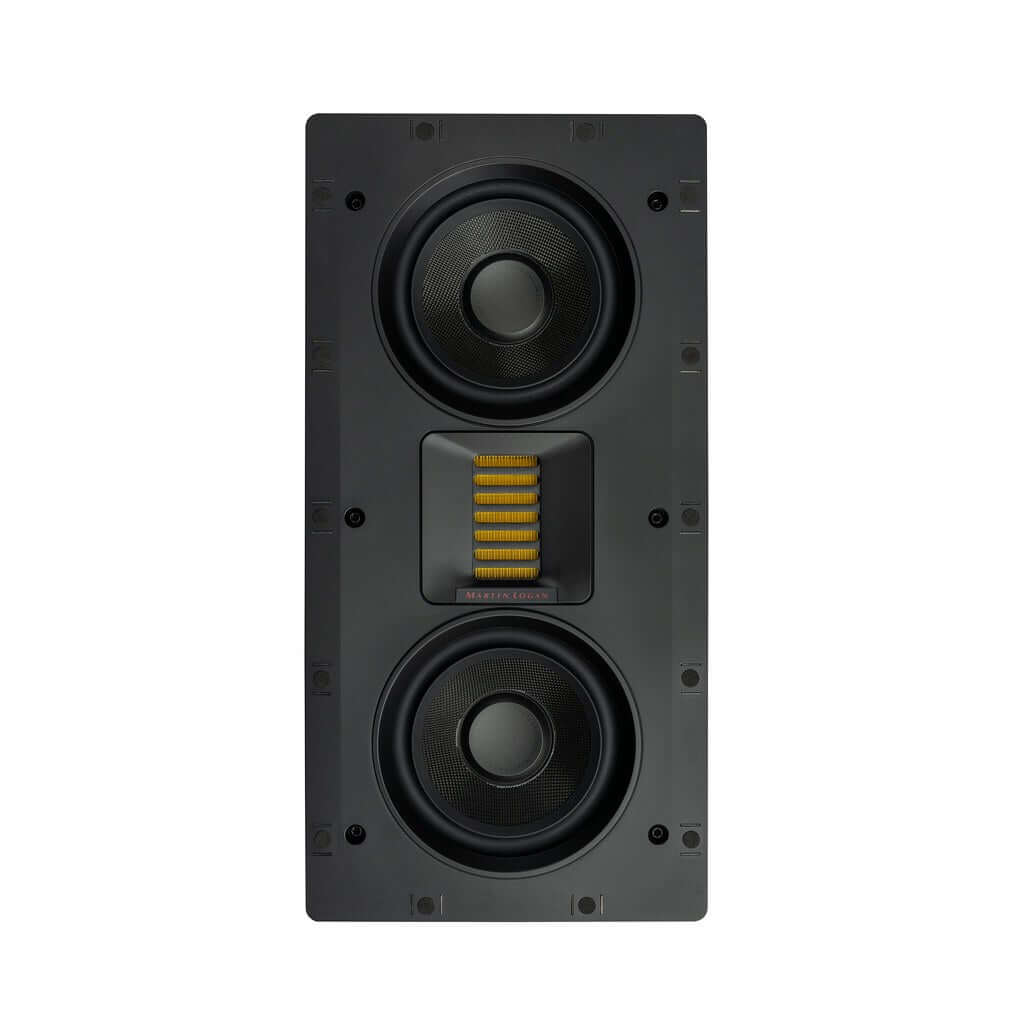

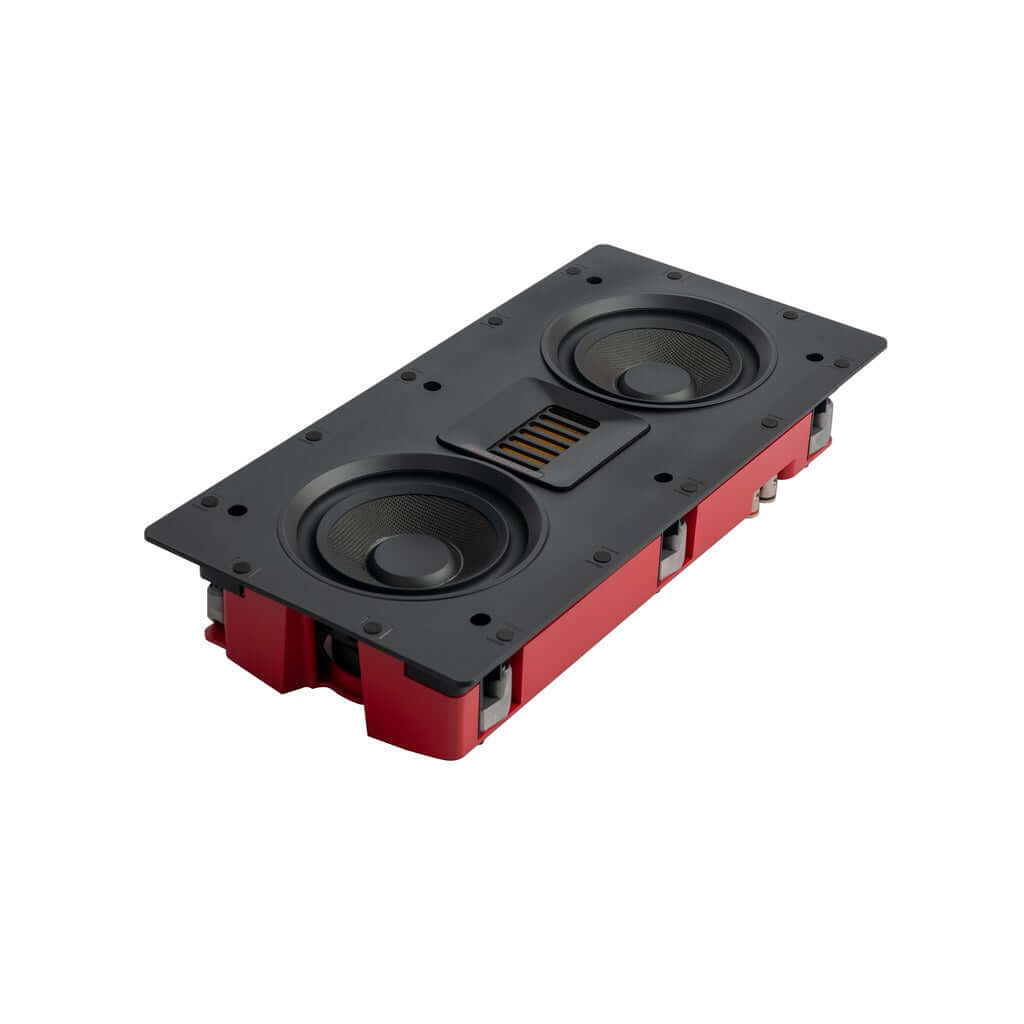

The smaller of the two LCR models in the Motion XT CI series, the XTW5-LCR functions equally well as a center, front or surround channel, or anywhere higher performance and/or a more rectangular shape is desired. A perfect complement for a flat panel TV or projector screen; the XTW5-LCR allows for flexible placement and incredible performance. Its FMT XT tweeter can be rotated to help create the sound dispersion that works best for your space.

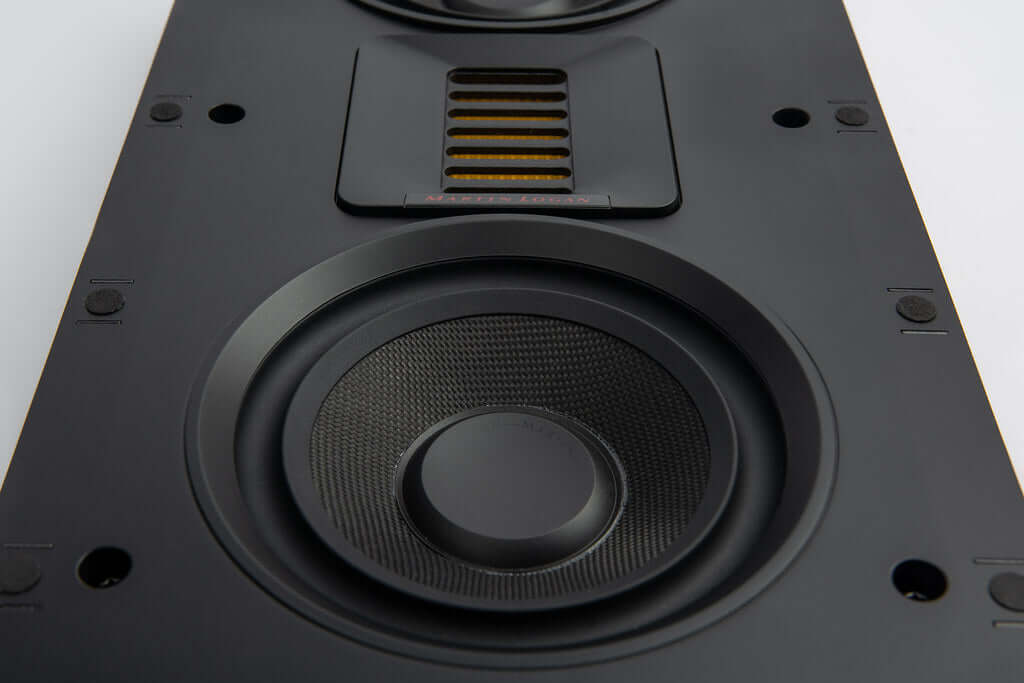

MartinLogan's signature Folded Motion Tweeter utilizes an extremely low-mass diaphragm that "squeezes" air, thus requiring significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It's a miracle of audio engineering that delivers much of the high-frequency detail, speed and response of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters advance thin-film transducer technology even further with a 40% larger radiating surface and 80x30-degree controlled dispersion.
This upgrade increases audible bandwidth without sacrificing detail and reduces distortion to an incredibly low level while increasing efficiency and the tweeter's already lightning-fast response time. The result is superior realism and alarming specificity that is aurally astounding, and only by MartinLogan.Woven Kevlar Cones
All Motion XT CI speakers feature very lightweight woven Kevlar cones specifically engineered to keep pace with the lightning speed of our highest performance Folded Motion Tweeter XT. While these high-performance drivers offer both increased rigidity and lightness, we took an extra step by adding a special Nomex layer on the back side of the woofer material which increases clarity and realism by reducing resonance and ringing. This layer is not something you can see after installation, but it matters to the performance of the speaker, so it matters to us. No matter which Motion XT CI speaker you choose for your room, rest assured they are designed to provide a consistently high level of performance and can easily be used with other MartinLogan speakers to make creating the perfect system for your unique listening space that much easier.The MartinLogan Sound
MartinLogan Motion XT CI speakers sound great in any room. Regardless of the environment, our speakers just sound better, more articulate, more detailed, and more realistic. With Controlled Dispersion and one of the most responsive tweeters in the industry, our in-wall and in-ceiling models can compete with and often exceed the performance of traditional cabinet speakers.Micro-Perforated Grilles

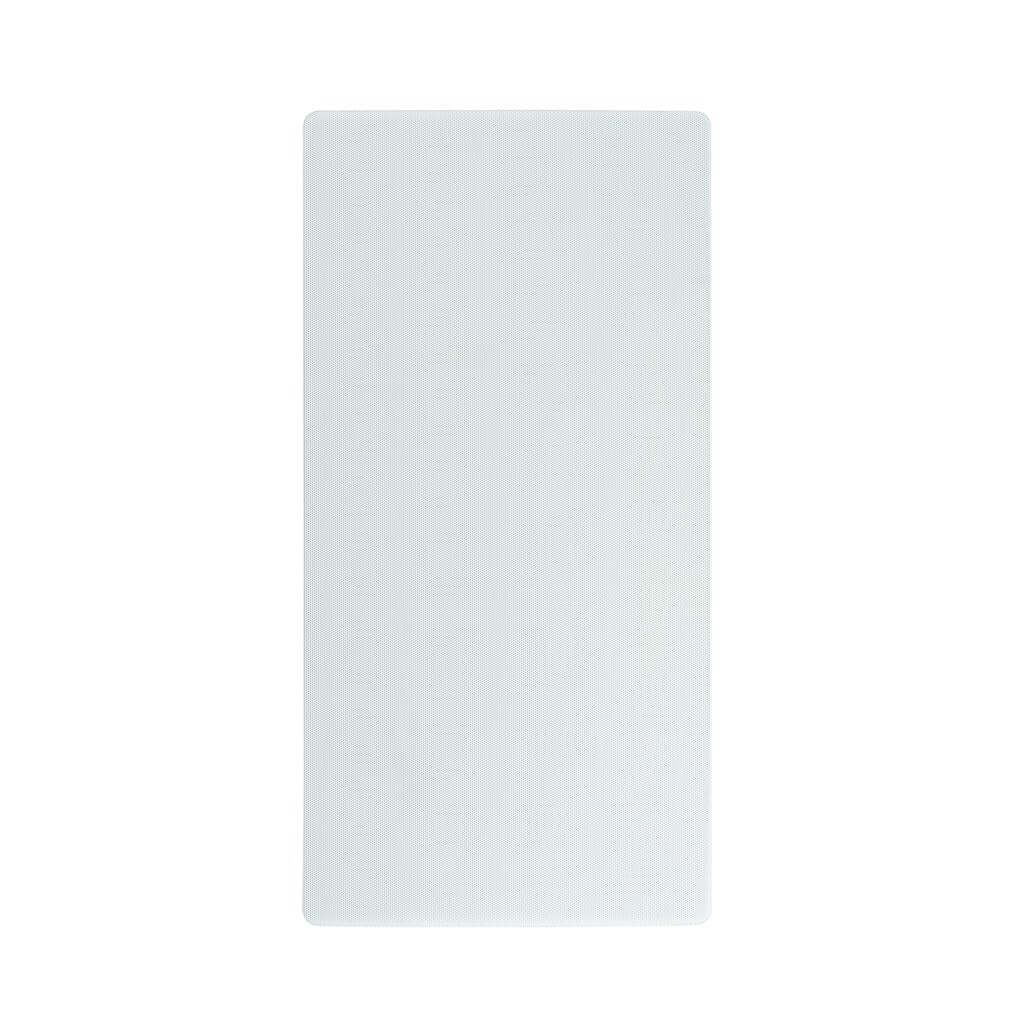

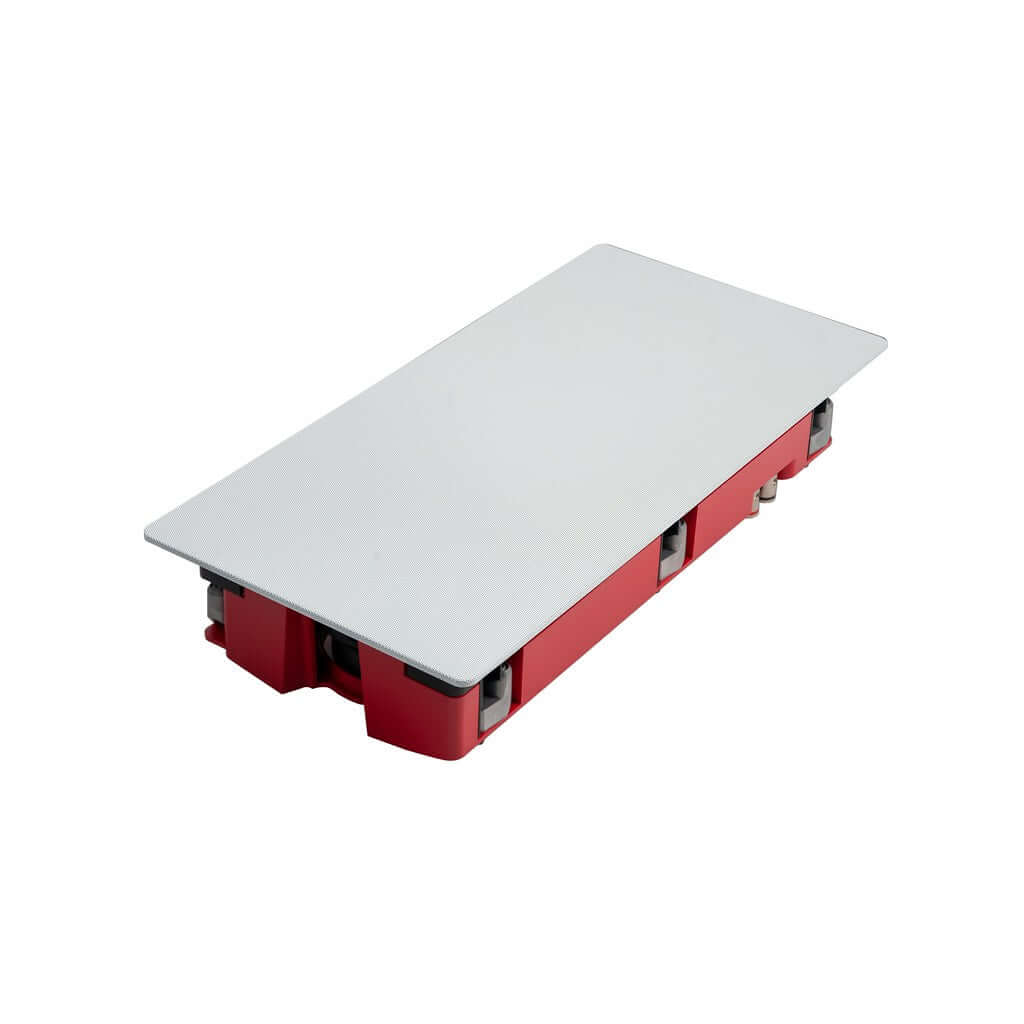

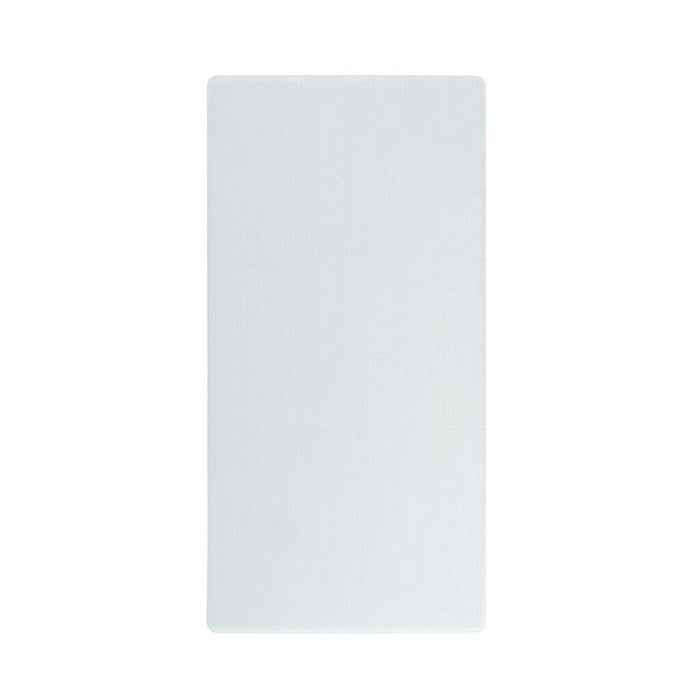

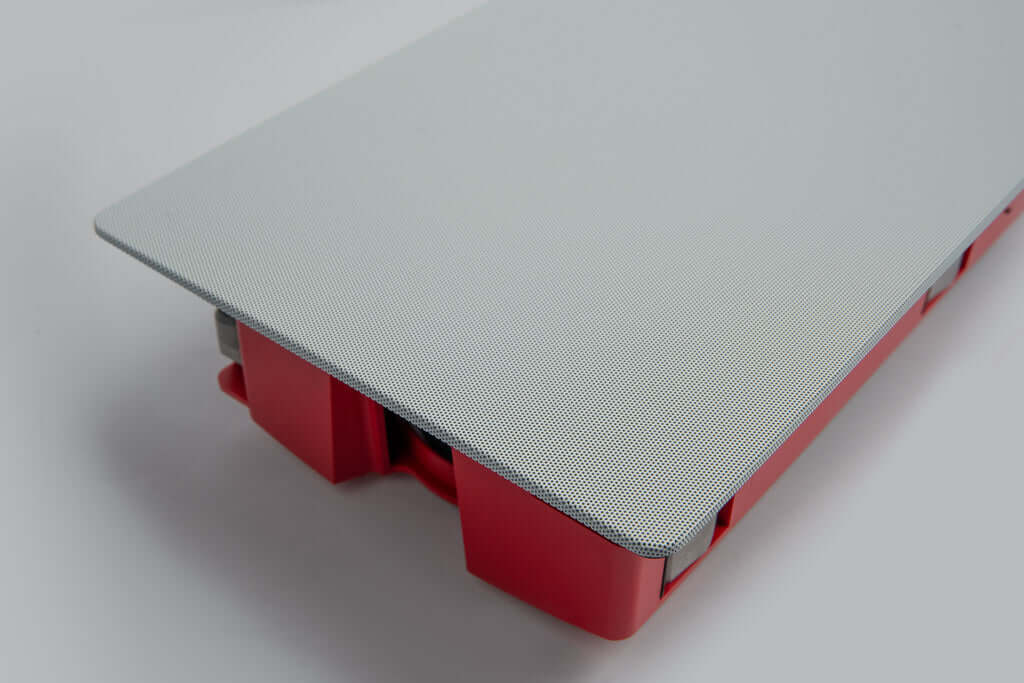

All Motion XT CI models feature an ultra-low profile, paintable, micro-perforated grilles with no visible bezel for a near-invisible integration into any wall or ceiling. A series of powerful magnets hidden inside the speaker quickly secure grilles into place, reducing the risk of warping or damage during installation. Optional square grilles are available for the MC8, MC6-HT, MC6 and MC4.Proprietary Vojtko Crossover Networks
Vojtko Crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko.
His unique approach to crossover design is just as crucial to MartinLogan's Truth in Sound as are our innovative electrostatic and Folded Motion thin-film driver technologies. A Vojtko Crossover isn't just a set of design requirements; it's a philosophy.
Vojtko Crossovers are hand-built from the highest quality components and avoid overly complex topologies. This crossover has a straightforward objective: breathtaking realism.Hand-Selected Components
In designing each crossover topology, we take the drivers themselves into consideration. Carefully selected drivers, engineered for specific performance characteristics, are kept within their optimal frequency range by the custom Vojtko Crossover.
Each crossover is handcrafted using exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source. It's a recipe for vanishingly low distortion and seamless driver integration.
The most critical aspect of a Vojtko Crossover design is the final voicing, always conducted in a real-world environment. This uniquely pragmatic approach guarantees that even the most amazing MartinLogan loudspeakers deliver Truth in Sound in any room, including yours.Pre-Installation Brackets (sold separately)
Pre-installation brackets are available for every model in the Motion XT CI Series.
44 - 25,000 Hz 3dB
Tweeter Controlled Dispersion
80 x 30 degrees
93dB @2.83V/ 1 meter
4 ohms. Compatible with 8 ohms
260, 2470 Hz
1 x 1.27 x 2.75 FMT, 1 x 6.5 midrange, 2 x 6.5 Woofers High Frequency Driver FMT Transducer 1.27 x 2.4 (3.22cm x 6.09cm)
Opening 4.5 x 2.75 (11.43cm x 6.98cm) Diaphragm
Two 6.5 (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Open back chamber format. Concave dust cap.
One 6.5 (16.51 cm) cast aluminum basket, black Kevlar with Nomex backer cone, Sealed back chamber format. Concave dust cap.
Custom air core coil inductors, polyester film capacitors in series and low DF electrolytic capacitors FMT thermal/current protection.
Black w/ White Paintable Grill
Suggested Amplifier Power
Range 50 300 Watts
Maximum Power Handling
18.9 lbs. (8.57 kg) each
Weight (no grille)
18.1 lbs. (8.21 kg) each
Overall Size (l x w x depth)
28 x 7.68 x 3.67 (71.12cm x 19.5cm x 9.32cm)
6.64 x 27 (16.9 x 68.5cm)
Projection From Wall
Depth Required Behind Wall
