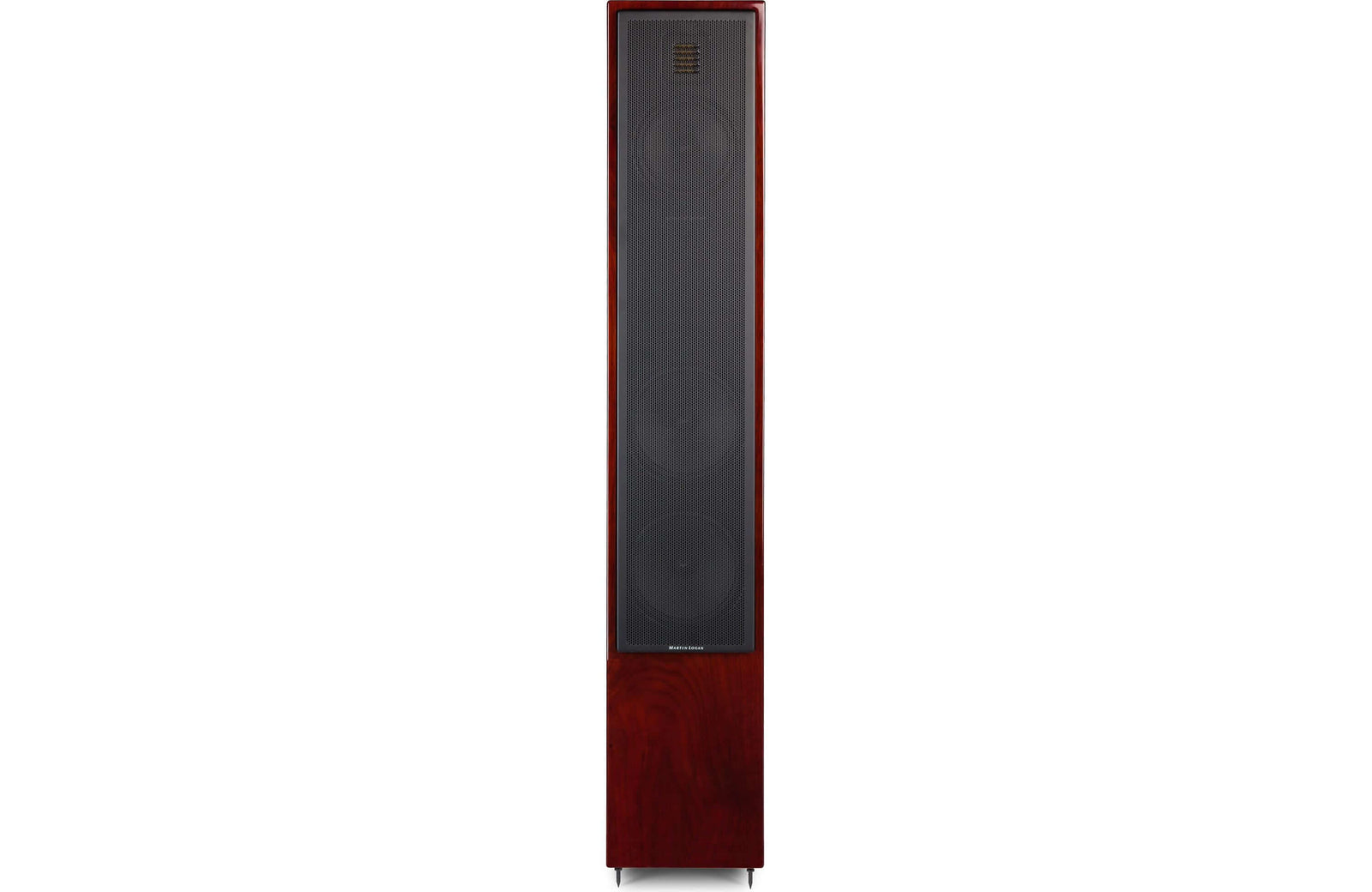

Martin Logan Motion 40 Floorstanding Speaker (Pair)

UPC: 877929007157
Save 35%
Original price $1,999.95
Current price $1,299.98

SKU Motion40GlossBlackPair
Color: Piano Black

Product Qualifies for FREE Ground Shipping

Martin Logan Motion 40 Floorstanding Speaker (Pair)

**THIS ITEM SHIPS DOUBLE BOXED**

Engineering Genius

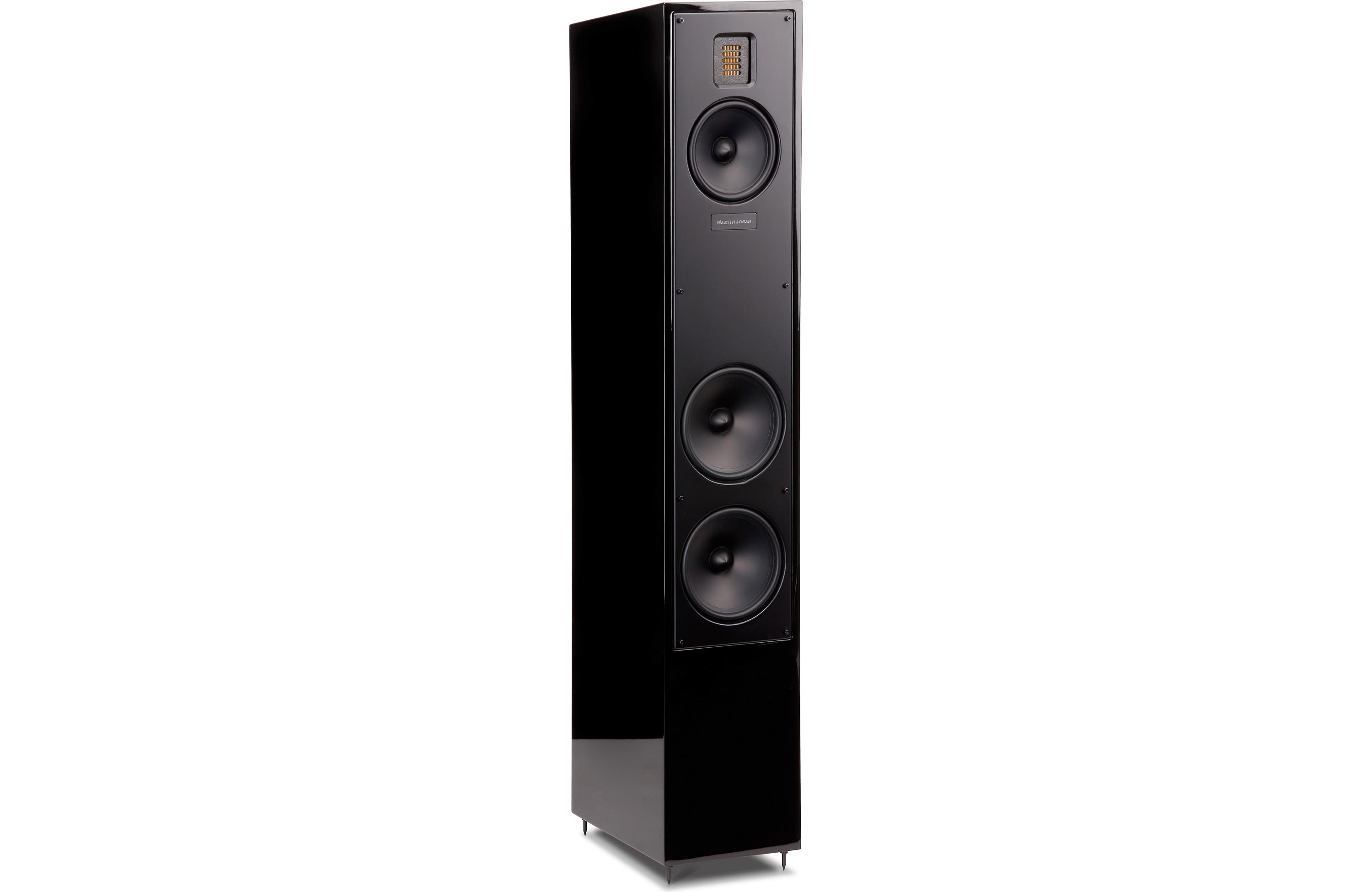

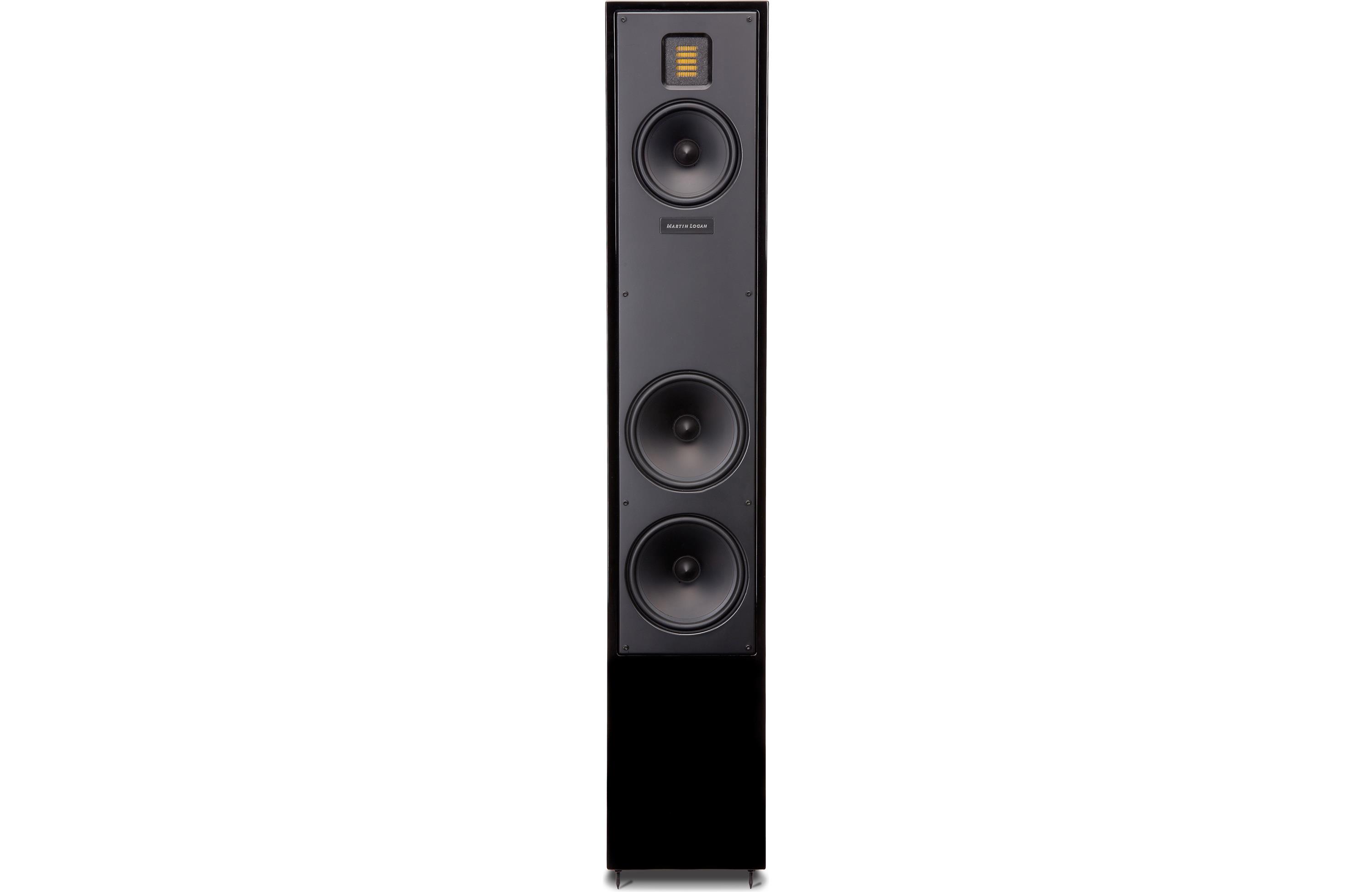

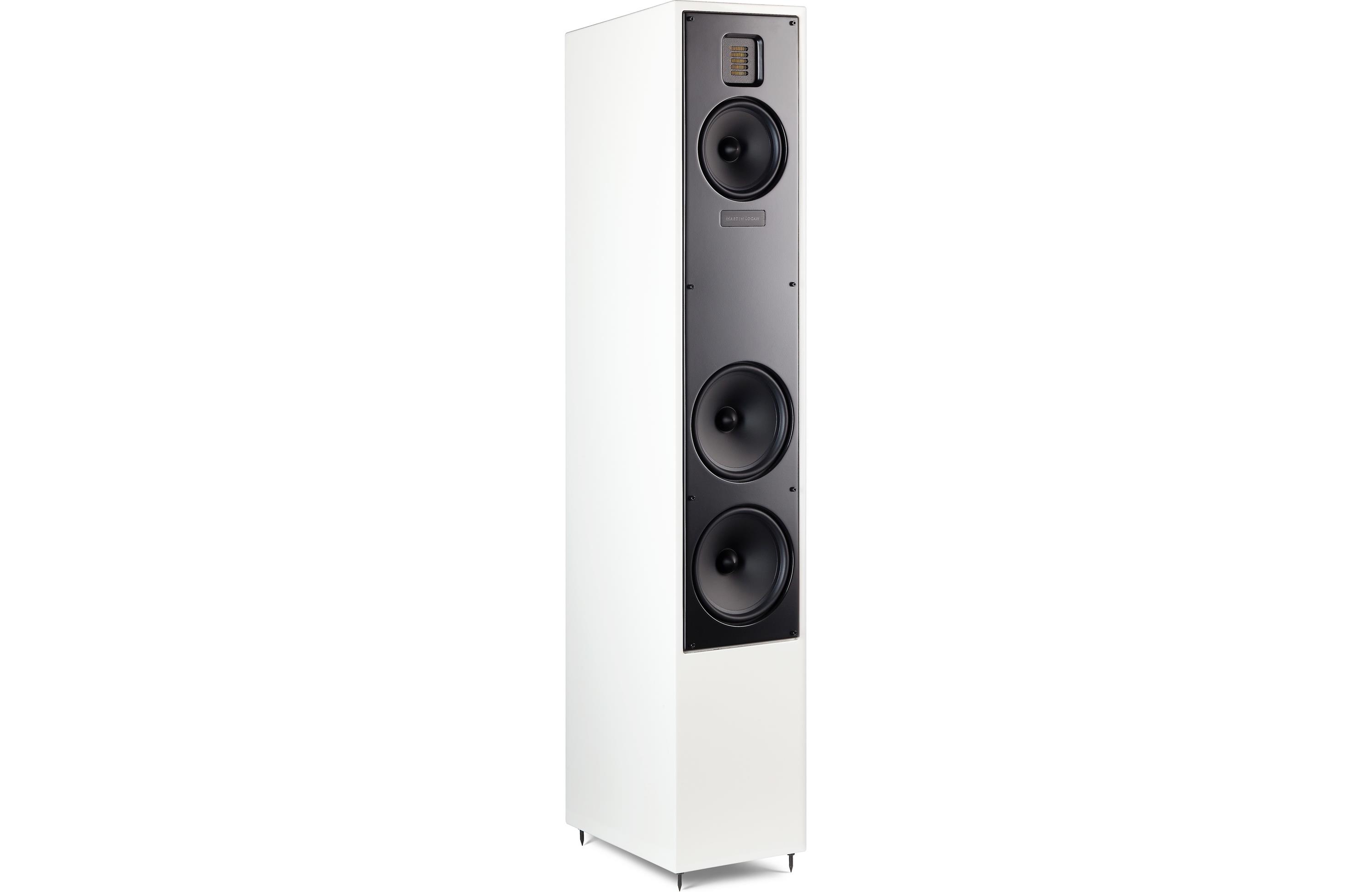

What makes the Motion Series sound so amazing MartinLogan's dedicated in-house engineering team started by utilizing and refining the most advanced, compact technologies and combining them with innovative engineering. The result is an emotionally engaging sound that rivals (and most times trounces) traditional loudspeakers of similar size and price.The elegant Motion 40 features an advanced resolution Folded Motion tweeter, a 5-1/2" aluminum cone midrange driver and dual 6-1/2" aluminum cone woofers.

Part of the secret to the Motion 40's outstanding performance lies in the dual oversized black-aluminum cone woofers paired with a rear-firing bass port. The oversized woofer design creates increased cone area delivering higher output and audibly richer, deeper bass performance than it's slightly smaller sibling, the Motion 20. The addition of a dedicated mid-woofer also promotes an even more open, revealing and authentic sound in the critical midrange.
Folded Motion Tweeters

The signature Folded Motion tweeters utilize extremely low mass diaphragms that "squeeze" air, and require significantly less excursion than the typical 1-inch dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.


Specs

Motion 40 Specifications

Frequency Response
40 25,000 Hz 3dB

Dispersion
80 x 80

Sensitivity
92 dB/2.83 volts/meter

Nominal Impedance
4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.

Recommended Amplifier Power
20-300 watts per channel

Crossover Frequency
500 & 2,600 Hz

Crossover Components
Precision Vojtko with custom air core coil and low DCR steel laminate inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel

High Frequency Transducer
1" 1.4" (2.6cm 3.6cm) Folded Motion Transducer with 5.25" 1.75" (13.3cm 4.4cm) diaphragm

Mid Frequency Driver
5.5" (14cm) aluminum cone in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dustcap reduces cone break-up.

Low Frequency Driver
Two 6.5" (16.5cm) aluminum cone woofers in a non-resonant asymmetrical chamber format. Cast polymer basket. Rigid structured dust caps reduce cone break-up.

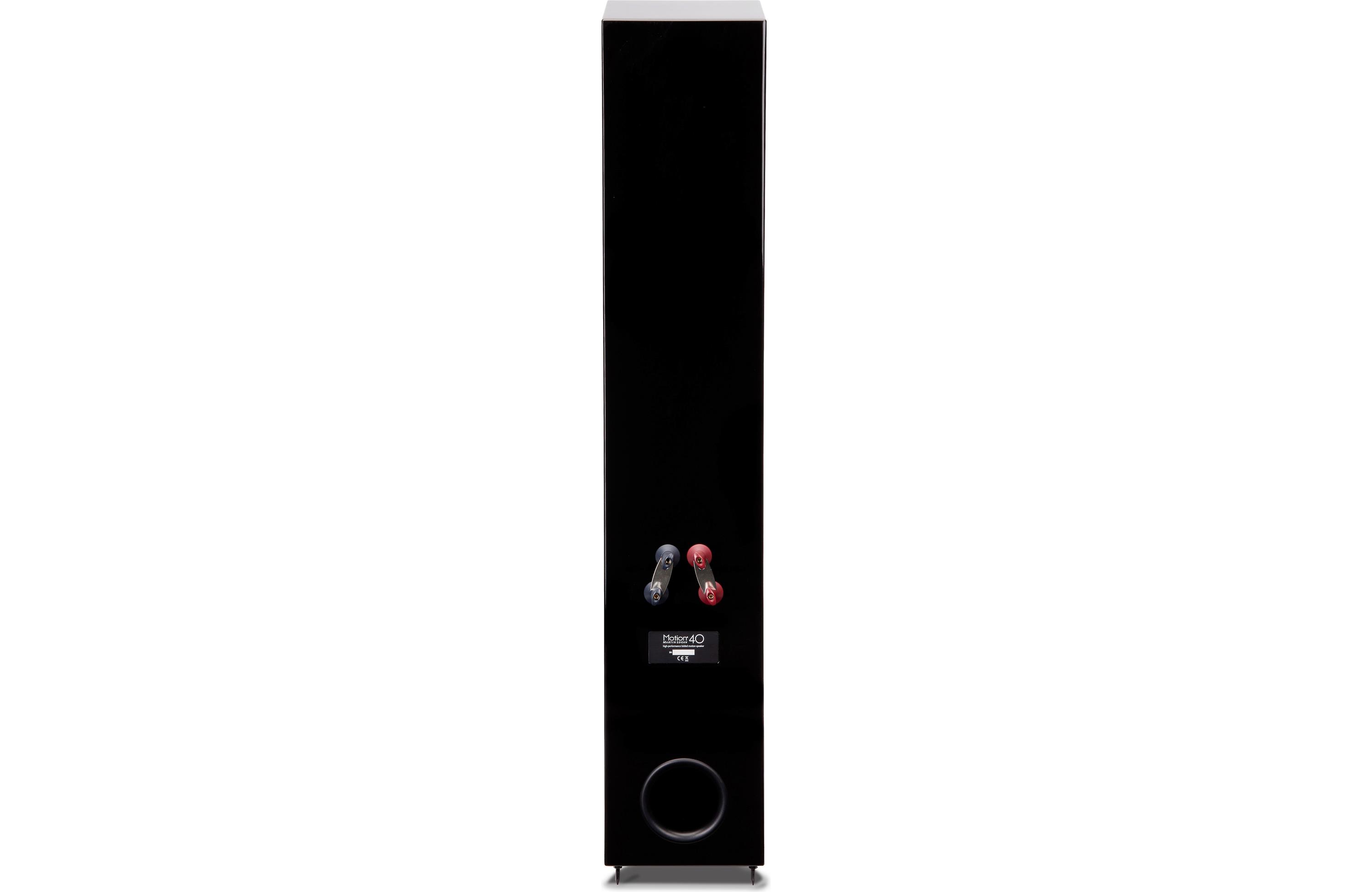

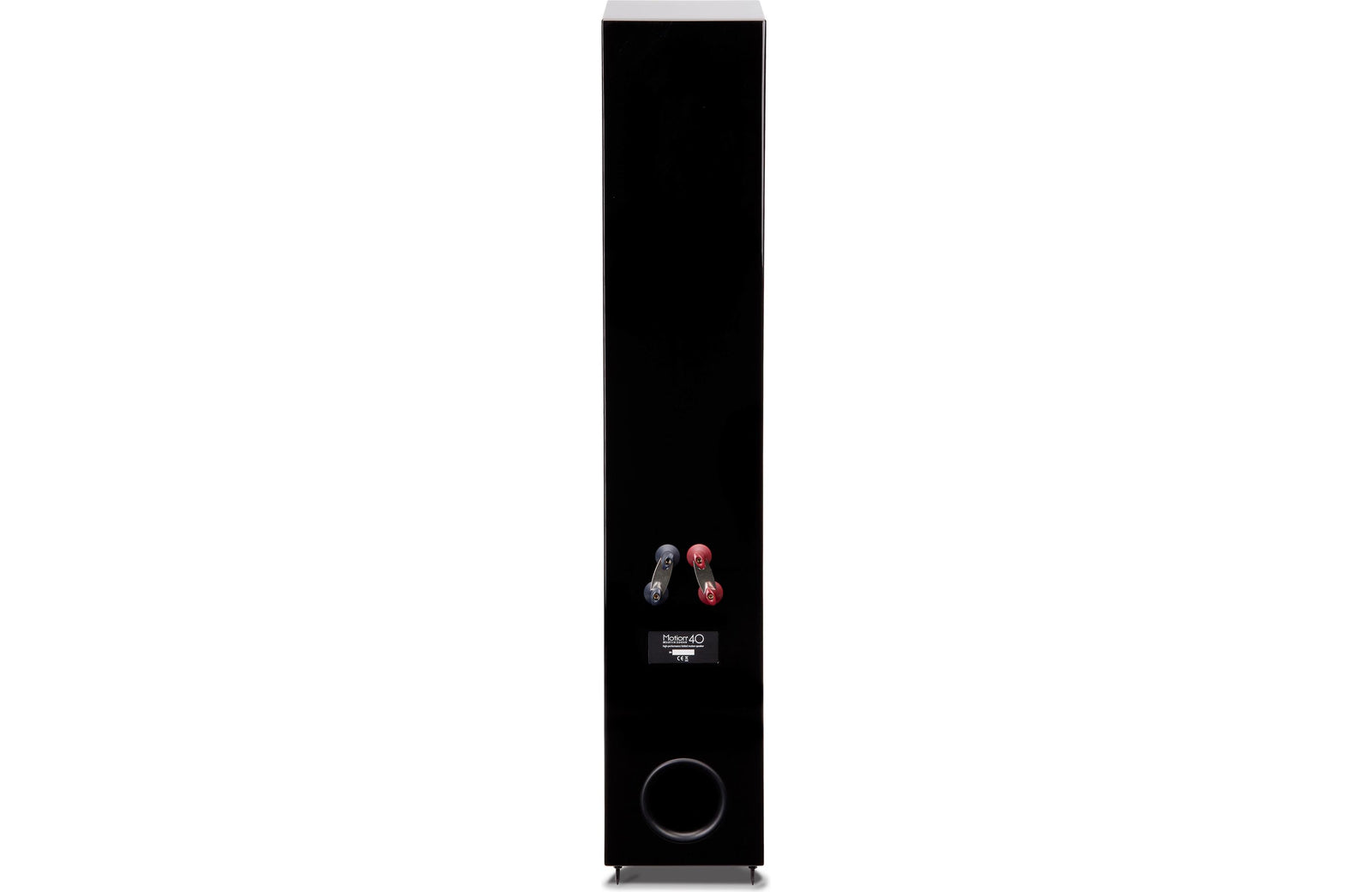

Binding Posts
Custom 5-way bi-wire tool-less binding posts

Spikes
Included MiniETC Spikes

Weight
49lbs. (22.2kg) each

Dimensions
42.5" x 7.6" x 12.8 " (107.9cm x 19.2cm x 32.6cm)
