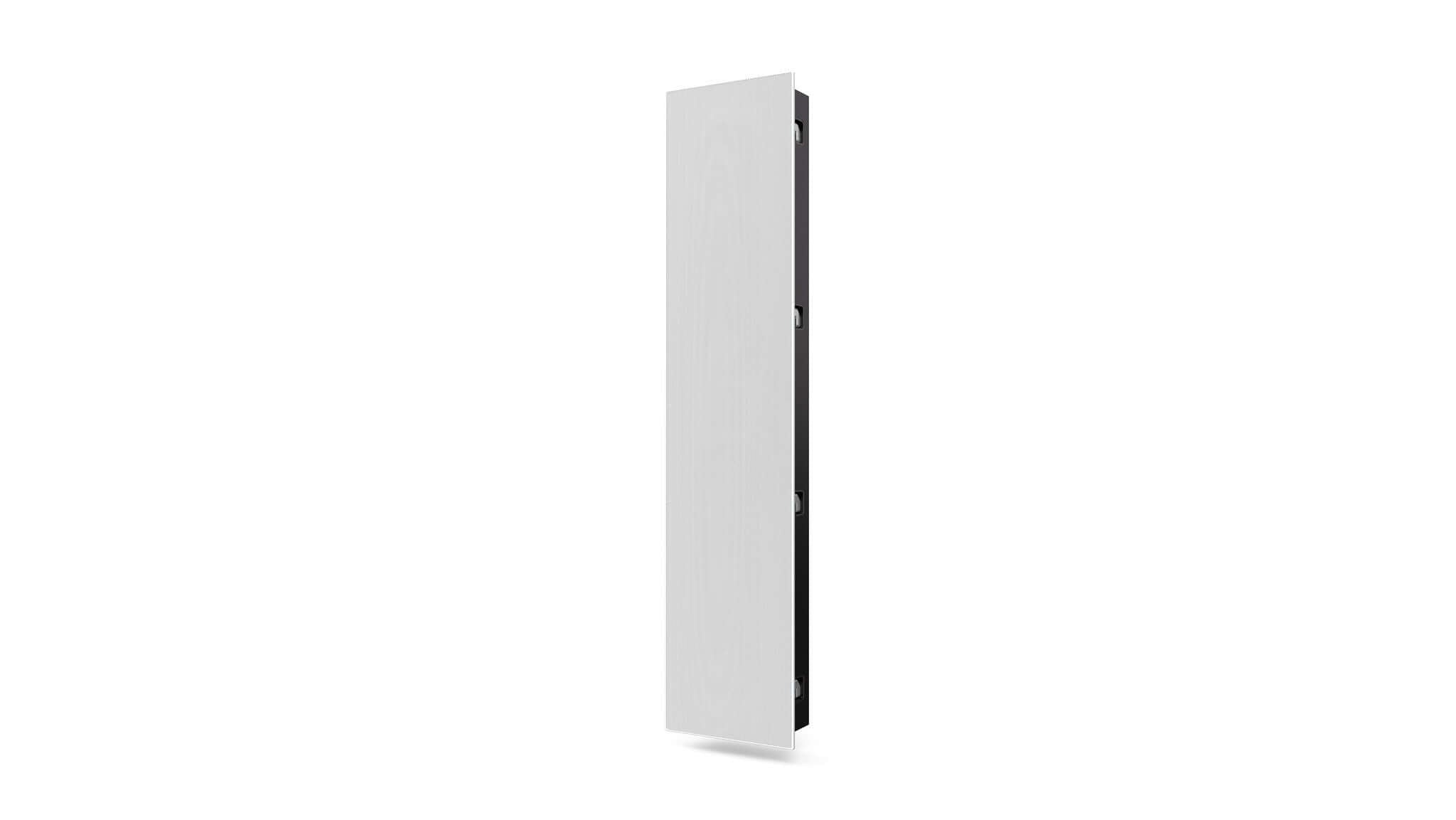

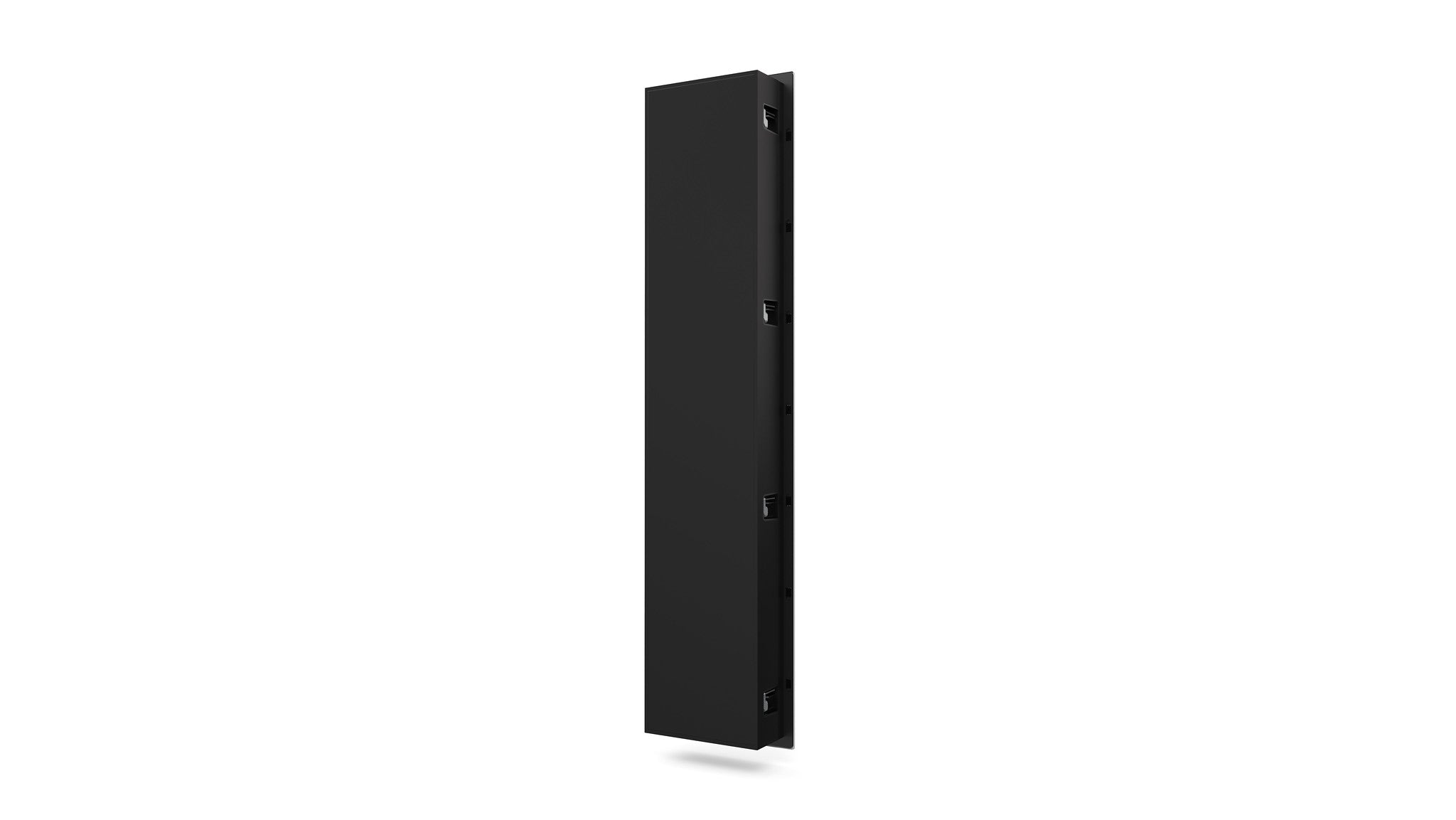

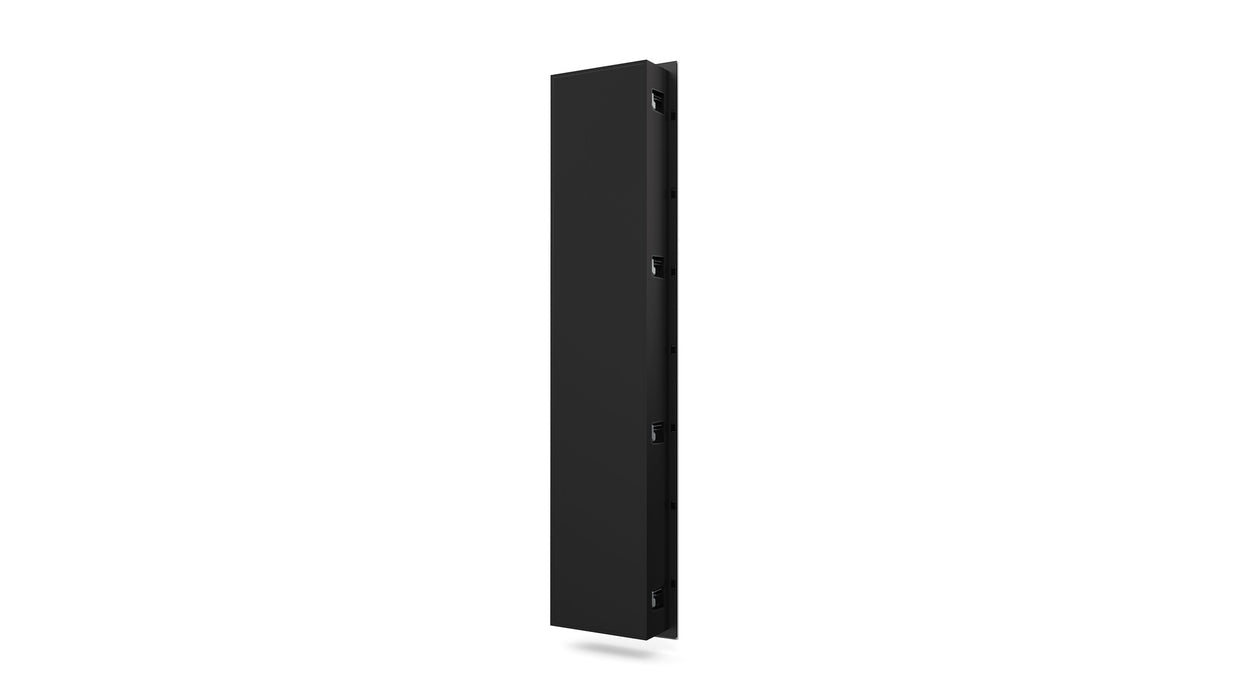

Martin Logan Monument 7XW Ultimate Performance In-Wall Speaker (Each)

UPC: 810123024476

SKU Monument7XW

Product Qualifies for FREE Ground Shipping

Martin Logan Monument 7XW Ultimate Performance In-Wall Speaker (Each)

Featuring seven drivers and a lightning-fast Folded Motion XT Obsidian tweeter, a 6.5-inch unidirectional carbon fiber multi-section cone midrange driver with a Nomex backer, two matching 6.5-inch woofers, and three 6.5-inch passive radiators, seamlessly blended with a flagship-class Vojtko crossover network constructed from audiophile-grade components. A pre-installation bracket is available.

Flagship Class Performance In-Wall and In-Ceiling Speakers

From extreme home theater to transcendent 2-channel listening, Masterpiece CI is the pinnacle of discreet in-wall and in-ceiling loudspeaker design state-of-the-art Truth in Sound. Featuring lightning-fast, low-distortion, Folded Motion XT Obsidian tweeters, flagship-class Vojtko crossover networks, and unidirectional carbon fiber multi-section cone drivers with a Nomex backer, the Masterpiece CI Series offers the biggest, boldest, and most lifelike performance possible a tribute to the acoustic achievements of MartinLogan s original iconic masterpiece, our flagship floorstanding electrostatic speakers.

Folded Motion XT Obsidian Tweeters

MartinLogan s signature Folded Motion tweeter utilizes an extremely low mass diaphragm that squeezes air, thus demanding significantly less excursion than the typical 1-inch dome tweeter. Its folded design allows for a much larger surface area (compared to that of a regular 1-inch dome tweeter), controlled dispersion characteristics, and vanishingly low distortion. It s a miracle of audio engineering that s able to deliver much of the high-frequency detail and speed of a large, dynamic electrostatic panel in a small space. Folded Motion XT tweeters, advance thin-film transducer technology even further, with a 40% larger radiating surface and 80x30-degree controlled dispersion. This tweak increases audible bandwidth without sacrificing details and minimizes distortion to an unprecedented level while increasing efficiency and the tweeter s already lightning-fast response time. The result superior realism and alarming specificity that is aurally astounding, and only by MartinLogan. Masterpiece CI Series Folded Motion XT Obsidian tweeters feature a black diaphragm.

Powerful Mid-Frequency and Bass Drivers With Unidirectional Carbon Fiber Multi-Section Cones With a Nomex Backer

Custom built, low-distortion drivers pair high-power magnet structures with unidirectional carbon fiber multi-section cone diaphragms with a Nomex backer to deliver massive excursion and sound output, preserve minute bass details and maximize power handling capability, all without a hint of distortion. The use of unidirectional carbon fiber yields a cone that is twice as strong as steel with a sixth of the density, providing exceptional rigidity without adding excessive weight. The multi-section design of Masterpiece CI drivers serves to reduce resonant modes within the driver, allowing for a smoother response. Nomex backers improve overall driver performance by damping the cone to prevent deleterious ringing and reduce break up modes a crucial requirement for extremely rigid cone materials. These exceptional woofers ensure a smooth, non-resonant response necessary for seamless blending with the extreme accuracy of high-resolution Folded Motion tweeters.

Monument 7XW features passive radiators constructed from the same high-strength, low mass material as the woofers unidirectional carbon fiber multi-section cone diaphragms with a Nomex backer. These passive radiators ensure shockingly powerful, dynamic, and distortion-free bass from a small, unobtrusive, sealed enclosure.

Detailed Driver Engineering

To deliver accuracy in the critical midrange, mid-frequency drivers feature a specially engineered stiff suspension. Stiffening the suspension (the spider and surround) raises the driver s resonant frequency and optimizes its performance to achieve a natural roll-off and inherently operate within an ideal range for a mid-frequency reproduction (as opposed to a comparably sized woofer).

Each cone includes a concave dust cap that adds additional strength and rigidity while further reducing break up modes. An inverted surround design maximizes clearance behind the grille cover to enhance driver excursion, clarity, and linearity.
Phenolic Baffle and Sealed Back Box Enclosure

Statement 40XW, Monument 7XW, Tribute 5XW, and Icon 3XW utilize baffles constructed from incredibly dense and durable phenolic resin polymer an exceptional, acoustically superior substrate. Phenolic resin polymer, the same material used in the Neolith cabinet, offers extraordinary material consistency that naturally minimizes acoustically deleterious resonances and vibrations. This sealed design helps keep sound from leaking through the wall to unintended areas of the home, while also providing predictable airspace for the woofers to perform their best.

The most significant benefit of a built-in, acoustically inert, and sealed back box is predictable volume and a construction methodology that removes the variables of the wall cavity size and construction quality from the acoustic equation, guaranteeing a consistent, accurate performance, regardless of installation. By maintaining complete control over driver performance, crossover design, and cabinet construction, Masterpiece CI in-wall and in-ceiling speakers can achieve an emotionally engaging experience on par with the rarified performance of the world s most exceptional floorstanding speakers.
Die-cast Aluminum Mounting-Lock System

A simple, yet robust die-cast aluminum mounting-lock system maximizes strength while allowing quick, trouble-free installation. Pocketed screw holes help hold the drill steady, making installation a snap. When not in use, mounting locks are secured within a self-contained housing. When moved into place, they couple the chassis firmly to the ceiling or wall, increasing the rigidity of surfaces. If ever removed, the locks retract and latch back in their housings. Each speaker includes a full-size installation template featuring quick-reference instructions, and die-cut guides for marking the cutout hole.

Spring-Loaded Binding Posts

Spring-loaded binding posts feature a large 4.5mm wire access hole and connect via banana plug, pin, or 10AWG bare wire.

Proprietary Vojtko
Crossover Networks

Carefully hand-built using only the most exceptional polypropylene and polyester capacitors, custom wound and large steel laminate low-DCR inductors, and double thick PCBs, Masterpiece CI Series crossovers employ MartinLogan s proprietary Vojtko topology for vanishingly low distortion and seamless driver integration. This precision-tuned network preserves even the most microscopic sonic nuances while handling the full dynamics of any source.

Vojtko crossovers are named after MartinLogan's chief audio technologist, Joe Vojtko. His unique approach to crossover design is as big of a part of the "MartinLogan Sound" as are electrostatic and Folded Motion thin-film driver technologies. A Vojtko crossover isn't so much a set of design requirements as it is a philosophy.

Hand-Selected Components

Vojtko crossovers are designed in such a way that all drivers are kept within their optimal frequency range and balanced with one another. The drivers themselves are as much a part of a Vojtko crossover as are capacitors and resistors. Before the design of any crossover begins, drivers are carefully selected or designed to operate within a very intentional frequency range and with precise and predictable performance parameters. Vojtko crossovers are always built from high-quality parts, and care is taken to avoid overly complex topologies a straightforward objective due to the careful selection of woofers and tweeters. The final (and most critical) aspect of a Vojtko Crossover is that final voicing is conducted in a space that is indicative of a real-world environment. This pragmatic approach allows MartinLogan speakers to sound their best in real-world rooms.

Pre-Installation Brackets (sold separately)

Pre-installation brackets are available for every model in the Masterpiece CI Series, except for the Statement 40XW, which requires unique considerations for installation.


Frequency Response
52 25,000 Hz 3 dB

Tweeter Dispersion (horizontal x vertical)
80 x 30

95 dB @ 2.83 volts/ meter

4 ohms. Compatible with
4, 6, or 8 ohm rated amps.

Crossover Frequency
200, 3200 Hz

High Frequency Driver
1.25 x 2.4 inch (3.2 x 6.1 cm)
Folded Motion XT Obsidian
transducer with 4.5 x 2.75 inch
(11.4 x 7 cm) diaphragm.

Tweeter Aiming
Rotatable tweeter for horizontal
or vertical installations

Mid-Frequency Drivers
6.5-inch (16.5 cm) black unidirectional
carbon fiber multi-section cone
with Nomex backer and cast
aluminum basket, sealed back
chamber format. Concave dust cap.

Low Frequency Driver

Two 6.5-inch (16.5 cm) black
unidirectional carbon fiber
multi-section cone with Nomex
backer and cast aluminum
basket, sealed back chamber
format. Concave dust cap.

Passive Radiators
Three 6.5-inch (16.5 cm)
unidirectional black carbon fiber
cone with Nomex backer and cast
aluminum basket, sealed back
chamber format. Concave dust cap.

Custom air core coil inductors,
polypropylene film capacitors,
and low DF electrolytic capacitors.
Thermal/current protection.

Suitable Amplifier Range
20 300 watts

Max Power Handling
150 watts

Binding Post Inputs
Push style (two sets for
easy installation)

44.5 lb (20.2 kg)

Dimensions (overall size)
46.86 x 10.6 x 4.11 inch
(1190.2 x 269.2 x 104.3 mm)

Required Wall Opening (includes tolerance)
45.57 x 9.29 inch
(1157 x 236 mm)

Projection From Wall Surface
0.31 inch
(7.8 mm)

Depth Behind Wall Surface
3.8 inch
(96.5 mm)

Optional Accessories
Pre-install bracket (PN: 7XWBRK)
