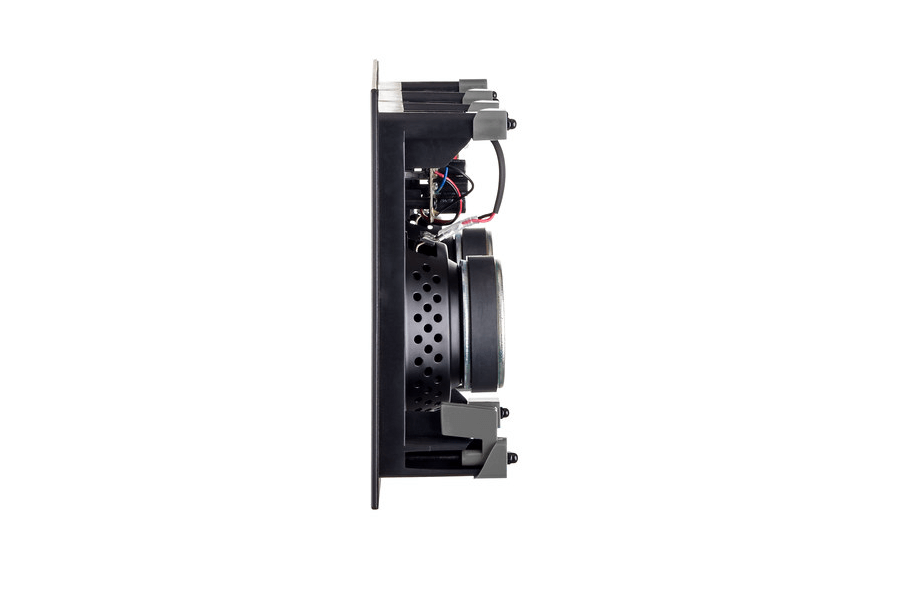

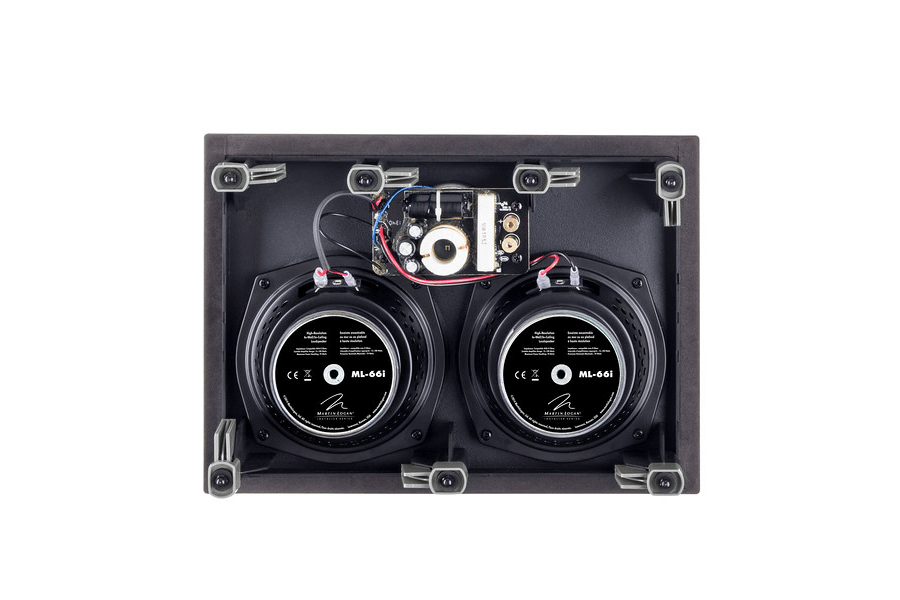

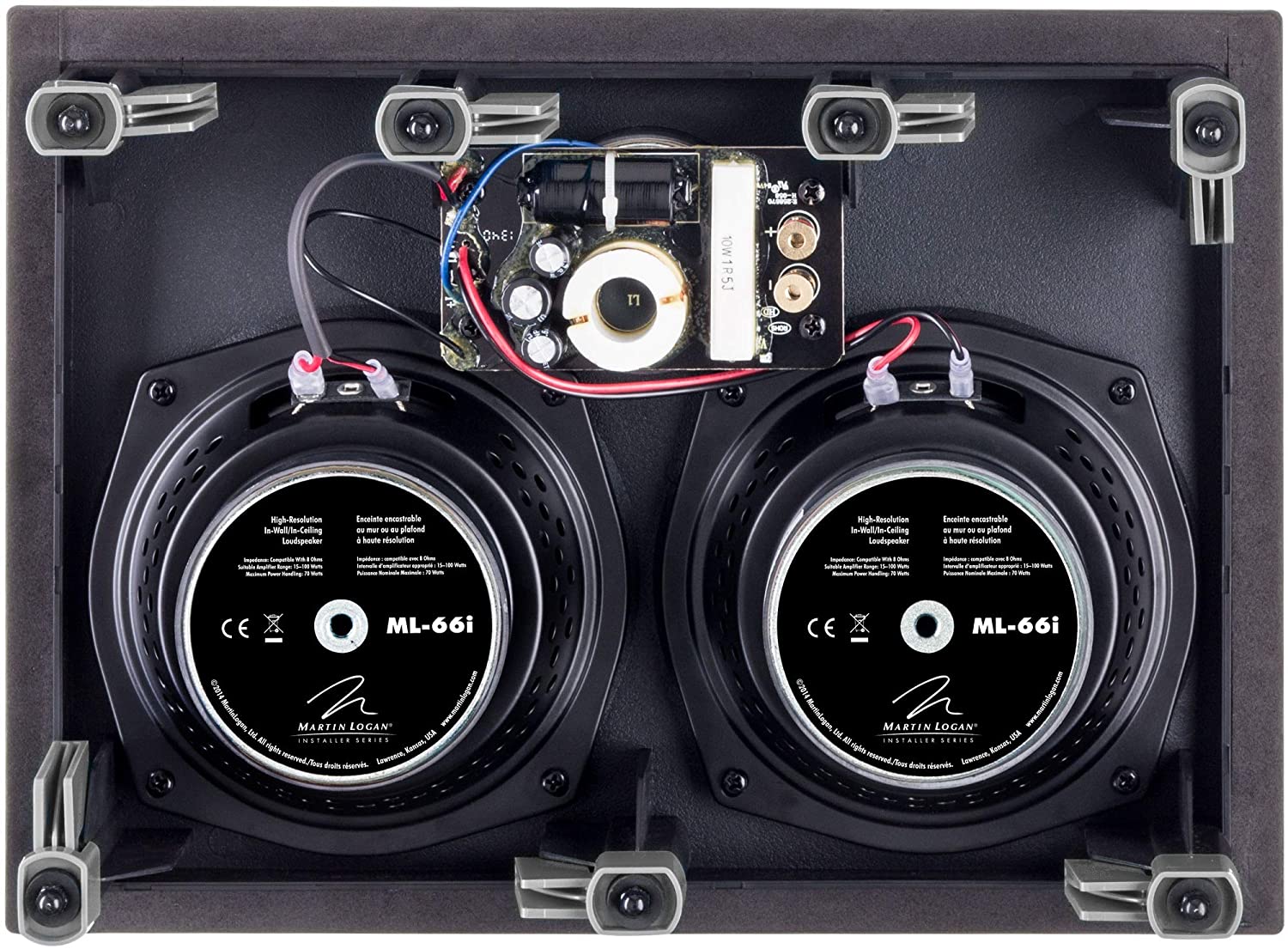

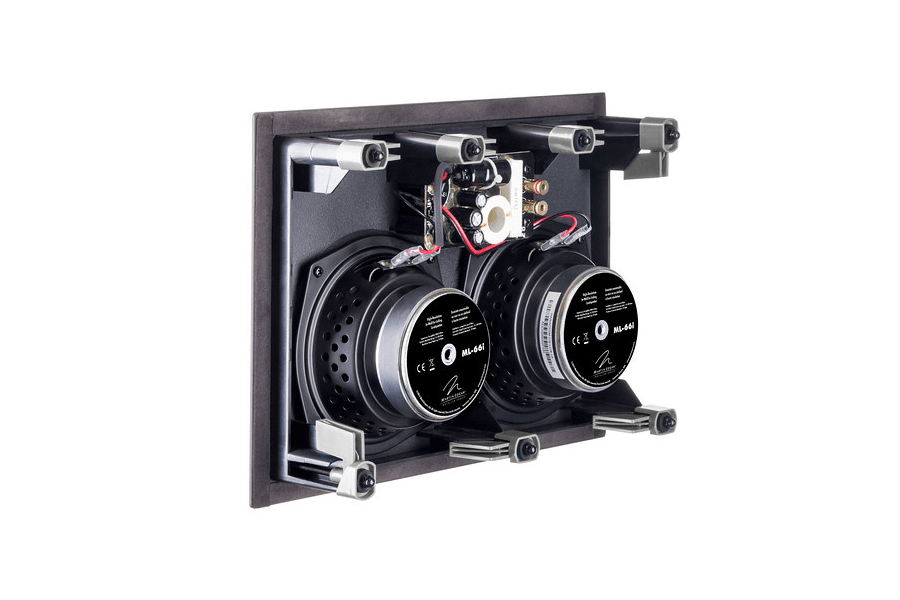

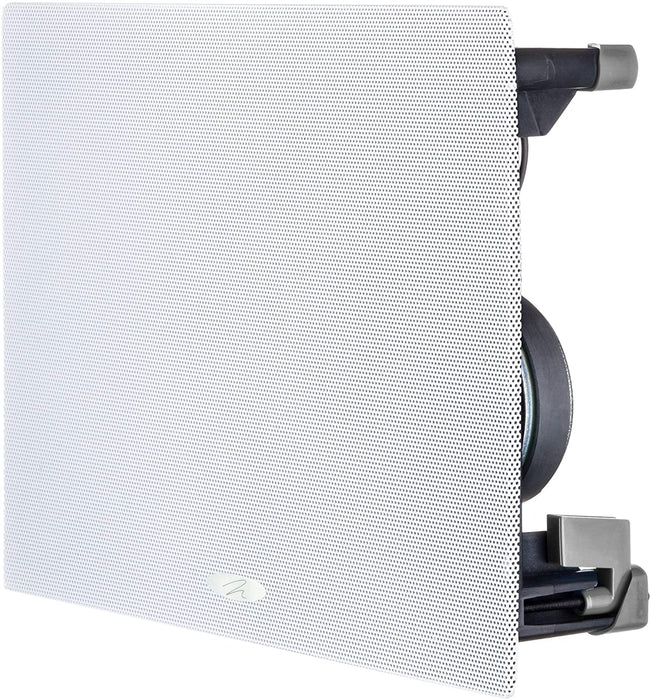

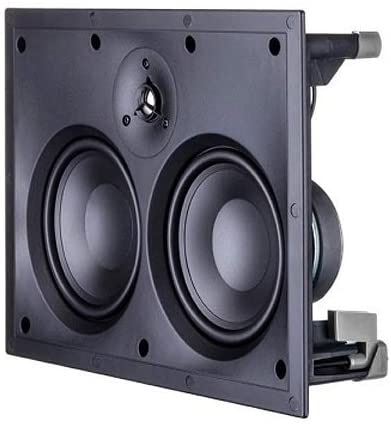

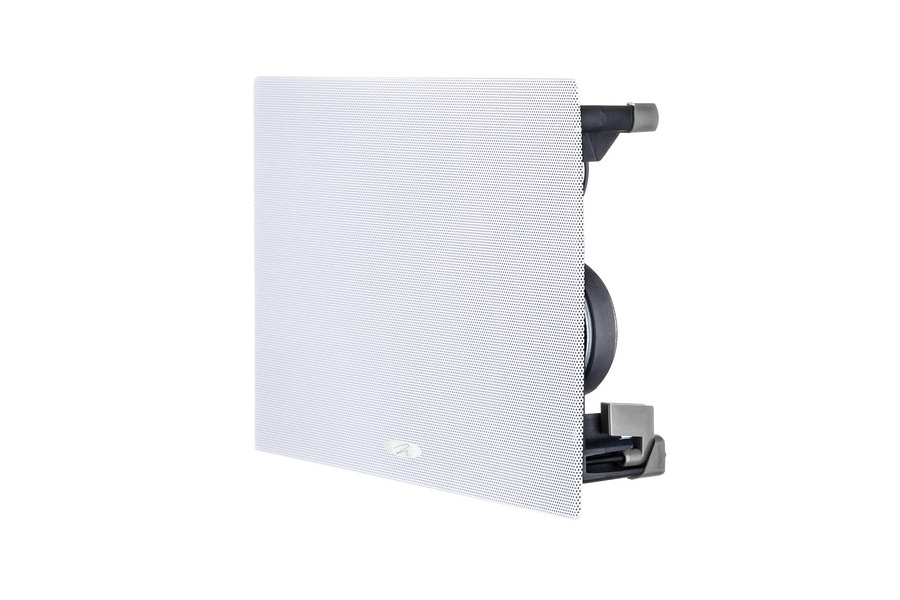

Martin Logan ML-66i Installer Series In-Wall Speaker (Each)
Titanium dome tweeters and mineral-filled polypropylene drivers ensure great performance, while bezel-free paintable grilles that are secured with high-strength magnets provide an aesthetic that blends invisibly into any room. Each model comes with an extremely robust mounting-lock system that couples with the speaker’s vibration-resistant ABS chassis when installed.Affordable High-Performance Solutions
The Installer Series™ by MartinLogan is a line of affordable high-performance products, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications. Manufactured to the highest standards of quality, these products are available through authorized specialty custom installation specialists and carry the full MartinLogan warranty.
Frequency Response 75–20,000 Hz ±3dB
Recommended Amplifier Power 20—140 watts per channel
Sensitivity 89 dB/2.83 volts/meter
Impedance 8 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers. Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency 2500 Hz
High Frequency Transducer 3/4" (2.5cm) titanium dome
Low Frequency Transducer Two 5.5” (14cm) mineral-filled polypropylene cones
Inputs Spring clip accommodates wire up to 12AWG
Weight 5.9 lbs. (2.7 kg)
Dimensions (overall size) 9.3" x 12.7" x 3.4 " (23.7cm x 32.3cm x 8.6cm)
Cut-Out Dimensions 11.625" x 8.25" (29.5 cm x 20.9 cm)
Projection From Wall Surface 0.2" (0.5cm)
Depth Behind Wall Surface 3.2" (8.1 cm)
