Martin Logan MDA-16 16 Channel Matrix Distribution Amplifier Factory Refurbished

UPC: 810123024308
Save 25%
Original price $3,499.99
Current price $2,624.99

SKU MDA-16RB

Product Qualifies for FREE Ground Shipping

FACTORY REFURBISHED
  • 100% WORKING CONDITION
  • THOROUGHLY INSPECTED
  • ORGINAL OR REPLACEMENT PACKAGING + ALL ACCESSORIES
  • 1 YEAR MANUFACTURER'S WARRANTY

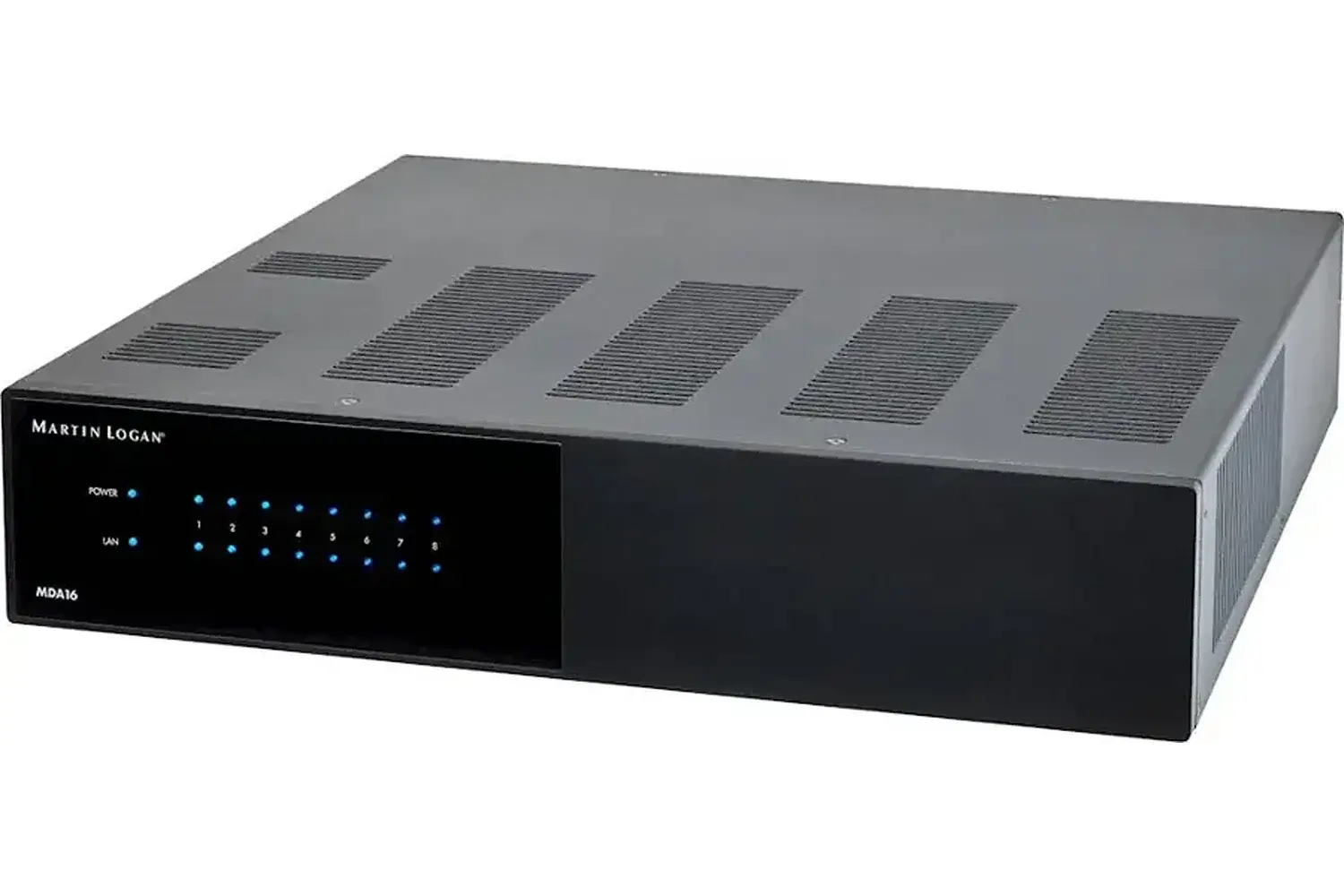

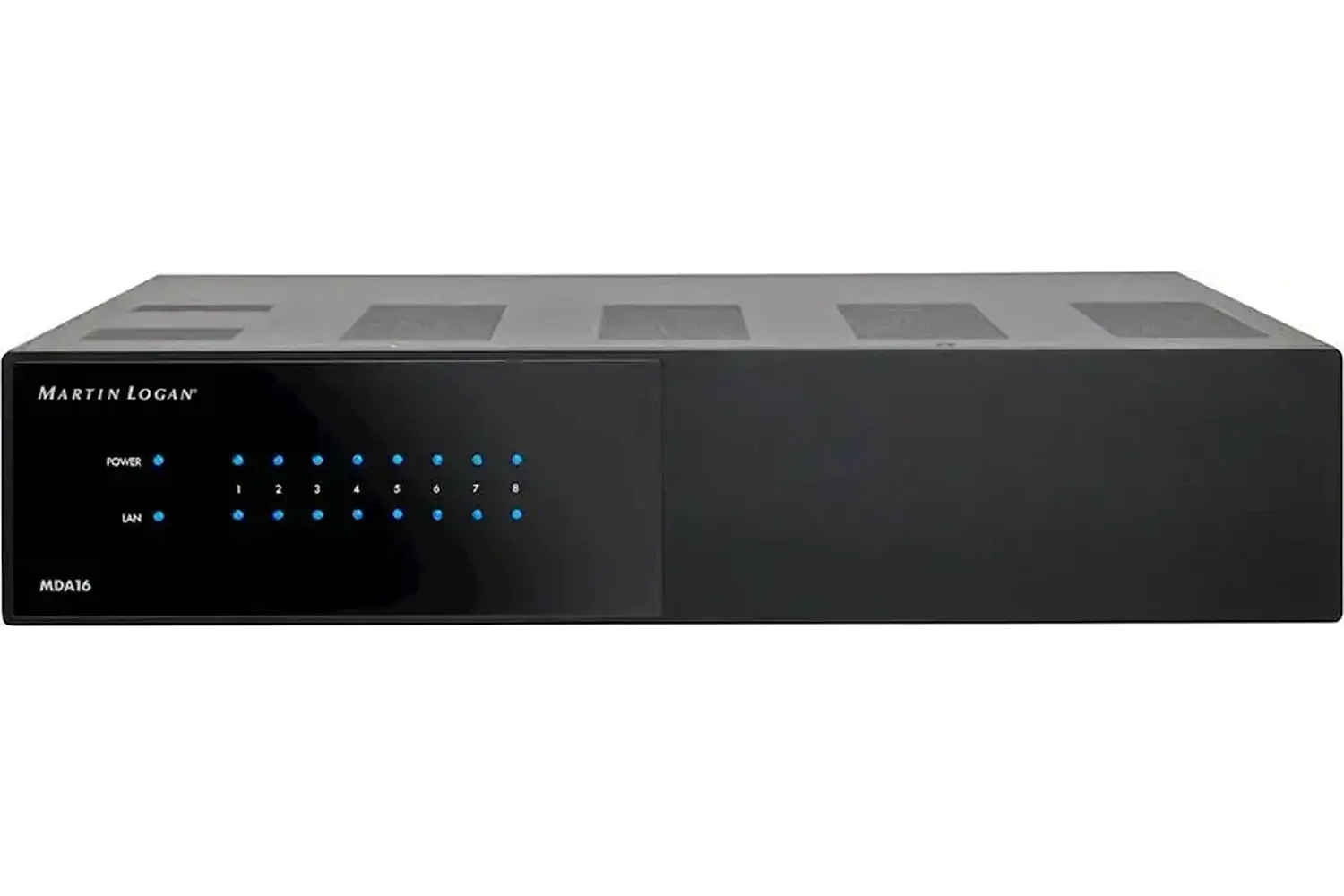

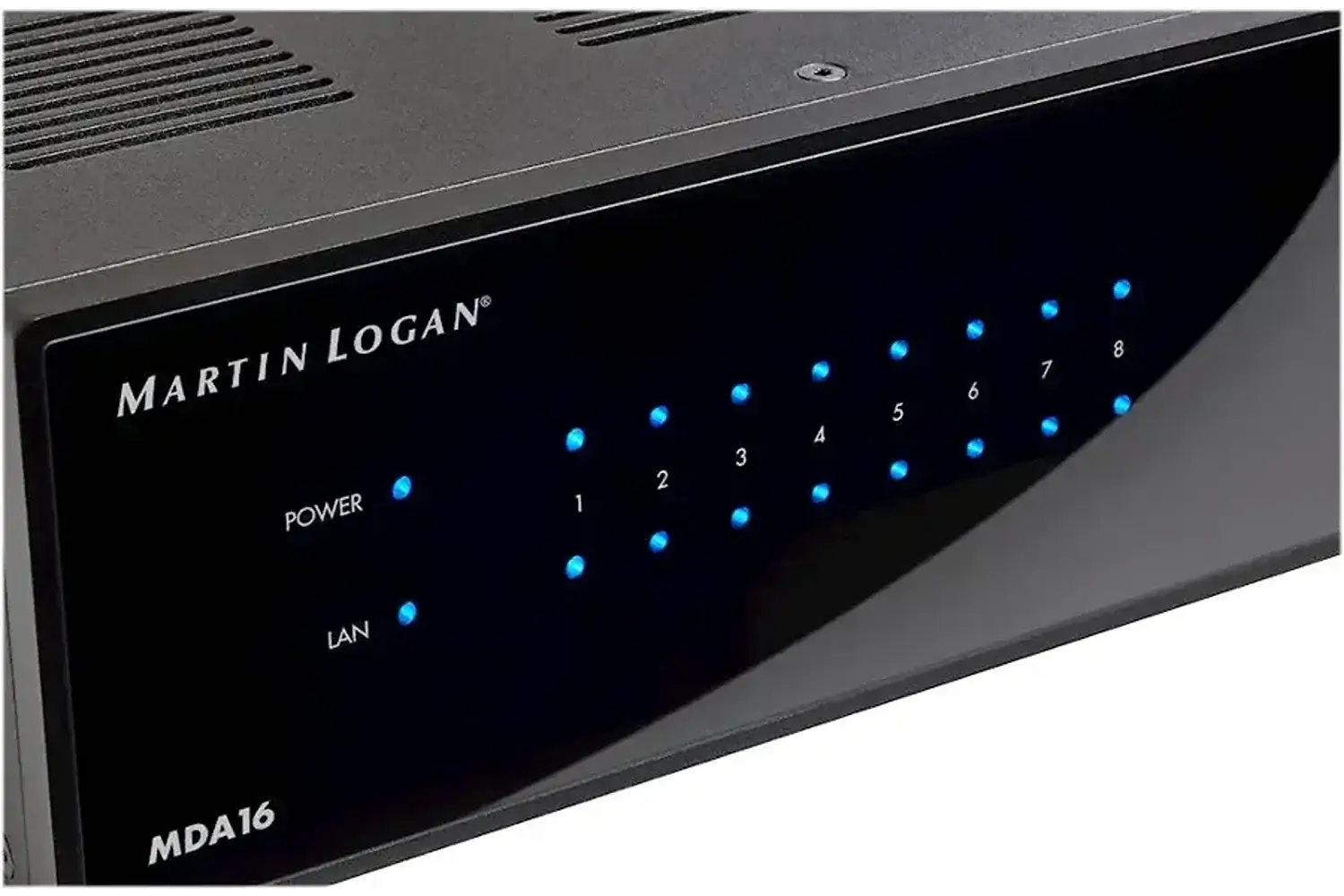

  • Martin Logan MDA-16 16 Channel Matrix Distribution Amplifier Factory Refurbished

    MDAs are the most flexible and adaptive distribution solutions available today, delivering dramatic levels of performance where it matters—in the room.

    With full matrix switching capabilities of analog and digital inputs, and independent room correction with ARC® Genesis in each zone, MDAs allow you to install robust audio solutions throughout a home or business. These unique technologies actually understand the unique acoustic signature of each listening space and correct deviations from an ideal response.

    With an eye on preserving even the most subtle nuances of music, MDAs accept high-resolution PCM up to 24-bit/192kHz. MDAs will never hold back a compelling musical experience.

    The MDA16 powers up to eight zones with sixteen full channels at 60 Watts per channel into 8 Ohms (or 120 into 4 Ohms). Zones can also be bridged for a high output mode with 200 Watts per channel into 8 Ohms.

    Web-Based Setup
    Nothing could be simpler than on-site configuration and calibration using our intuitive Web-based controls.

    The specially designed, adaptive user interface works on any device. Custom configure zones, from input assignments to zone names. Adjust levels (and every aspect of performance) independently.

    Run Anthem Room Correction (ARC Genesis) for each zone, and customize settings separately, Network firmware update with the touch of a button.

    Digital Inputs, Digital Switching
    Fast, efficient Ultra-Class-D amplification is supported by proprietary Advanced Load Monitoring technology, delivering reliable performance under even the most demanding loads. Our high-efficiency design meets and exceeds global power-saving standards.

    Smooth, instantaneous digital switching output allows the linking of digital inputs between multiple amplifiers and analog pass-through connections allow daisy-chaining of multiple MDA units.

    Dedicated Subwoofers For Each Zone
    Install and control subwoofers independently in separate zones, with dedicated outputs (both low and high level, including bridge mode), and zone-independent settings for the new, more advanced Anthem Room Correction (ARC® Genesis).

    Toggle ARC Genesis on/off in each zone to hear the benefits of premium room optimization.

    Zone Configuration Options
    Zones can have custom names, multiple inputs, independent playback, and tuning controls. Bridge zones for more power. Enable subwoofer bass management in any zone, instantly set crossover frequency, level, phase, and polarity.

    Only the MDA Series gives you this much control over multiple zones, supporting more creative system designs and more thrilling audio performance.

    Analog/Digital Matrix Switching
    Full digital/analog matrix switching allows you to assign any analog RCA, digital coaxial or digital optical input to any output, either pre-configured via the web interface or switched in real-time via IP commands.

    • 60 Watts (8 Ohms) / 120 Watts (4 Ohms) with all channels driven, or bridges to provide 200 Watts (8 Ohms).

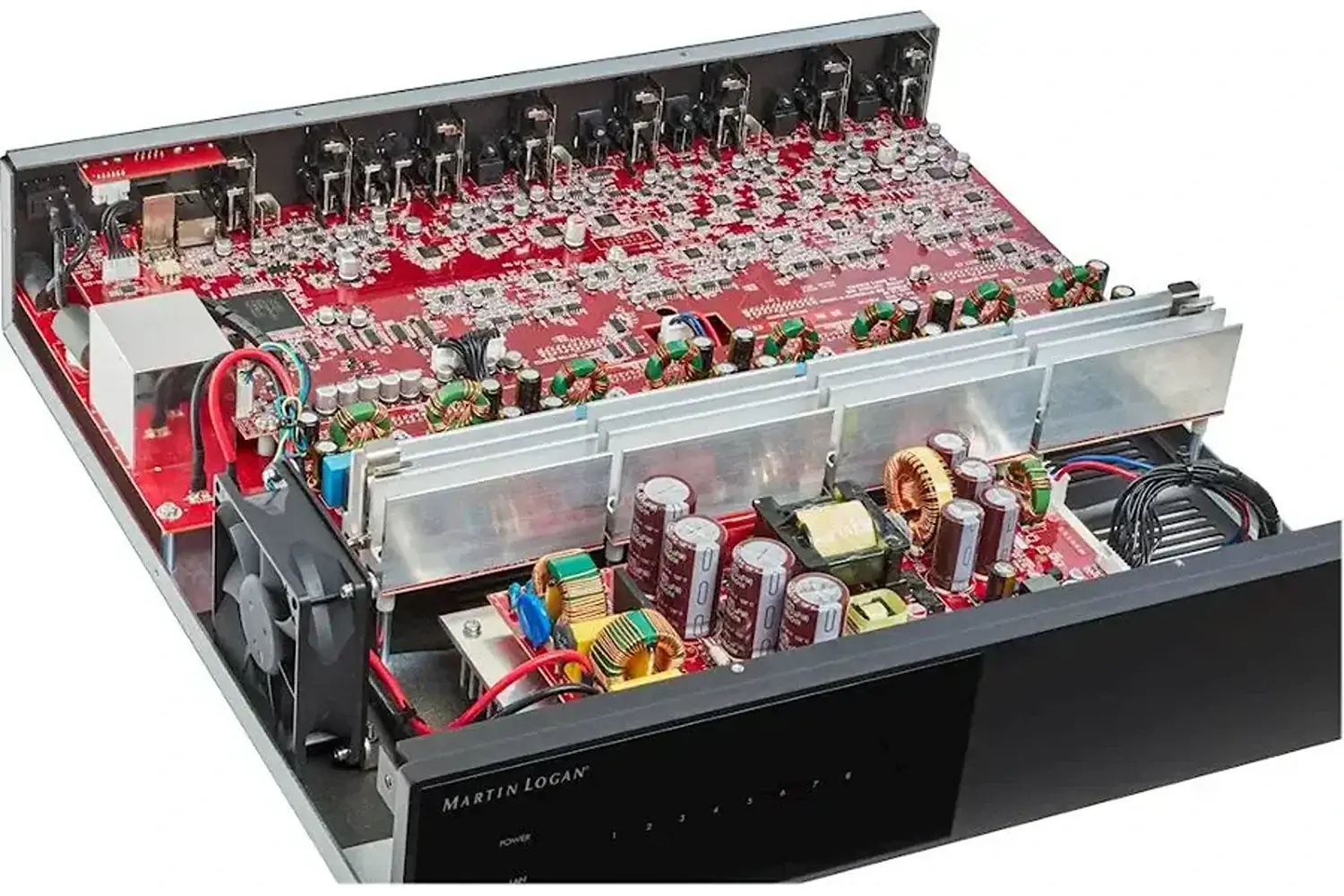

    • 8- or 16-channels of Ultra-Class-D amplification, each supported by Advanced Load Monitoring technology, delivers fast, reliable performance even under the most demanding loads.
    • 24-bit/192kHz digital-to-analog converter (DAC) maintains the integrity of high-resolution source materials.
    • Customized pre-set DSP settings.
    • Separate zone-specific bass management and subwoofer integration via a passive (RCA) or active (powered by another zone in bridge mode) connection.
    • Bridging allows up to 200 Watts for high power applications such as subwoofers.
    • Digital switching output allows linking of digital inputs between multiple MDA.
    • Analog pass-through connections allow daisy chaining of multiple MDA.
    • Speaker terminal block connections accept up to 12 AWG, ideal for long speaker cable runs.
    • IP/RS232 capability ensures compatibility with leading home automation systems.
    • ON/OFF switched via IP/RS232, 12-Volt trigger, or audio sensing.
    • High-efficiency design meets global power saving standards. Secure professional rack-mount arms included.
    Specs

    Channels / Zones
    16 channels / Up to 8 zones

    Power Output RMS per Channel (8 Ohm)
    60 Watts

    Power Output RMS per Channel (4 Ohm)
    120 Watts

    High Output Mode (Bridged) RMS per Channel (8 Ohm)
    200 Watts

    Digital-to-Analog Converter
    PCM up to 24 bit/192 kHz

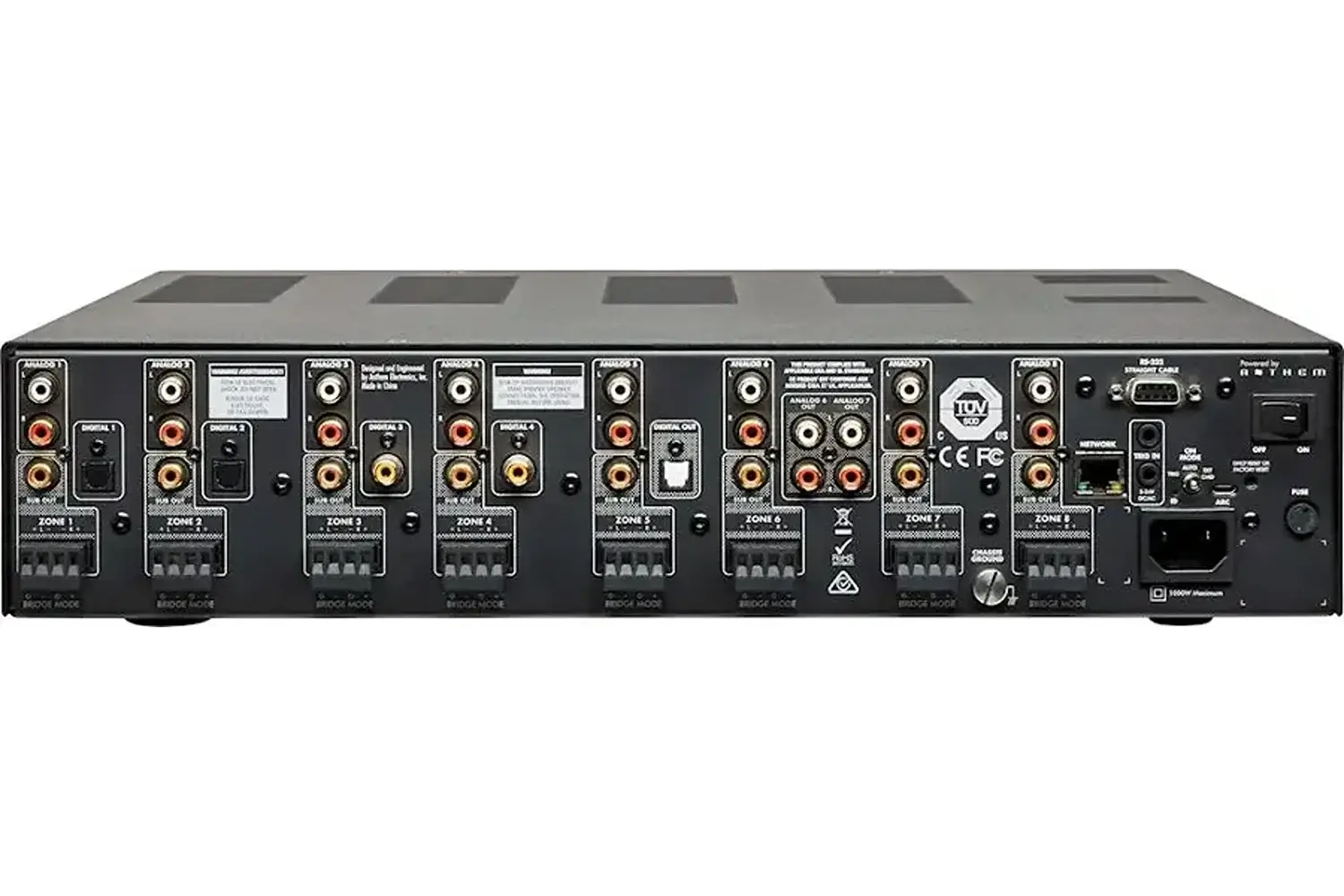

    Inputs (analog)
    8x RCA pairs (left/right)

    Inputs (digital S/PDIF)
    2x RCA coaxial; 2x optical (Toslink)

    Inputs (network)
    RJ-45 10Base-T/100
    Base-TX ethernet port

    Inputs (trigger)
    1x 3.5mm (5 – 24V DC/AC)

    Outputs (speaker level)
    8x removable Phoenix style (left/right) accommodate wire up to 12AWG

    Output (analog, passthrough)
    2x RCA pair (left/right)

    Outputs (subwoofer)
    8x RCA (with bass management and room correction)

    Outputs (digital matrix)
    1x optical (Toslink)

    Outputs (other)
    1x 3.5mm 12V trigger

    Audio In-Out Matrix
    Yes

    Advanced Load Monitoring
    Yes

    Controls (via web-based UI)
    Bass level: ±6dB for each zone;
    Trebel level: ±6dB for each zone;
    Level balancing: ±10dB for each zone

    Controls (back panel)
    Power Mode: Auto, Trigger,
    External Command;
    Network Reset (pinhole);
    Factory Reset (pinhole);
    Main Power: On /Off

    Microphone (for room correction)
    Included dual input microphone
    (3.5mm and mini-USB)

    Setup
    Web-based user interface

    IP Control (via IP or RS-232)
    Drivers for Control4, Crestron, Savant, URC, Elan

    AC Voltage
    120V~50/60Hz

    Rack Mount Ears / Feet
    Included

    Rack Space (feet removed)
    2U

    Dimensions (H x W x D, with feet)
    3.5” x 17” x 16.4” (8.9 x 43.2 x 41.7 cm)

    Frequency Response
    10Hz – 20kHz ±0.5dB

    Room Correction
    Anthem Room Correction (ARC®)

    Inputs (Other)
    Micro-USB (for ARC); RS-232

    Weight
    24 lbs. (10.8kg)
