Lumin X1 Network Music Streamer

by Lumin
UPC:
Call for Availability
$13,990.00

SKU LuminX1Black
Color: Black

Product Qualifies for FREE Ground Shipping

Lumin X1 Network Music Streamer

Hear every last musical detail.
Re-engineered without compromise, LUMIN X1 redefines the digital musical experience.

WHY LUMIN X1
Never content, we've constantly been evaluating our streamers to see if there was any possible way to beat them. It's taken years, but finally we're ready to reveal Streaming's New Cutting Edge.

Re-engineered throughout

LUMIN X1 makes improvements in every possible location:

  • New processor delivers native DSD512 & PCM768 playback
  • Dual Mono design throughout maximises channel separation
  • Dual ES9038Pro SABRE DACs featuring 140dB dynamic range
  • Femto Clock System with precision FPGA distribution
  • New Output Buffer design
  • Dual Mono dual stage linear regulator
  • Optical Network provides complete isolation from network digital noise
  • USB Digital Audio Output supports Native DSD512

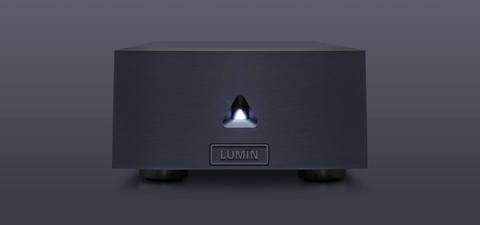

Entirely new Power Supply

  • New solid billet CNC casing design

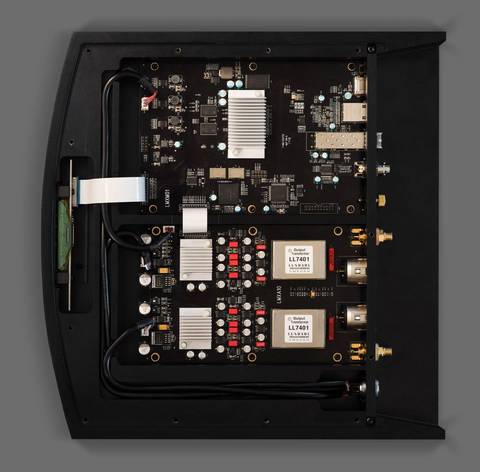

  • Separate digital & analogue circuitry
  • Low-noise linear regulator
  • New 9-pin output connector
  • Available as an upgrade for existing S1 / A1 / T1 customers
Specs

DSD support: Up to DSD512 22.6mhz, 1-bit
PCM support: Up to 768khz, 16 32-bit, stereo
Analog output stage: Dual ESS SABRE32 ES9038PRO DAC chips
Upsampling rates & bit depths: DSD128 upsampling option for all files
PCM 384kHz upsampling option for all files

DIGITAL OUTPUT STAGE

USB: Native DSD512 support,PCM 44.1 768kHz, 16 32-bit, stereo
BNC S/PDIF: PCM 44.1khz 192khz, 16 24-bit; DSD (DoP, DSD over PCM) 2.8mhz, 1-bit
Optical network: Industry-standard SFP, 1000base-T Eigabit Ethernet. Adapter may be needed for your particular switch/cables. Use simultaneously with RJ45

DIMENSIONS

X1: 350mm (w), 345mm (d), 60mm (h), 13.8" (w), 13.6" (d), 2.4" (h) 8kg, 17.6 lbs

PSU: 106mm (w), 334mm (d), 60mm (h), 4.2" (w), 13.1" (d), 2.4" (h) 4kg. 8.8 lbs
