WHY LUMIN D3
LUMIN D3 brings the audiophile potential of music streaming within everyone's reach.
Building on the success of our most popular and longest-standing model, LUMIN D3 inherits the Sabre DAC technology used throughout the rest of our range and combines it with our new all-aluminium compact chassis.
The latest LUMIN processor technology provides DSD256 up-sampling and TIDAL Connect bringing audiophile-grade performance within your reach.
All-new processing system
Full aluminum enclosure
Builds on the massive success of LUMIN D1 & D2
Completely new processing hardware and software deliver improved features and increased resampling flexibility while retaining all the musicality that was noted in so many outstanding D1 & D2 reviews.
The new model is also finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.
All the usual LUMIN refinements
Advanced streaming services & technologies
Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, TIDAL Connect, Qobuz, Spotify, FLAC Radio Stations and more...
Lossless volume control for all LUMIN players.
An innovative new digital volume adjustment algorithm that eliminates rounding errors is now included (at no additional cost) on all LUMIN players!
Up to DSD256, 1-bit, Stereo
Up to 384kHz, 16–32-bit, Stereo

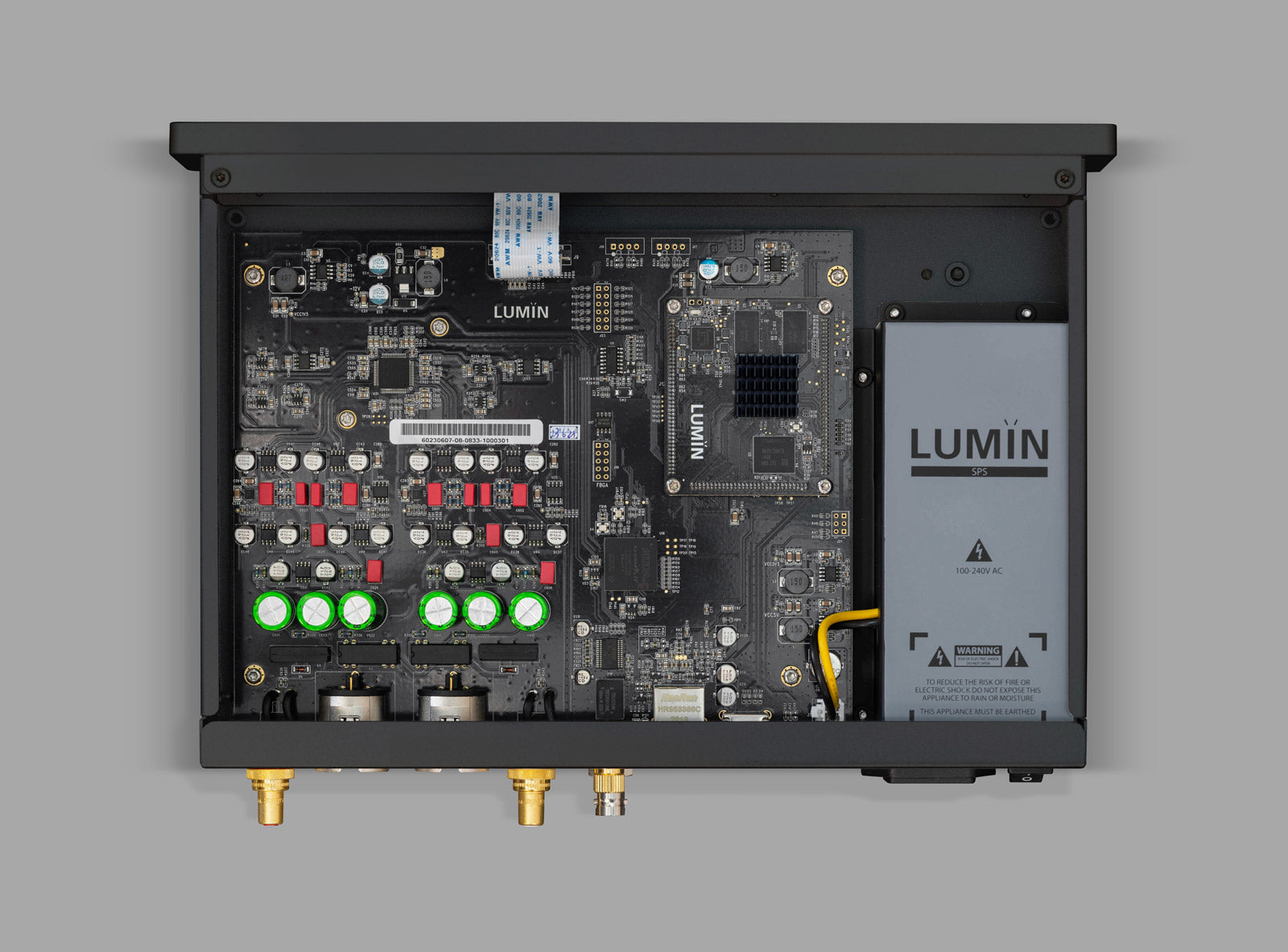

ANALOG OUTPUT STAGE:
ESS SABRE32 ES9028Pro DAC chip
Balanced layout with high-quality components
Completely redesigned analogue buffer includes audiograde output capacitor and ultra-low-noise and high dynamic range
Discreet clock system for precision timing
UPSAMPLING RATES & BIT DEPTHS:
DSD256 up-sampling option for all files
PCM 384kHz up-sampling option for all files
DIGITAL OUTPUT STAGE:
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
Internal 100–240V AC auto-ranging
Shielded power supply compartment for reduced interference with delicate electronics
Black anodized aluminum

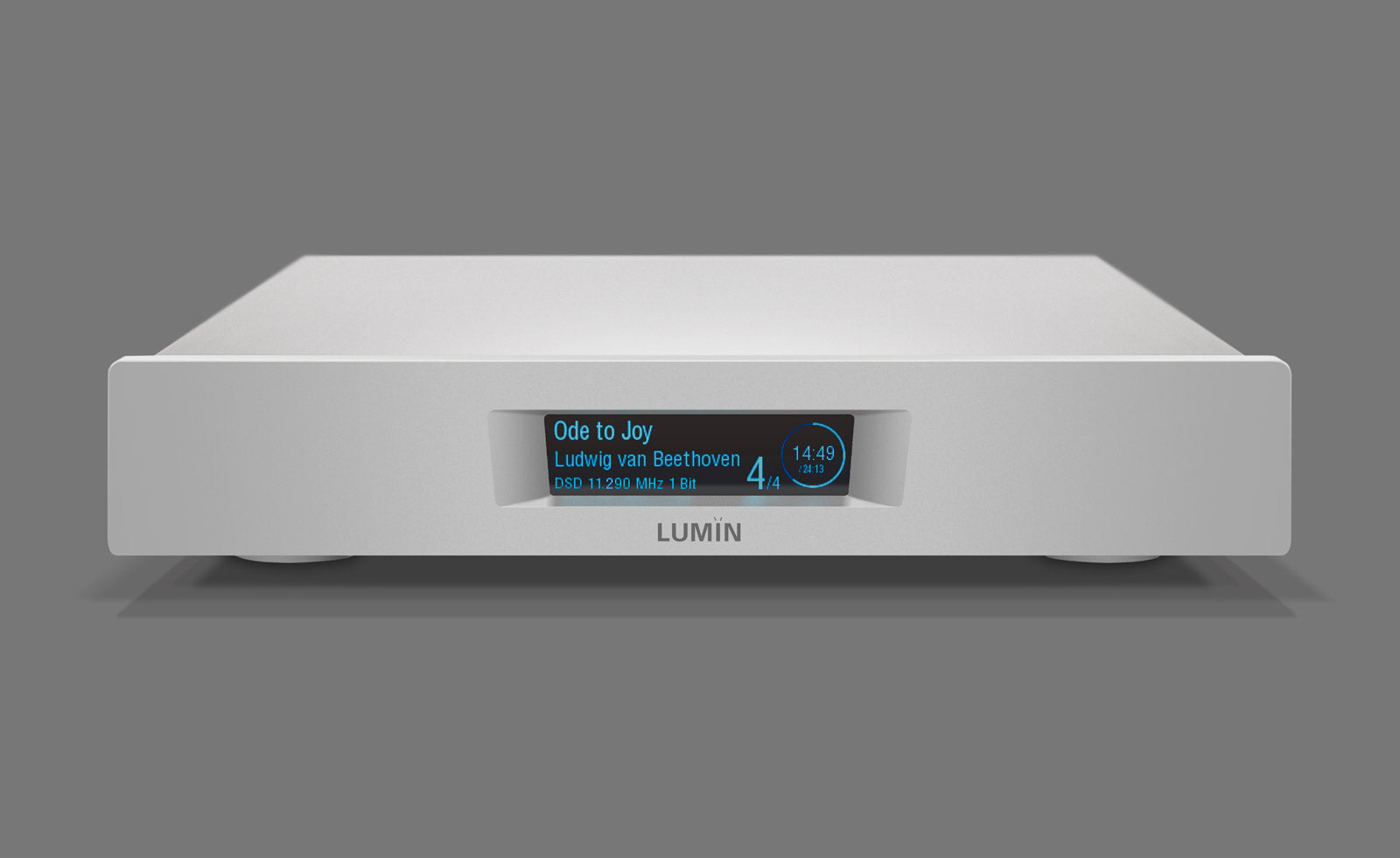

Raw anodized aluminum
300mm (W), 244mm (D), 60mm (H), 2.5kg
SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS
UPnP AV protocol with audio streaming extension (OpenHome)
AirPlay 2 compatible
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
Tidal MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
SUPPORTED AUDIO FILE FORMATS:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3
Ethernet RJ45 network 1000Base-T
USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

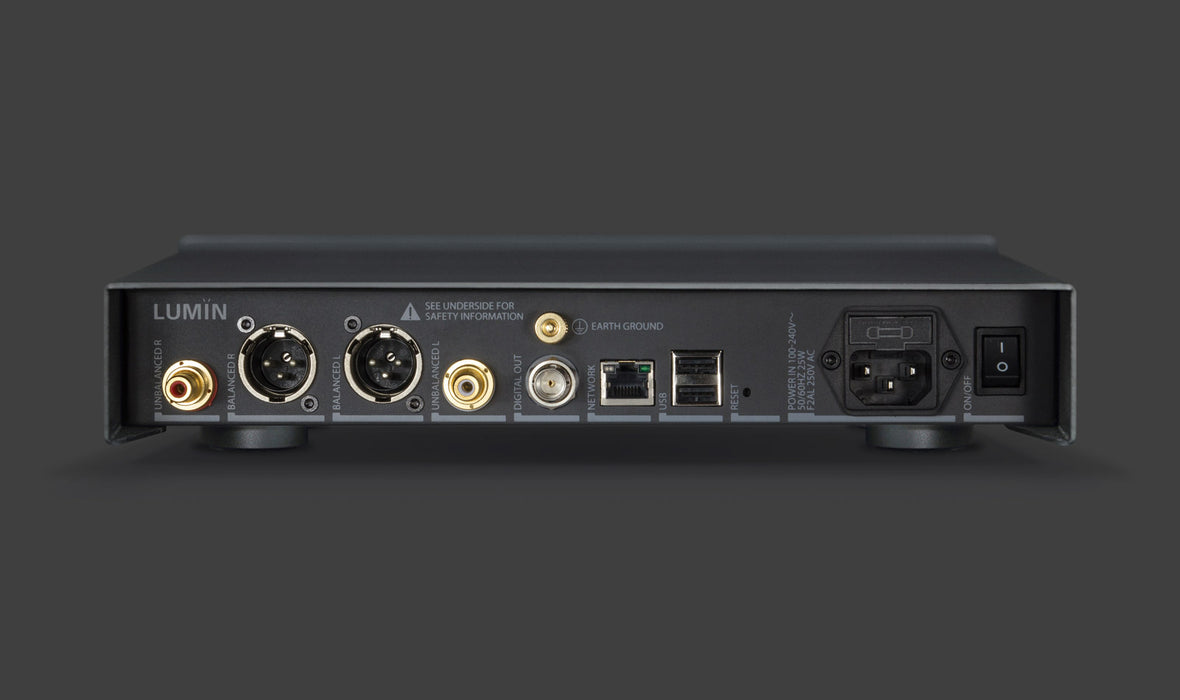

ANALOGUE AUDIO OUTPUTS:
XLR balanced, 6Vrms, pin 2 Hot
RCA unbalanced, 3Vrms
SUPPORTED CONTROL DEVICES:
Apple devices. iOS 11.0 or later (List of supported devices)
Android devices. Android 4.0 (Ice Cream Sandwich) or later required
Leedh Processing lossless digital volume control
Programme of Continuous Development – Firmware-upgradable for further features and enhancements
