Lumin Amp Stereo Power Amplifier

Lumin Amp Stereo Power Amplifier

DEDICATED AMPLIFICATION
Looking for the perfect partner for your LUMIN Music Streamer Look no further. Engineered to let your LUMIN sing!

WHY LUMIN AMP
Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.

Matched styling. Unmatched performance.

• Multi-Stage transistors amplifier
• Dual Mono power supply and amplifier design
• Fully discrete voltage and current gain stages
• DC-coupled signal path
• Class AB operation
• High input impedence and sensitivty for direct DAC drive
• Intelligent bias and thermal management
• Stereo / Dual Mono / Bridged operation
• CNC single billet aluminium construction
• 600VA custom toroidal transformer
• Built-in overload, overheat and DC protection

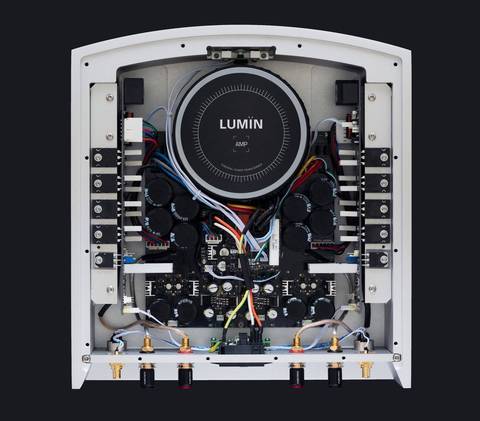

True Dual Mono design throughout

Keeping the design Dual Mono all the way from the power supply delivers full power simultaneously from both channels and keeps crosstalk to an absolute minumum.

In LUMIN Amp, each channel is a mirror image of the other.

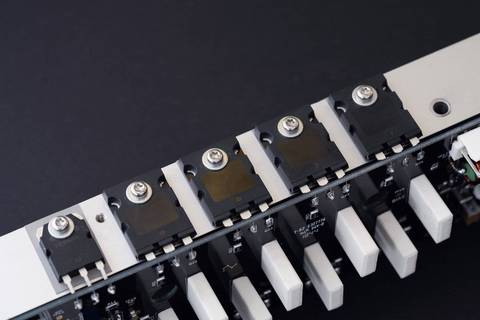

Discrete Transistors

Fully discrete voltage and current gain operating in class AB to deliver the finest details with the lowest distortion from your music.

Custom low-noise toroidal power supply

LUMIN Amp features a unique completely separate dual mono power supply design.

The ultra low noise design features advanced voltage regulation circuitry.

Specs

OPERATING MODE: (selectable) Stereo, Dual Mono or Bridged mode
INPUT: (selectable) 1 x XLR pair (pin 2 hot), 1 x RCA pair
POWER:
160W per channel into 8
320W per channel into 4
640W into 8 (Bridged)
POWER SUPPLY: Available in 220 240V AC and 110 120V AC versions ~ 50/60Hz
POWER CONSUMPTION:
Standby <0.5W
Idle 40W
Max 700W
FREQUENCY RESPONSE: 20hz - 40000hz 0.1db
SIGNAL TO NOISE RATIO: 103db, unweighted
INPUT IMPEDANCE:
200k Balanced (XLR)
100k Unbalanced (RCA)
OUTPUT IMPEDANCE:
0.1
INPUT SENSITIVITY: 1.16Vrms
GAIN:
+26dB (Stereo, Dual Mono)
+32dB (Bridged)
PROTECTION: DC, overload and overheating protection

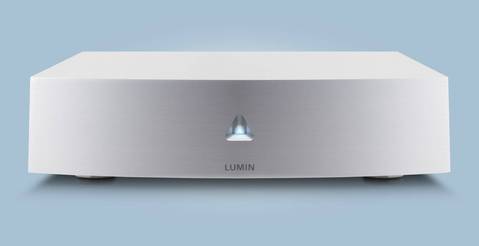

FINISHES: Black anodized brushed aluminium or Raw brushed aluminium
CONSTRUCTION: CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
DIMENSIONS: 350mm (W), 374mm (D), 104mm (H)
WEIGHT: 19kg
