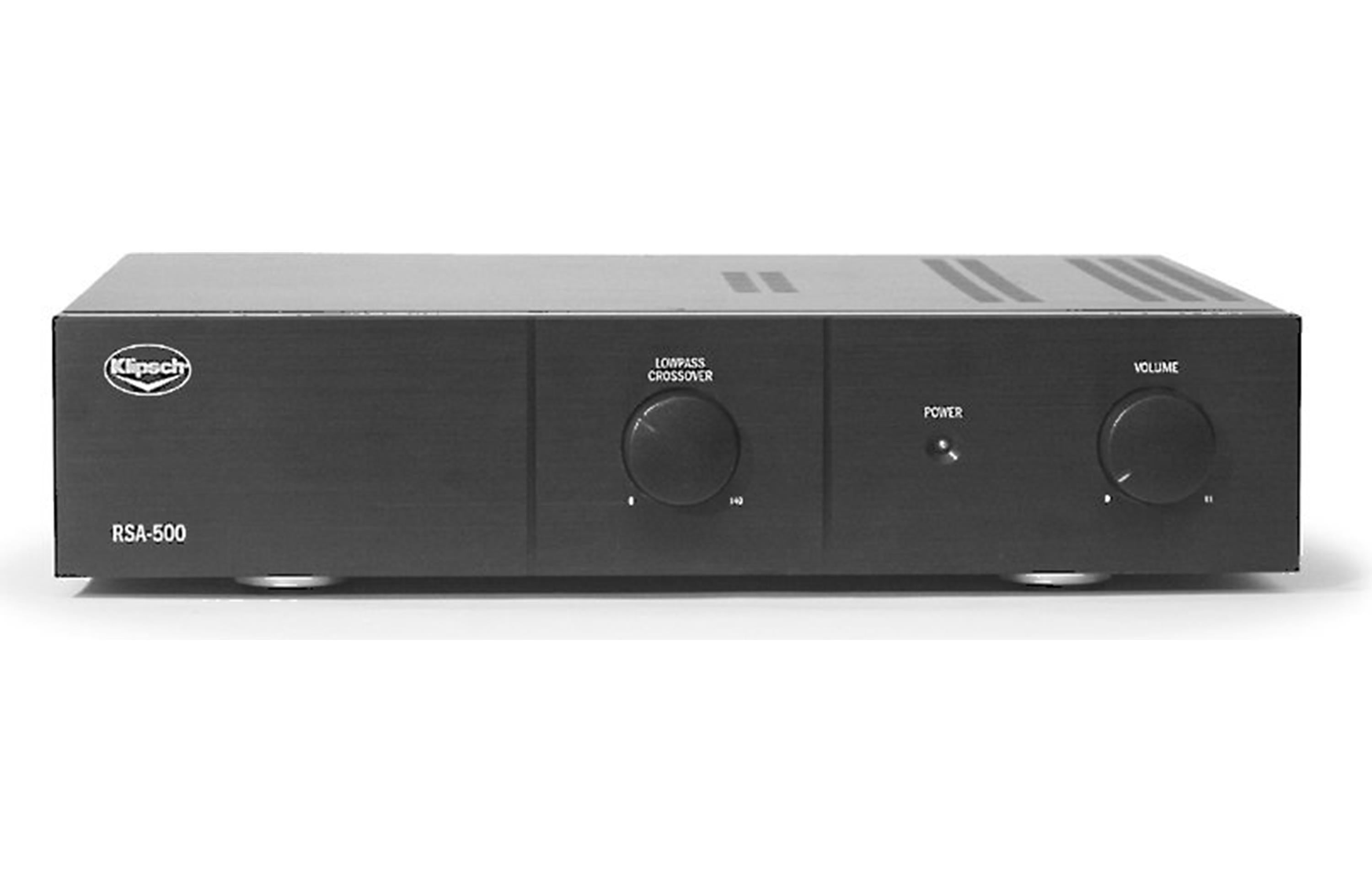

Klipsch RSA-500 In-Wall Black Subwoofer Amplifier

While the RSA-500 subwoofer amplifier was primarily designed for use with the RW-5802 and RW-5101-C in-wall subwoofers, it also features custom settings for the AW-800-SW outdoor subwoofer.


  • EQ switch for use with different subwoofers
  • Selectable signal-sensing or voltage triggered auto-on/off circuit
  • 300 watts continuous into 8 ohms or 500 watts continuous into 4 ohms
  • Line and speaker level inputs
  • Rack ears included

This high-powered device will drive up to two of any of these subwoofer modules and delivers 300 watts into an 8-ohm load (one subwoofer module) and 500 watts into a 4-ohm load (two subwoofer modules). It also comes with rack ears for fast and secure placement into any standard 19-inch rack.

To keep end users from inadvertently tampering with performance levels the majority of the RSA-500 s controls are housed on its rear panel. The fuse is also included on the back for quick and easy replacement. A detachable IEC power cord allows for the simple removal and reinstallation of the entire amplifier unit. The RSA-500 was also designed to play nice by offering standard input/output connectivity that will support any type of system.



ENCLOSURE TYPE Use only with RW-5802, RW-5101-Cand AW-800-SW subwoofer enclosures (either one or two)


AMPLIFIER POWER FTC Rated Power: 300W into 8 ohms, 500W into 4 ohms, 20Hz-1kHz @ <1.5% THD Dynamic Power: 875W into 8 ohms,

AUTO POWER ON 2 second ON delay, 15 minute OFF delay

LOW PASS CROSSOVER Continuously variable from 40-120Hz,

INPUTS 2 Gold-plated speaker binding posts, 2 Gold-plated RCA phono jacks plus single LFE

OUTPUTS 2 Gold-plated unfiltered RCA phono jacks plus single LFE

PHASE Switchable between 0 and 180 degrees

DIMENSIONS 3.5" (8.9cm) H x 17" (43.2cm) W x 12.6" (32cm) D (without rack ears)

WEIGHT 18 lbs. (8.2kg)

FINISH Black anodized aluminum face plate

VOLTAGE110/120 VAC 60Hz

FEATURES Selectable EQ, Speaker Level In,Low voltage trigger, rack ears included
