Klipsch KL-6504-THX THX Certified In-Wall Speaker (Each)

by Klipsch
UPC: 743878020144
Call for Availability


Product Qualifies for FREE Ground Shipping

Klipsch KL-6504-THX THX Certified In-Wall Speaker (Each)

Delivering music and home theater performances equivalent to a high-end floorstander, the KL-6504-THX is a premium architectural solution for flat-panel TVs. As one of the world's first THX® Select2-certified in-wall speakers, it brings consistent and compelling audio to larger areas.

THX Select2-certified for superior sound
Horn-loaded for high efficiency and low distortion
Sized for 42-inch and larger flat-panel TVs
Easily mounts horizontally or vertically
Maximum installation reliability
Mix and match with our other THX products

Never before has Klipsch offered such premium performance in an in-wall speaker. You’ll discover it delivers effortless dynamic range and brings superior sound to larger rooms thanks to its highly regarded THX Select2 certification.

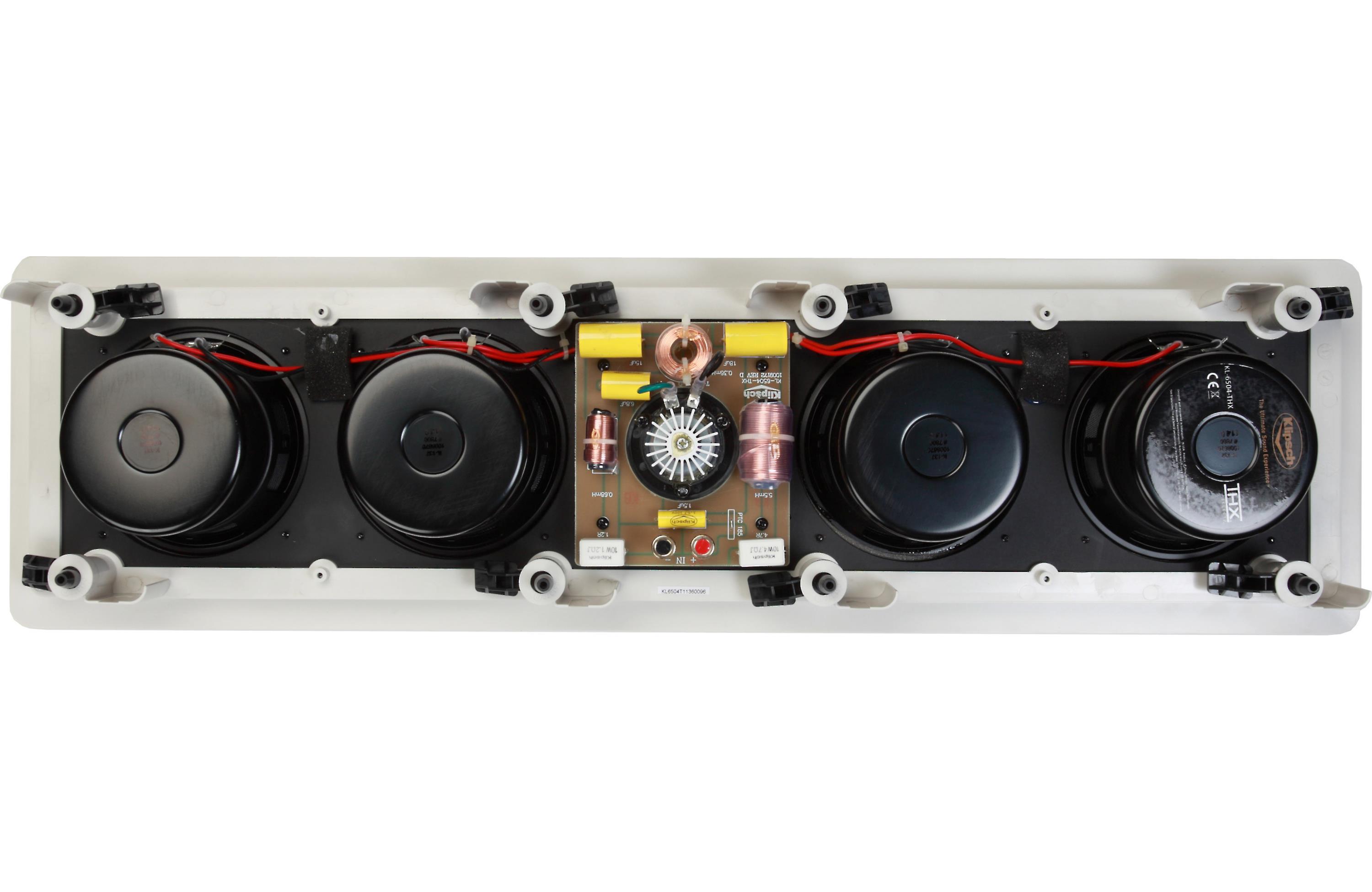

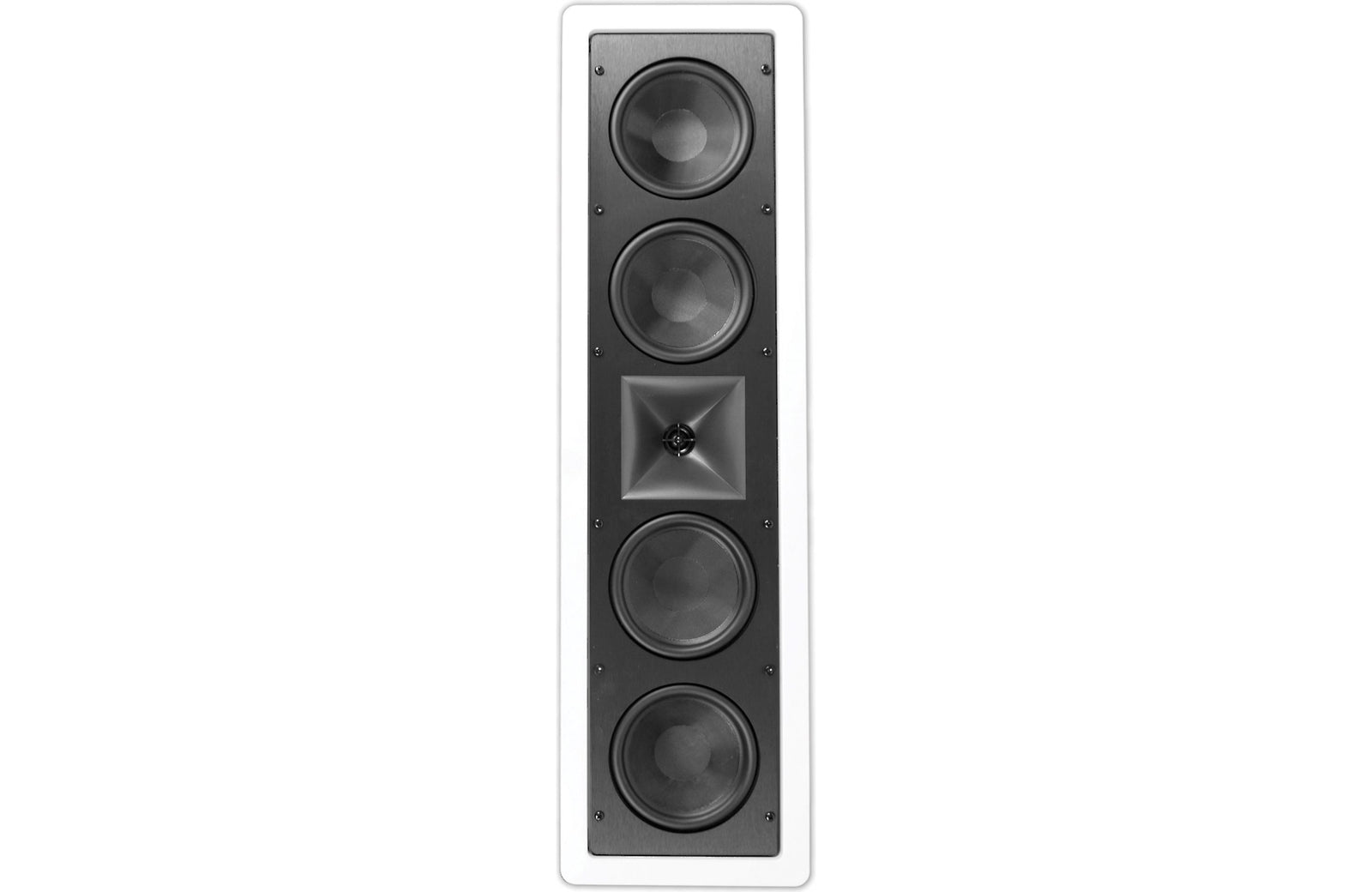

The KL-6504-THX employs four high-output 5.25-inch fiberglass woofers for powerful bass impact while a 1-inch titanium tweeter mated to a new symmetrical pattern 90 x 90 square Tractrix® Horn generates flat in-room frequency response with high efficiency and low distortion. This exclusive horn design also allows the speaker to consistently deliver unbeatable sound whether it’s installed horizontally or vertically.

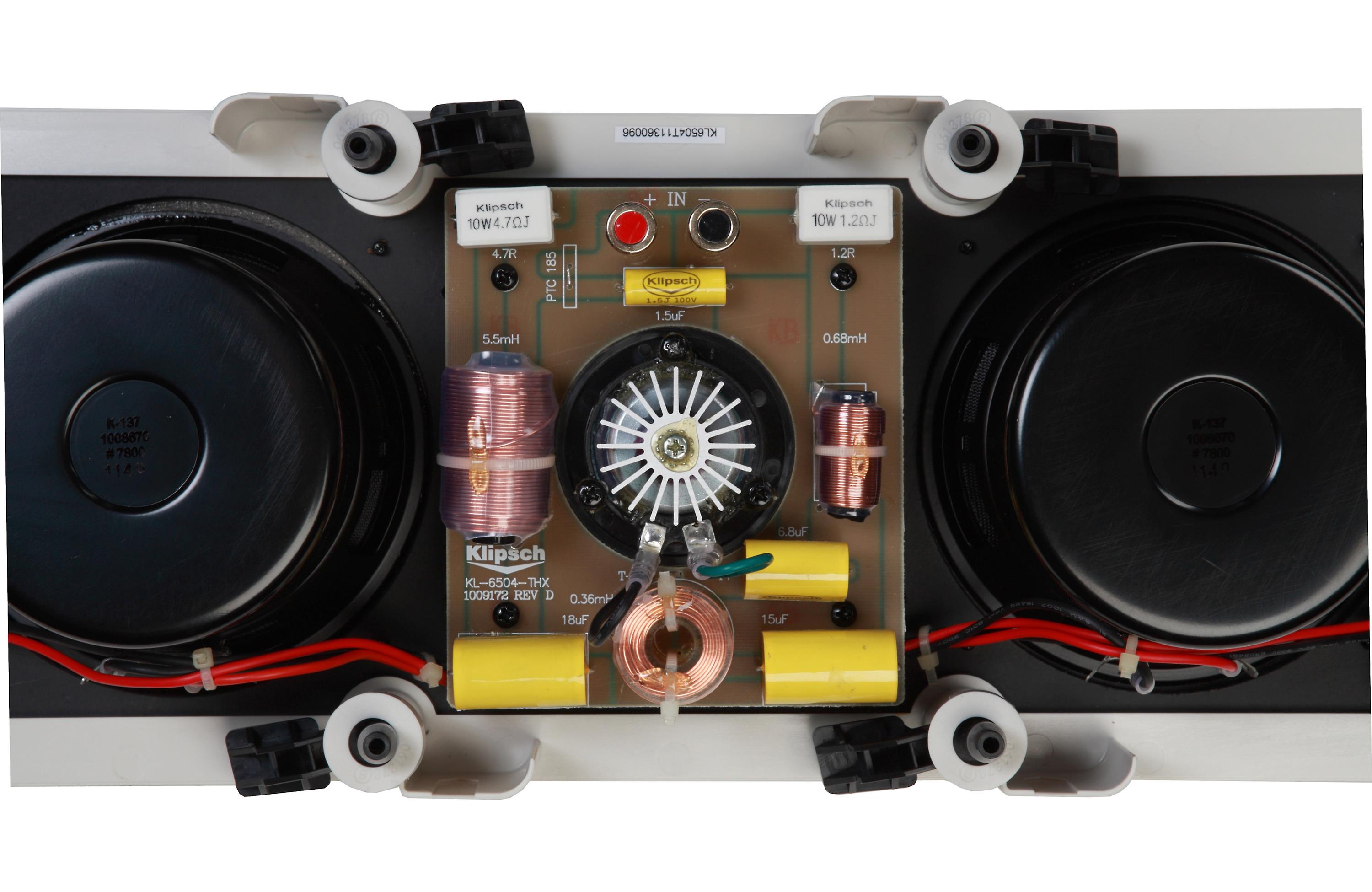

The KL-6504-THX’s titanium horn-loaded tweeter is mated to the woofers using precision-voiced high-definition crossover networks creating high sensitivity. This makes the speaker easier to drive so it requires a lot less amplification power than conventional designs.

Adding to its first-class sound the KL-6504-THX also has a premium look and feel with its grille off featuring a deluxe MDF baffle with aluminum fascia. But when covered the speaker’s paintable grille allows it to blend in perfectly with any home décor. All-new sure-grip mounting dogs offer even pressure against drywall for long-term installation reliability.

Furthermore the KL-6504-THX comes with a lot of options. It is timbre matched to all of our THX-certified products so you can mix and match for the discreet stereo or home theater system that’s just right for you.


Bandwidth 46 Hz - 20 kHz ± 3dB
Sensitivity 92 dB
Nominal Impedance 4 Ohms
Cross Over Frequency 250 Hz & 2100 Hz
Power Handling 150 Watts Cont. 600
Enclosure Type Infinite Baffle - Front Flush with Wall
Drive Components Two and a half way system utilizing
a 1” Titanium tweeter in a 4” 90x90
horn, and Two 5.25” Fiberglass
Woofers - THX Certified
Weight 18.3lbs. / 8.3Kg
Height 28.5in / 72.4cm
Width 8 in / 20.3cm
Depth 3.75in / 9.5cm
Cutout Height 27.25 in / 69.2cm
Cutout Width 6.5 in / 16.5cm
Material 0.14 in / 3.5 mm ABS
Finish White - Paintable
