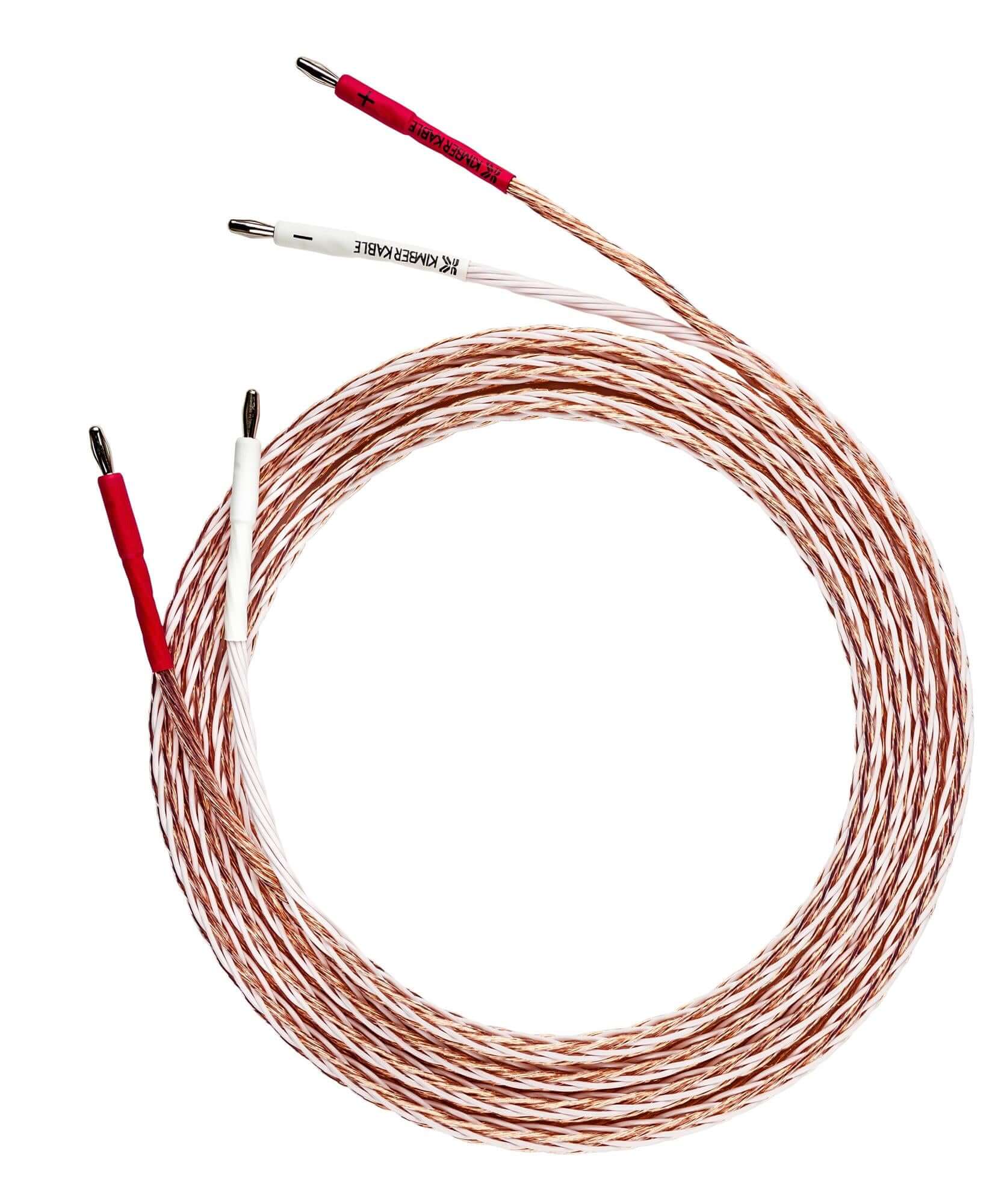

Kimber Kable 8TC Ascent Series Speaker Cable with SBAN Connector

UPC:
$167.63

SKU 8TC4FeetSingle

Product Qualifies for FREE Ground Shipping

Kimber Kable 8TC Ascent Series Speaker Cable with SBAN Connector

HIGH CURRENT BRAIDED LOUDSPEAKER CABLE

16 strands of 19.5 AWG OFE (oxygen free electrolytic) copper with industry leading conductivity. (102% IACS).

Aggregate combination of 8, 19.5AWG strands=9AWG per +/- leg.

Teflon insulation. White/Clear

LOW series induction design: 0.09 uH / meter

Features


Feature

Low loss fluorocarbon dielectric

Feature

8 wire counter opposed helix

Feature

VariStrand copper conductors

Feature

Nitrogen assisted hand soldered termination

Specs

Connector Options


Bare Wire Bare Wire
SPADE (1/4") SPADE (1/4") SBAN SBAN Postmaster 33 (5/16") Postmaster 33 (5/16") WBT 0681 CU (5/16") WBT 0681 CU (5/16") WBT 0661 CU (1/4") WBT 0661 CU (1/4") WBT 0610 CU WBT 0610 CU

Electrical Specifications


Standard

(Cp) parallel capacitance: 136 pF / meter
(Ls) series inductance: 0.225 uH / meter
(Rdc) dc loop resistance: 0.016 Ohm / meter
