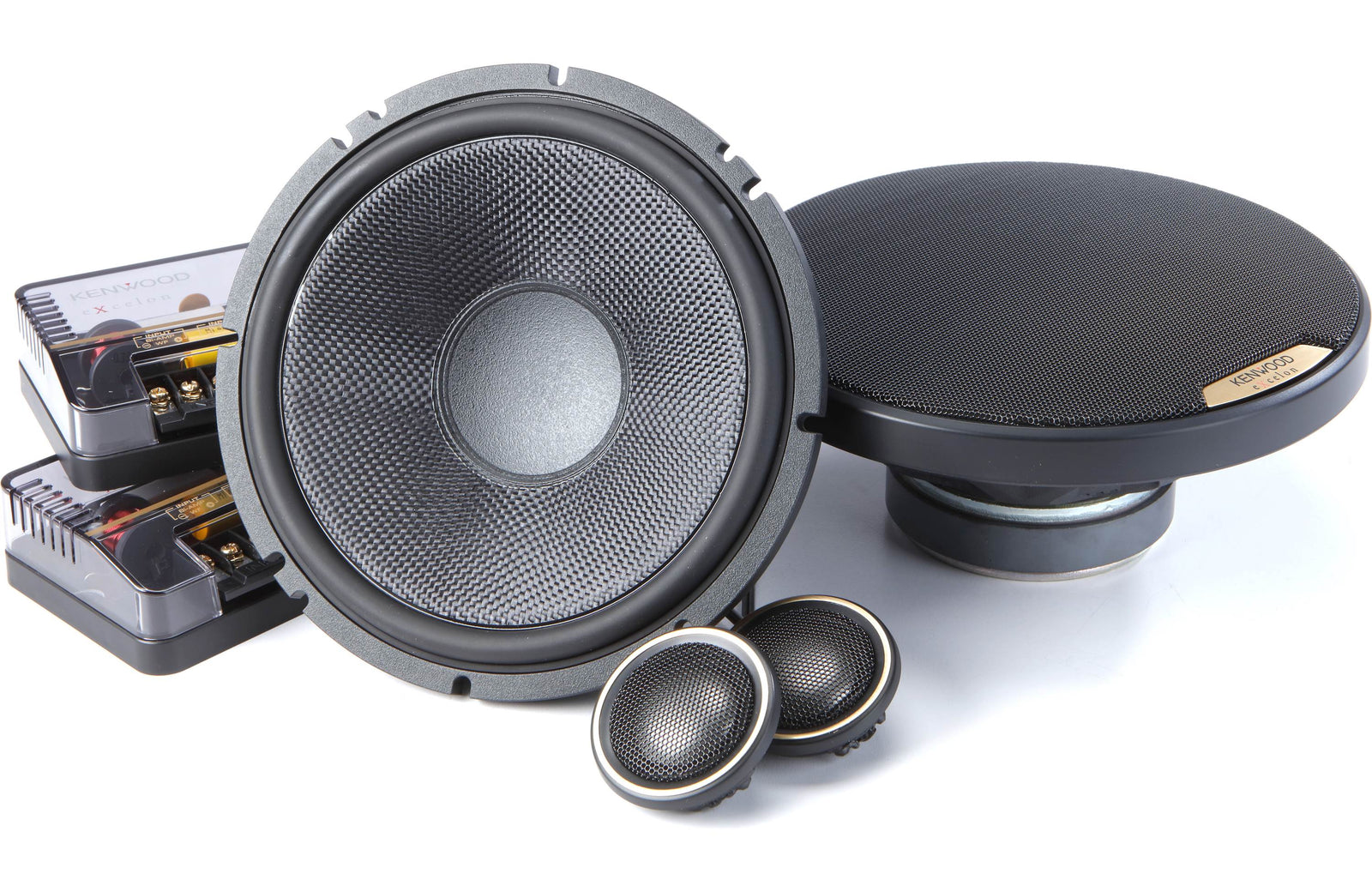

Kenwood Excelon XR-1801P High-Resolution Audio Certified 7" Component Speaker (Pair)
- Glass Fiber Cone
- 1-3/16” Hard Dome Tweeter
- Network Box with Bi-amp Wiring Capability
- 6 x 9" Bracket / Multi-use Bracket
RICH AND IMMERSIVE HIGH-RESOLUTION AUDIO
High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality sonic experience.
GLASS FIBER CONEThe glass fiber cone combines high-strength with lightweight materials, allowing the speaker to reproduce all sounds from impactful bass notes to delicate tones.
WOOFER CAP WITH CIRCLE RIBThe circle rib provides enhanced woofer stability, ensuring bass is deep and clear.
SURROUND ROLL SHAPEAsymmetrical thickness of the surround roll shape provides better focussed bass.
1-3/16” LARGE TWEETER DESIGNED FOR HIGH RESOLUTION1-3/16” (30mm) tweeters have a larger surface area than most tweeters which allows clear reproduction of vocal sound up through ultra high frequency range. Both flush and surface mountng options are included.
With its compound curvature diaphragm, a large 1-3/16” (30mm) titanium hard dome provides the ultimate in high frequency performance.
NEW BI-AMP CONNECTIONThe XR-1801P's include bi-ampable crossover network box, allowing you to power the tweeter and woofer individually from the XR401-4 or other combinations of individual amplifier channels. The network box is further optimized with a high-reliability polyswitch and resistor to protect the tweeter from being overdriven.
FLUSH OR ANGLE MOUNT TWEETERMounting hardware is provided to enable both angled and flush mounting options.
WOOFER MULTI-BRACKETA multi-bracket is included to make installation easier in a varierty of vehicle types.
Specs
Peak Input Power 330W
Rated Input Power 120W
Impedance 3Ω
Woofer Features 7 inch Glass Fiber Cone
Tweeter Features 1-3/16inch Hard Dome
Specifications
Sensitivity 87 dB/ W / m
Frequency Response 35Hz-40kHz (-10dB)
Cutout Diameter 6 inch
Mounting Depth 2-7/16 inch
