Kenwood DRVA601WDP 4K Ultra HD Dash Cam with 3" display, Wi-Fi, and GPS, and Rear-View Cam

by Kenwood
Call for Availability


Product Qualifies for FREE Ground Shipping

Kenwood DRVA601WDP 4K Ultra HD Dash Cam with 3" display, Wi-Fi, and GPS, and Rear-View Cam

High Definition Recording & Wireless Link
Dual Camera package is equipped with 8.3 Megapixel* 4K (Front Camera) and 3.7 Megapixel Wide Quad Hi-Vision (Rear Camera) recording and provides easy data transfer to your smartphone through Wireless Link.
*In Dual Camera Mode, both cameras maximum recording resolution is 3.7 Megapixel. Rear cam must be turned off in menu setting to enable front cam 8.3 Megapixel recording.

Front & Rear Camera Package DRV-A601WDP
8.3M & 3.7M Recording 3.0" LCD Display Touch Panel Control
WDR Wireless Link Built-in GPS & G-Sensor
Parking Mode Recording 64GB microSD Included Quick Release

8.3 & 3.7 Megapixel Recording
8.3 & 3.7 Megapixel Recording provides High Resolution Recording
8.3 & 3.7 Megapixel High Definition recording captures clear video even while driving.

WDR (Wide Dynamic Range) for Backlighting
Easily records clear images in dark or well lit settings without underexposing or overexposing the image.

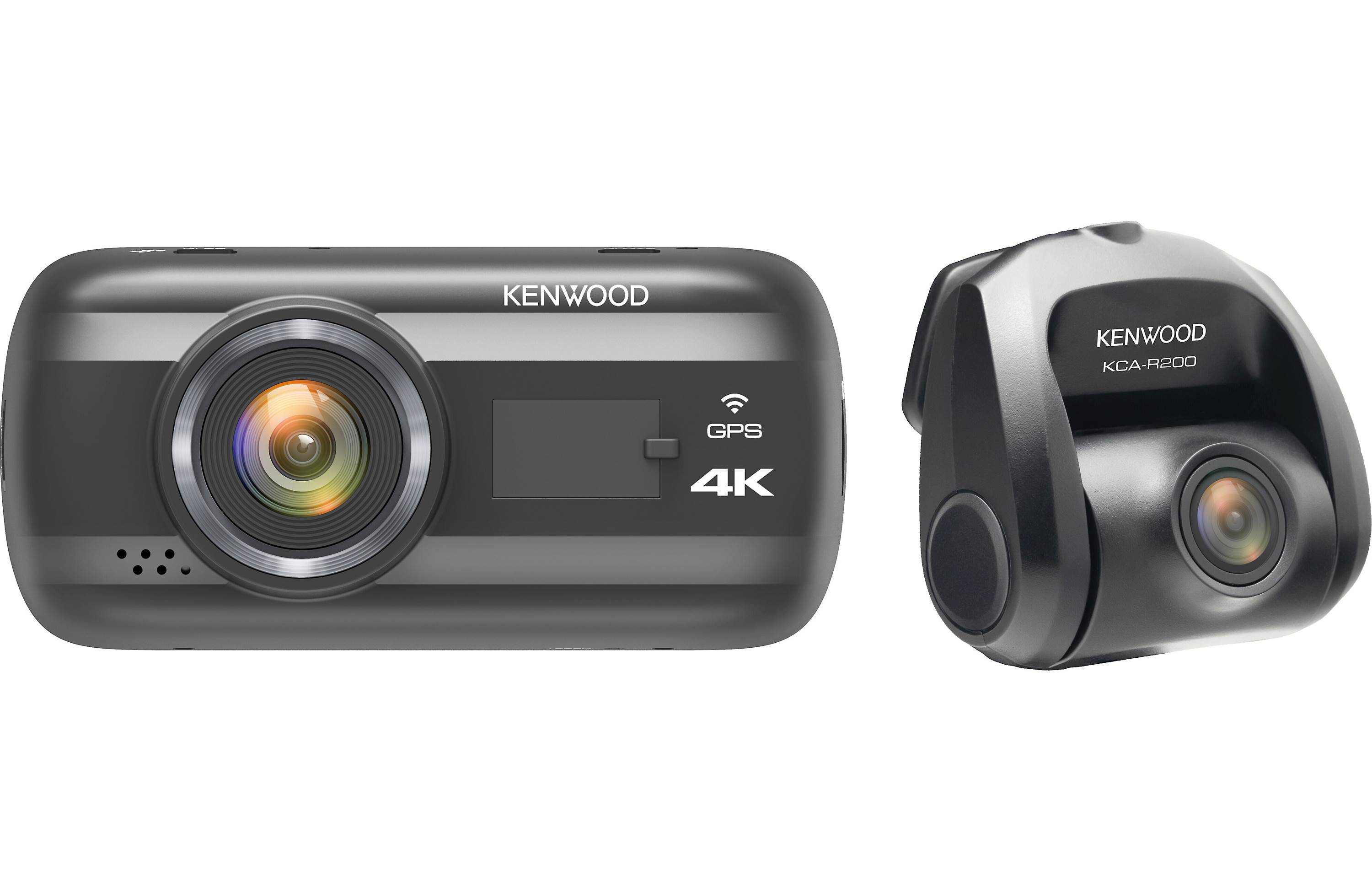

Front & Rear View Recording
The DRV-A601WDP includes 2 dash cams: 1 to record in front of your vehicle and 1 to record behind your vehicle, all at the same time. The rear dash cam includes a 26’ cable that connects to the front dash cam, allowing it to easily be mounted to the rear windshield or anywhere else in the vehicle where you would like to record. When in Dual Camera Recording Mode, both cameras maximum recording resolution is 3.7 Megapixel (Wide Quad HD). Rear cam must be turned off in menu setting to enable front cam 8.3 Megapixel recording.

Polarized Filter Included (Front Camera)
Simply attach PL filter to front of lens to reduce windscreen glare/reflection.
The filter has a rotating bezel, so that you can setup the reflection free lens exactly how you need in your vehicle.

Supports micro SDXC/SDHC
microSDXC/SDHC card 8GB to 256GB supported.
SD Card Recorded File Capacity
8GB Micro SD = 18 mins (1 minute x 18 recordings)
16GB Micro SD = 36 mins (1 minute x 36 recordings)
32GB Micro SD = 72 mins (1 minute x 72 recordings)
64GB Micro SD = 144 mins (1 minute x 144 recordings)
128GB Micro SD = 290 mins (1 minute x 290 recordings)
256GB Micro SD = 580 mins (1 minute x 580 recordings)
*Based on default recording settings.

26'(8m) Rear Camera Cable
26' (8m) power & video cable enable you to install the rear camera inside your car, truck, or RV.

12V & 24V Compatible
Cameras work with both 12V and 24V applications.

Touch Panel Control
3.0" LCD Display with Touch Panel Control. Large touch display provides easy access to checking recorded videos and changing settings.

Wireless Link - Access Your Dash Cam Data Wirelessly
Wireless Link App
Easily share recorded videos directly to social media using the KENWOOD DASH CAM MANAGER smartphone application (iOS 9.0+ or Android 5.0.2+)


Front Camera       Rear Camera

Hard Specification

Screen size 3.0inches full color TFT -
Operating voltage 5V / 2A; 12-24V DC DC 5V
Current Consumption 650mA 120mA
Super Capacitor Yes -
Button Touch Button -
Wireless Link Yes -
Microphone Built-in -
Speaker Built-in -
GPS Receiver Built-in -
G-sensor Built-in -
Collision sensitivity -4.0G to +4.0G (0.1G Step) -
Image sensor 1/2.5 CMOS sensor 1/2.8 CMOS sensor
Valid Pixel 8.57M Pixels
(3864x2218) 5.14M Pixels
(2616 x 1964)
Number of Pixel 8.48M Pixels
(3872x2192) 3.7M Pixels
(2560 x 1440)
Angles of view Horizontal : 129°
Vertical : 72°
Diagonal :130°
Horizontal : 129°
Vertical : 66°
Diagonal :161°
Lens rotation - Yes(180∘)
Image reversal (Upside down) Yes -
Lens F1.8 F2.0
Polarization Filter Bundled No
Operating temperature -10℃ to +60℃ -10℃ to +60℃
Noise Protection Yes Yes

OSD Menu Language

Implemented languages EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -

Recording Specification

Recording resolution Single:3840 x 2160 4K
Dual:1440P (Front) + 1440P(Rear) 2560 x 1440 Quad HD
Frame rate 30FPS 30FPS
HDR - -
WDR Yes Yes
Recording Mode 1 / 3 / 5 min -
Voice recording Yes(ON/OFF) -
Video format H.264 / MOV H.264 / MOV
Audio format Linear PCM Linear PCM
Picture format JPEG
(Max.3840 x 2160) -
Recording media microSDXC/SDHC card
8GB to 256GB
UHS Speed Class 3 (U3) -


DC-IN mini USB-B type -
AV Out/HD Out HDMI -
AV In (Rear Cam) Yes -
SD Slot microSD -


Dimensions WxHxD(Main unit) 106mm*50.5mm*40.5mm
4-3/16" x 2" x 1-9/16" 63mm*66mm*36mm
2-1/2" x 2-5/8" x 1-7/16"
Dimensions WxHxD(Bracket attached) 106mm*90mm*40.5mm
4-3/16" x 3-9/16" x 1-9/16" 63mm*66mm*36mm
2-1/2" x 2-5/8" x 1-7/16"
Weight(Main unit) 108g 334g
DC/Rear cam Cable Length 4m 8m

Bundled Accessory

SD Card microSD 64GB -
DC Cable Cigar Lighter Car Charger Adapter (12-24V, 4m) Hardware Kit
(12-24V, 4m)
Car Mount Bracket J Type Mount(Build-in GPS)
Mounting Bracket
(3M Tape & Suction Cup) 3M Tape
Manual /Warranty card Quick Start Guide Yes
USB Cable Yes/110cm -
Spare 3M Adhesive Pad Yes/2pcs Yes/2pcs
Cable Clips Yes/4pcs -

Optional Accessory

Rear Cam -
Hardwire Kit CA-DR1030 -


PC Viewer Windows/Mac -
Requirement for Windows Windows 10, 8.1, 7 -
Requirement for Mac Mac OS X 10.11
(El Capitan) or later -
Languages for PC Viewer EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
Smartphone App Android/iOS -
Requirement for Android Android 5.0.2 and above -
Requirement for iOS iOS 9.0 and above -
Languages for Smartphone App EN/DE/FR/NL/IT/ES/PT/RU/PL/CZ/RO -
