JVC KW-M560BT Digital Multimedia Receiver
JVC KW-M560BT Digital Multimedia Receiver
Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Apple CarPlay / Android Auto / USB Mirroring for Android Phones / Bluetooth® / 13-Band EQ / Short Chassis

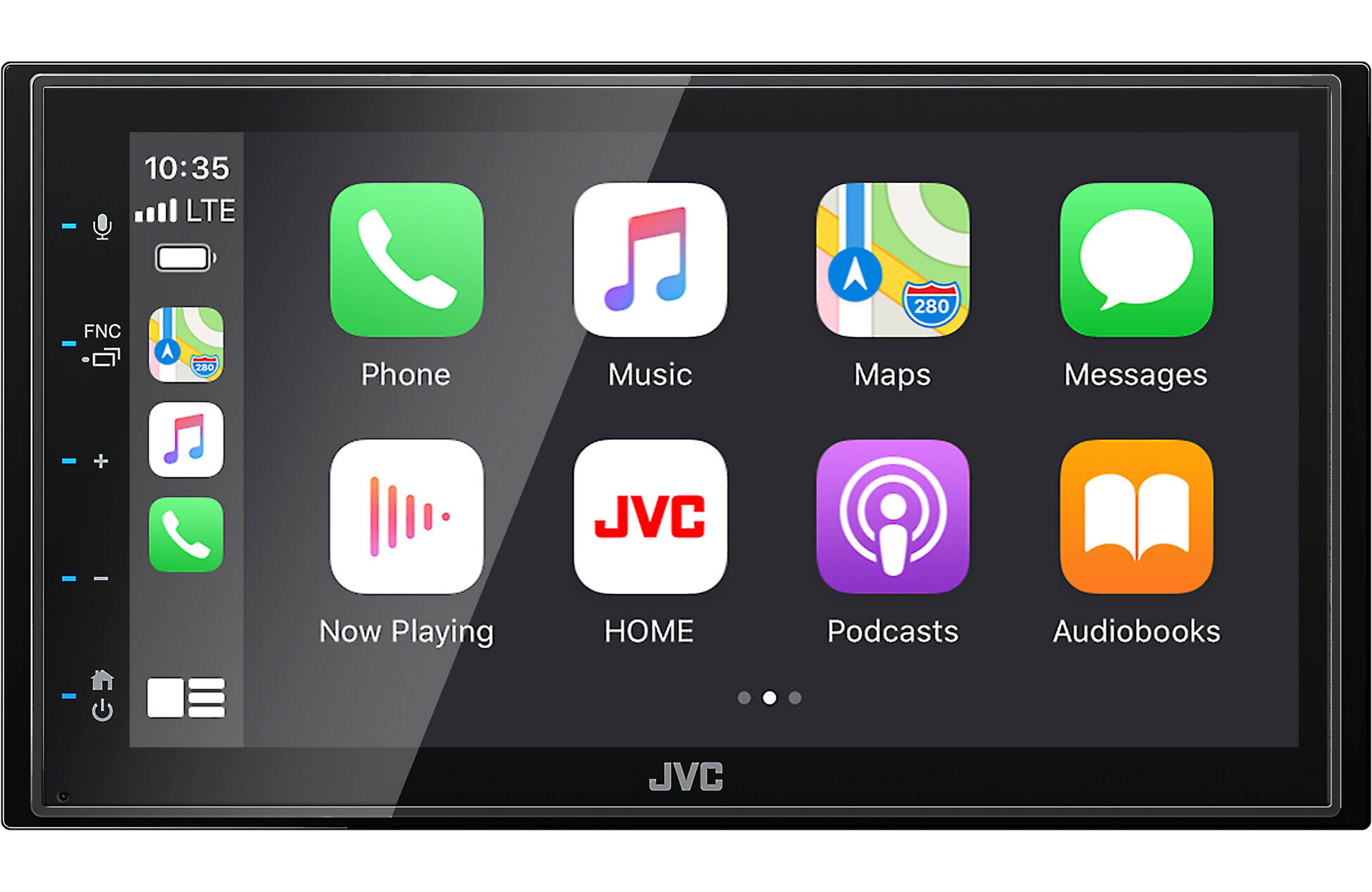

Apple CarPlay™ – Connect via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
With the latest iOS version (iOS 13.0 and higher), 3rd party navigation apps like Google Maps™ and Waze™ are supported.

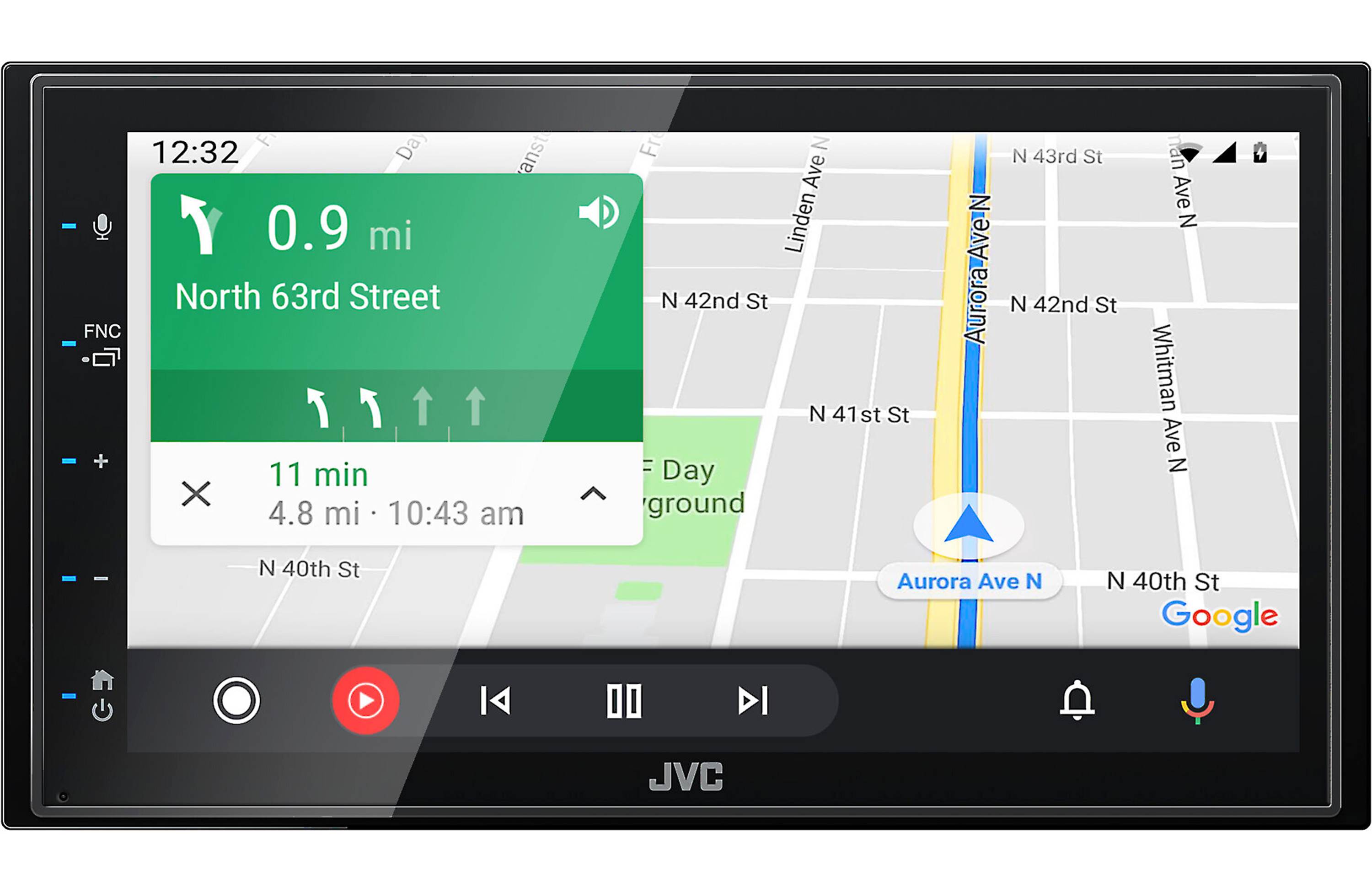

Android Auto™ – Connect via USB
Android Auto was designed with safety in mind. With a simple and intuitive interface and powerful voice actions, it’s designed to minimize distraction so that you can stay focused on the road.
Mirroring for Android Phone – Connect via USB
By installing the “Mirroring OA for JVC” app, your Android phone is seamlessly displayed on the receiver's screen via USB. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and smartphone.
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Use the 13-Band Equalizer to manually adjust the sound to your taste.
Android™ Bluetooth Automatic Pairing
Just connect your Android device via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about.
Listen to popular music applications and music stored on your device with basic audio controls.
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger movements. Intuitive control provides safer operation for in-car entertainment.
Various Formats Compatible
Supports a variety of file formats for audio and video playback.
High Current 1.5A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
*Compatibility depends on the smartphone.

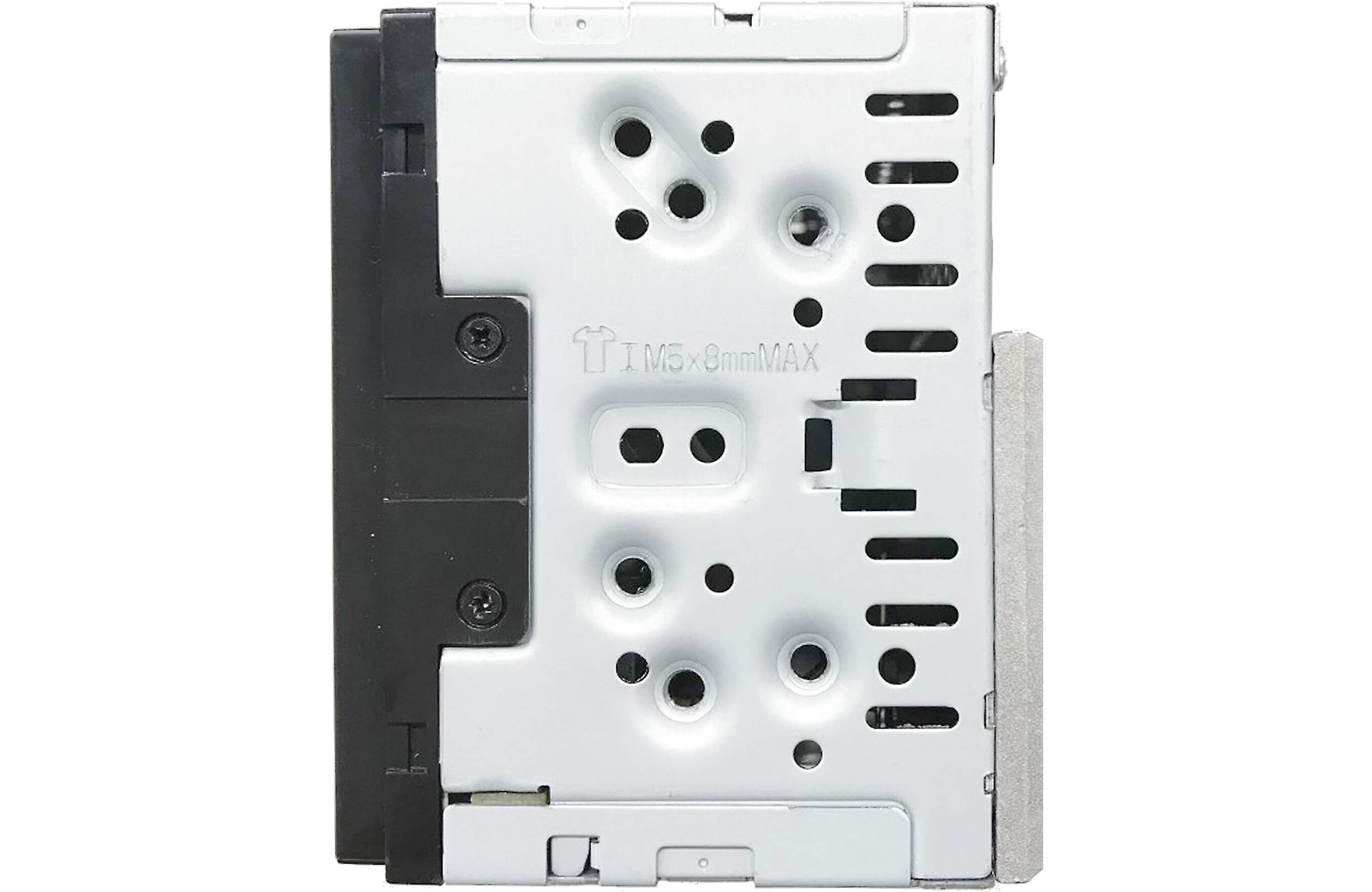

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Rear View Camera Ready
The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Screen Size 6.8"W VGA Screen
Touch Panel Capacitive
Gesture Touch Control Yes
Customizable GUI Yes
Key Illumination Color Blue
Multilingual Display Yes
MP3 Compatible with Tag USB
WMA Compatible with Tag USB
WAV Compatible with Tag USB
AAC Compatible with Tag USB
FLAC Compatible with Tag USB
H.264 Compatible USB
WMV Compatible USB
MPEG 1/2 Compatible USB
MPEG 4 Compatible USB
AVI/MKV Compatible USB
Built-in Bluetooth Yes (Wired-Mic included)
Hands Free Call Yes (HFP1.6 Wideband Speech)
Audio Streaming & Control (A2DP, AVRCP) Yes
Supported Audio Formats AAC / SBC
Voice Dialing (voice recognition compatible mobile phone required) Yes
Phone Book Access Profile (PBAP) Yes
Alphabetical Search for Phone Book Yes
Auto Pairing for iPhone/Android Yes (Android only)
Android Auto Yes (via USB)
Mirroring for Android Yes (via USB) *Need mirroring App
Android Music Playback Yes (via Bluetooth(R))
CarPlay Yes (via USB)
USB Port x 1 (High Speed)
USB Power Supply Yes (1.5A High Current Charging)
SiriusXM Ready Yes
Radio Broadcast Data System (RBDS) Yes
Preset Stations 20(FM:15ch, AM:5ch)
Auto Memory Entry Yes
Frequency Range 87.9 - 107.9MHz
Frequency Range 530-1,700kHz
Maximum Power Output (Front & Rear) 50Wx4
Full Bandwidth Power (Front & Rear) 22W x 4 (Full Bandwidth Power, at less than 1% THD)
EQ Yes (13-Band Graphic EQ)
Preset EQ Yes (7Preset + 3user)
Bass Boost Yes
High-Pass Filter/Low-Pass Filter Yes/Yes
Time Alignment Yes

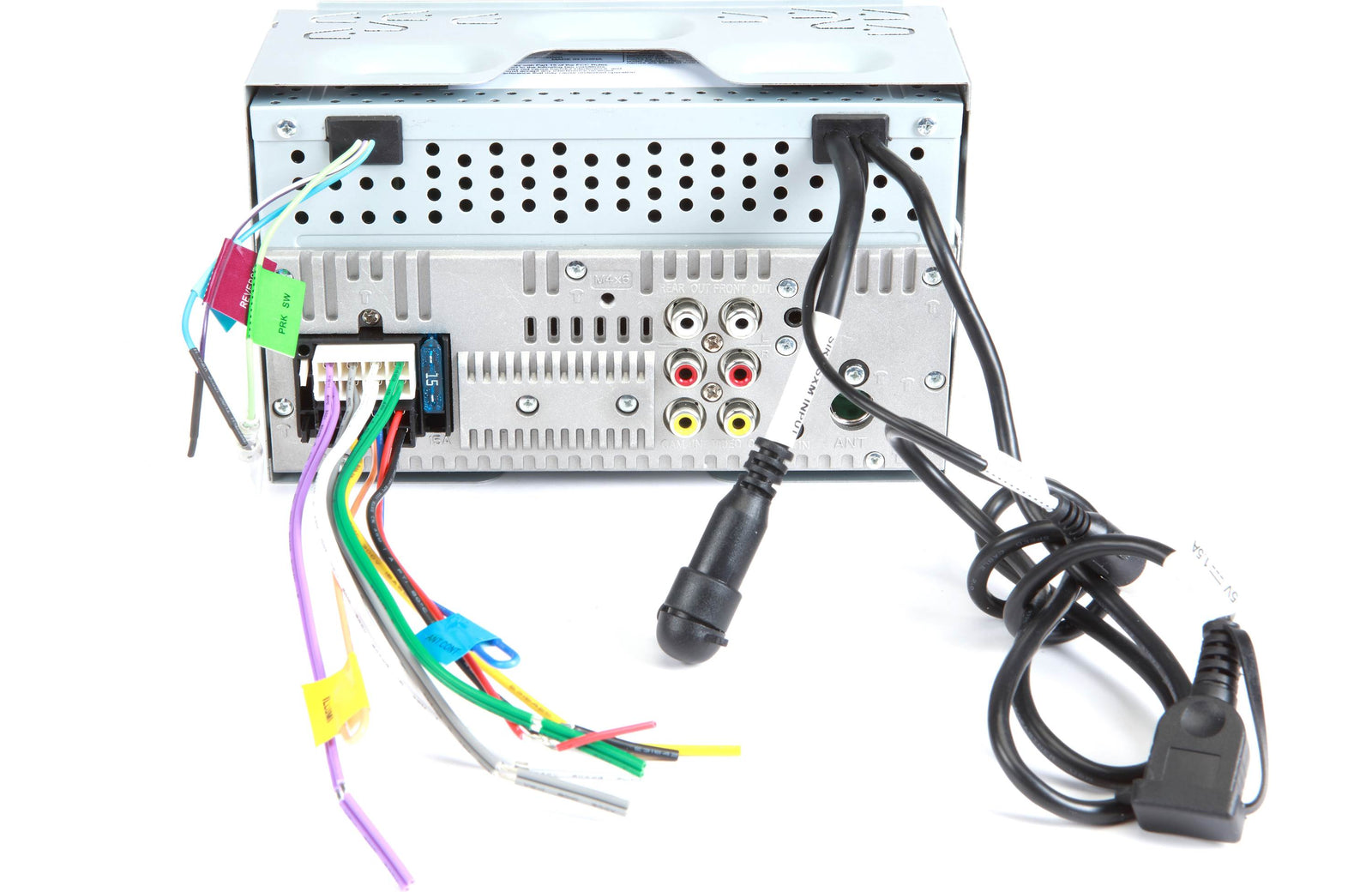

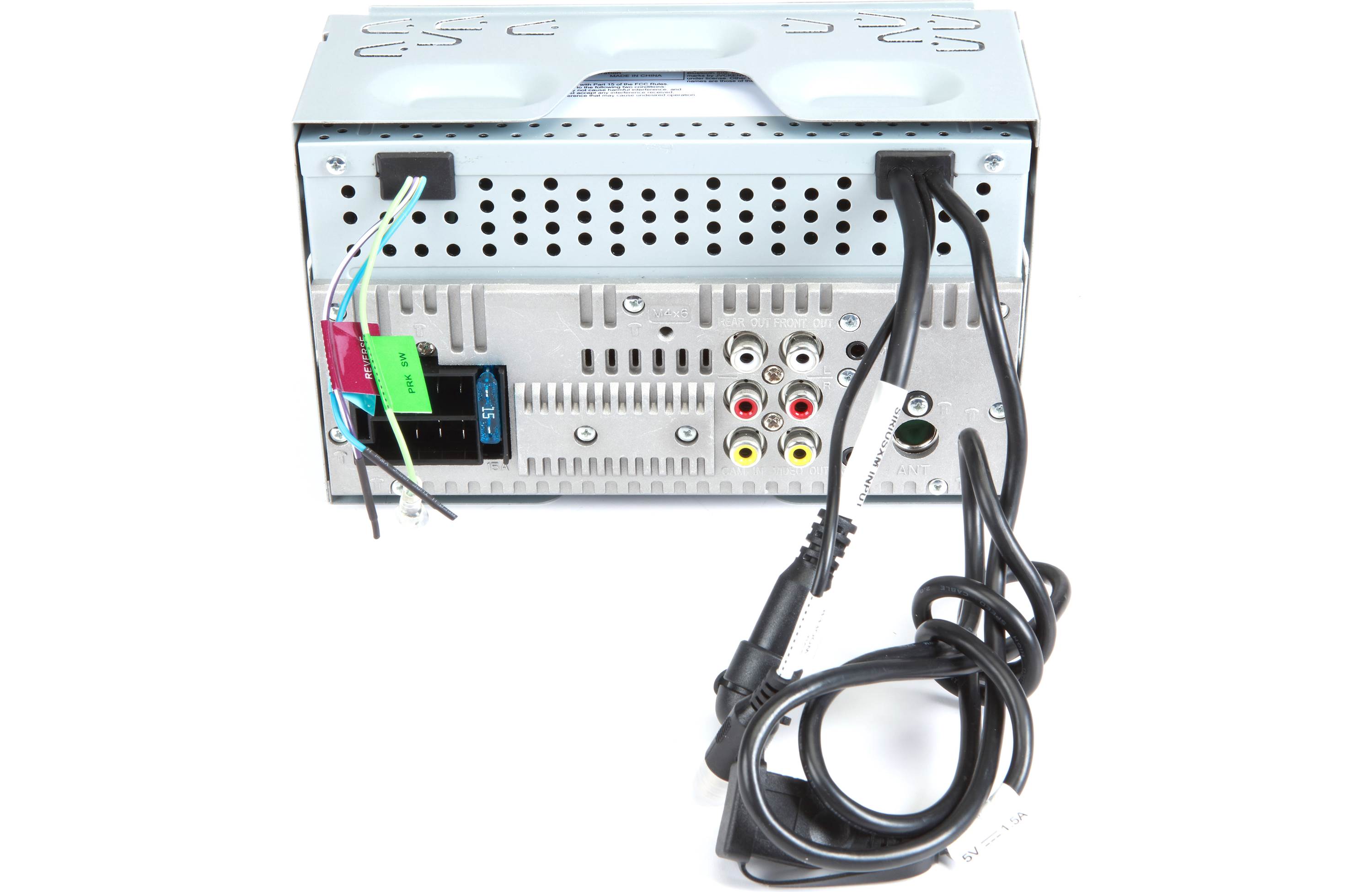

Inputs and Outputs
AV Input mini jack
Video Out RCA
Rear view camera Input Yes
Line Output Terminals 2Preouts (Terminal) + Sub WF (Cable)
Pre-output Level/Impedance 2.0V / 10k ohms
Subwoofer Output with Level/Frequency Control Yes
Back Up Memory Yes
Wireless Remote Control Ready (RM-RK258 required)
Steering Remote Control Ready Yes
ISO Connector Yes
Dimensions (W x H x D)
Installation Size 7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)
Weight 2.8 lbs. (1.3kg) Including Sleeve and Trim plate
Unit weight in individual package 1.8kg
