JL Audio D110-ASH Dominion 10" Powered Subwoofer Ash Finish
by JL Audio
UPC: 699440962834
Call for Availability
$1,050.00
SKU D110-ASH
Dominion™ d110-ASH

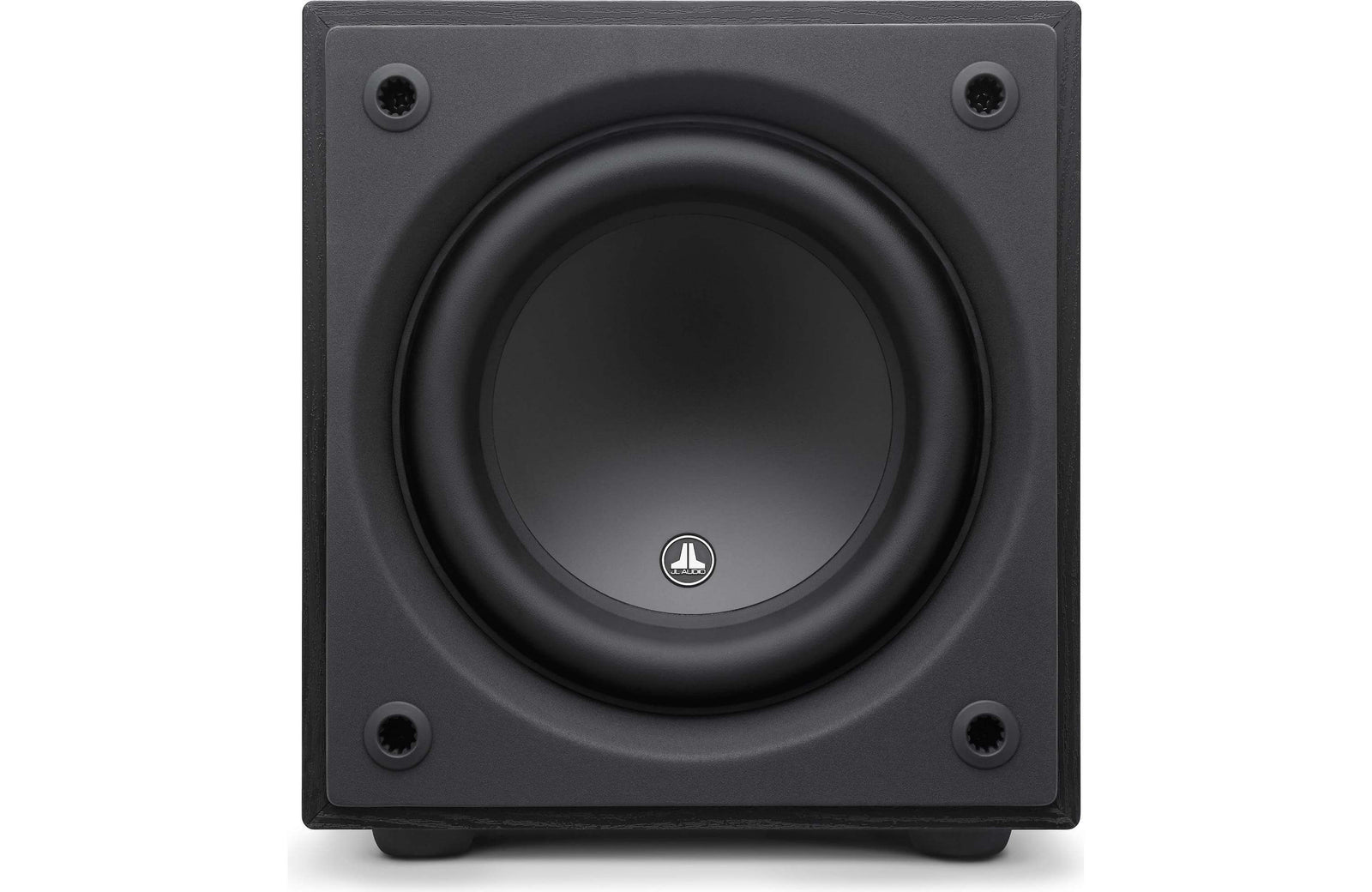

Powered Subwoofer with 10-inch Subwoofer Driver, 750 watts
Born from JL Audio’s vast collection of advanced technologies, Dominion™ powered subwoofers combine a state-of-the-art subwoofer driver and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.

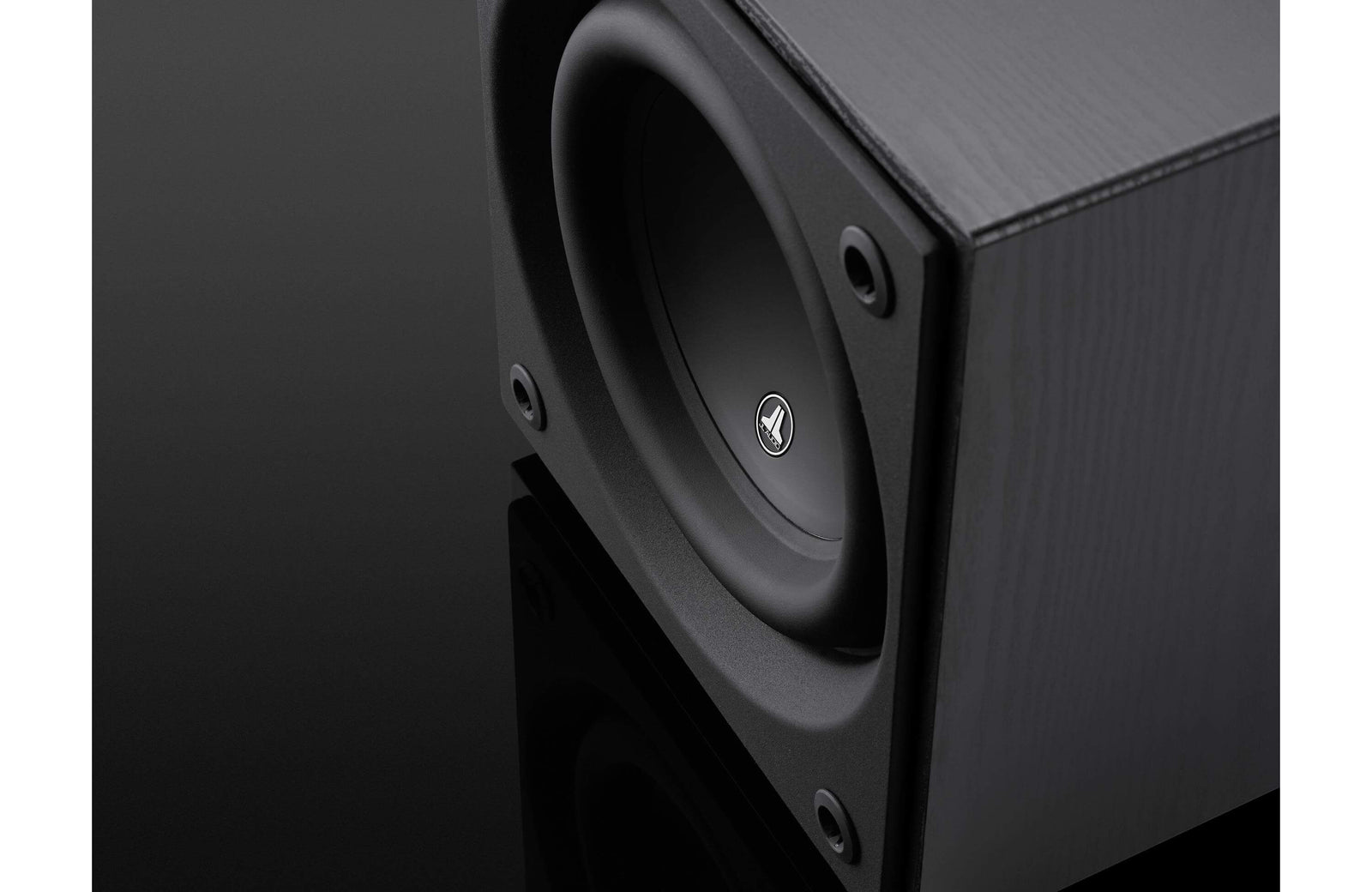

Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion™ driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion™ subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.

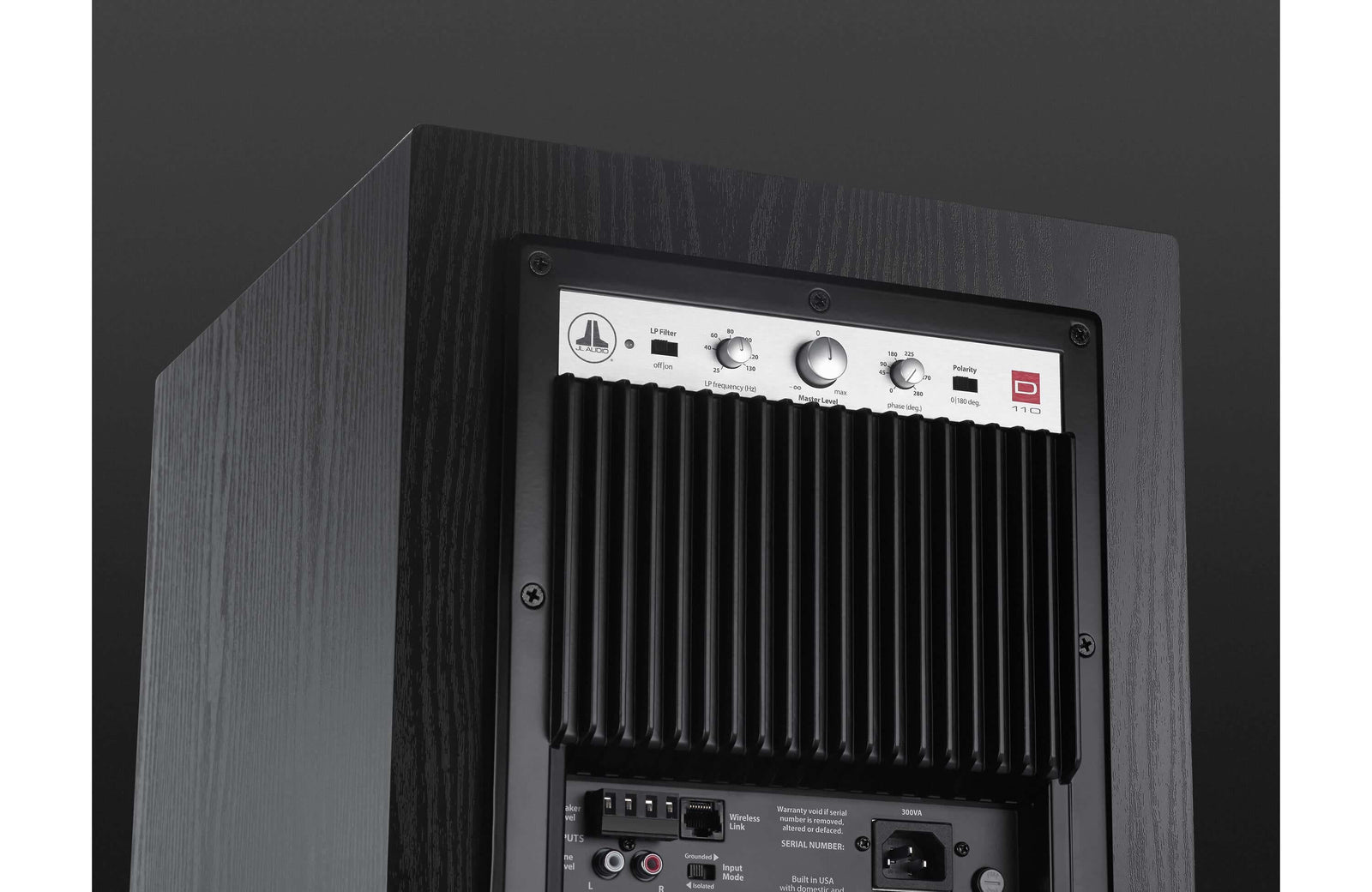

Dominion™ amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion™ powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.

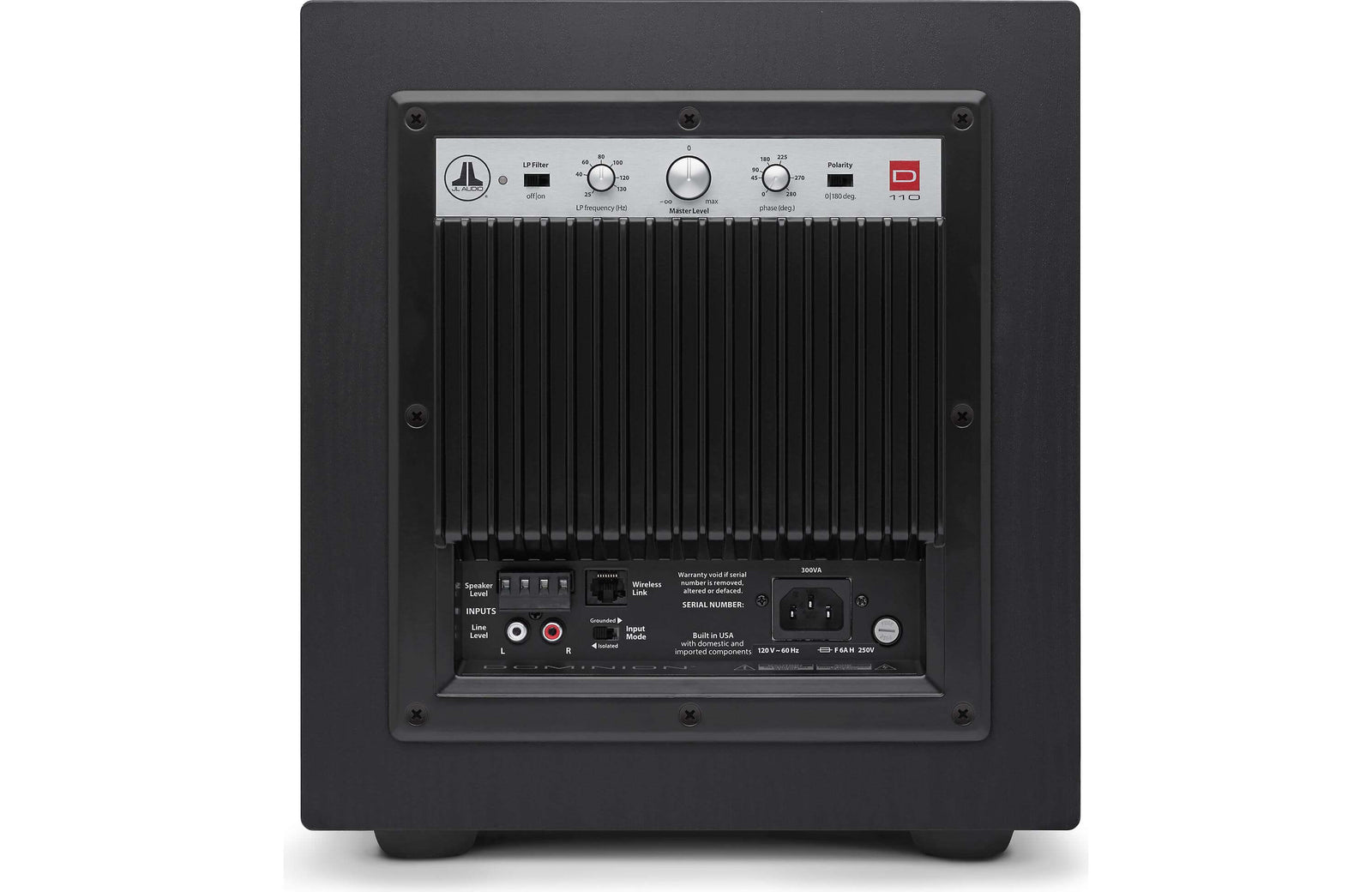

With a host of signal processing features included, Dominion™ powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion™ almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion™ driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion™ powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Finish: Black Ash

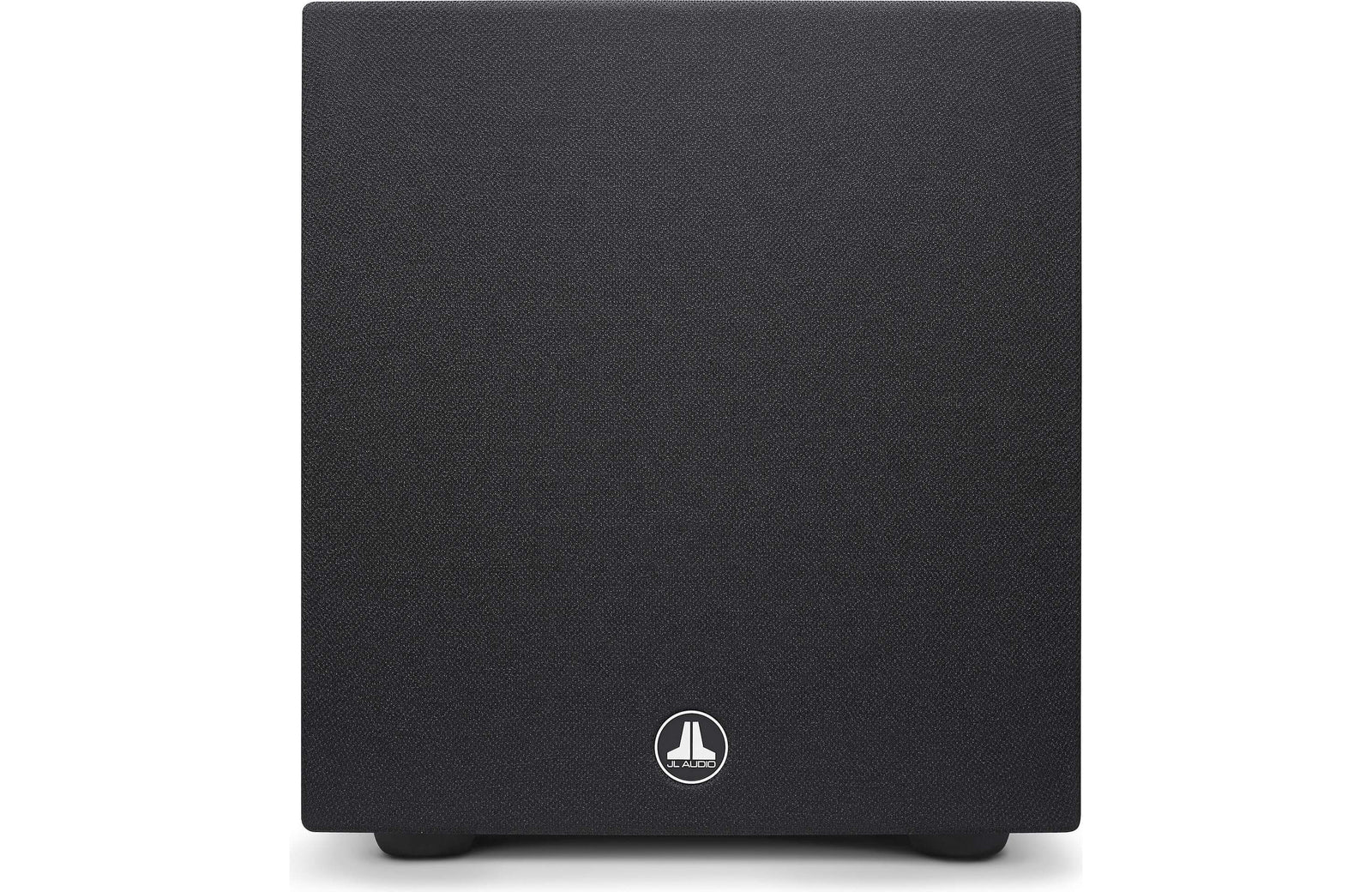

Grille Finish: Black Fabric
Enclosure Construction: MDF
Enclosure Type Sealed
Enclosure Finish Black Ash
Frequency Response (Anechoic) 27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
Effective Piston Area (Sd) 48.71 sq in / 0.0314 sq m
Effective Displacement 127 cu in / 2.08 L
Amplifier Power 750 W RMS short-term
Power Mode Automatic (Signal-Sensing)
Light Modes N/A
Signal Processing:
Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs N/A
Speaker/High-Level Inputs Stereo or Mono (removeable plug)
Input Grounding Isolated or Grounded
Input Modes N/A
Level Control Variable, from full mute to +15dB over reference gain
Filter Mode Low-Pass
Filter Slope (dB/Octave) 24 dB
Filter Frequency Range 25 Hz - 130 Hz
Filter Defeatable Yes
Polarity 0 or 180 degrees
Phase Variable, 0- 280 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim N/A
Line Outputs N/A
Output to Slave N/A
Calibration Mode N/A
Physical Specifications:
Width (W) 12 in in / 305 mm
Height (H) 13.4 in / 340 mm
Depth (D) 15.86 in / 403 mm
Net Weight 38.2 lb / 17.3 kg
Powered Subwoofer with 10-inch Subwoofer Driver, 750 watts
Born from JL Audio’s vast collection of advanced technologies, Dominion™ powered subwoofers combine a state-of-the-art subwoofer driver and an advanced Class D amplifier to deliver unmatched performance and value for a wide variety of compact applications.
Purpose-built to reproduce powerful low-frequency events with stunning impact and precision, the Dominion™ driver employs JL Audio’s exclusive DMA (Dynamic Motor Analysis) technology to produce higher output levels with reduced distortion, as well as improved dynamic tracking and resolution. As a result, Dominion™ subwoofers are capable of peak-to-peak excursions well in excess of 2.5-inches (63 mm - d108), and 2.7 inches (68 mm – d110), without distress or audible distortion.
Dominion™ amplifiers utilize an advanced Class D design in order to extract the most from the long-excursion driver platform. This design features a tightly regulated switching power supply, allowing the amplifier to generate prodigious amounts of unclipped output voltages. These technologies ensure that the Dominion™ powered subwoofers remain in their comfort zone, which is well beyond the point where most small subwoofers run out of power or driver capability.
With a host of signal processing features included, Dominion™ powered subwoofers can be integrated into most systems with ease. Low-pass signals are precisely guided, thanks to the onboard crossover’s 24 dB/octave Linkwitz-Riley alignment. Phase and polarity controls are onboard to aid in achieving the optimal acoustic transition between the subwoofer(s) and main speakers. Flexible input options are on-hand to accept either line-level or speaker-level signals. Connect a JLINK™ TRX system (sold separately) to the onboard Wireless Link port and enjoy the freedom to position your Dominion™ almost anywhere, up to 100 feet (30 meters) away from your source unit.
To contain the immense pressures created by the Dominion™ driver, each beautiful cabinet is carefully engineered and constructed using solid, CNC-cut, MDF material with extensive internal bracing and advanced assembly techniques. All Dominion™ powered subwoofers are built with pride and precision in JL Audio’s U.S. factory to deliver years of listening enjoyment.
Finish: Black Ash
Grille Finish: Black Fabric
Enclosure Construction: MDF
Specs
General Specifications:Enclosure Type Sealed
Enclosure Finish Black Ash
Frequency Response (Anechoic) 27 - 111 Hz (±1.5dB)
-3 dB at 25 Hz / 118 Hz
-10 dB at 21 Hz / 143 Hz
Effective Piston Area (Sd) 48.71 sq in / 0.0314 sq m
Effective Displacement 127 cu in / 2.08 L
Amplifier Power 750 W RMS short-term
Power Mode Automatic (Signal-Sensing)
Light Modes N/A
Signal Processing:
Unbalanced Inputs Stereo or Mono (two RCA jacks)
Balanced Inputs N/A
Speaker/High-Level Inputs Stereo or Mono (removeable plug)
Input Grounding Isolated or Grounded
Input Modes N/A
Level Control Variable, from full mute to +15dB over reference gain
Filter Mode Low-Pass
Filter Slope (dB/Octave) 24 dB
Filter Frequency Range 25 Hz - 130 Hz
Filter Defeatable Yes
Polarity 0 or 180 degrees
Phase Variable, 0- 280 degrees, referenced to 80 Hz
Extreme Low Frequency (E.L.F.) Trim N/A
Line Outputs N/A
Output to Slave N/A
Calibration Mode N/A
Physical Specifications:
Width (W) 12 in in / 305 mm
Height (H) 13.4 in / 340 mm
Depth (D) 15.86 in / 403 mm
Net Weight 38.2 lb / 17.3 kg
