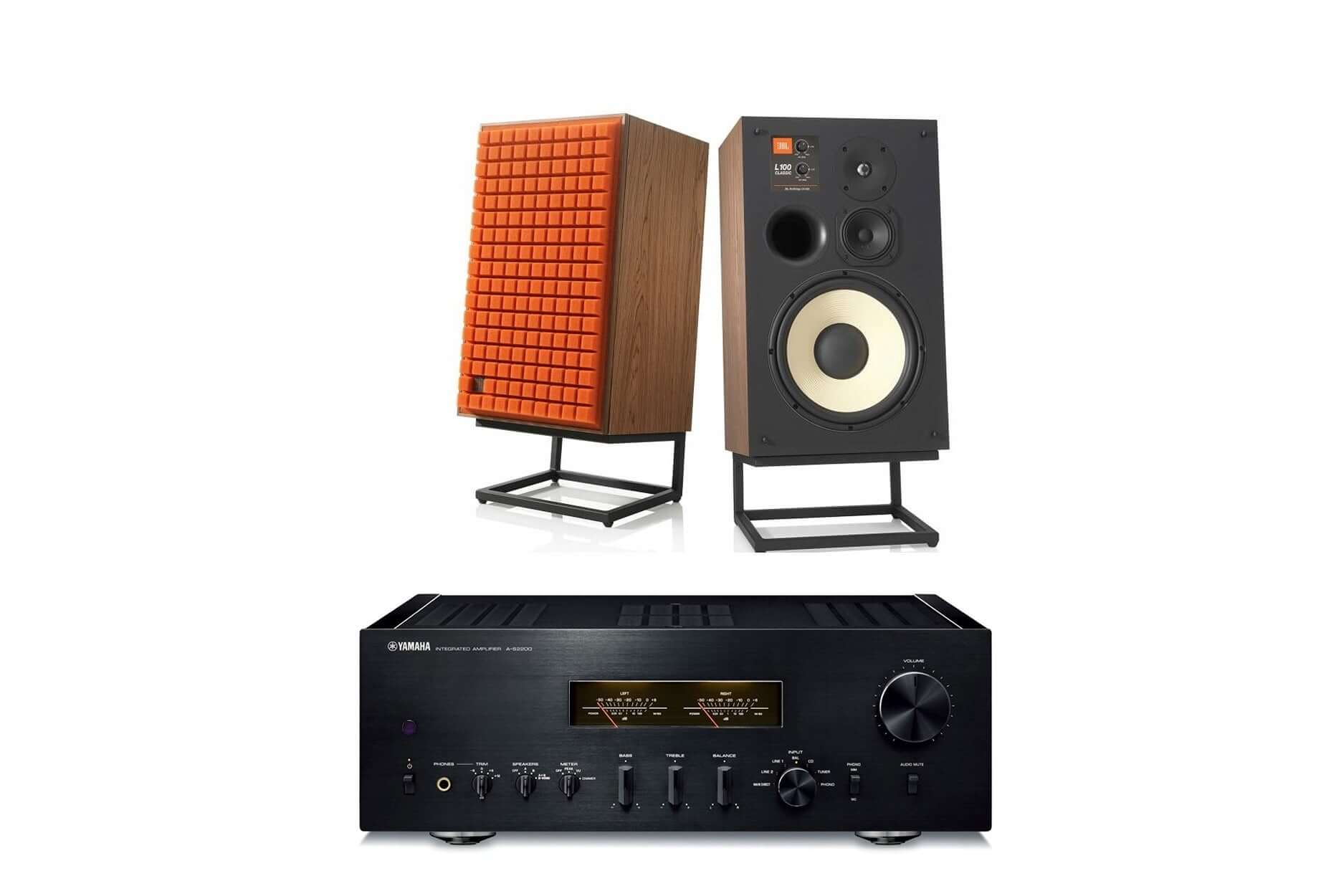

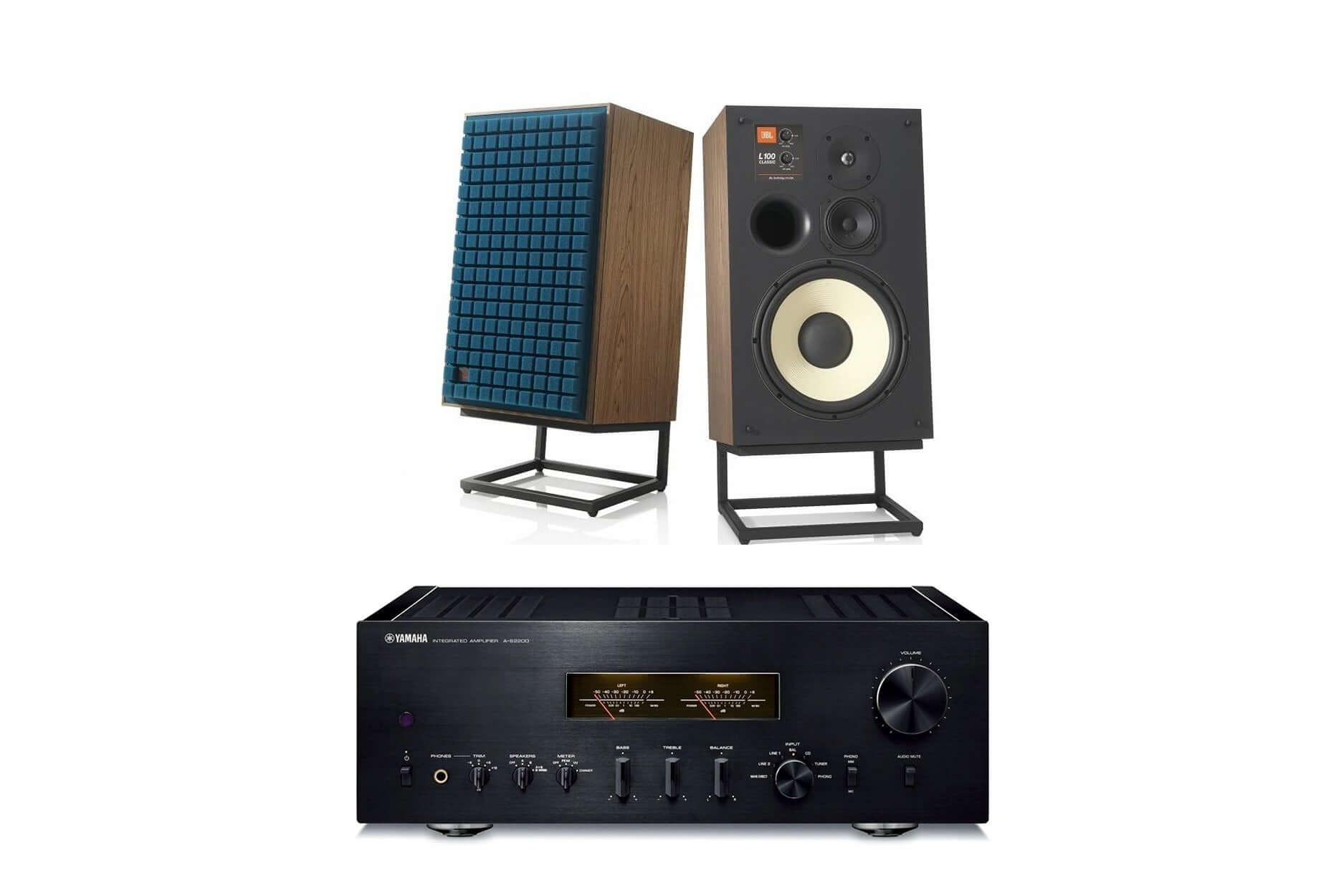

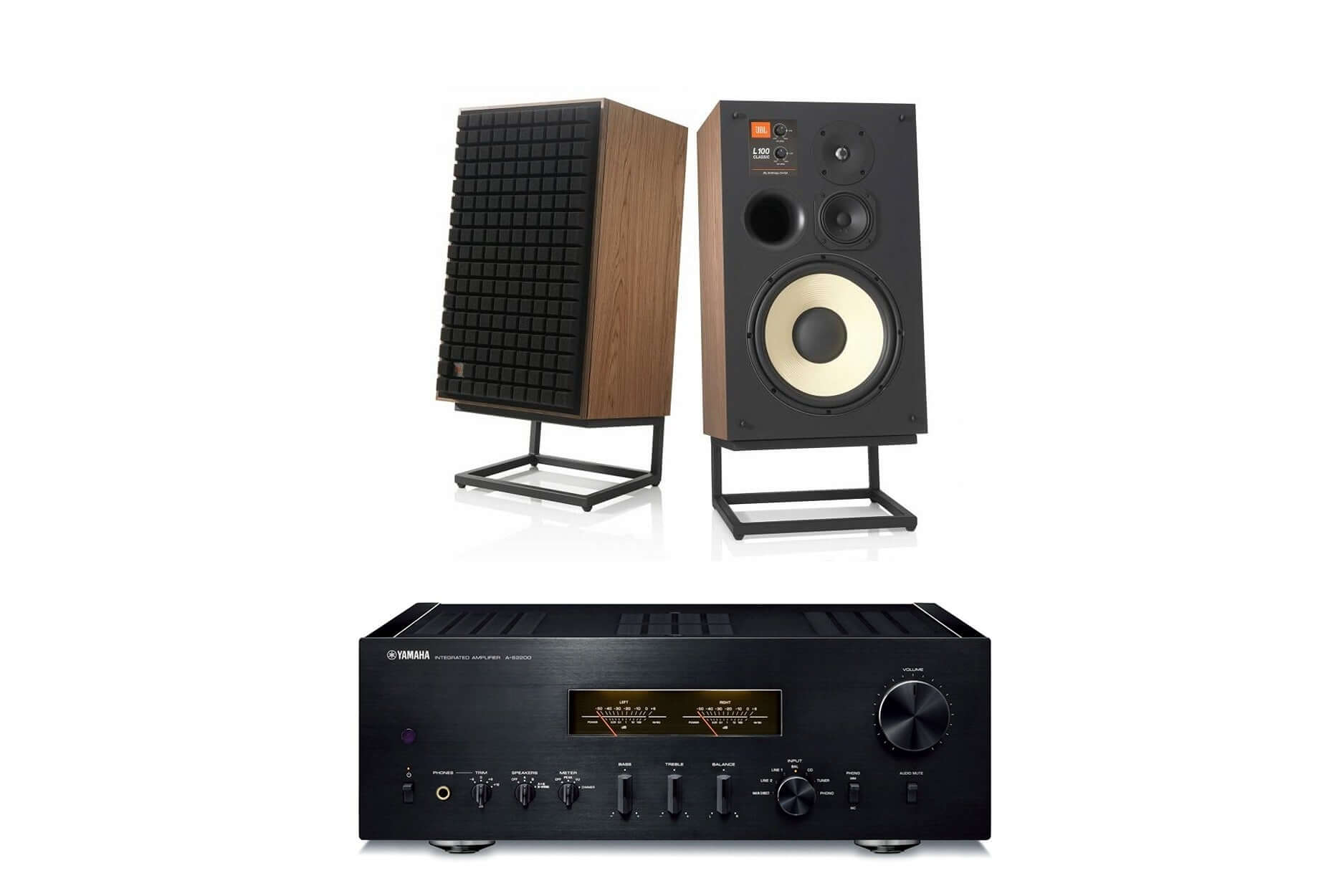

JBL L100 Classic 12" 3-Way Bookshelf Speaker Pair with Yamaha A-S2200 Black Integrated Amplifier Bundle

by JBL
UPC: 050036357173
Save 30%
Original price $8,899.95
Current price $6,199.99

SKU L100ClassicBlackA-S2200Black
Color: Walnut with Black Grill and Black Yamaha A-S2200

Product Qualifies for FREE Ground Shipping

JBL L100 Classic 12" 3-Way Bookshelf Speaker Pair with Yamaha A-S2200 Integrated Amplifier Bundle

STANDS NOT INCLUDED

THIS BUNDLE INCLUDES:

1 PAIR JBL 100 CLASSIC 12" 3-WAY BOOKSHELF SPEAKERS (BLACK, ORANGE, OR BLUE GRILLS)

1 YAMAHA A-S2200 Integrated Amplifier Black Finish

JBL L100 Classic

In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL s history.
In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube.
The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.

Main Features:

  • Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
  • Genuine satin walnut wood veneer enclosure with black painted front and rear panels
  • 12-inch white cone, pure pulp woofer with cast frame
  • 5-inch pure pulp cone midrange
  • 1-inch titanium dome tweeter
  • Bass-reflex design with front-firing port
  • High-frequency and mid-frequency L-pad attenuators
  • Yamaha A-S2200

    A performance fit for the global stage and inheriting many features from its big brother, the A-S2200 delivers an authentic, powerful yet somehow elegant and emotional Hi-Fi sound. Absolute musicality from a luxuriously beautiful instrument.

    • Fully balanced circuit design from input to speaker out
    • Large toroidal power transformer with enormous energy delivering an authentic Hi-Fi sound
    • Gorgeous level meters convey dynamics and music pulse with a nod to the nostalgic Hi-Fi era
    • Thick wires for ground connection contribute to low impedance design for a wide and open sound stage
    • Mechanical ground concept maximizes rigidity for expressive and rhythmic bass
      Specs

      JBL L100 Classic Specifications:

      Description 3-way Bookshelf Loudspeaker
      Low-frequency Transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
      Mid-frequency Transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
      High-frequency Transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
      Frequency Response 40Hz 40kHz (-6dB)
      Sensitivity 90dB (2.83V/1m)
      Power Handling 25 - 200 Watts RMS
      Crossover Frequencies 450Hz, 3.5kHz
      Impedance 4 Ohms
      Controls Attenuators for MF and HF drivers
      Connectors Five-way gold-plated binding posts
      Dimensions (H x W x D) 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
      Weight 58.5 lbs (26.7 kg)
      Finish Genuine walnut veneer enclosure with Quadrex foam grille in a choice of black, burnt orange or dark blue

      Yamaha A-S2200 Specifications:

      Receiver / Integrated Amplifier
      Rated Output Power [20 Hz-20 kHz, 0.07% THD] 90 W + 90 W (8 ohms), 150 W + 150 W (4 ohms)
      High Dynamic Power/Channel (8/6/4/2 ohms) 105/135/190/220 W
      Damping Factor 250 (1 kHz, 8 ohms)
      Frequency Response +0 / -3 dB (5 Hz-100 kHz) , +0 / -0.3 dB (20 Hz-20 kHz)
      RIAA Equalization Deviation +/-0.5 dB (PHONO (MM/MC))
      Total Harmonic Distortion (20Hz to 20kHz) PHONO MC LINE2 OUT: 0.02 % (1.2 Vrms), PHONO LINE2 OUT: 0.005 % (1.2 Vrms), CD, etc./BAL SP OUT: 0.035 % (50 W/8 ohms)
      Signal-to-Noise Ratio PHONO MC: 90 db, PHONO MM: 96 dB, CD, etc.: 110 dB, BAL: 114 dB
      Input Sensitivity [1 kHz, 100 W/8 ohms] PHONO MC: 150 uVrms/50 ohms, PHONO MM: 3.5 mVrms/47 kohms, CD, etc.: 200 mVrms/47 kohms, MAIN IN: 1 Vrms/47 kohms, BAL: 200 mVrms/100 kohms
      Transformer 625VA (Toroidal)
      Dimensions (W x H x D) 17-1/8" x 6-1/8" x 18-1/4"
      Weight 50.0 lbs
