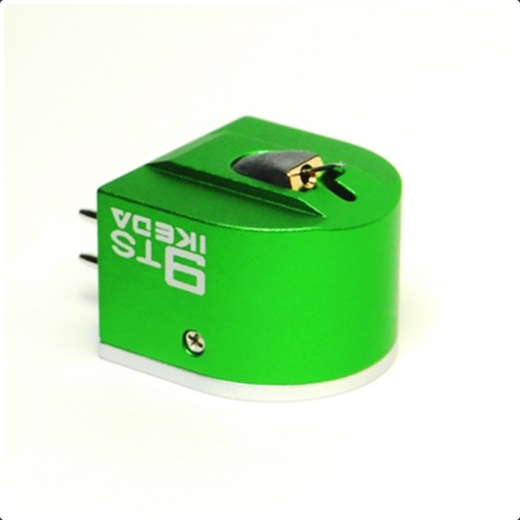

Ikeda 9TS Moving Coil Phono Cartridge

by Ikeda
UPC:
Call for Availability
$2,800.00

SKU Ikeda9TS

Product Qualifies for FREE Ground Shipping

Ikeda 9TS Moving Coil Phono Cartridge

Tonally it has the same musicality as the other MC cartridges in the 9 family. No compromises are made also during processing.

The 9TS 0.35mV is about twice as high output voltage compared to the 9TT so that it can be

Specs

Output Voltage:
0.35mVrms (1kHz 35.4mm/sec. at 45°peak)

Coil Impedance:
6.0 Ohms (1kHz)

Appropriate Stylus Force:
2.0 Grams ±0.2 Grams

Frequency Response:
10Hz - 45kHz

Channel Separation:
Over 27dB (1kHz)

Channel Balance:
Within 1.0dB (1kHz)

Stylus Chip:
Oval-shaped solid diamond

Cantilever:
Double layered duralumin pipe

Weight:
10 Grams

Compliance:
7 x 10-6cm/dyne

Connecting Terminals:
Left Channel, White (hot), Blue (ground)
Right Channel, Red (hot), Green (ground)
