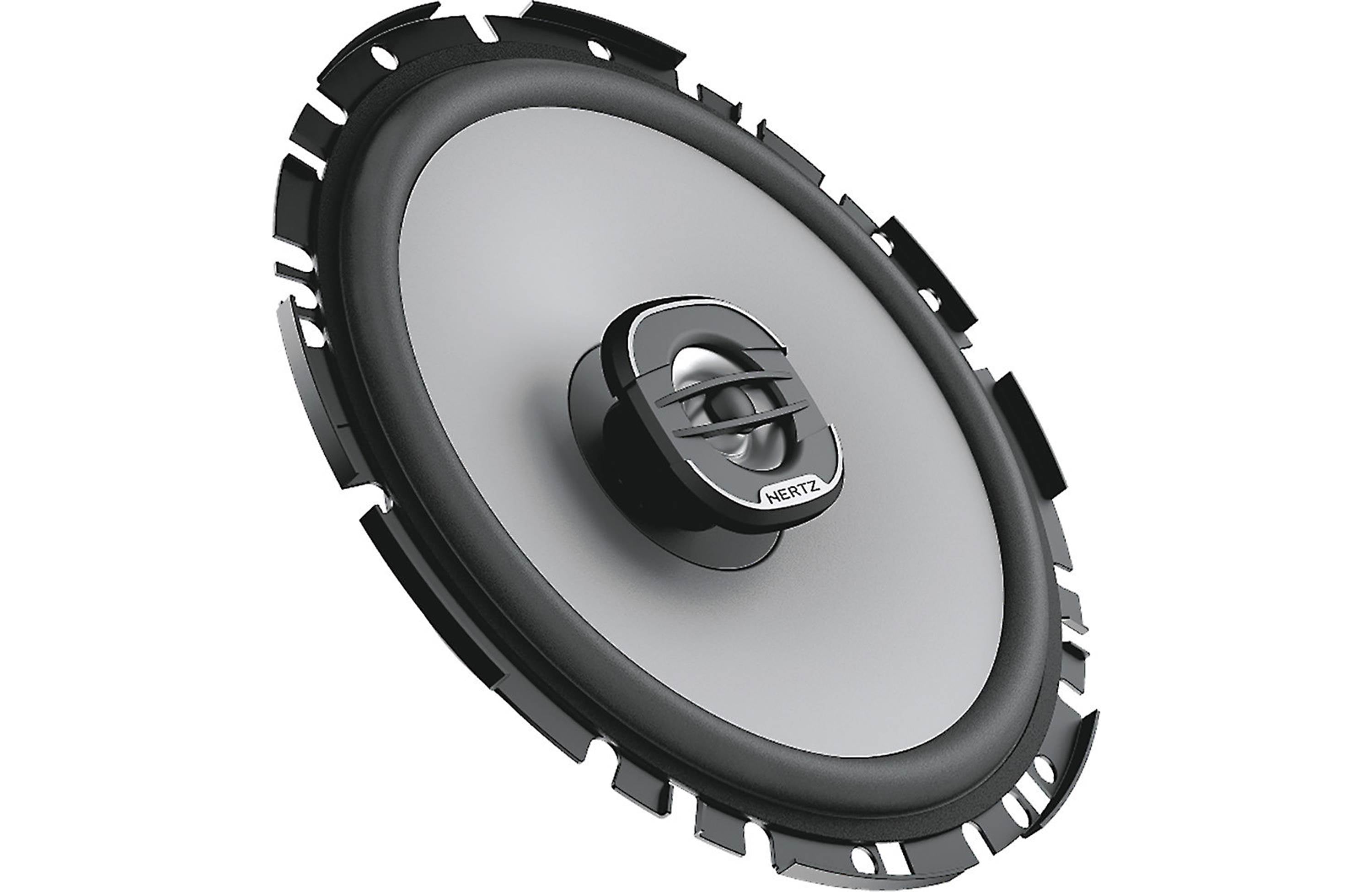

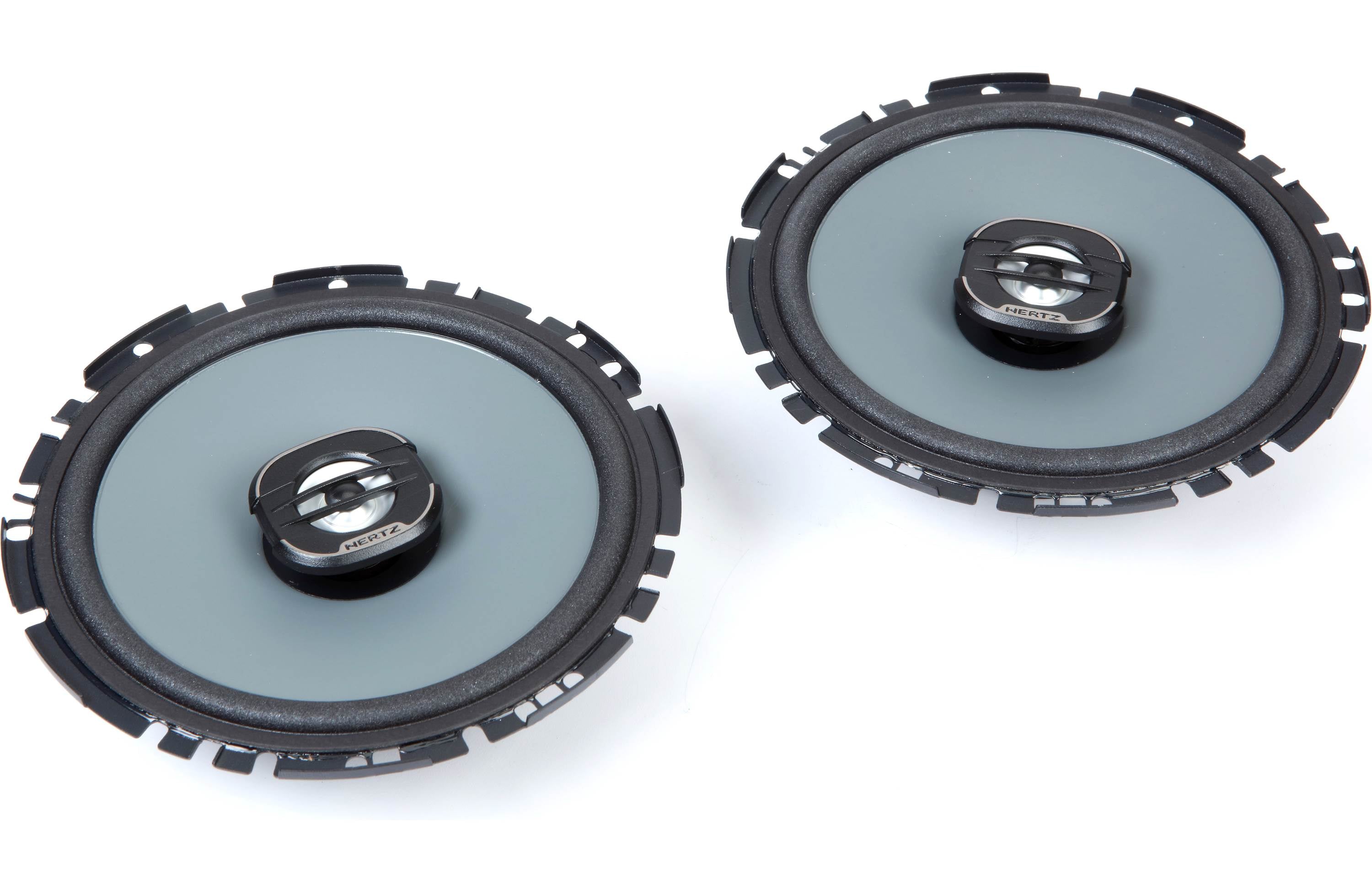

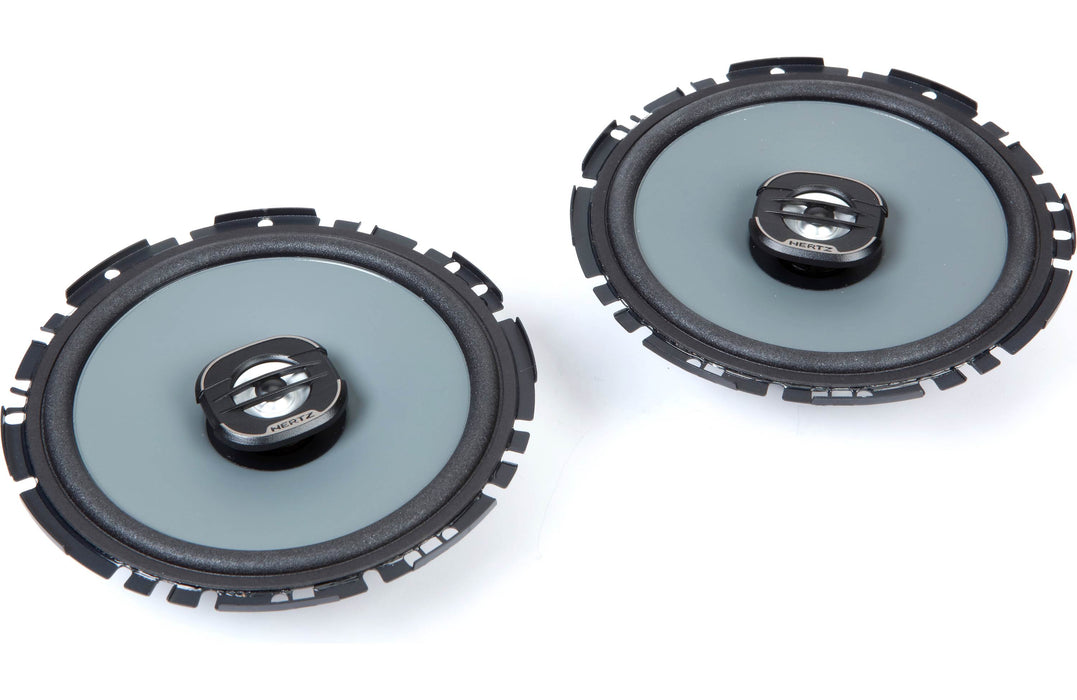

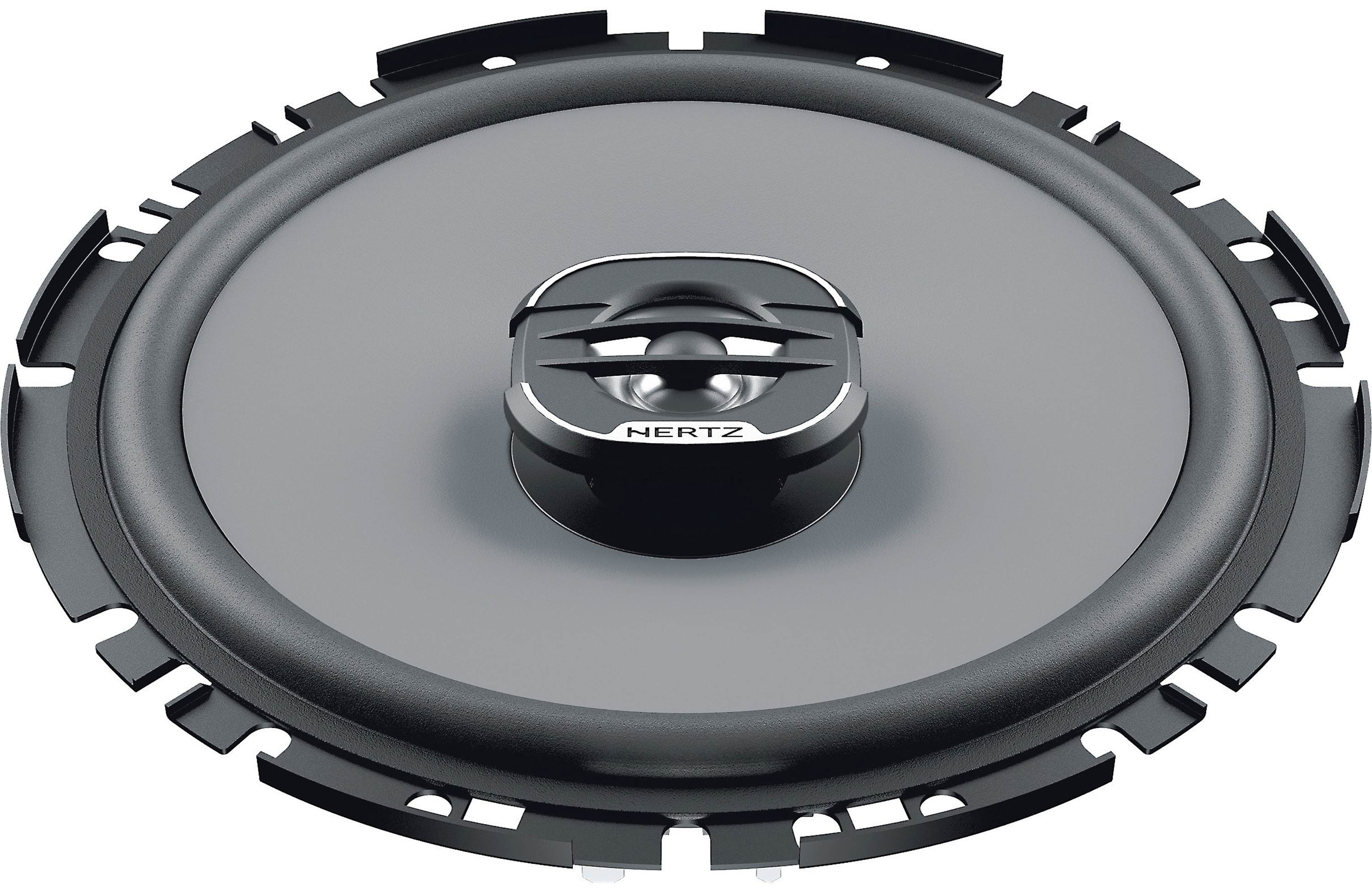

Hertz X 170 Uno Series 6.7" Coaxial Speaker (Pair)

by Hertz
UPC: 8018823120715
Call for Availability
Original price $112.50
Current price $99.99

Hertz X 167 Uno Series 6.7" Coaxial Speaker (Pair)

The 6.7” two way coaxials X 170 features a special designed tweeter faceplate optimized for exceptional off-axis performance to ensure a linear frequency response when installed in a factory replacement setup. The pressed-paper cone treated with water-repellent along with the foam surround provide a very high SPL and extended low frequency response, to obtain a rich sound even when driven by the OEM head unit.

The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The easy-to-install DIN size basket, protected by an abrasion-resistant dust paint, makes the factory speakers replacement a snap.


1. Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies and compactness.
2. Tweeter faceplate optimized for exceptional off-axis performance.
3. High stiffness metallic-grey finish pressed-paper cone with water-repellent treatment.
4. Foam surround combining high sensitivity and deep bass response.
5. Pure copper 25mm (1 in.) voice coil woofer for high dynamic power handling.

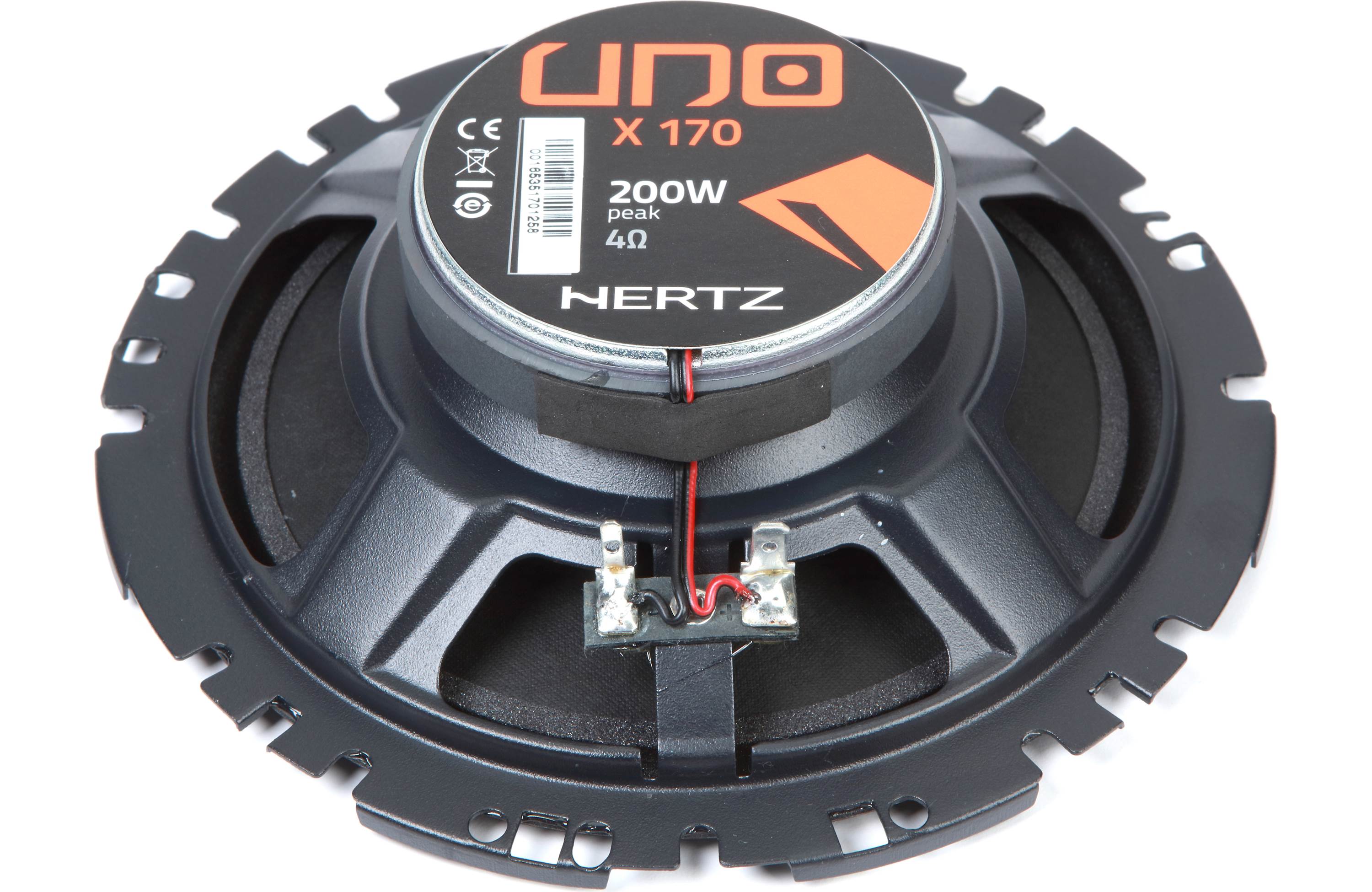

6. High flux density 80mm (3.15 in.) ferrite magnet for a powerful undistorted sound.

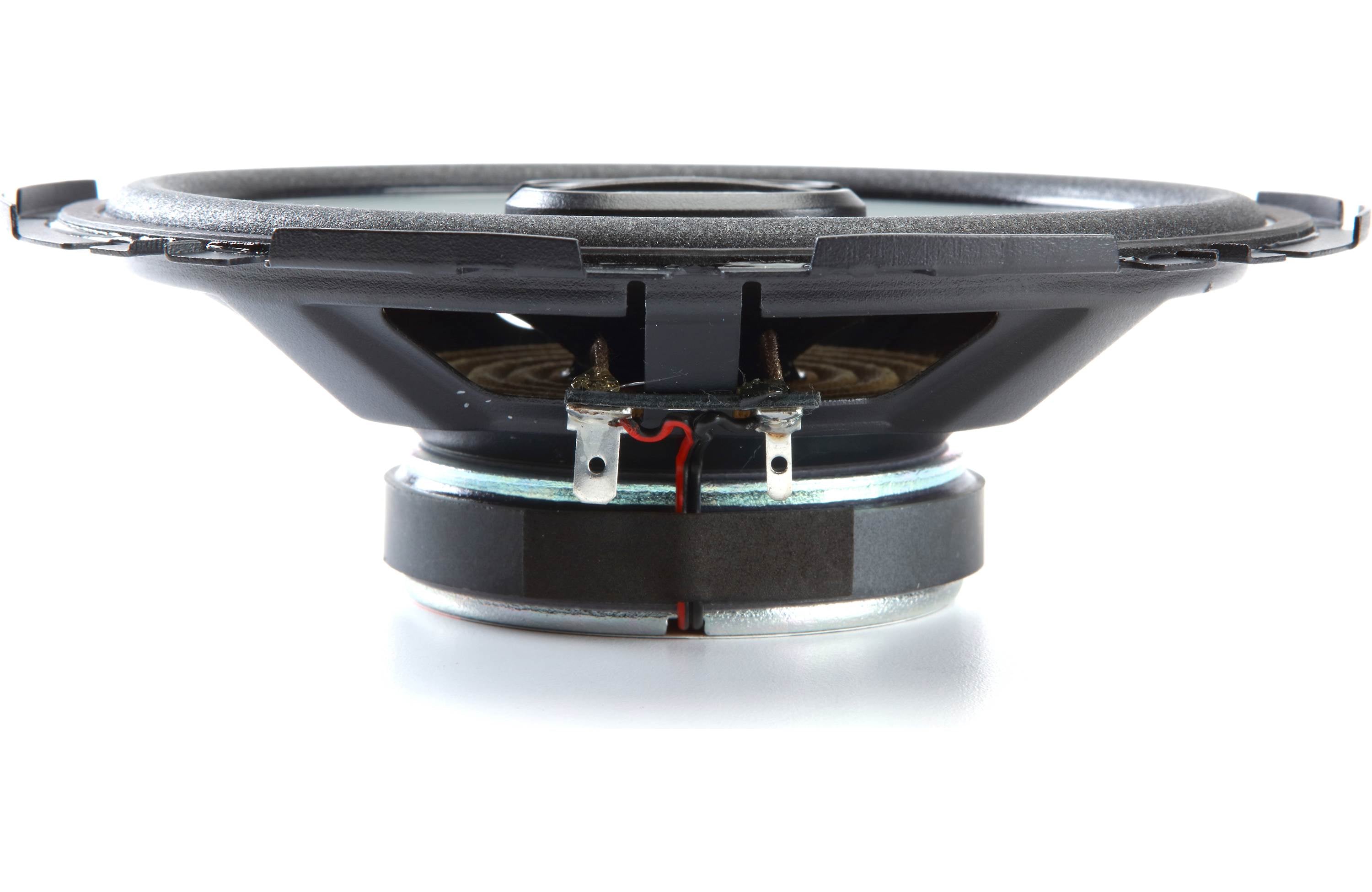

7. Easy-to-install DIN size basket protected by abrasion-resistant dust paint.


Power Handling - Peak W     200
Power Handling - Continuous W     50
Impedance Ω     4
Frequency response Hz     60 ÷ 21k
Sensitivity dB SPL     93.5
Woofer size mm (in.)     170 (6.7)
Tweeter size mm (in.)     24 (0.9)
Woofer Voice Coil Ø mm (in.)     25 (1)
Tweeter voice coil Ø mm (in.)     14 (0.55)
Woofer magnet     High density flux ferrite
Tweeter magnet     Neodymium
Woofer cone     Water-repellent pressed paper
Tweeter dome     PEI
