Hertz Venezia V6 6 Channel Marine Amplifier

Brand: Hertz | SKU: Venezia V6 | UPC: 8018823138864

Sale price
$1,399.99
Regular price
$1,550
You save
10%
Taxes calculated at checkout

Have a question?

Ch: 6 - 5 - 4 - 3 | 1740 W
Venezia V6 is the first six-channel Hertz marine amplifier, featuring the impressive power of 160 W x 6 (4Ω), delivering the output levels needed in the marine environment! Hertz Advanced Class D technology maximizes efficiency and power while minimizing heat and electromagnetic radiation - enhancing sound quality that reaches new highs with Hi-Res certification! High-powered channels with bridging capability. Venezia V6 is engineered and tested for marine applications (UV, salt-fog, vibrations, high/low temperature, thermal shock) and has obtained the IPX2 certification. The Safe-Lock Input, Output, and Power connections streamline installation and enhance durability in the field. The fanless convection cooling system is integrated into the cast heat-sink chassis. The balanced fully-differential input circuitry rejects electromagnetic noise and interference. The powerful and flexible preamp filter options are far beyond most mobile amplifier capabilities. Last but not least, Venezia V6 is fully protected by short-circuit, overload, and thermal protections - with auto-resetting.

Features:

  • Engineered and tested for marine application (UV, salt-fog, vibrations, high/low temperature, thermal shock) featuring IPX2 certification.
  • ADC (Advanced D-Class) Technology 2Ω stable output stage providing Hi-Res certified audio performance with superior efficiency.

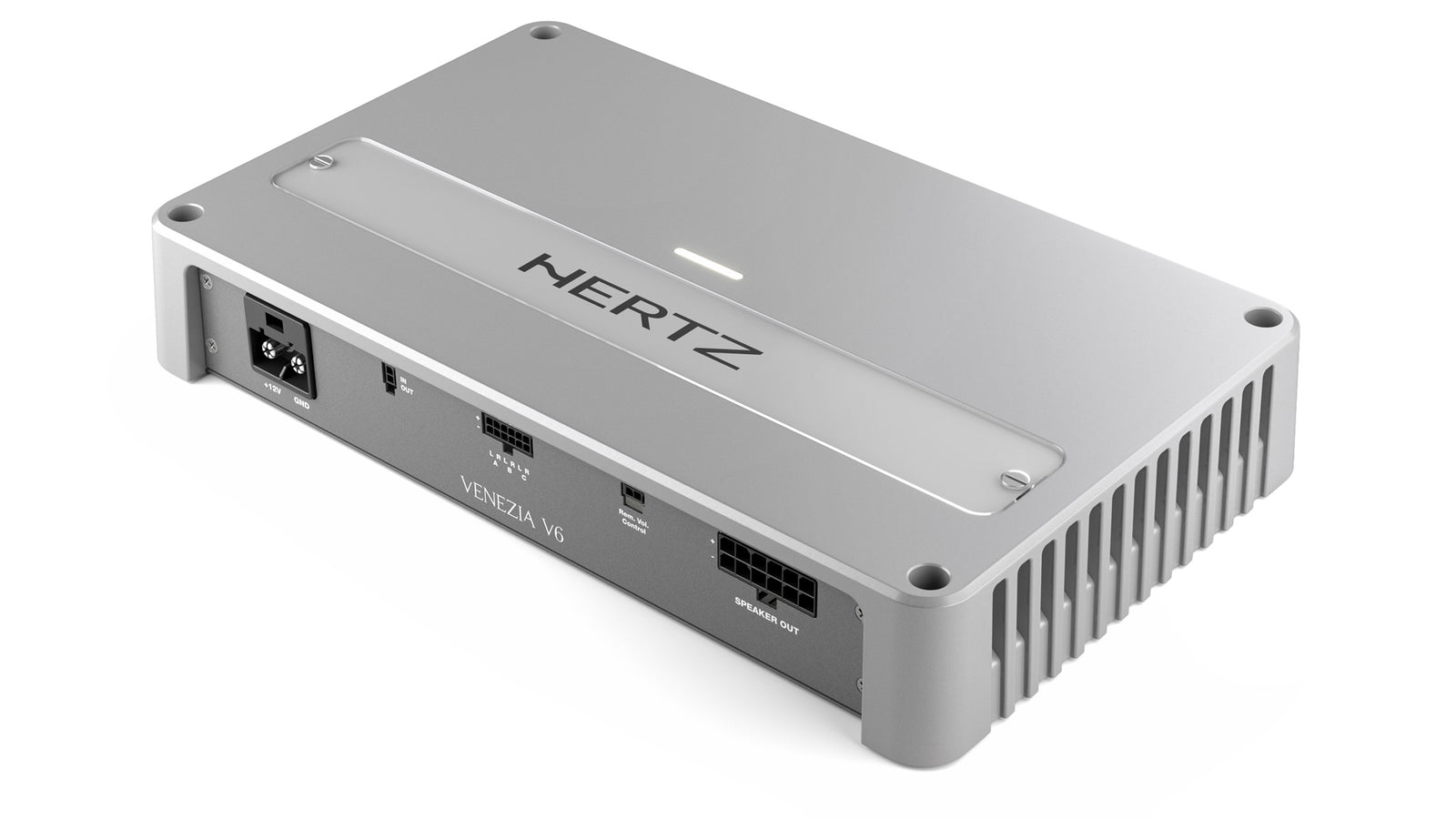

  • Die-cast aluminum compact design with fan-less convection cooling system ensuring low operating temperature even at maximum power.
  • Balanced fully-differential input circuitry to reject electromagnetic disturbances.
  • Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
  • Built-in filter section protected by a polycarbonate panel suitable for any system configuration.
  • Short-circuit, overload, and thermal protections with auto-resetting.

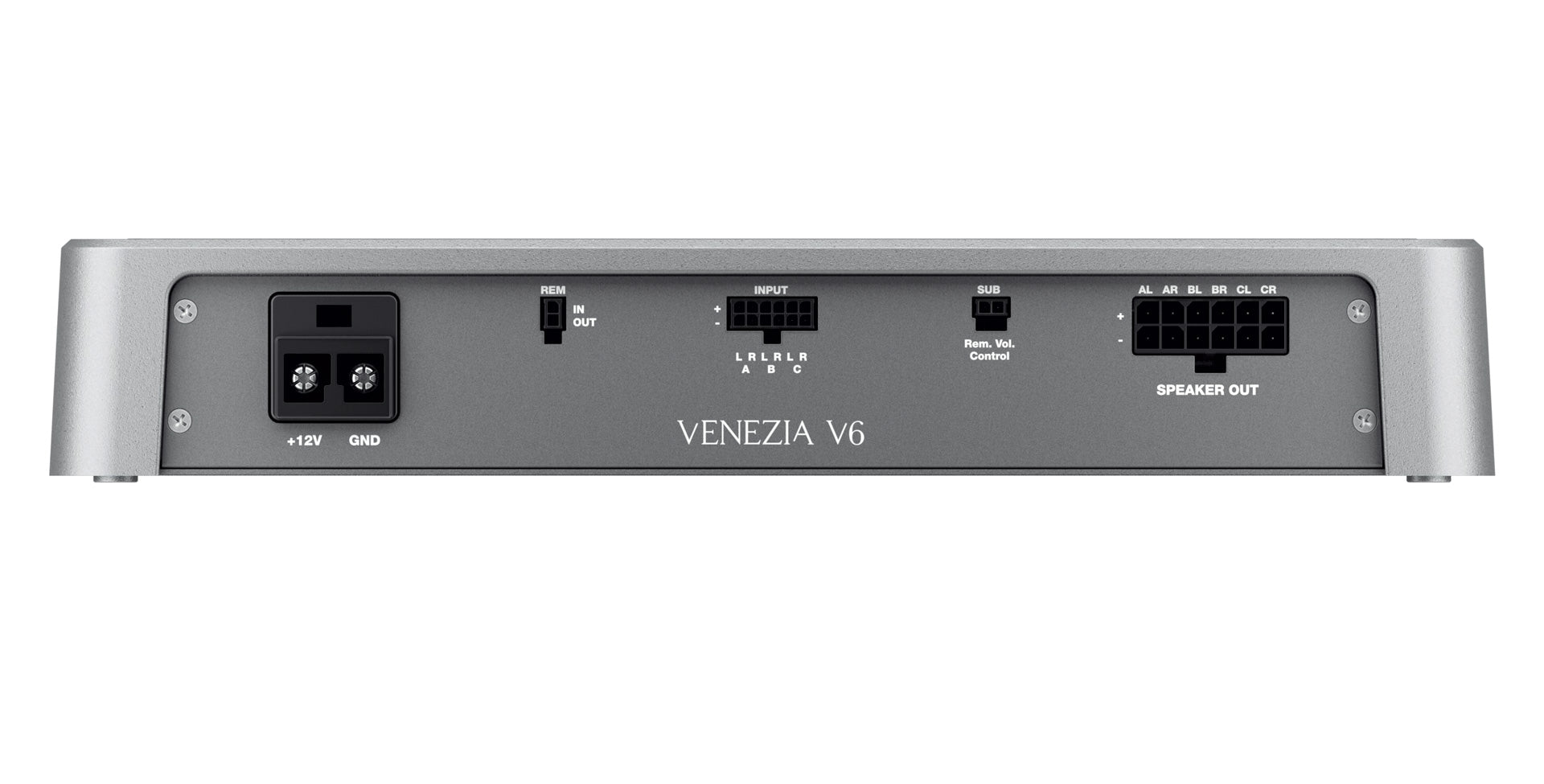

  • Plug&Play Input and Output connections with safe-lock.
  • Proprietary Plug&Play Power Supply Connector with safe-lock.
Specs

General Specs
Channels    6 - 5 - 4 - 3
POWER SUPPLY
Power supply voltage    9 ÷ 16 VDC
ldling current (power ON/OFF):    1.8 A / 0.04 mA
Consumption@ 2Ω, 14.4 VDC (Max Musical Power):    75 A
Remote In:    7 ÷ 15 VDC - 1 mA
AMPLIFIER STAGE
Distorsion - THD (100Hz @ 4Ω):    <0,06%
Bandwidth:    10 ÷ 42 kHz
S/N Ratlo (A welghted @ 1 V):    100 dB
Damping factor (100Hz @ 4Ω)    130
Pre-ln sensitivity:    0.2 ÷ 5 VRMS
Pre-ln impedance:    10 kΩ
Load impedance (MIN)
@6Ch: 2Ω
@5Ch: 2Ω + 2Ω + 2Ω +2Ω + 4Ω
@4Ch: 2Ω + 2Ω +4Ω + 4Ω
@3Ch: 4Ω

Adjustable Crossovers    yes

Output Power
OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
6Ch    160 W x 6 (4Ω)
6Ch    290 W x 6 (2Ω)
5Ch    160 x 4 (4Ω) + 580 x 1 (4Ω)
5Ch    290 x 4 (2Ω) + 580 x 1 (4Ω)
4Ch    160 x 2 (4Ω) + 580 x 2 (4Ω)
4Ch    290 x 2 (2Ω) + 580 x 2 (4Ω)
3Ch    580 x 3 (4Ω)
Total Power    1740 W

INPUTS / FILTERS
lnputs:    A Ch. Pre in
B Ch. Pre in
C Ch. Pre in
Pre Out:    No
Ch. A filters:
MONO IN (on/off)    Yes
By-pass    Yes
Hi-pass:    50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. B filters:
MONO IN (on/off)    Yes
By-pass    Yes
Hi-pass:    50 ÷ 500 Hz @ 12 dB/Oct
Band-pass:    50 ÷ 500 Hz / 500 Hz ÷ 5 kHz @ 12 dB/Oct
Ch. C filters:
MONO IN (on-off)    Yes
By-pass    Yes
Hi-pass:    50 ÷ 500 Hz @ 12 dB/Oct
Lo-pass:    50 ÷ 500 Hz @ 12 dB/Oct

Physical Specs
Weight:    3.72kg    8.2lbs

Brand Hertz
