Hertz SV 200.1 SPL Show 8" Midrange Speaker (Pair)

by Hertz
UPC: 8018823110303
Call for Availability
$329.99

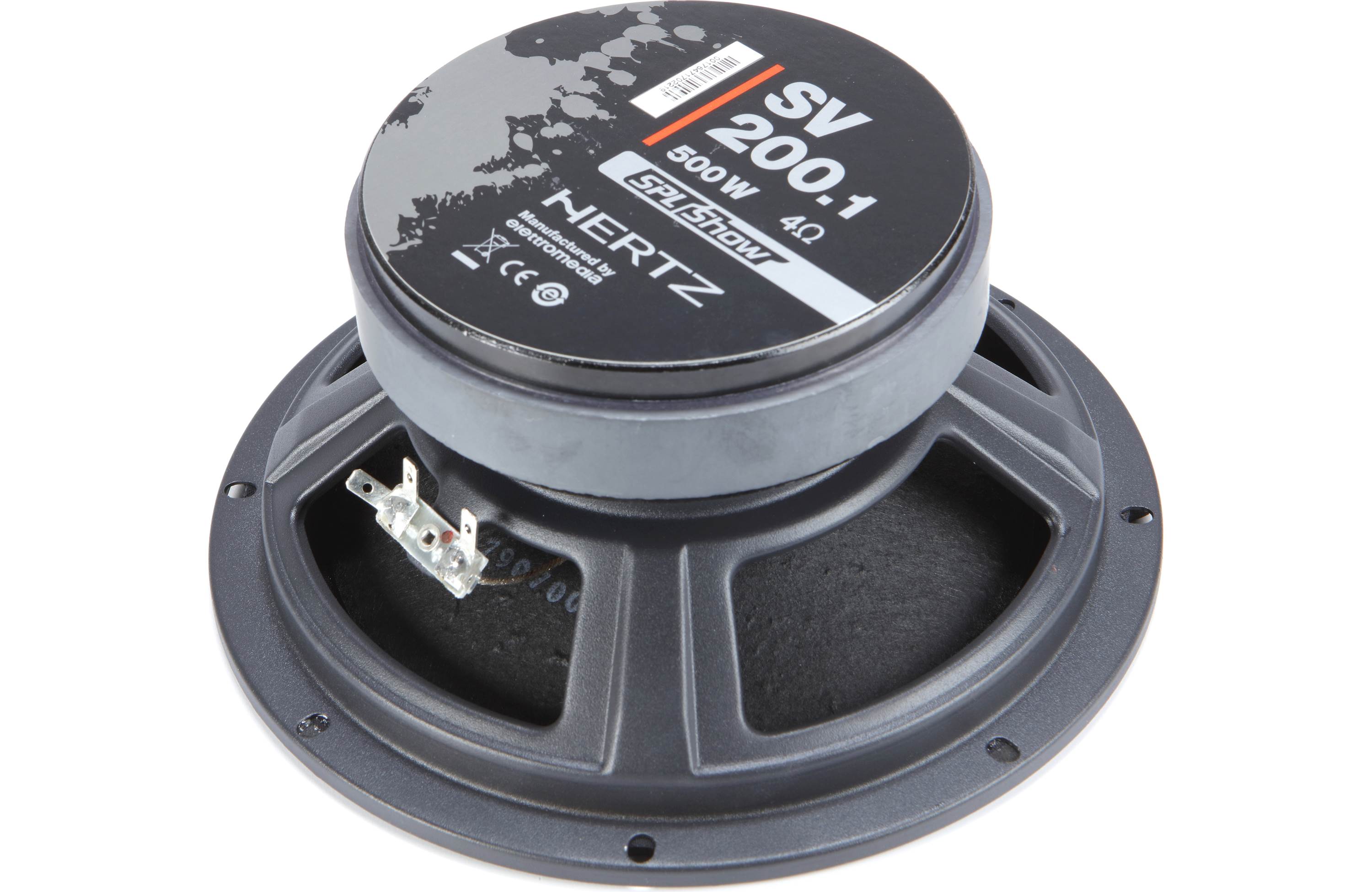

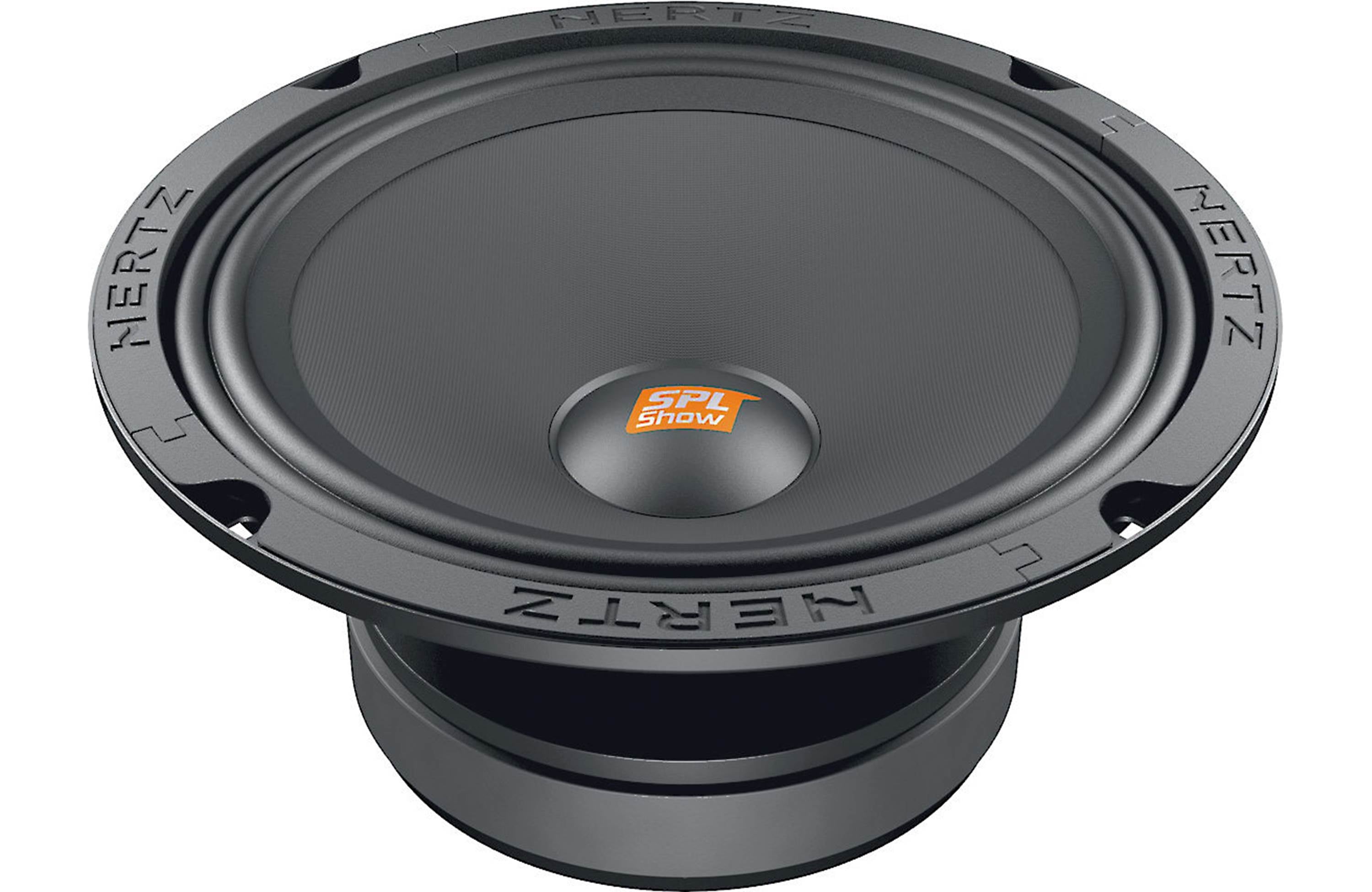

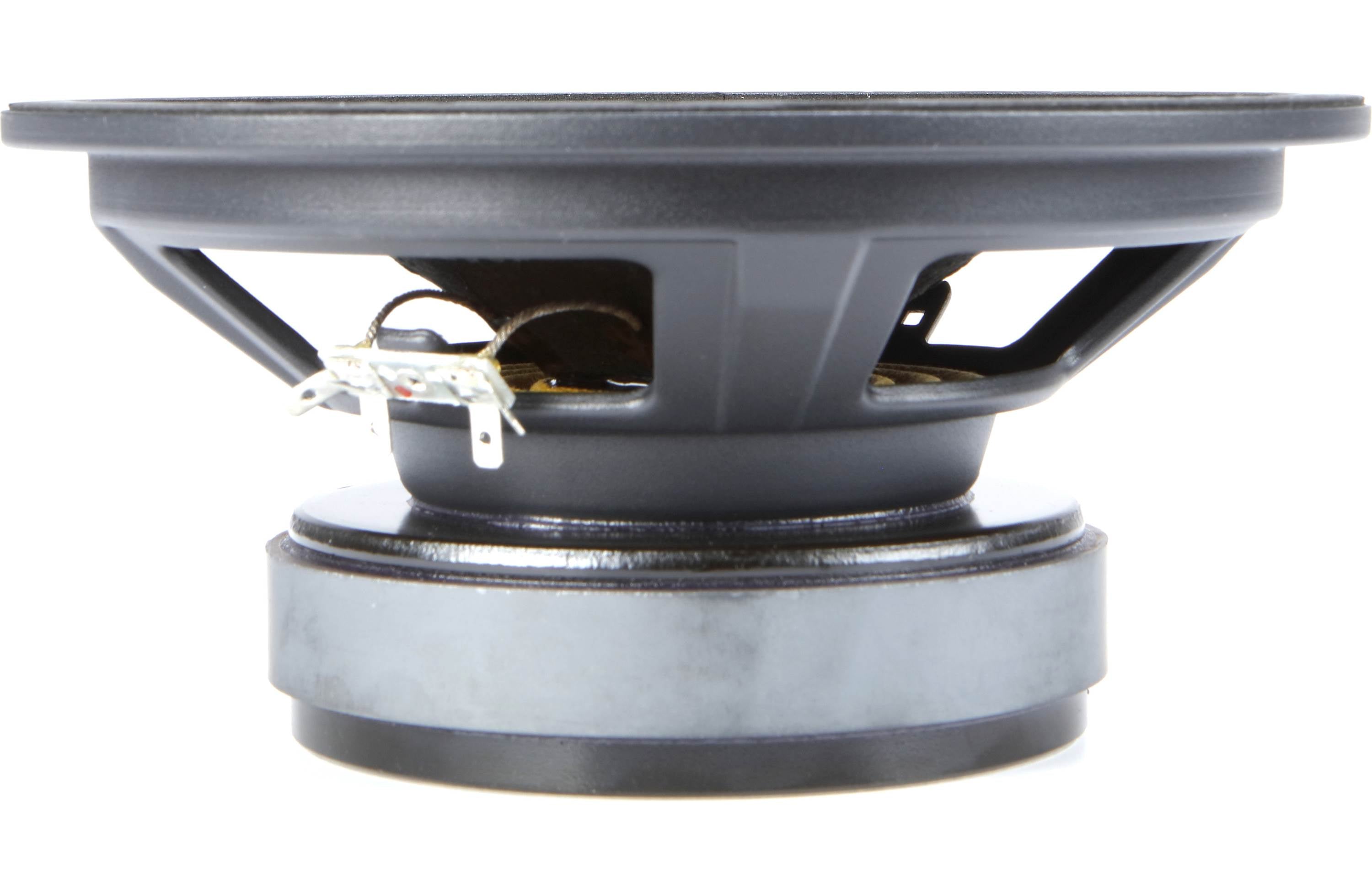

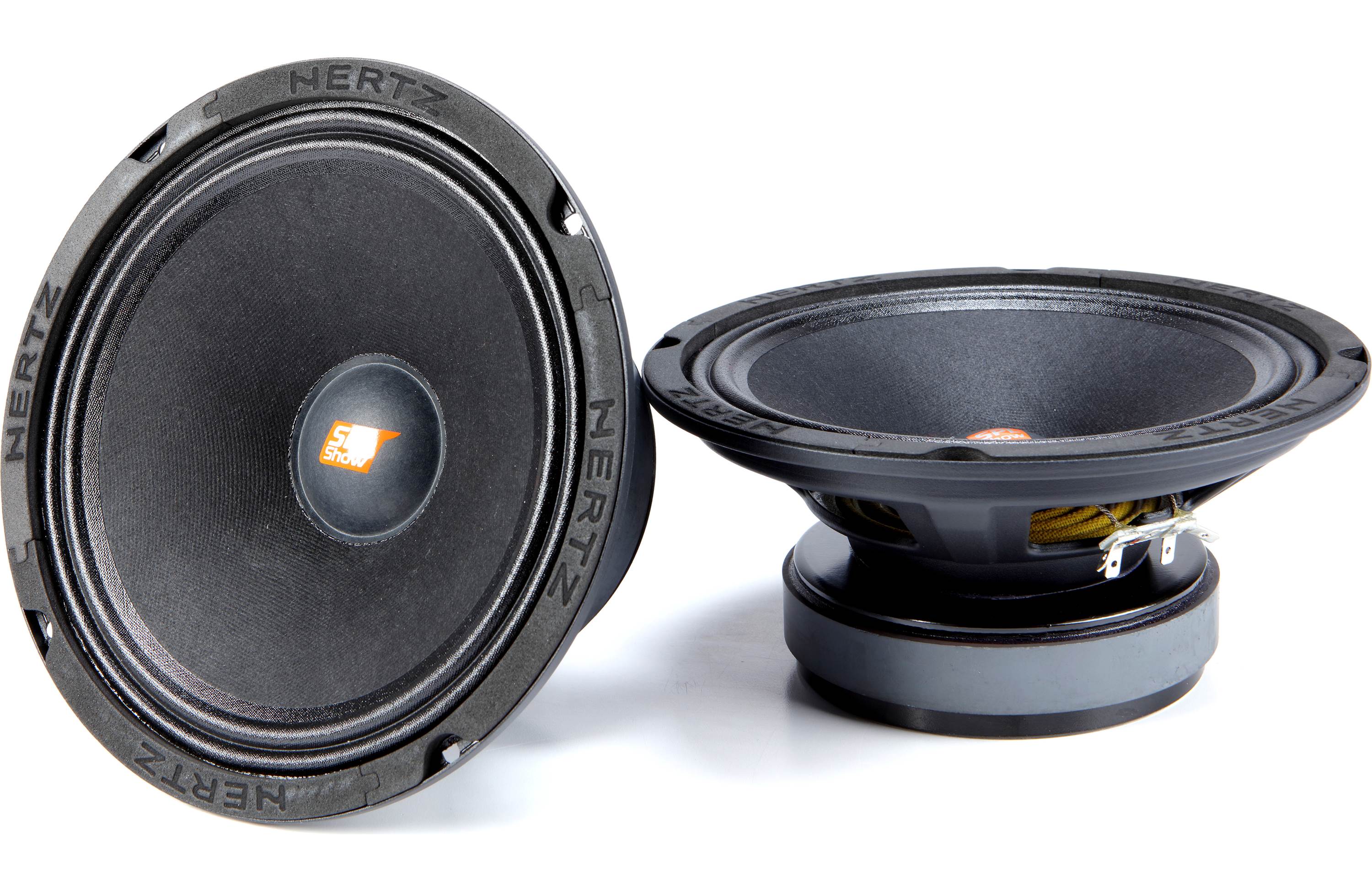

Hertz SV 200.1 SPL Show 8" Midrange Speaker (Pair)

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.



Specs

Size mm (in.)     200 (8)
Power Handling - Peak W     500
Impedance Ω     4
Frequency response Hz     100 ÷ 9k
Sensitivity dB SPL     100
Voice coil Ø mm (in.)     38 (1.5)
Magnet     High density flux ferrite
Cone/Dome     Ultra light pressed paper
