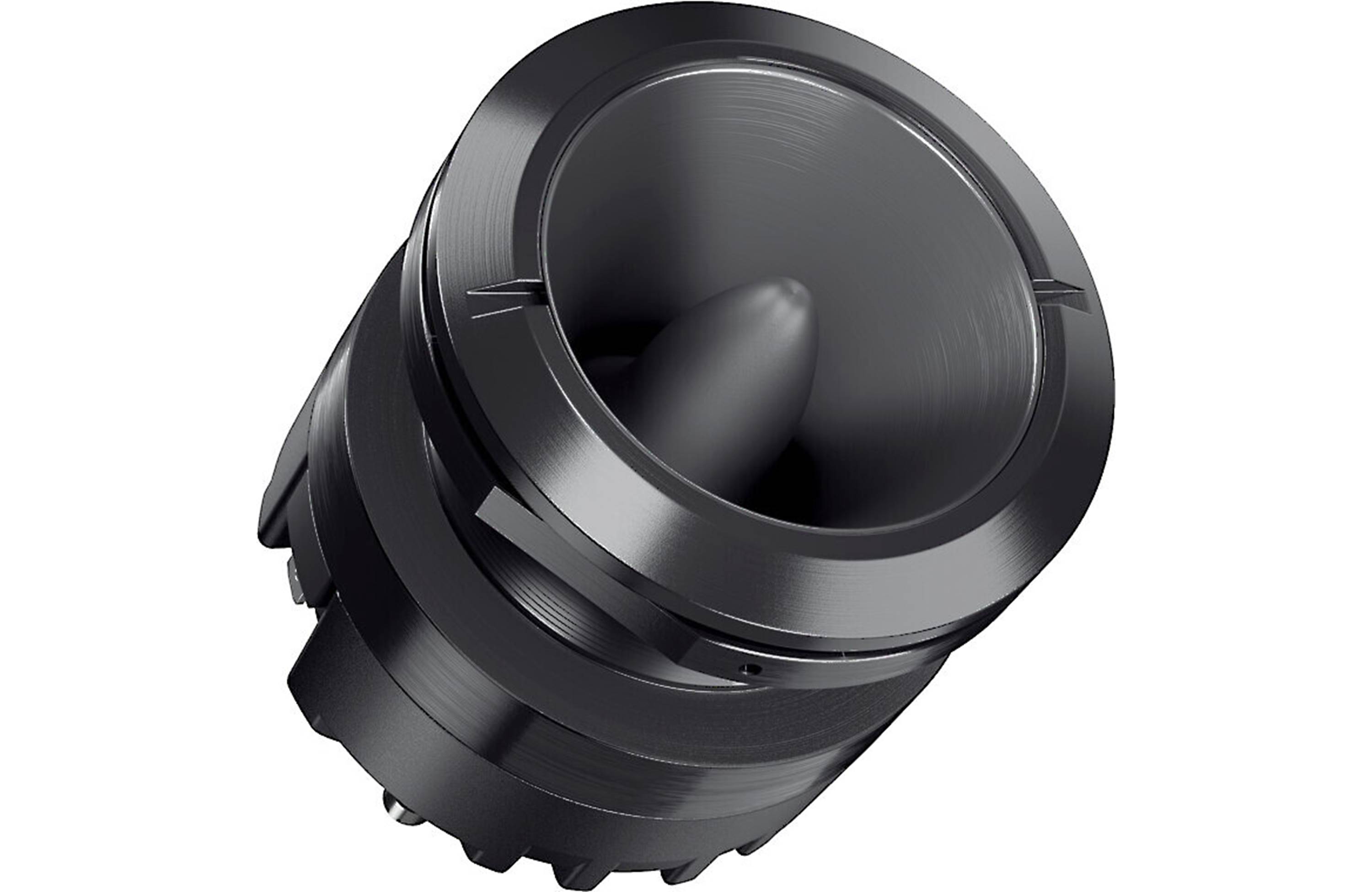

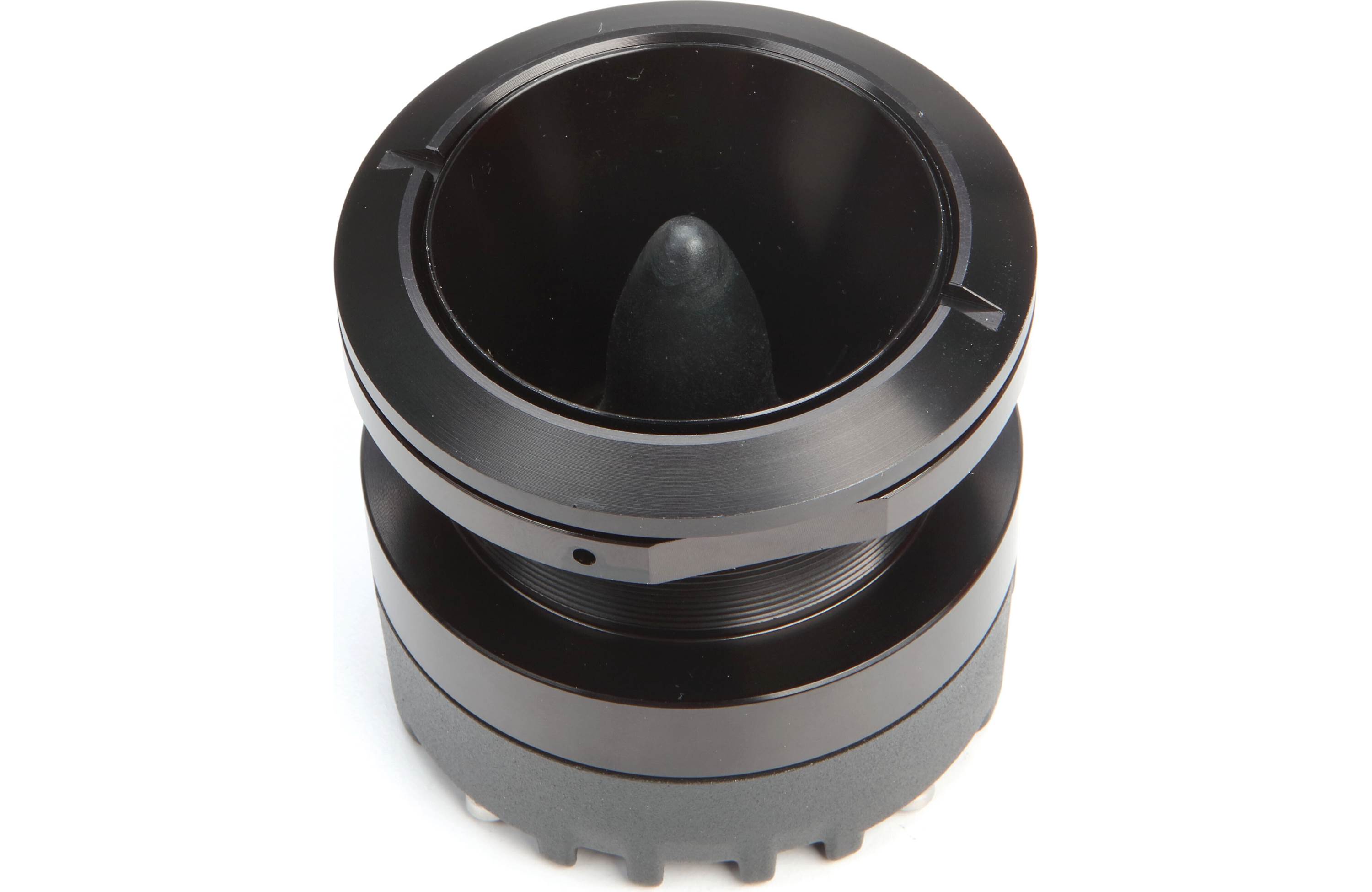

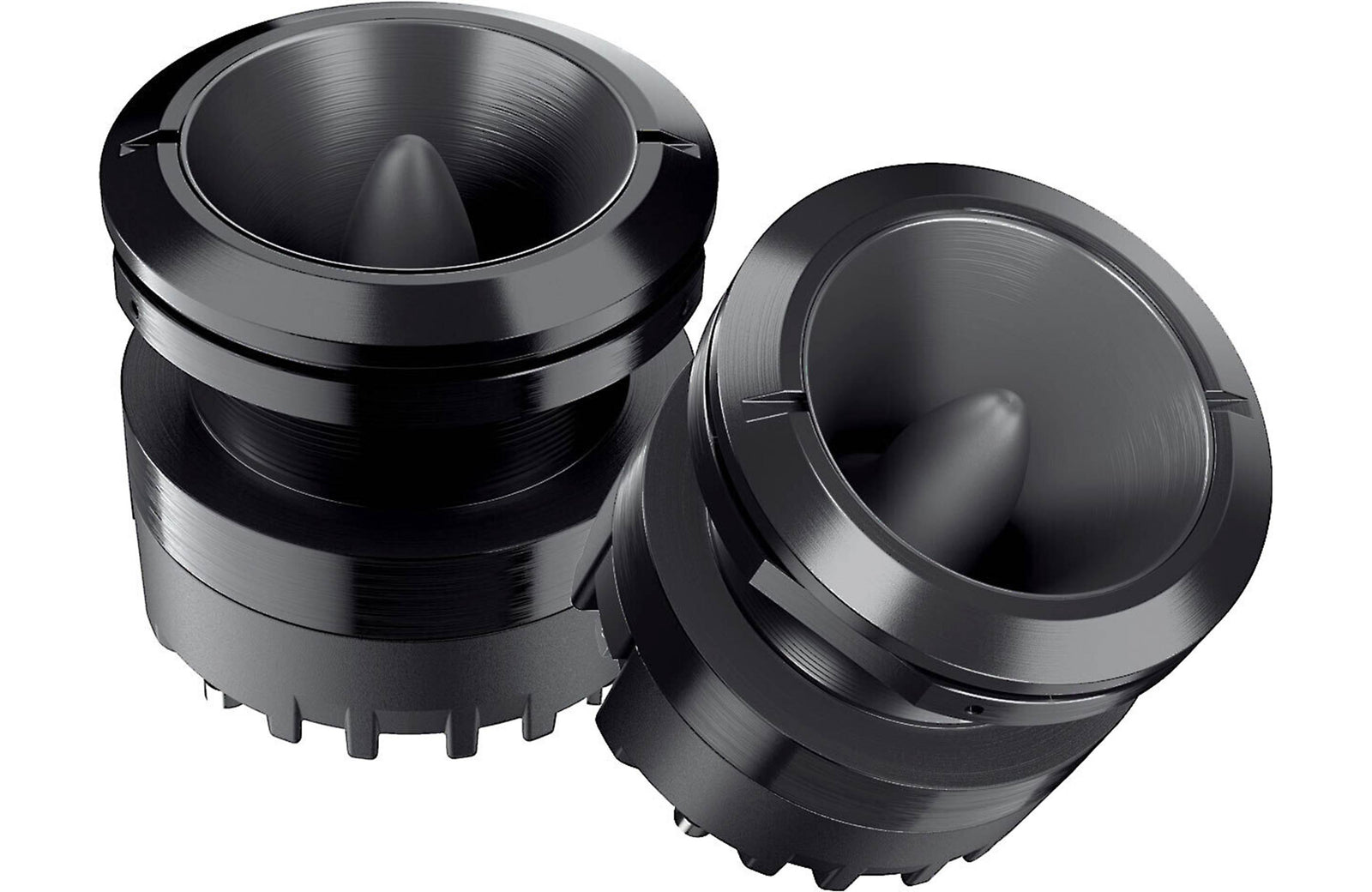

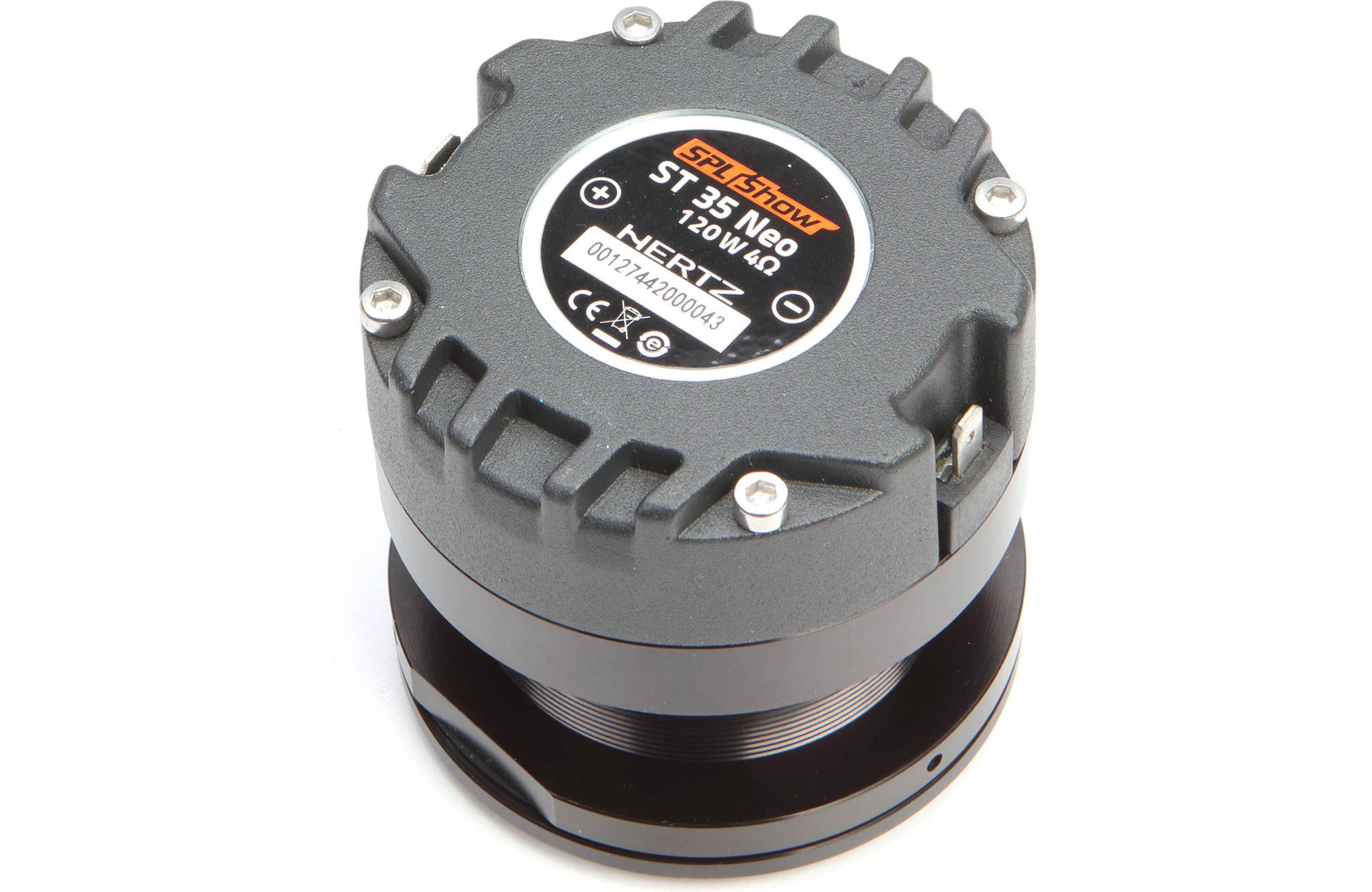

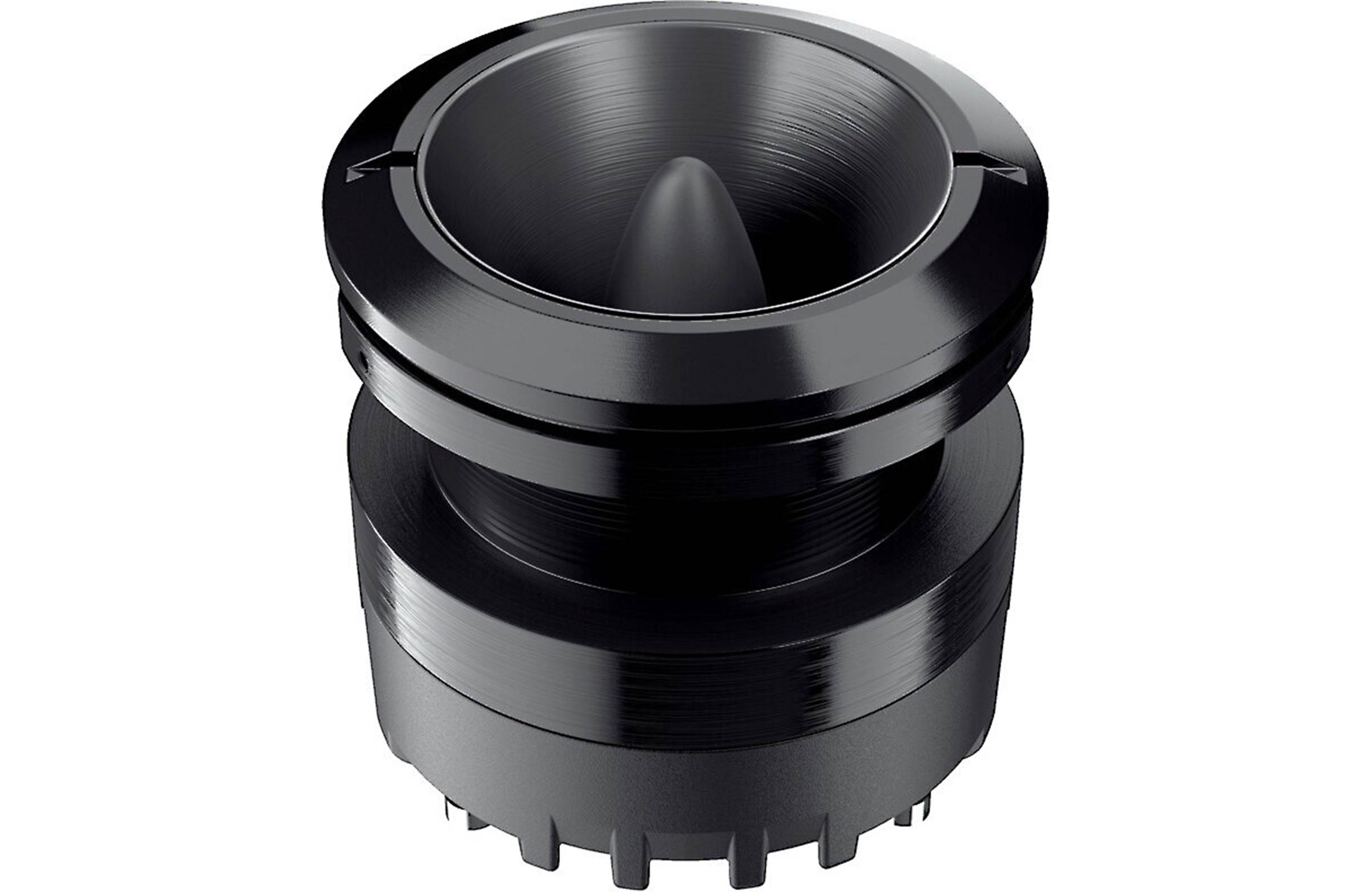

Hertz ST 35A NEO SPL Show 1.8" Aluminum Dome Bullet Tweeter (Pair)

Brand: Hertz | SKU: ST 35A NEO | UPC: 8018823135450

Sale price
$599.99
Regular price
$690
You save
13%
Taxes calculated at checkout

Have a question?

46 (1.8) mm (in.) | High Efficiency Compression Driver | 120 W | 4 Ohm

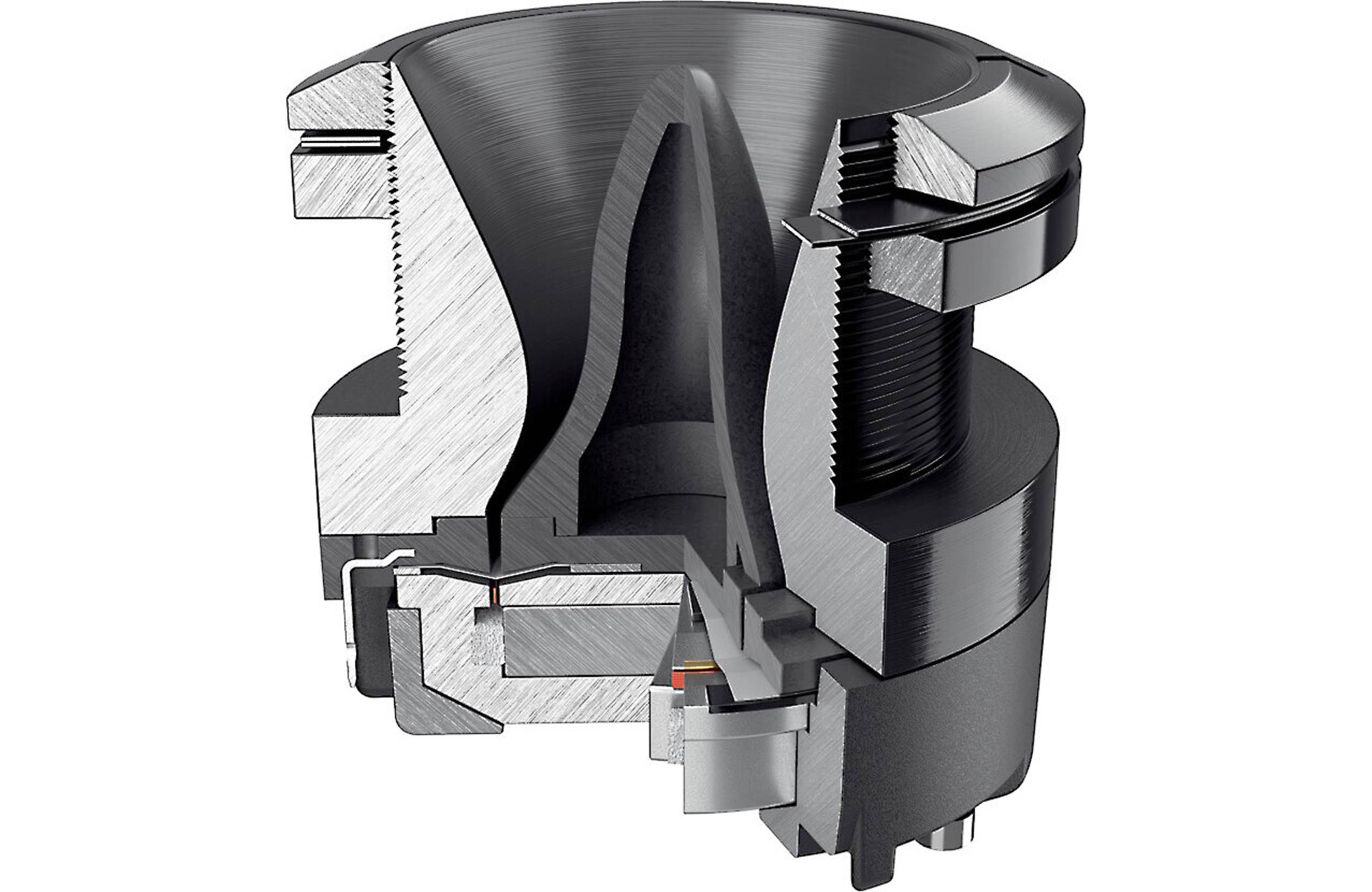

NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.

Features:

1. Powerful Neodymium magnet providing high performance with compact size.

2. FEM (Finite Element Method) optimized phase-plug and loading horn.

3. CCAR (Copper Clad Aluminum Ribbon) voice coil for unheard-of thermal and mechanical capability ready for an easy replacement with replacement body kit.

4. Extra-light aluminum membrane to maximize SPL with high current, screw terminals.

5. Body waterproofing and anti-UV treatment to allow safe outdoor use without discoloration over time.

6. Aluminum back cover for superior heat dissipation.

7. Impressive low frequency extension and efficiency.

Specs

Technical Specs
Component    HIGH EFFICIENCY COMPRESSION DRIVER
Size mm (in.)    46 (1.8)
Power Handling - Peak W    120
Power Handling - Peak Note    Hi-pass filtered @ 5 kHz - 12 dB Oct.
Impedance Ohm    4
Voice Coil Ø    35 (1.4)
Frequency Response Hz    2k ÷ 20k
Weight of one component kg (lb.)    0,53 (1.17)
Magnet    Neodymium
Dome    Aluminum

Electro-acoustic Specs
D mm    46
Re Ohm    3,3
Fs Hz    4000
Le mH    0,02
BL T*m    3,5
Spl dB    109

Brand Hertz
