Click to open expanded view
Ch: 1 | 1000 W
SP 1.900 mono amplifier features Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency. The maximum power of 1000 W is already available at 2Ω and remains stable even at 1Ω. Being ultra-compact (211.6 x 130 x 49 / 8.3 x 5.1 x 1.9) with impressive power, SP 1.900 is the ideal choice for Motorcycle applications under-seat in sports cars and behind-seat installations in trucks.
SP 1.900 mono amplifier features Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency. The maximum power of 1000 W is already available at 2Ω and remains stable even at 1Ω. Being ultra-compact (211.6 x 130 x 49 / 8.3 x 5.1 x 1.9) with impressive power, SP 1.900 is the ideal choice for Motorcycle applications under-seat in sports cars and behind-seat installations in trucks.
Features:
- Up to 87% efficiency thanks to ADC (Advanced D-Class) 1Ω stable output stage ensuring high audio performance in a compact size.
- USS (Universal Speakers Simulators) allows SP 1.900 to work with head units featuring the “speaker load detection” circuit.
- 1000 W RMS (1Ω) with ultra-compact size 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9 (mm/inch).
- IP55 aluminum chassis for maximum protection against humidity and external agents.
- There is no cooling fan to prevent internal accumulation of dirt.
- Sealed power cord, line inputs, and speaker outputs to prevent oxidation.

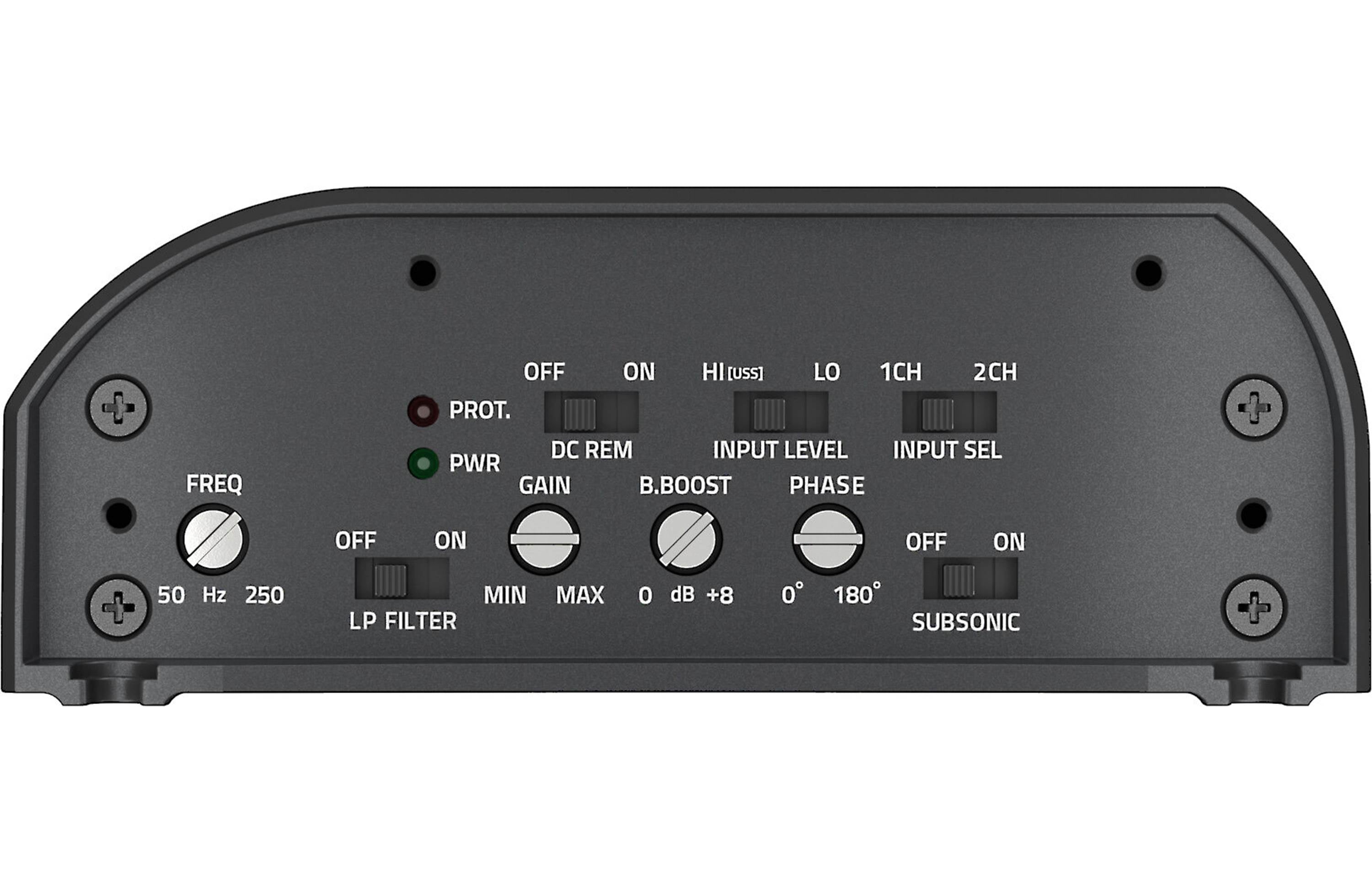

- Crossover filters and controls on a single side to facilitate calibration when the product is installed.
- Balanced fully differential high-noise rejection inputs.
- ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled).
- 24 dB continuous adjustable (50 to 250 Hz) Lo-Pass subwoofer filter.
- SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signals to avoid damage to the subwoofer.
- The optional HRC BM Remote Volume Control provides the ability to adjust the subwoofer volume level from the dashboard.
Specs
General Specs
Channels 1
Nominal power supply voltage 11 ÷ 15 VDC
Pulse Operating voltage 6 ÷ 16 VDC
Idling current 1.1 A
Idling current when off 0.03 mA
Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power) 50 A
Remote IN 6 ÷ 15 VDC (9 mA)
DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers 3.5 ÷ 7 VDC
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.1%
Damping factor @ 1 kHz, 4Ω, 2 VRMS >300
Bandwidth @ -3 dB 5 Hz ÷ 500 Hz
S/N ratio (A weighted @ 1 V Input) 95 dBA
Pre-In sensitivity 0.6 ÷ 6 VRMS
Speaker-In sensitivity 2.2 ÷ 22 VRMS
Minimum load impedance: 1Ω
IP Rating IP55
Operating Temperature Range 0°C (32°F) to 55°C (131°F)
Weight (kg/lbs) 2.15 / 4.74
Adjustable Crossovers yes
Output Power
Output Nominal Power (RMS) @ 14.4 VDC, THD 1%:
1 Ch: 600 W (4Ω)
1 Ch: 1000 W (2Ω)
1 Ch: 1000 W (1Ω)
Total Power 1000 W
INPUTS / FILTERS
INPUTS: Pre IN / Speaker IN
Full Yes
Lo-pass: 50 ÷ 250 Hz @ 24 dB/Oct.
Bass Boost 45Hz (adjustable) (0 ÷ 8) dB
Phase (adjustable) 0 ÷ 180°
Subsonic 25 Hz @ 24 dB/Oct.
Remote Volume Control (not included) -21 + 5 dB
Brand
Hertz
