Hertz MPX 165.3 Mille Pro 2-Way 6.5" Coaxial Speaker (Pair)

by Hertz
UPC: 8018823114066
Call for Availability
Original price $400.00
Current price $349.99

SKU MPX165.3

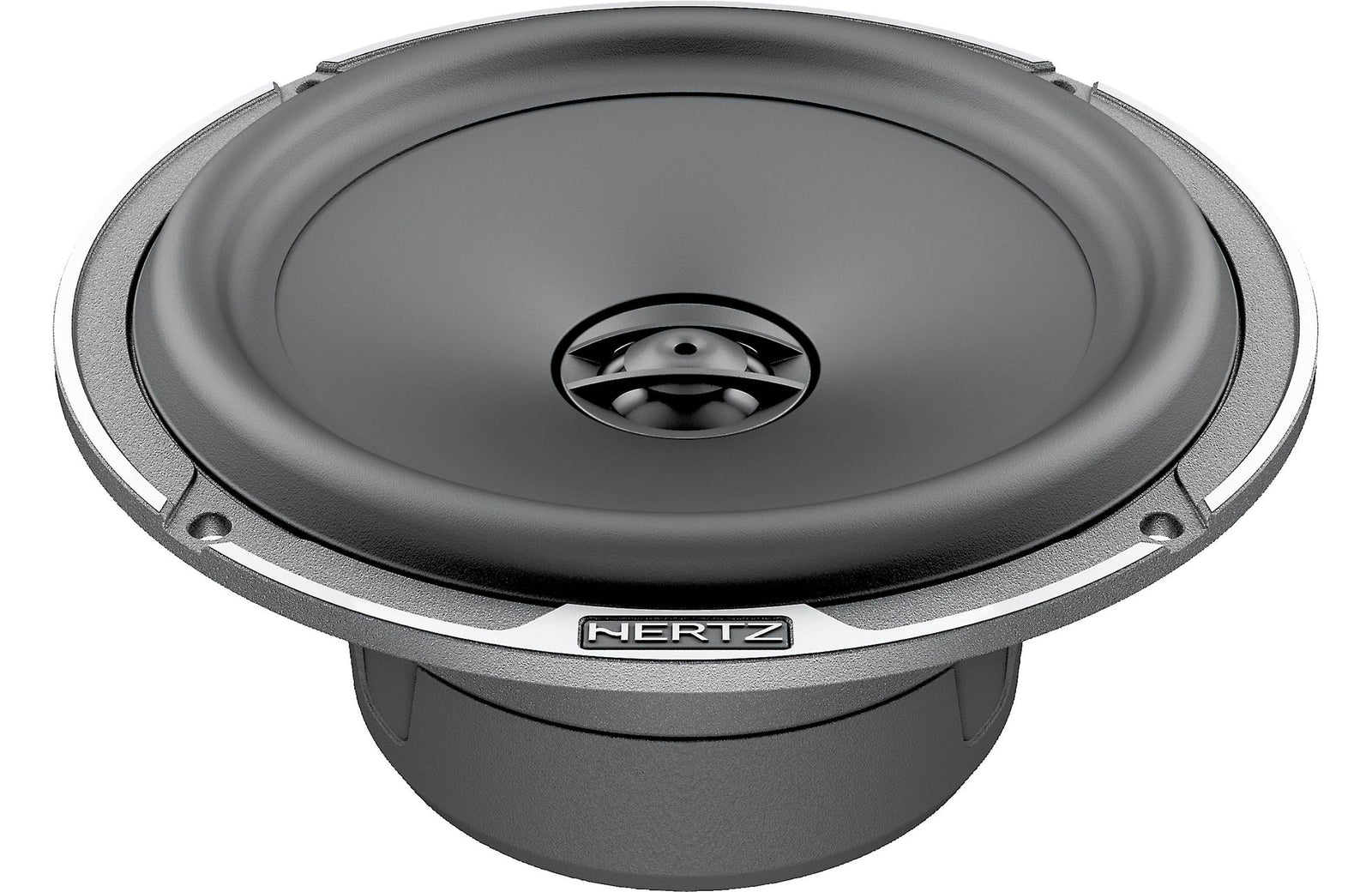

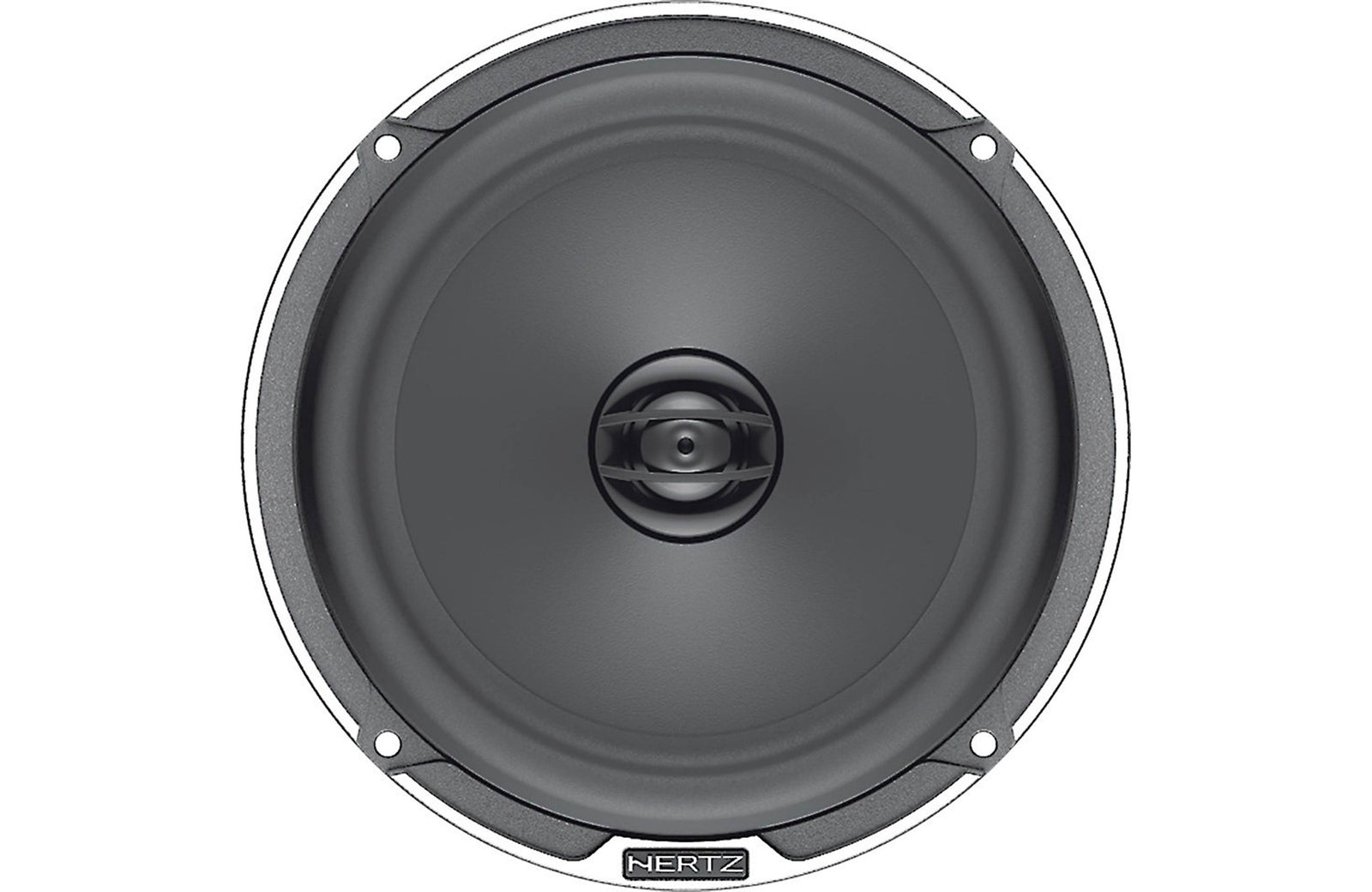

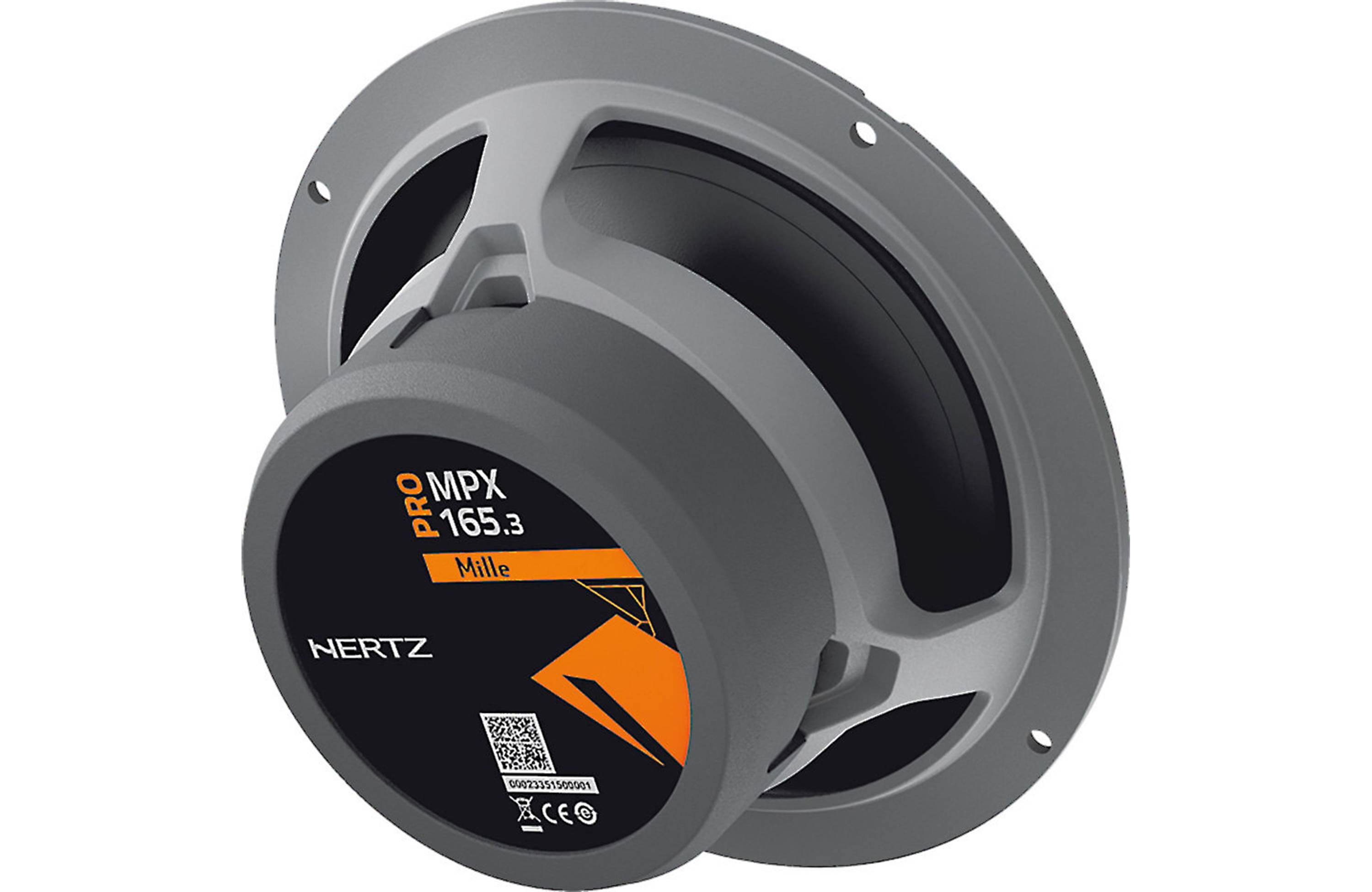

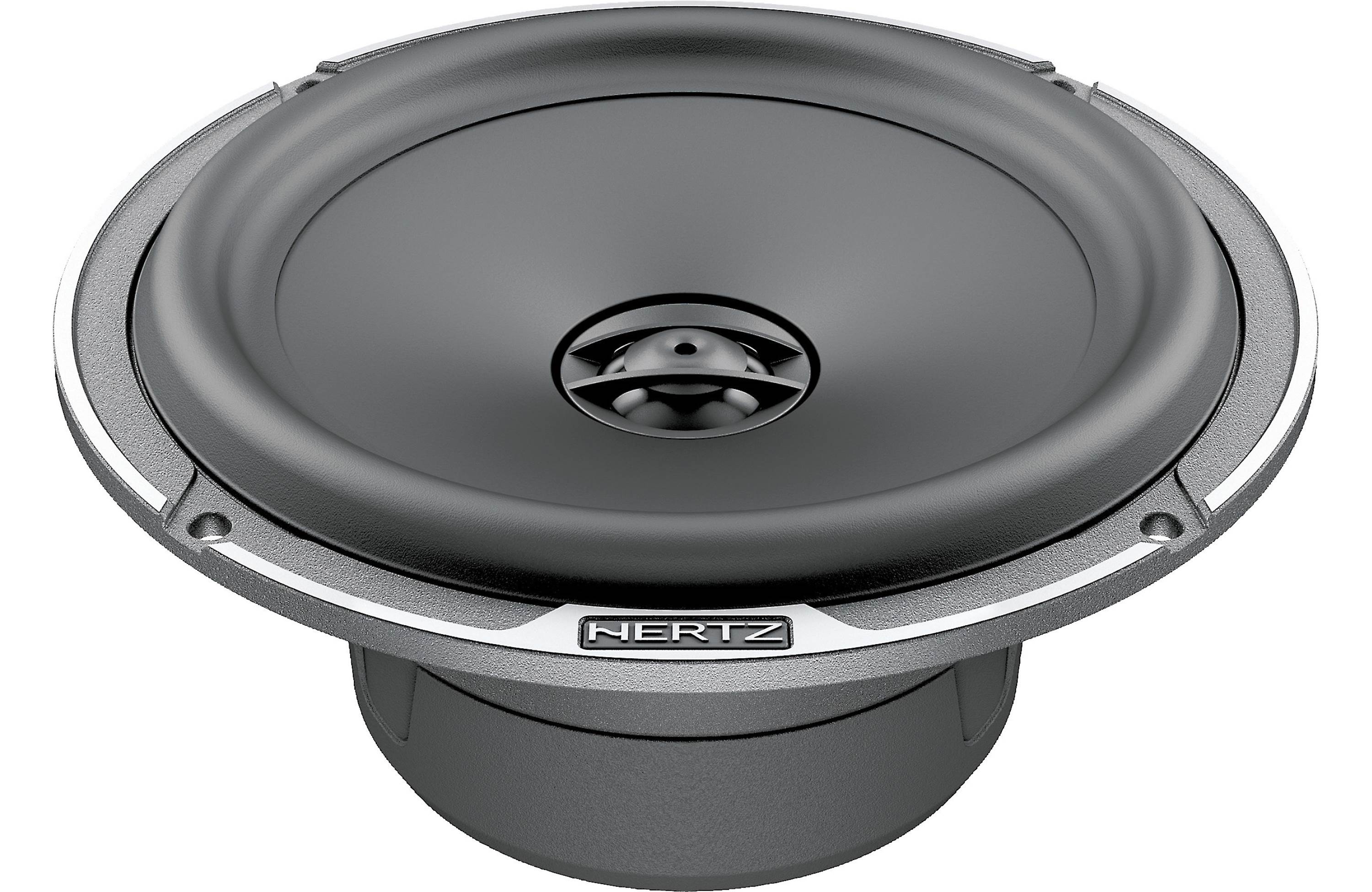

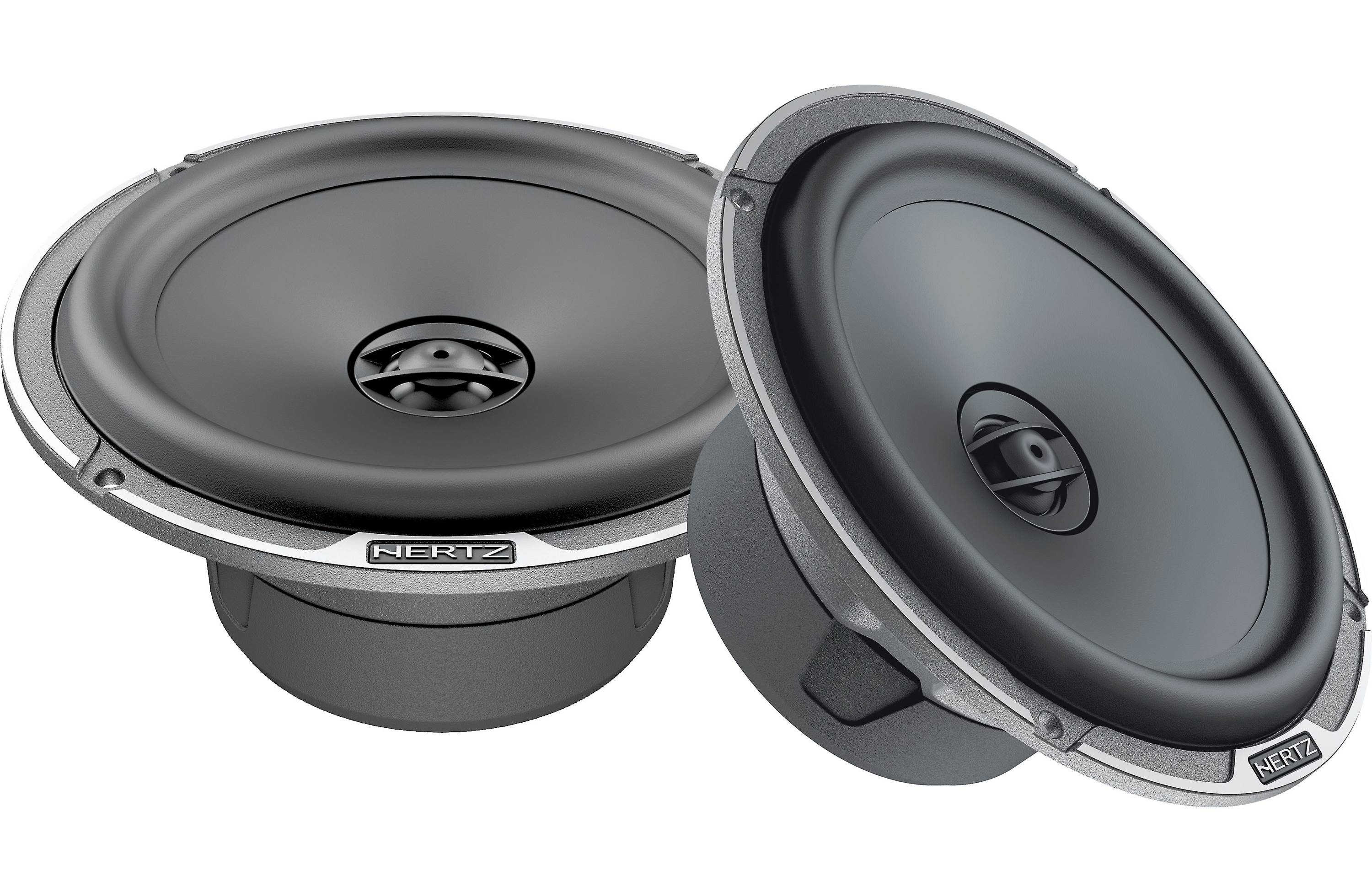

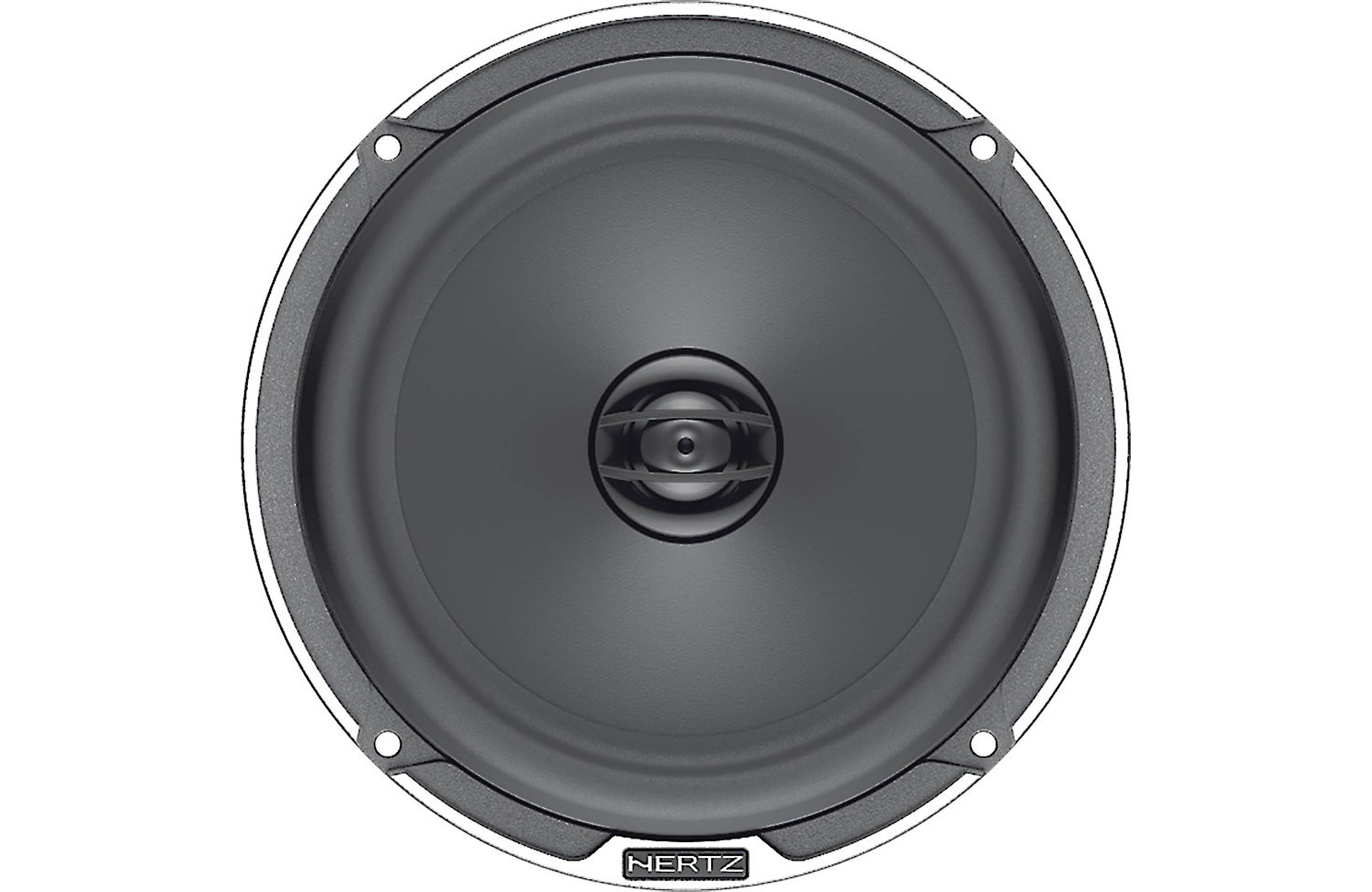

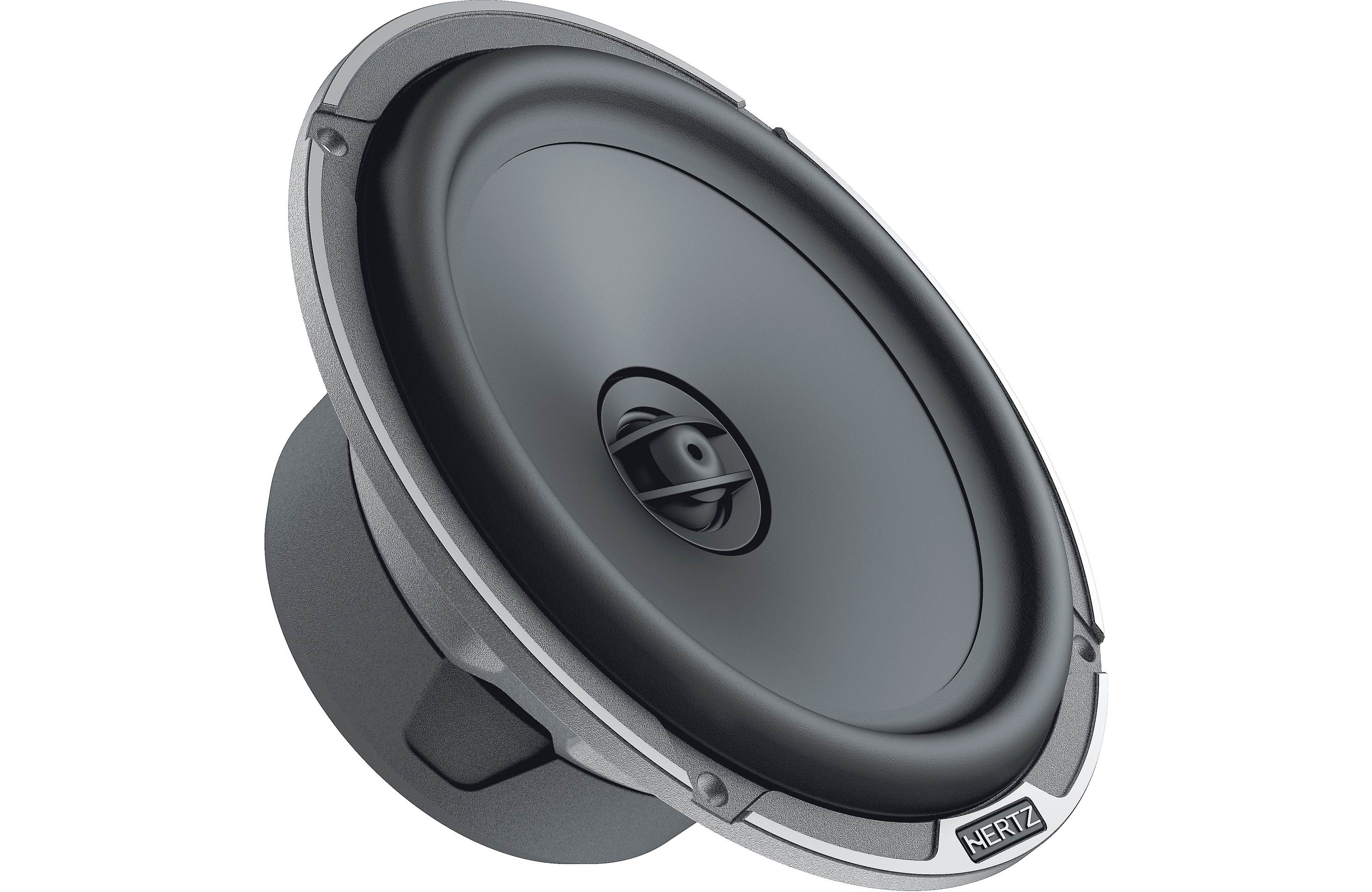

Hertz MPX 165.3 Mille Pro 2-Way 6.5" Coaxial Speaker (Pair)

The  coax tweeter concentric to the woofer of the MPX 165.3 car audio coaxial speakers  allows for one single linear-phase emission point, for a natural timbre providing a detailed sound stage. Thanks to the “Center Tuning Duct” geometry, the tweeter resonance frequency is especially low and the employment of damping materials for the inside provides for a linear acoustic emission. The acoustic lens optimizes its off-axis response, which is typical with door installation of coax speakers; besides, the 36 mm diameter woofer generates deep and controlled bass frequencies.

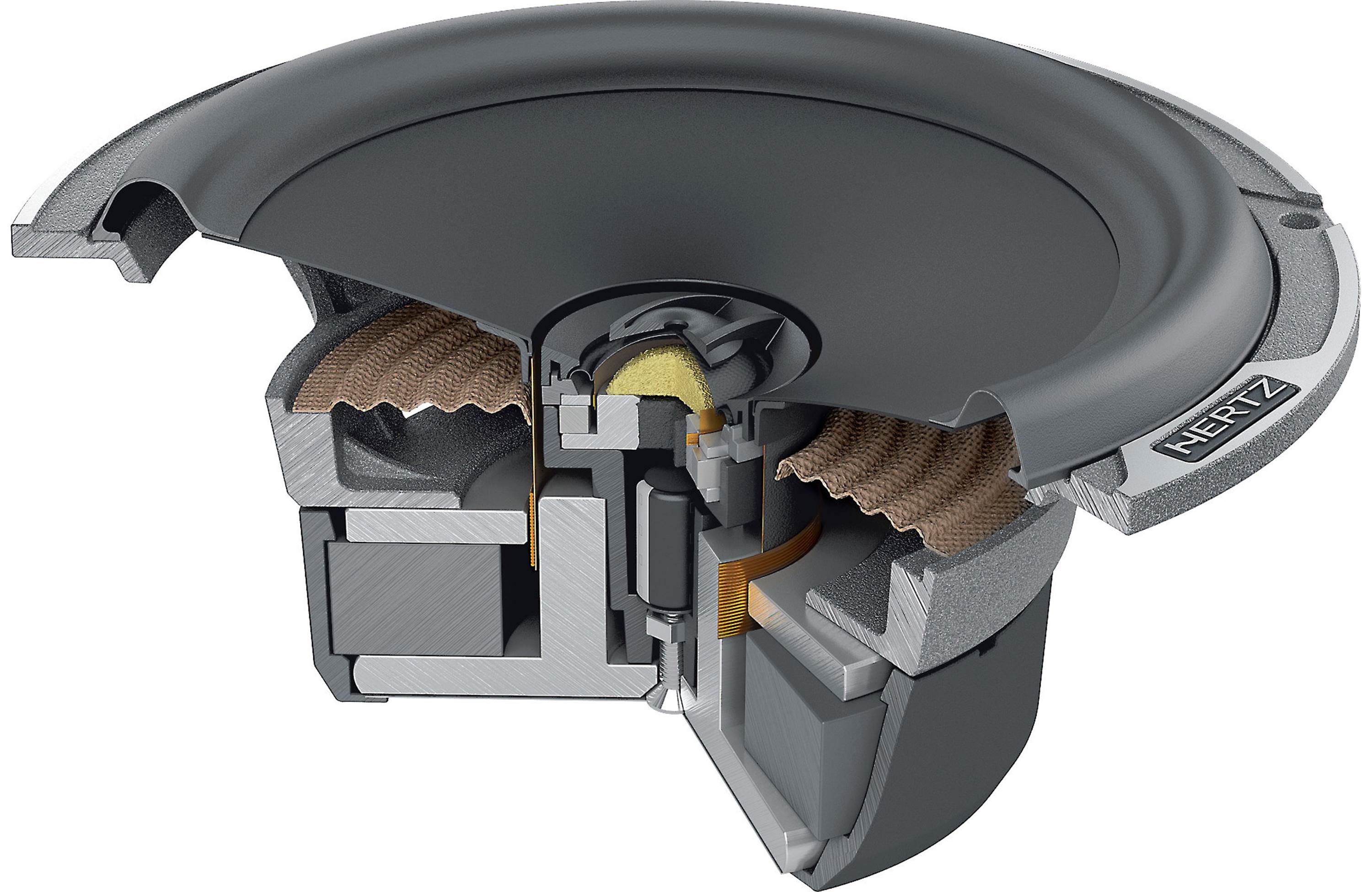

Features

1. CONCENTRIC COAXIAL TWEETER: built in the woofer voice coil, achieving one single point of emission, to re-create the virtual sound-stage like in live music performances.
2. TWEETER SUPPORT WORKING AS A REAR CHAMBER: sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.
3. 36 MM PURE COPPER WOOFER VOICE COIL: wound on a Polyamide former, for outstanding power handling and dynamic compression-free reproduction.
4. PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.
5. “BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider midbass frequency. (Logo Boundary Free)
6. OVER-SIZED FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
7. BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
8. ANTI-VIBRATION RUBBER MAGNET COVER: to damp spurious vibrations.

Specs

Power Handling - Peak W     200
Power Handling - Continuous W     100
Impedance Ω     4
Frequency response Hz     45 ÷ 21,5k
Sensitivity dB SPL     92
Woofer size mm (in.)     165 (6.5)
Tweeter size mm (in.)     25 (1)
Woofer Voice Coil Ø mm (in.)     36 (1.42)
Tweeter voice coil Ø mm (in.)     20 (0.8)
Woofer magnet     High density flux ferrite
Tweeter magnet     Neodymium
Woofer cone     Pressed-pulp cone with cotton fibers
Tweeter dome     Tetolon
