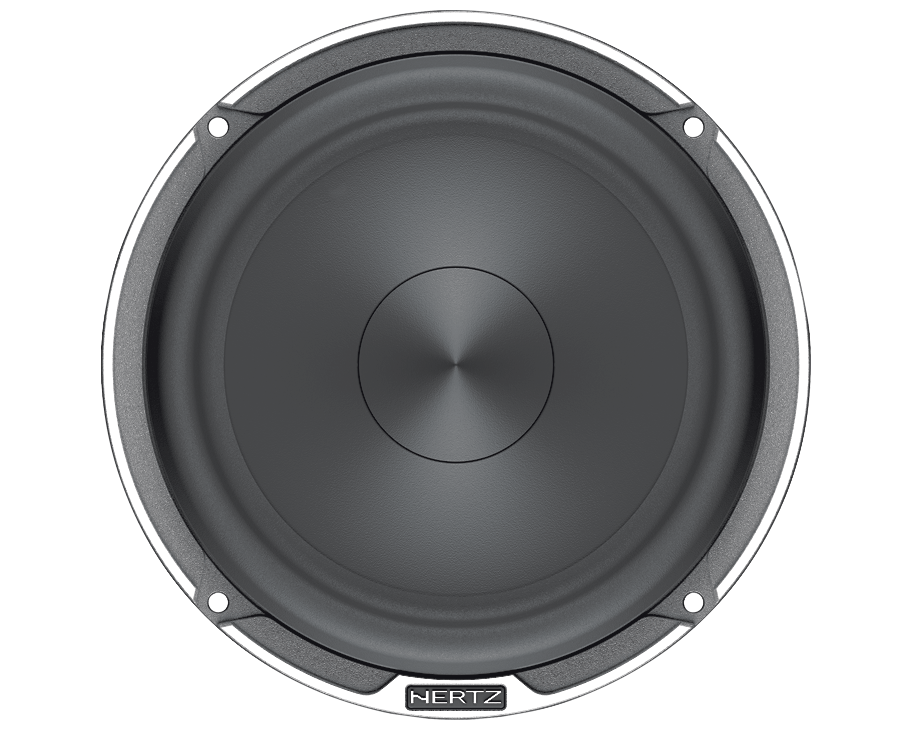

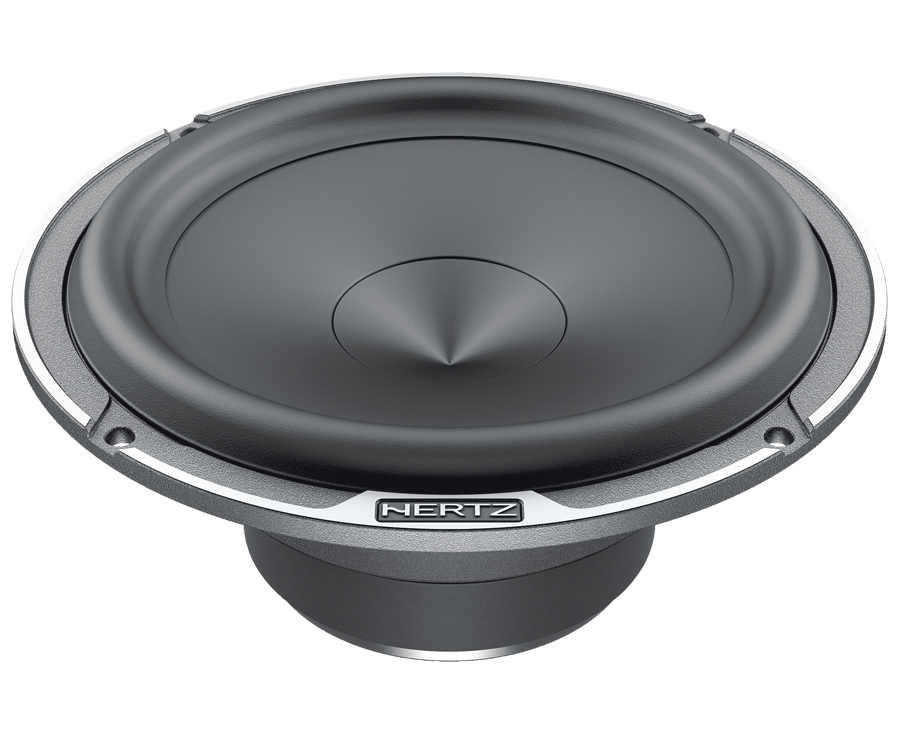

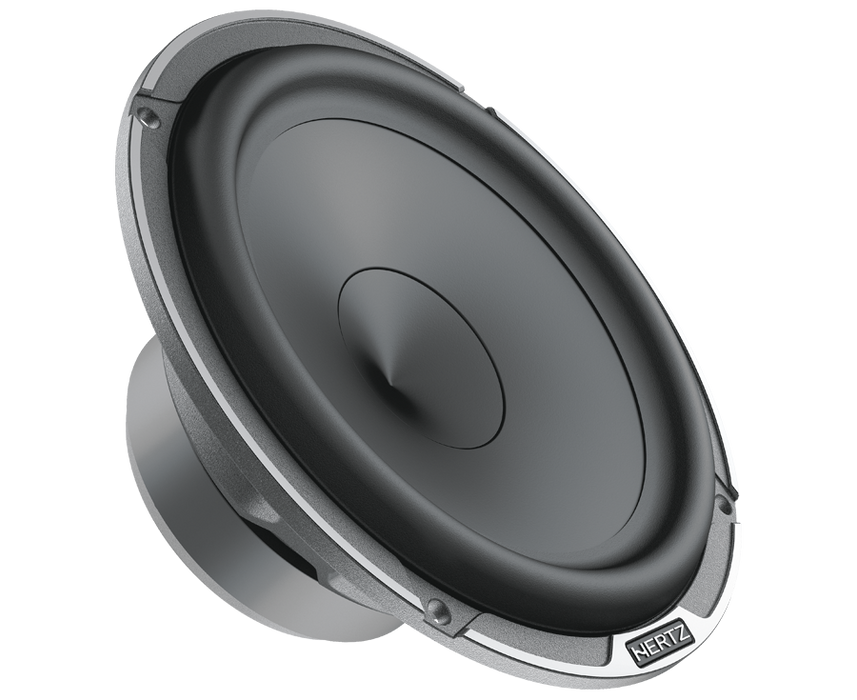

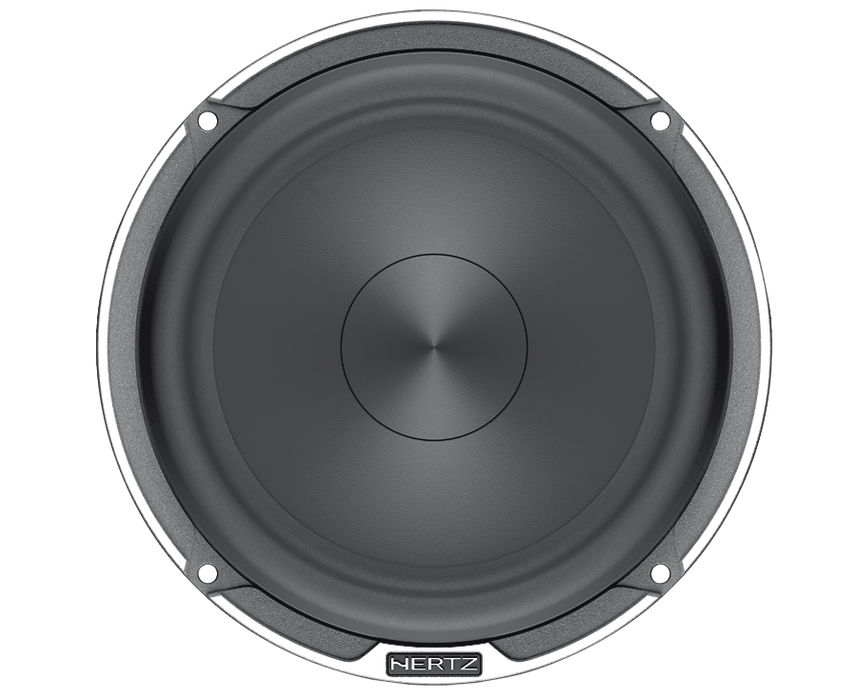

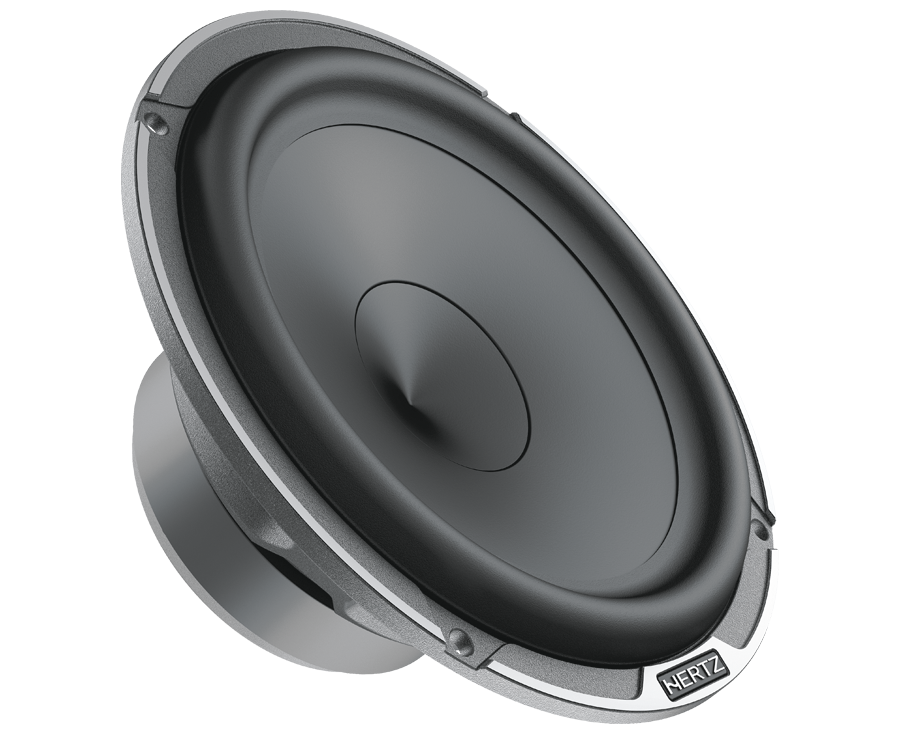

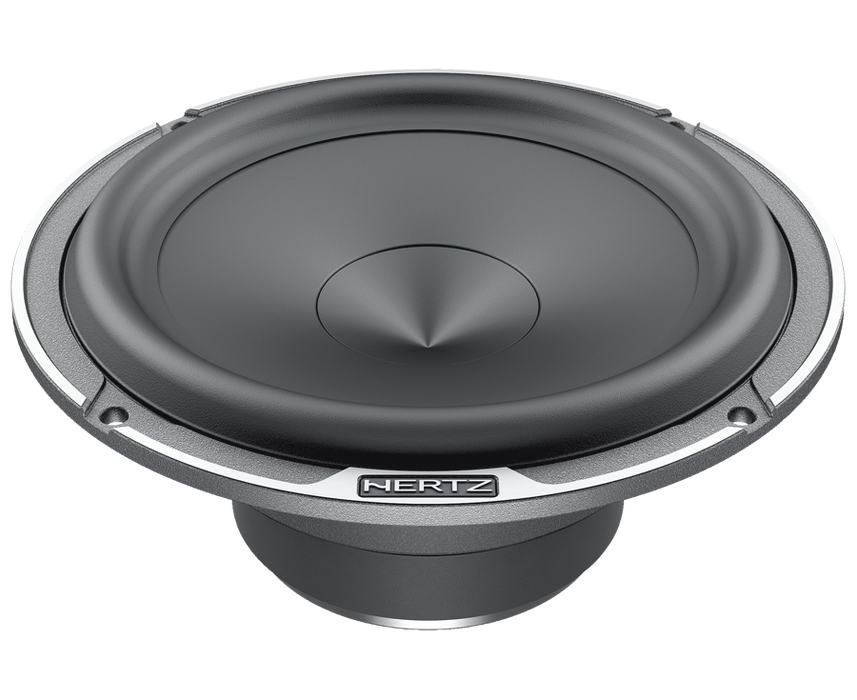

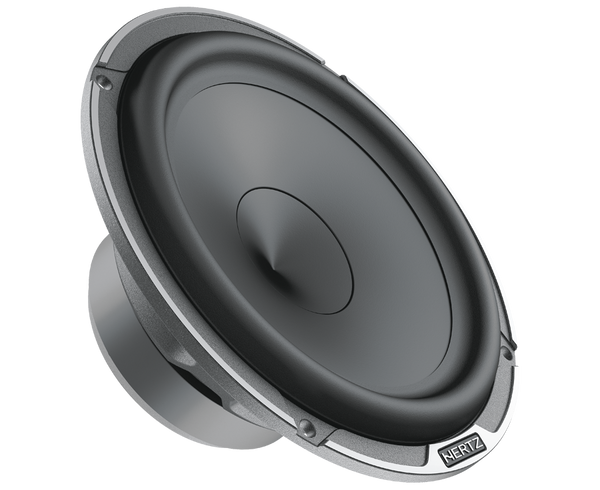

Thanks to the V-cone® and Boundary Free Surround technologies the MP 165.3 car audio woofers boast outstanding dispersion features and generates high SPL with compact dimensions, ensuring a wide low frequency response, even in cars with no space for a subwoofer.

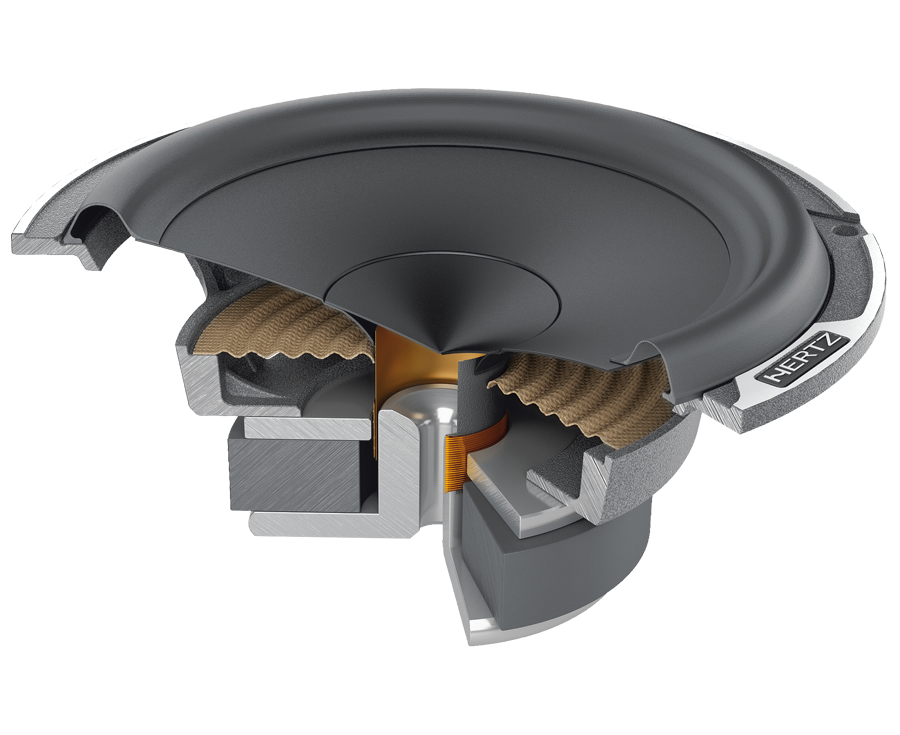

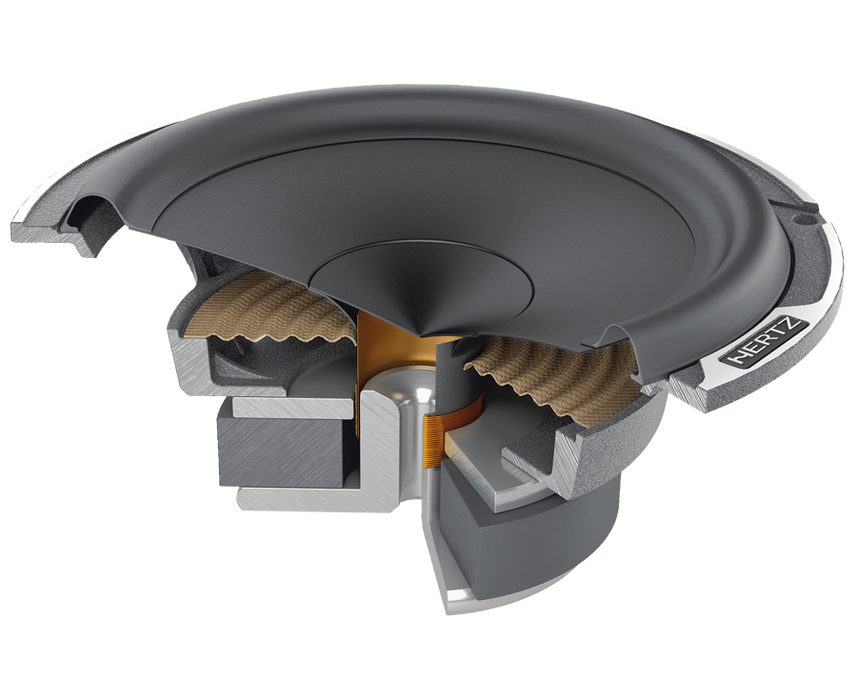

1.PURE COPPER VOICE COIL: wound on a Polyamide former for high power handling combined with very low intermodulation distortion of vocals.
2.EXPONENTIAL V-CONE® PROFILE: geometrically optimized for utmost linearity and dispersion in the mid frequency range. (Logo VCone)
3.“BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider mid-bass frequency. (Logo Boundary Free)
4.HIGH DENSITY FLUX FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.
5.BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
Size mm (in.) 165 (6.5)
Power Handling - Peak W 180
Power Handling - Continuous W 90
Impedance Ω 4
Frequency response Hz 40 ÷ 5k
Sensitivity dB SPL 93
Voice coil Ø mm (in.) 25 (1)
Magnet High density flux ferrite
Cone/Dome Pressed-pulp cone with cotton fibers
