Hertz ML 1650.3 Mille Legend 6.5" Component Woofer (Pair)

by Hertz
UPC: 8018823113854
Call for Availability
Original price $675.00
Current price $599.99

SKU

Hertz ML 1650.3 Mille Legend 6.5" Component Woofer (Pair)


During these past few years the Mille line car audio woofers have been the choice of many enthusiasts looking for extreme performance; with ML 1650.3 Legend the Hertz designers increased again the limits of achievable performance for components designed for door installation. To get to these results, the R&D staff performed extensive in-car voicing sessions, after building several prototypes with the FEA simulation method and testing them with a wide array of measurements carried out with the Klippel® suite. To ensure extraordinary power handling and very high thermal stability even with tracks especially rich of bass frequencies, ML 1650.3 Legend features a 36 mm mobile voice coil. This size ensures the best compromise between power handling and high frequency response.  The cone geometry has been subject of in-depth studies with FEA simulations and measurements performed with the Klippel Scan Vibrometer; all that led to the optimization of the V-cone® profile. In the subwoofers and in the woofers, to reproduce the lowest frequency spectrum, the cone needs to move a remarkable amount of air, so it is forced to make long excursions moving like a piston does. The V-cone® profile prevents the cone from deforming during its course, ensuring that the “piston” works in a correct position, maximizing the production of acoustic pressure.

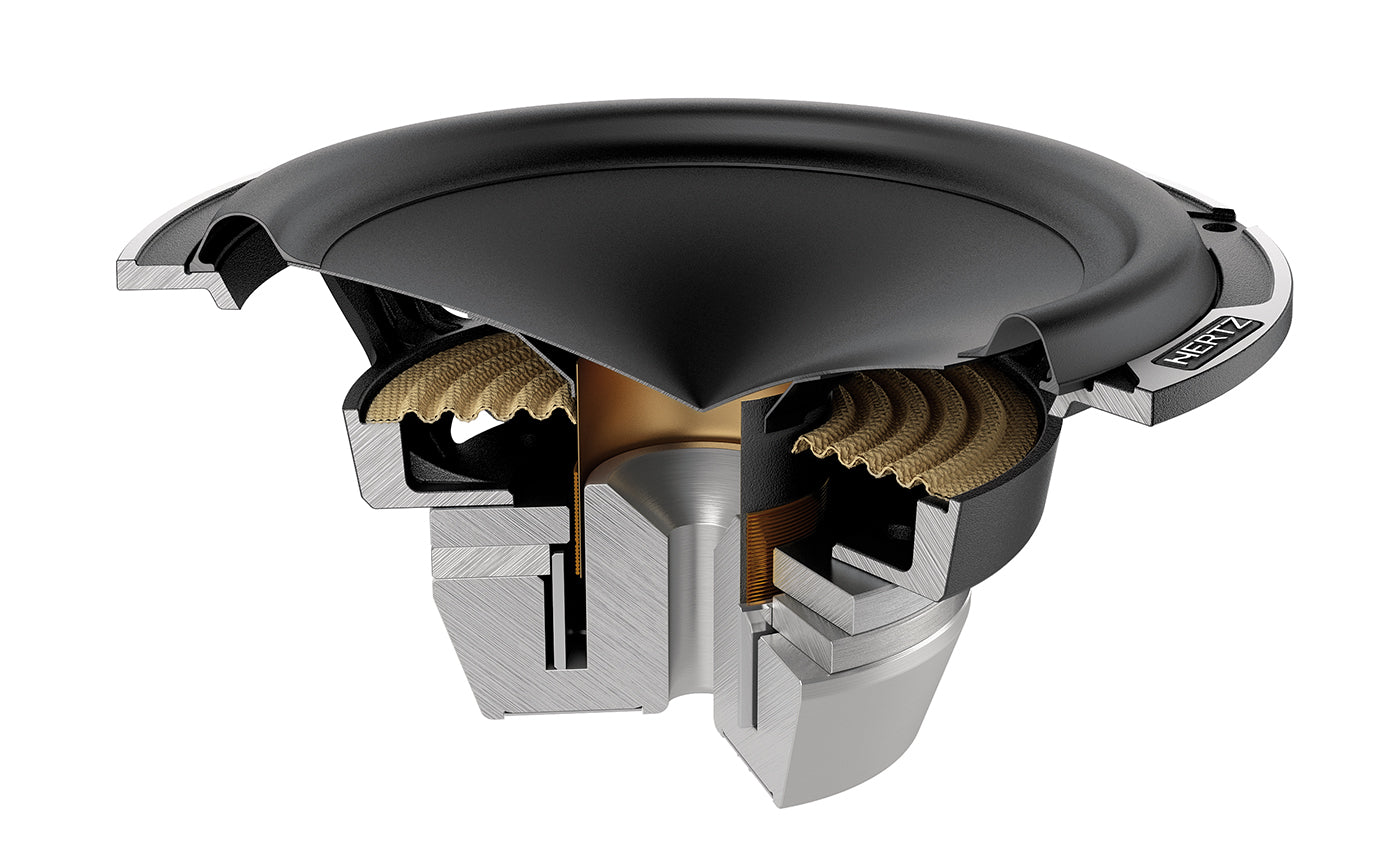

1. Neodymium magnet optimized with FEA simulations for real dynamics and utmost control.
2. Very low carbon content CNC machined plates, for maximum magnetic permeability and low distortion at high power levels.
3. Aluminium covered pole for a linear impedance modulation and low distortion.
4. 36 mm CCAW double layer voice coil wound on a Polyamide former for exceptional power handling and compression-free re production even in the most demanding musical passages.
5. Exponential V-cone® with optimized geometry for utmost linearity and dispersion at mid frequency range.
6. “Boundary Free” IIR rubber surround, for better efficiency and wider mid-bass frequency.
7. Pressed-pulp cone with cotton fibres, combining stiffness and lightweight, to achieve wide frequency response and limited break-ups at high frequency.
8. Three-spoke, very acoustically transparent anti-resonant aluminium alloy basket featuring built-in venting holes.
9. CNC machined elegant diamond-cut basket edge featuring the Hertz logo.
10. Die-cast aluminium factory provided grille featuring diamond-cut aluminium Hertz logo.

Specs

Size mm (in.)     165 (6.5)
Power Handling - Peak W     250
Power Handling - Continuous W     125
Impedance Ω     4
Frequency response Hz     40 - 6.5k
Sensitivity dB SPL     93
Voice coil Ø mm (in.)     36 (1.4)
Magnet     Neodymium
Cone/Dome     Pressed-pulp cone with cotton fibres
