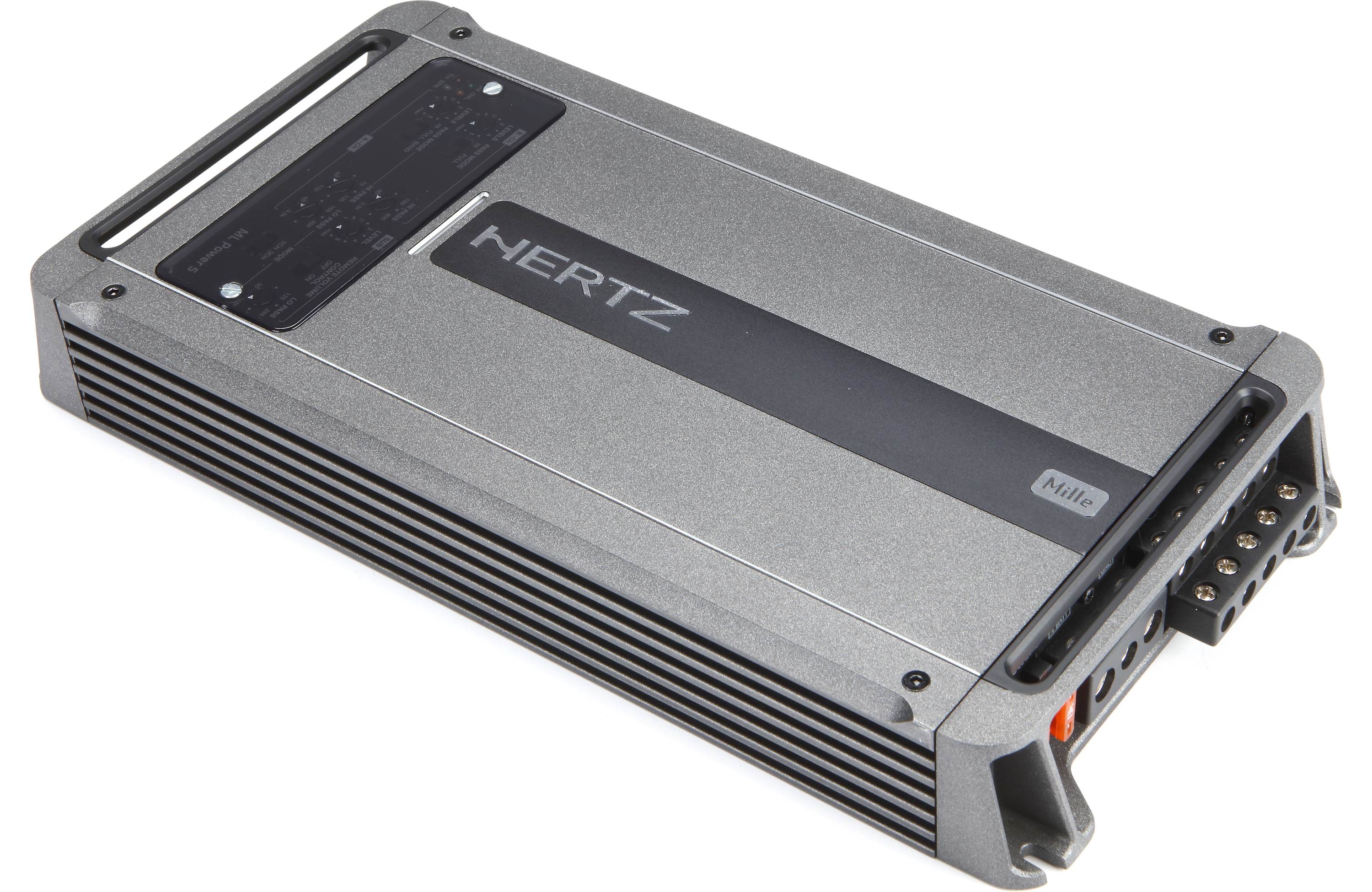

The ultra-versatile Hertzaudio car amplifier ML Power 5 (100 W x 4 + 550 W 2 Ω) provides the ability to drive a Mille system including the subwoofer. The HRC BM (Hertz Remote Control Bass Management), low frequencies level remote control, is optional.

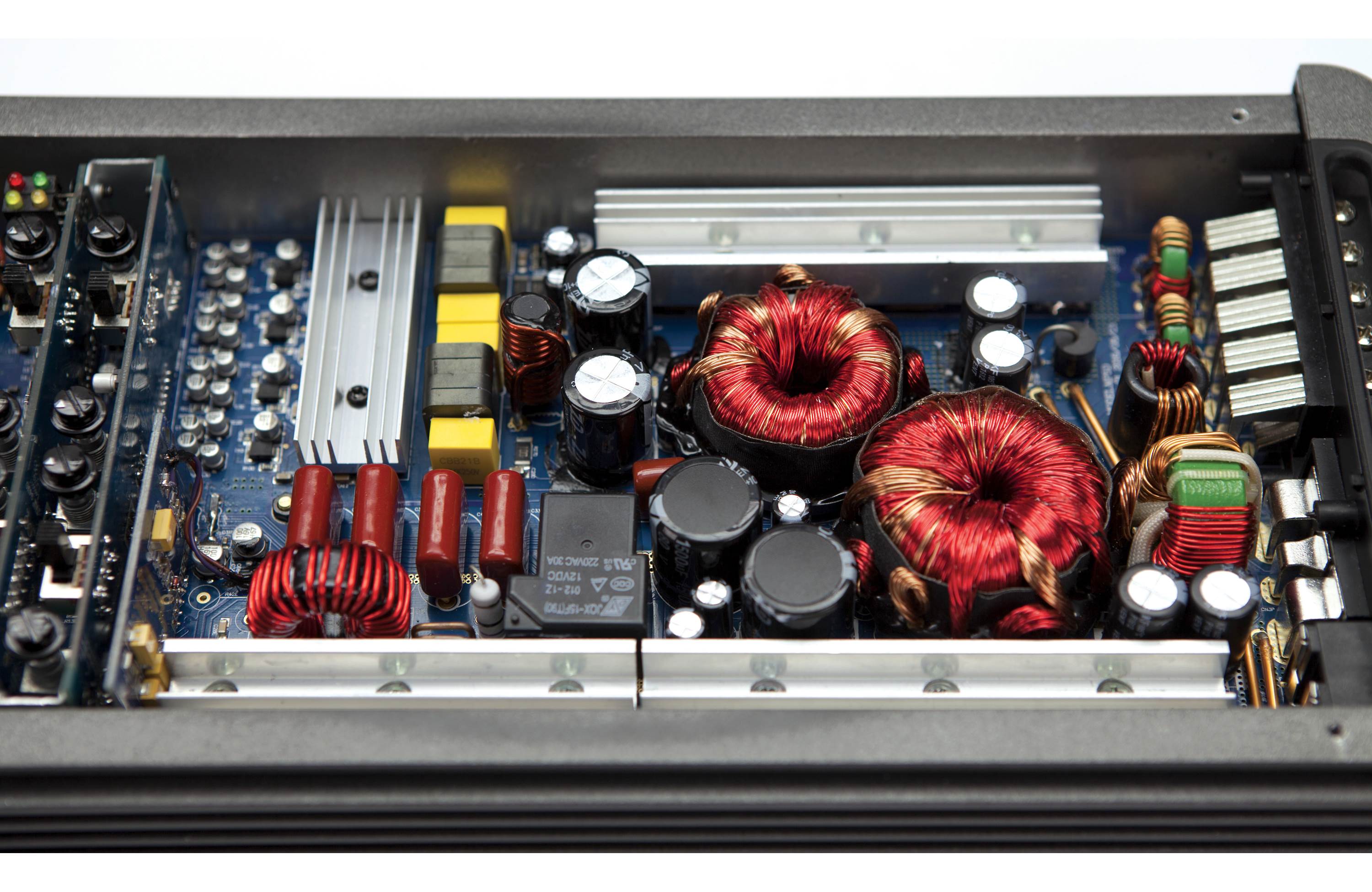

ADVANCED D-CLASS TECHNOLOGY
Ensures pure listening pleasure while keeping a compact size with unmatched power efficiency.

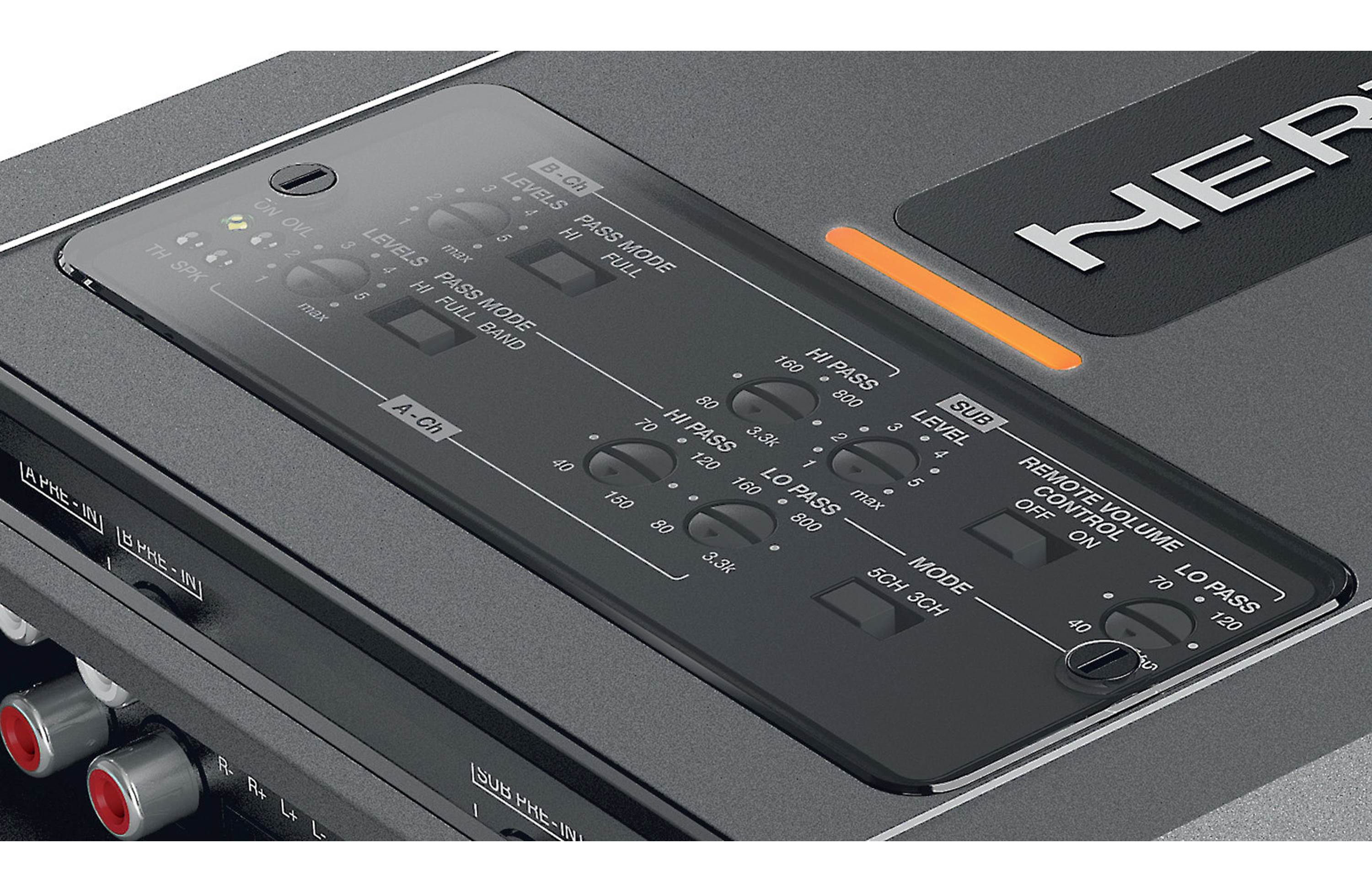

LEDS STATUS DISPLAY
It monitors the amplifiers operating status in real time pointing out possible faults such as overheating, excessive loads on the outputs or short-circuits on cables or loudspeakers. This information allows the user to identify possible issues with the installation and to intervene before the amplifier goes into protection to prevent any damages.
HDP IN & ART(TM)
The ML Power IN module features a Speaker In input (with balanced circuitry minimizing noise) for OEM head units and an RCA IN input for aftermarket sources. When the Speaker In is used, the ART™ function (Automatic Remote Turn On-Off) is enabled, managing the amplifier remote turn on to avoid unpleasant “bumps”.
The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency.
Channel mode 5 - 3
Output Power (RMS)
@ 14.4 VDC 5 Ch 70 W x 4 + 380 W x 1 (4Ω)
5 Ch 100 W x 4 + 550 W x 1 (2Ω)
3 Ch 200 W x 2 (4Ω) + 380 W x 1 (4Ω)
3 Ch 200 W x 2 (4Ω) + 550 W x 1 (2Ω)
Hi-Pass A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - B Ch: 80 ÷ 3.3k Hz @ 12 dB/Oct.
Lo-Pass C Ch: 40 ÷ 500 Hz @ 24 dB/Oct.
Band-Pass A Ch: 40 ÷ 150 Hz @ 12 dB/Oct. - 80 ÷ 3.3k Hz (LO) @ 12 dB/Oct.
Distortion - THD
(100Hz @ 4Ω) 0.08 %
(A weighted @ 1V) 100 dB A & B Ch - 106 dB C Ch
(100Hz @ 4Ω) 50 A & B Ch - 90 C Ch
Size W x D x H
mm (in.) 170 x 349 x 46.70 - (6.69' x 13.74' x 1.84')
