Hertz K 130 Uno Series 5.25" Component Speaker (Pair)

by Hertz
UPC: 8018823120685
Call for Availability
Original price $135.00
Current price $119.99

SKU K130

Hertz K 130 Uno Series 5.25" Component Speaker (Pair)

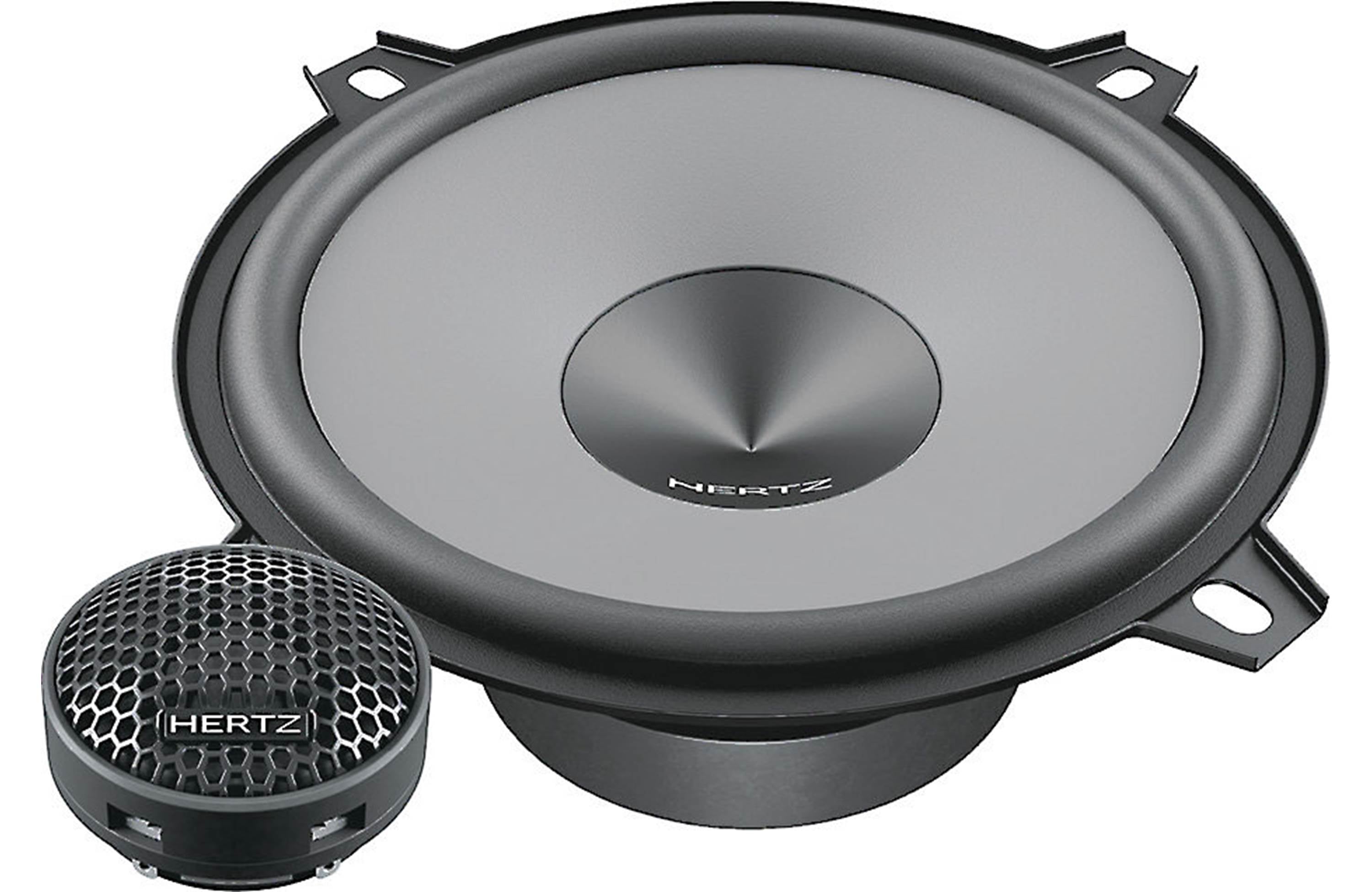

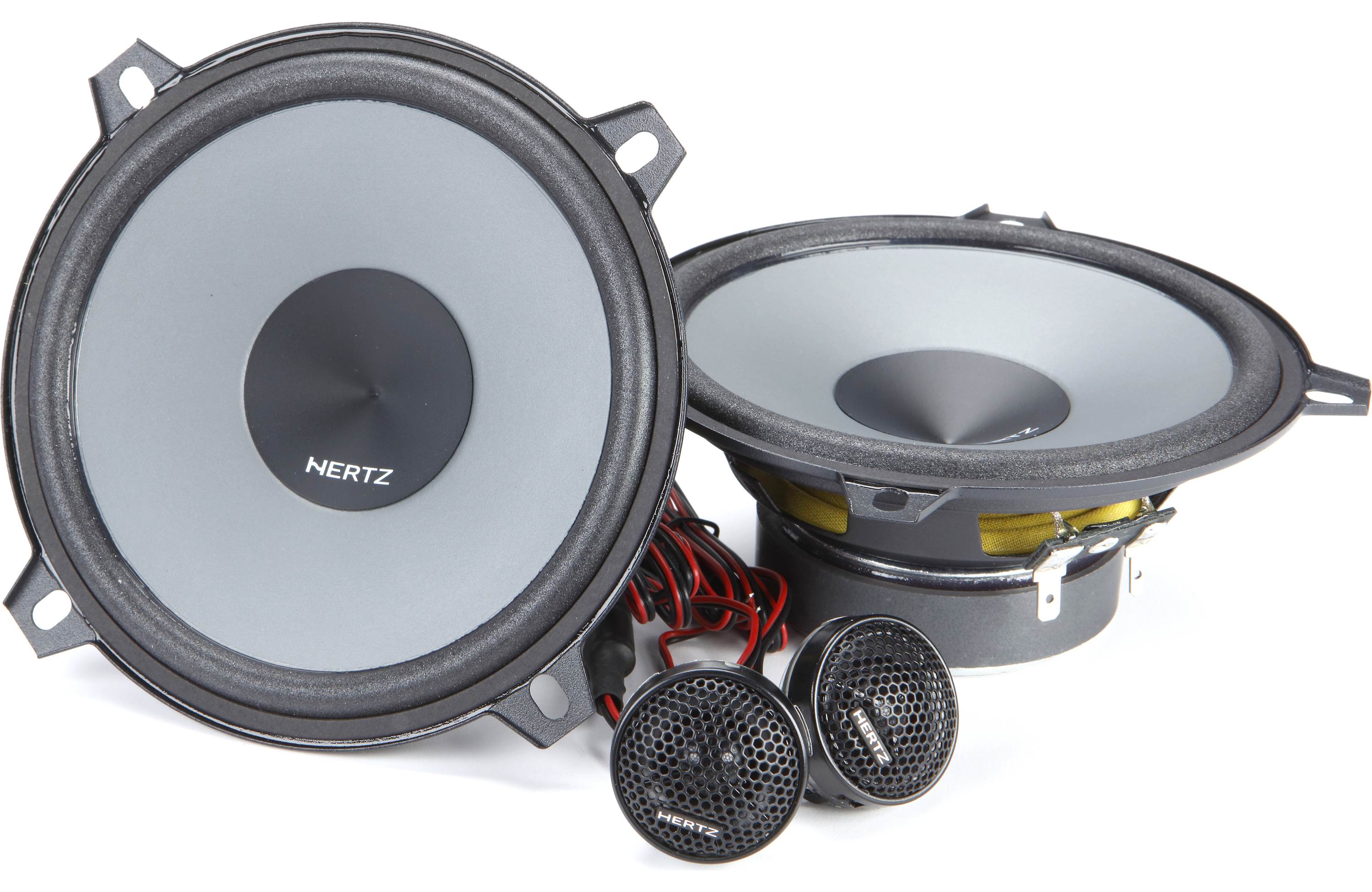

The K 130 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 5” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.

Features

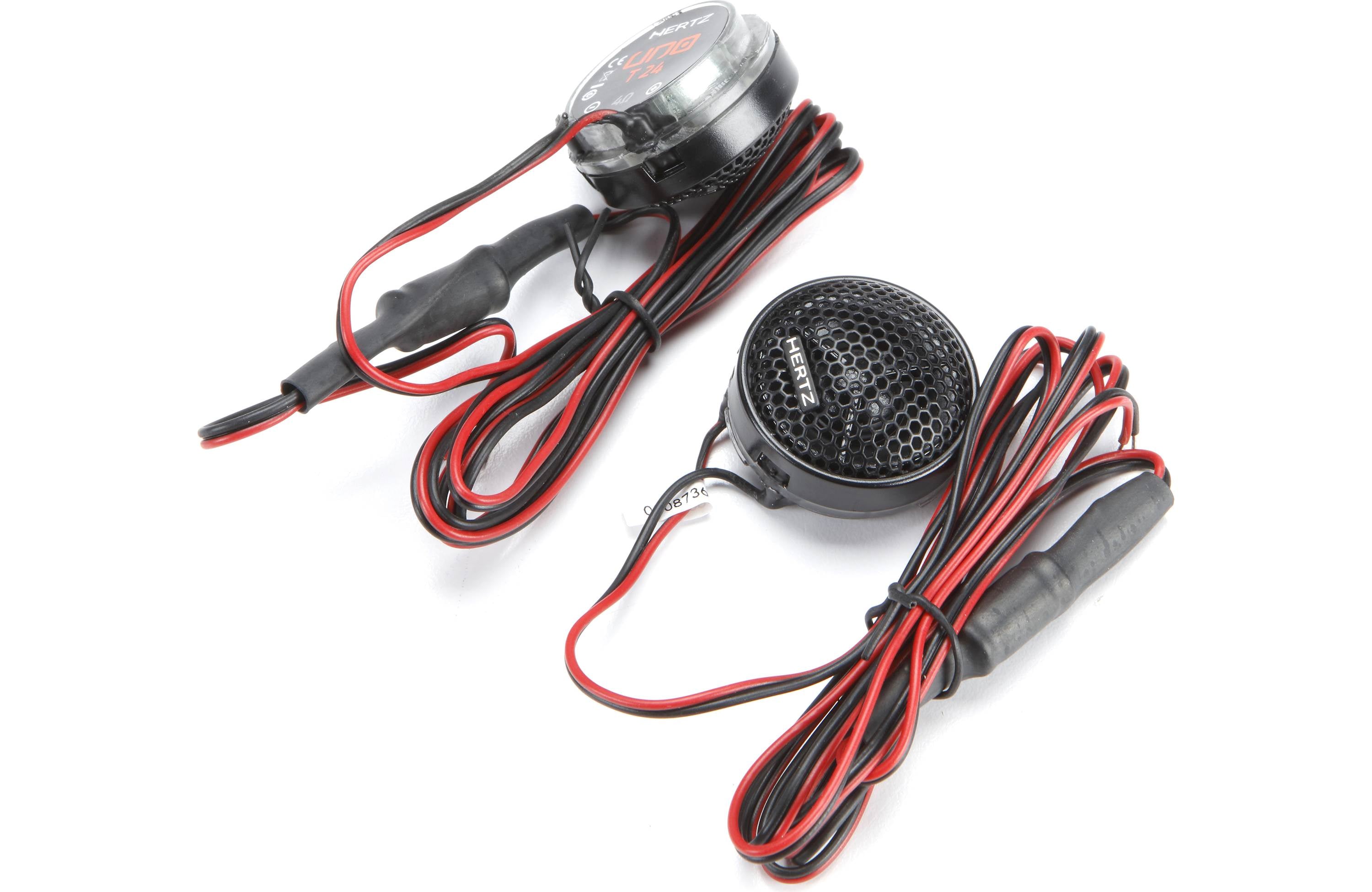

T 24 – Tweeter:
1. 24mm diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size.
2. Annular acoustic lens optimized for exceptional off-axis performance.
3. 6dB/Oct crossover integrated on tweeter wiring.
4. Mounting accessories for external or embedded mounting included.

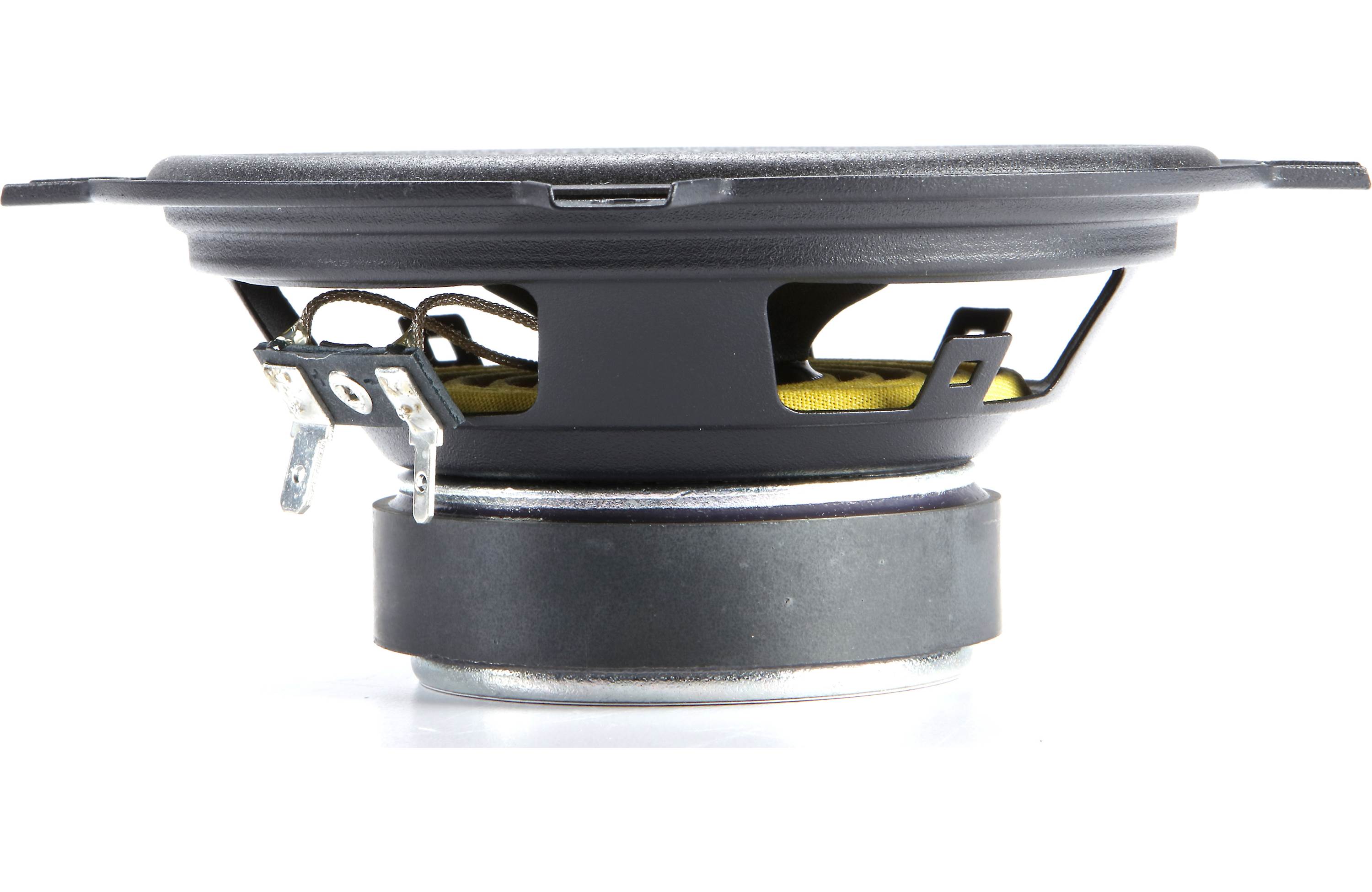

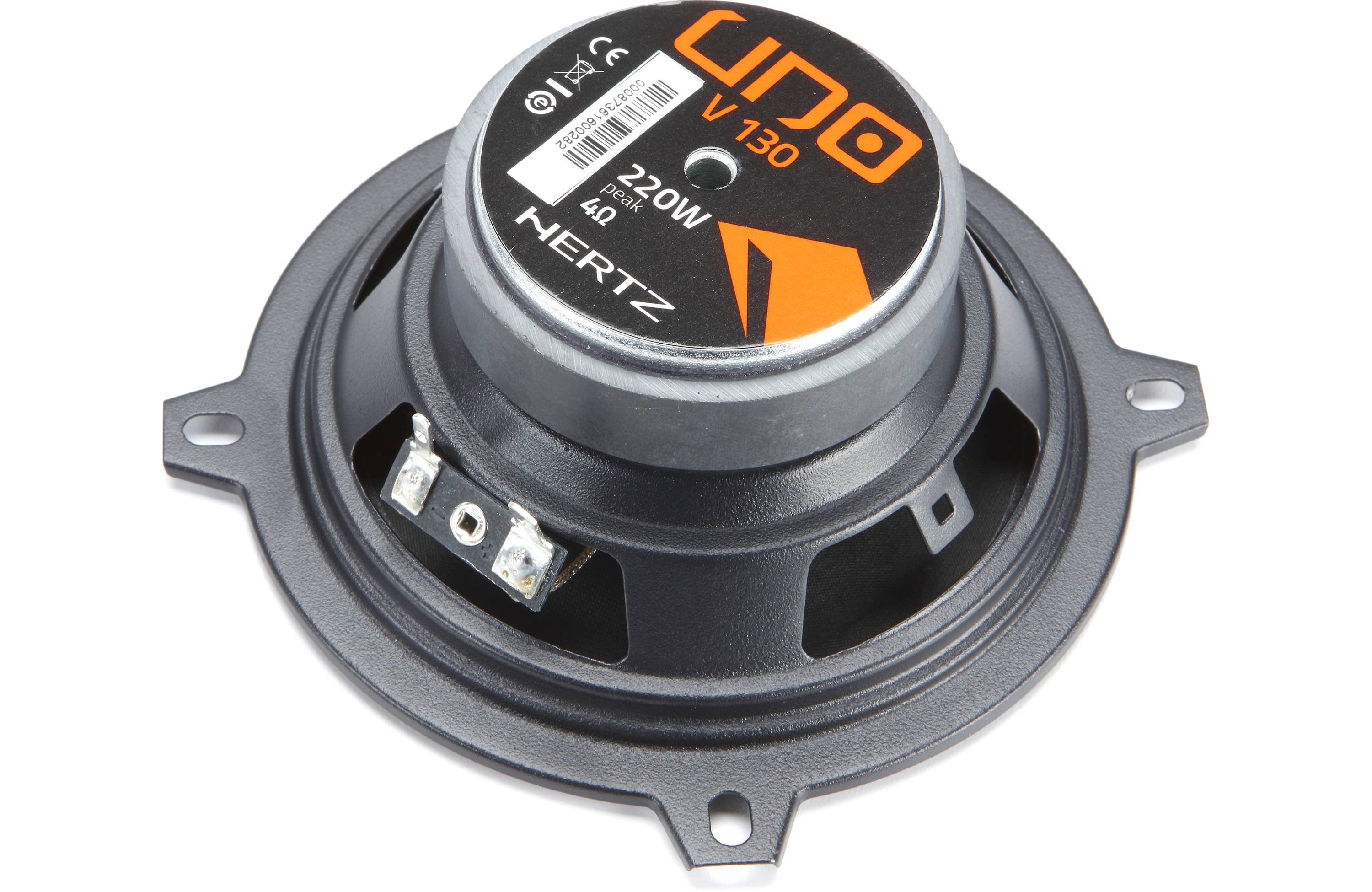

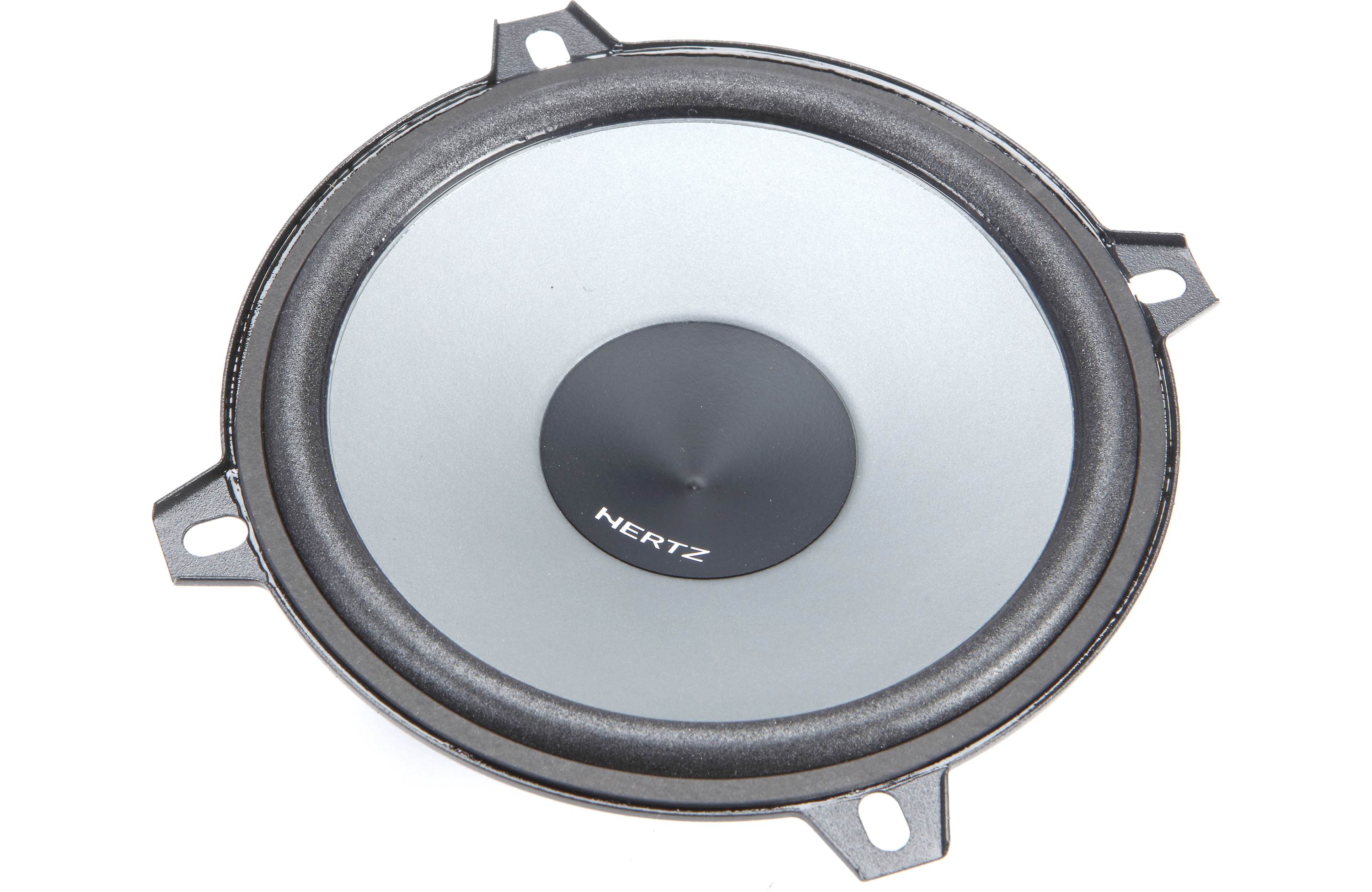

V 130 – Woofer:
1. V-cone® design for best off-axis response, clear mid-high frequency detail and powerful bass.
2. Foam surround combining high sensitivity and deep bass response.
3. Pure copper 25 mm (1 in.) voice coil woofer for high dynamic power handling.
4. High flux density 70 mm (2.76 in.) ferrite magnet for a powerful undistorted sound.
5. Easy-to-install DIN size basket protected by abrasion-resistant dust paint.

Specs

Power Handling - Peak W     220
Power Handling - Continuous W     55
Impedance Ω     4
Frequency response Hz     55 ÷ 23k
Sensitivity dB SPL     93
Voice coil Ø mm (in.)     25 (1)
Woofer size mm (in.)     130 (5)
Tweeter size mm (in.)     24 (0.9)
Woofer magnet     High density flux ferrite
Tweeter magnet     Neodymium
Woofer cone     Water-repellent pressed paper
Tweeter dome     PEI
Crossover type     6 dB/Oct tweeter integrated
Crossover cut off     -
