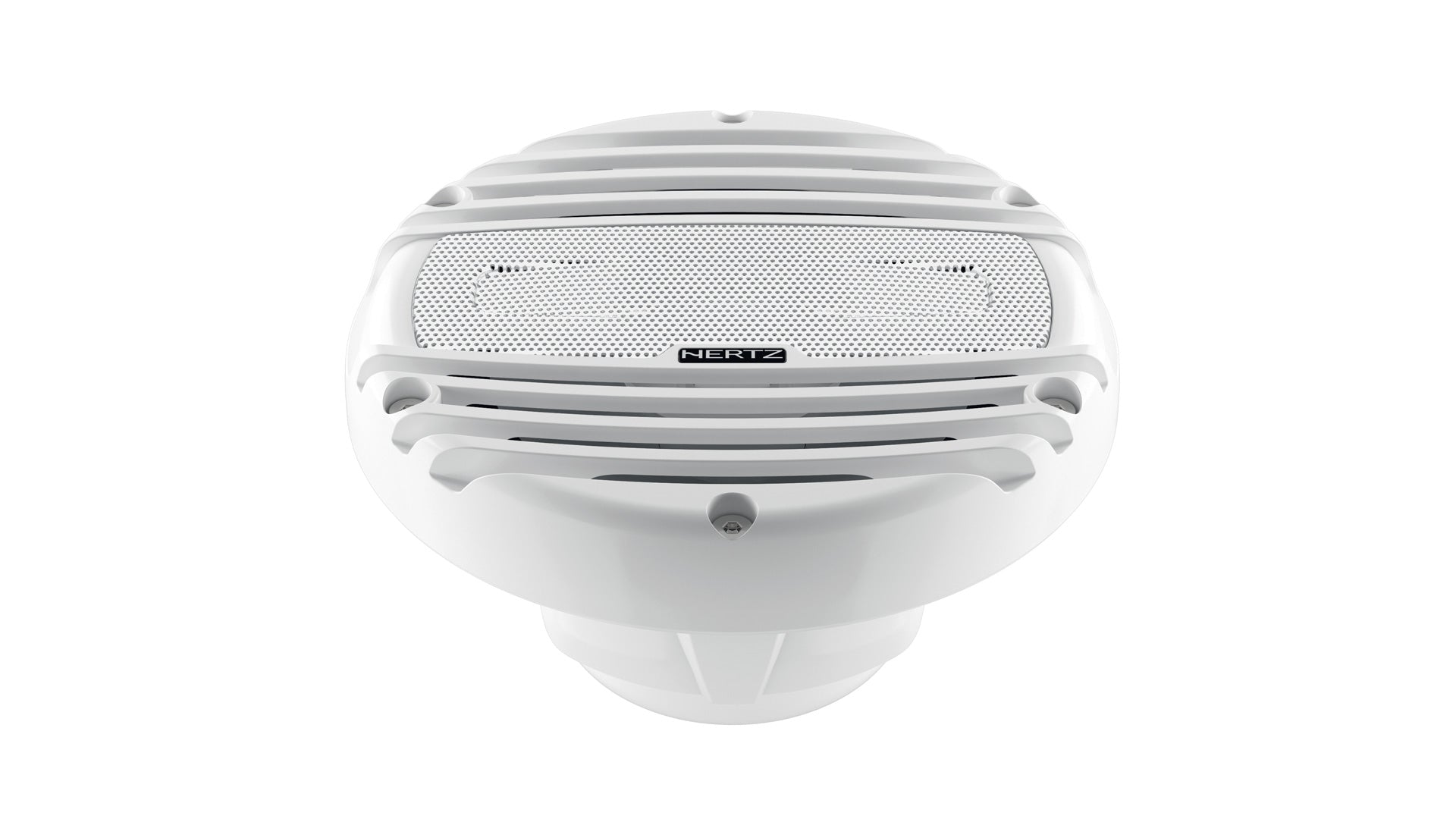

Hertz HMX 6.5-TW 6.5" Marine Coaxial Speaker with All White Grill (Pair)

Brand: Hertz | SKU: HMX 6.5-TW | UPC: 840425802502

Sale price
$379.99
Regular price
$430
You save
12%
Taxes calculated at checkout

Have a question?

165 (6.5) mm (in.) | 95,6 (3.76) mm (in.) | Hi-end Coax | 150 W | 4 Ohm
HMX 6.5 TW hi-performance marine coaxial speakers, also available in the black option HMX 6.5 TC,  features a tone-on-tone stainless steel front mesh matching the grille colour. Coaxial speaker is optimized to perform in infinite baffle, with a solid bass and an outstanding output. The  tweeter feature an acoustic lens optimized for best off-axis dispersion and maximized SPL. The UV resistant polypropylene cone co-molded with Santoprene rubber surround together with the basket and grille injected with a Hi-temperature and UV resistant polymer neutralize water, dust and mud. The aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The high-excursion mobile equipment is driven by a massive magnetic group, to deliver high undistorted sound pressure.

Features:

1. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust).
2. 1.4” Neodymium magnet tweeter featuring a PEI material dome combined with faceplate and acoustic lens optimized for best off-axis dispersion and highest SPL.
3. Sound-transparent tone-on-tone stainless steel tweeter mesh grille providing efficient high-frequency transfer, attractive look and a rock-solid protection.
4. Long-throw 25mm (1”) voice coil woofer fine-tuned for infinite baffle application featuring polypropylene cone injected with UV inhibitors and co-molded Santoprene surround.
5. Aramid fiber spider with silicone-insulated lead wires ensuring durability and constant performance over time.
6. FEM optimized high-excursion mobile equipment driven by a massive magnetic group encapsulated into a marine-grade polymer injected basket.
7. Sealed built-in crossover with resettable solid-state tweeter protection circuit.
8. Gold-plated corrosion resistant terminals.

Specs

Technical Specs
Component    HI-END COAX
Size mm (in.)    165 (6.5)
Power Handling - Continuous W    75
Power Handling - Peak W    150
Impedance Ohm    4
Depth mm (in.)    95,6 (3.76)
Tweeter diaphragm mm (in.)    36 (1.4)
Woofer Voice Coil Ø mm (in.)    25 (1)
Tweeter Voice Coil Ø mm (in.)    20 (0.8)
Frequency Response Hz    50 ÷ 25k
Woofer Magnet size D x d x h mm (in.)    78,5 x 32 x 17 (3.09 x 1.26 x 0.67)
Tweeter Magnet size D x h mm (in.)    19,7 x 3 (0.78 x 0.12)
Weight of one speaker kg (lb.)    1 (2.2)
Woofer Magnet    High density flux ferrite
Tweeter Magnet    Neodymium
Cone    Polypropylene with UV inhibitors
Dome    PEI
Xmech mm (in.)    ±6,65 (0.26)

Electro-acoustic Specs
D mm    125
Re Ohm    3,5
Fs Hz    65
Le mH    0,53
Vas I    8,8
Mms g    14
Cms mm/N    0,4
BL T*m    5,2
Qts    0,7
Qes    0,75
Qms    11,5
Spl dB    89

Brand Hertz
