Hertz DP 2.200 Dieci Power Class AB Stereo Amplifier

Brand: Hertz | SKU: DP 2.200 | UPC: 8018823141680

Sale price
$199.99
Regular price
$225
You save
11%
Taxes calculated at checkout

Have a question?

Hertz DIECI POWER amplifier DP 2.200 is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Boasting High-Resolution Audio Certification, this amplifier delivers an impressive frequency response of 10 Hz to 45 kHz, ensuring that every nuance of your music is faithfully reproduced with crystal-clear precision.

Despite its compact size, the DP 2.200 packs a punch with its maximum power output, featuring fully bridgeable 4-channel Class-AB amplification and 2Ω stability. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 2.200, offering an operating supply voltage ranging from 6.5 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

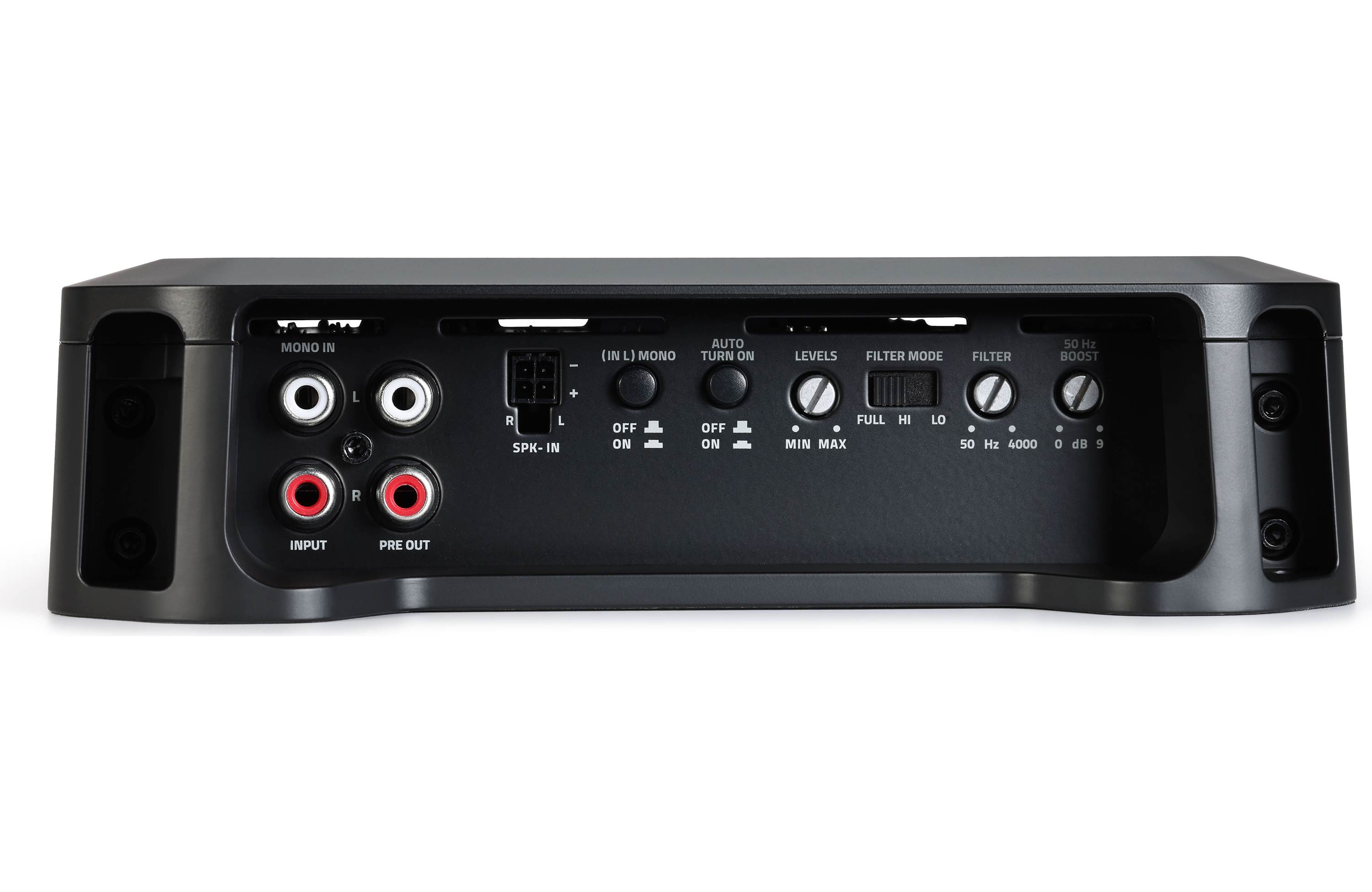

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 2.200 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 2.200 – where power, precision, and style converge for an unparalleled listening experience on the road.

Features:
  • High-Resolution Audio Certification: Hi-Res Audio certification featuring a frequency response of 10 Hz – 45 kHz.
  • Maximum Power in Compact Size: fully bridgeable 4-channel Class-AB 2Ω stable power outputs in a small and compact design.
  • Attractive Design: elegant status LED, solid machined terminal block and removable top panel to protect controls and connections.
  • Universal Compatibility: operating supply voltage from 9 to 16.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
  • High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.
  • Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
  • Automatic Remote Turn-On/Off: driven by OEM radio speak
  • Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
Specs

General Specs
Channels    2 - 1
Amp class    AB
POWER SUPPLY
Nominal power supply voltage (fuse)    11 ÷ 15 VDC (2 x 20 A)
Operating power supply voltage    6.5 ÷ 16.5 VDC
Idling current    0.65 A
Standby current draw    5 uA
Consumption, MIN load impedance (Max Musical Power)    15 A
Remote IN    4 ÷ 15 VDC (1.5 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)    1.5 VDC
Efficiency    60%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power    0.01%
Damping factor @ 1 kHz, 1W    130
Bandwidth @ -3 dB    10Hz ÷ 45kHz
S/N ratio (A-weighted @ 1 V Input)    100 dBA
Minimum load impedance
@ 2 Ch:    2 Ω
@ 1 Ch:    4 Ω
Adjustable Crossovers    yes

INPUTS / FILTERS
Inputs    Pre-In / Speaker-In
Pre Out    Full Range
Pre-In sensitivity    0.32 ÷ 8 VRMS
Speaker-In sensitivity    1.6 ÷ 40 VRMS
Hi-Pass    Full / 50-4000Hz 12dB/Oct.
Lo-Pass    Full / 50-4000Hz 12dB/Oct.
Bass Boost 50Hz    0 ÷ 9 dB

Output Power
Output power (RMS) @ 1% THD:
2Ch @ 4Ω    80 W x 2
2Ch @ 2Ω    110 W x 2
1Ch @ 4Ω    220 W x 1
Output Power (RMS) @ 14.4 VDC, THD 10%:
2Ch @ 4Ω    95 W x 2
2Ch @ 2Ω    130 W x 2
1Ch @ 4Ω    260 W x 1
Total Power    260 W

Physical Specs
Height: 1.96"
Width: 7.48"
Depth: 9.44"

Brand Hertz
