Hertz DP 1.500 Dieci Power Class D Mono Amplifier

Brand: Hertz | SKU: DP1.500 | UPC: 8018823141444

Sale price
$249.99
Regular price
$280
You save
11%
Taxes calculated at checkout

Have a question?

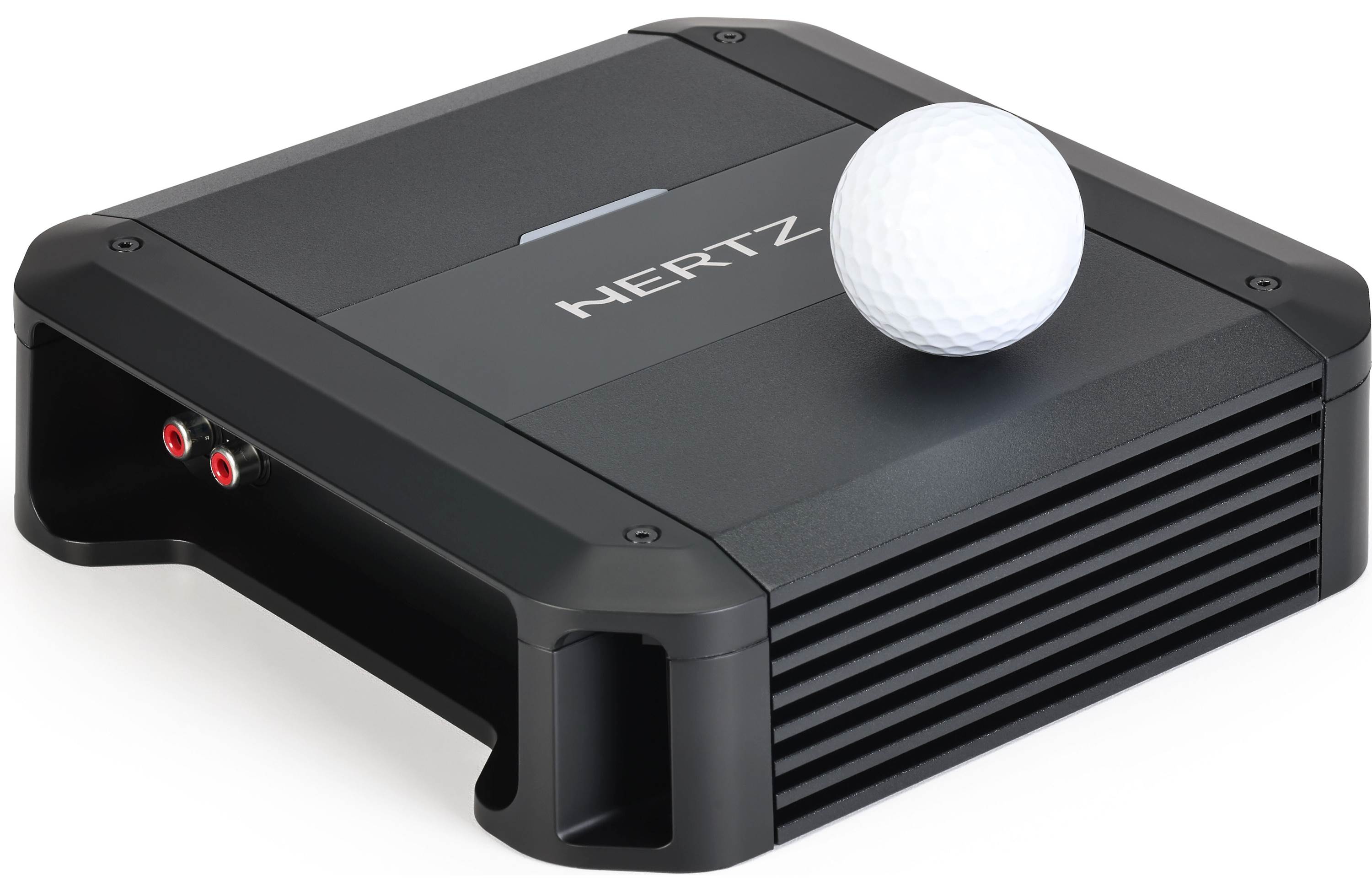

Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights.

Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint.

The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior.

Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources.

Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Convenience meets intelligence with the Automatic Remote Turn-On/Off feature, seamlessly triggered by OEM radio speaker outputs. This ensures hassle-free operation and an efficient power management system.

The optional HRC 02 Remote Control Ready provides the ability to tune the subwoofer level for any preference.

Whether utilizing Speaker-In or Pre-In level inputs, the DP 1.500 offers full-range pre-outs, providing further flexibility in system configuration. Elevate your car audio system with the Hertz DIECI POWER Amplifier DP 1.500 – where power, precision, and style converge for an unparalleled listening experience on the road.

Features:

• Maximum Power in Compact Size: ADC (Advanced Class-D) 2Ω stable power output in a small and compact design.

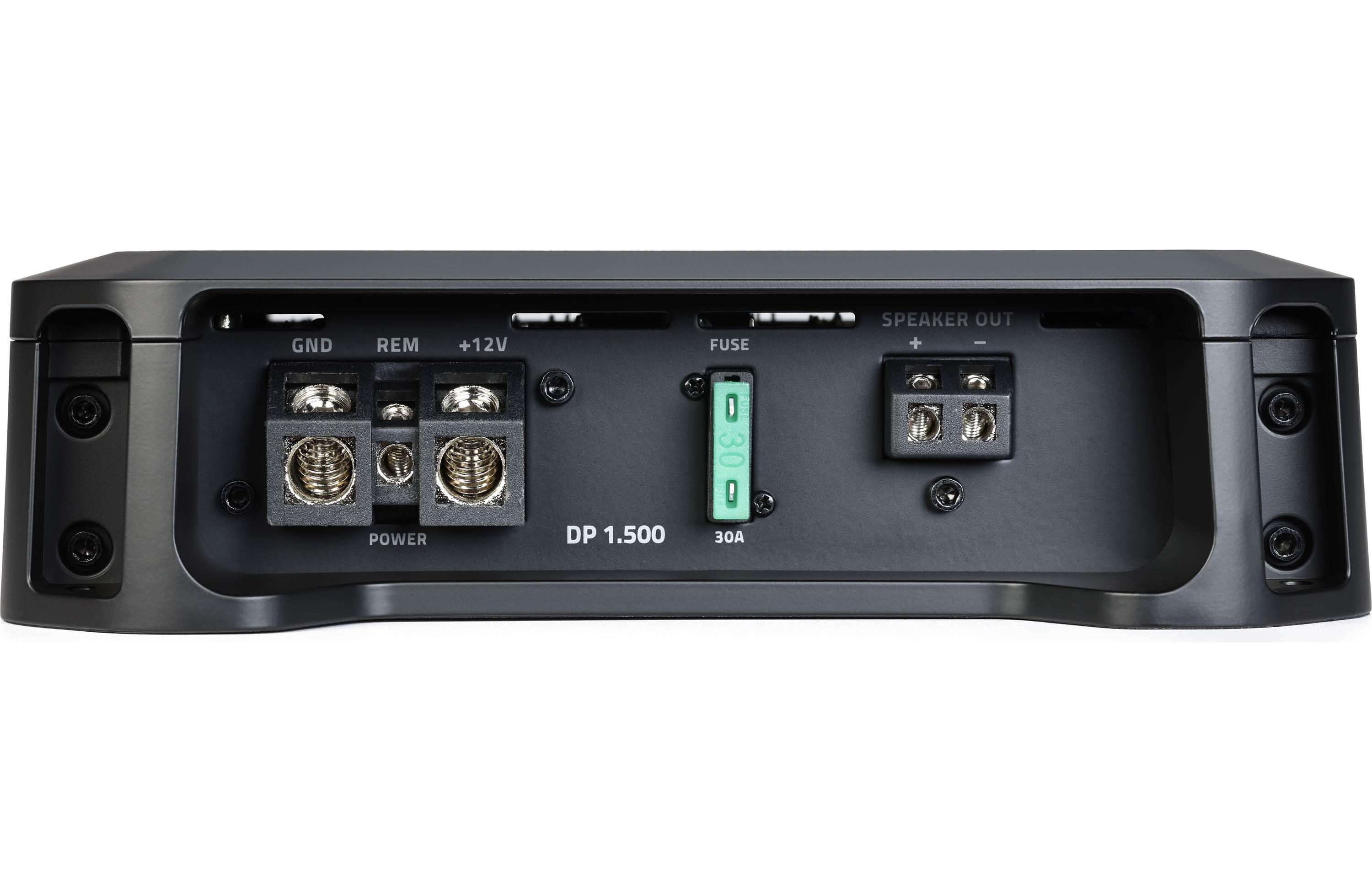

• Attractive Design: elegant status LED, solid machined terminal block, and removable top panel to protect controls and connections.
• Universal Compatibility: operating supply voltage from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms with integrated Universal Speaker Simulator.
• High-noise rejection: Pre-in and Speaker-in featuring balanced input circuitry.

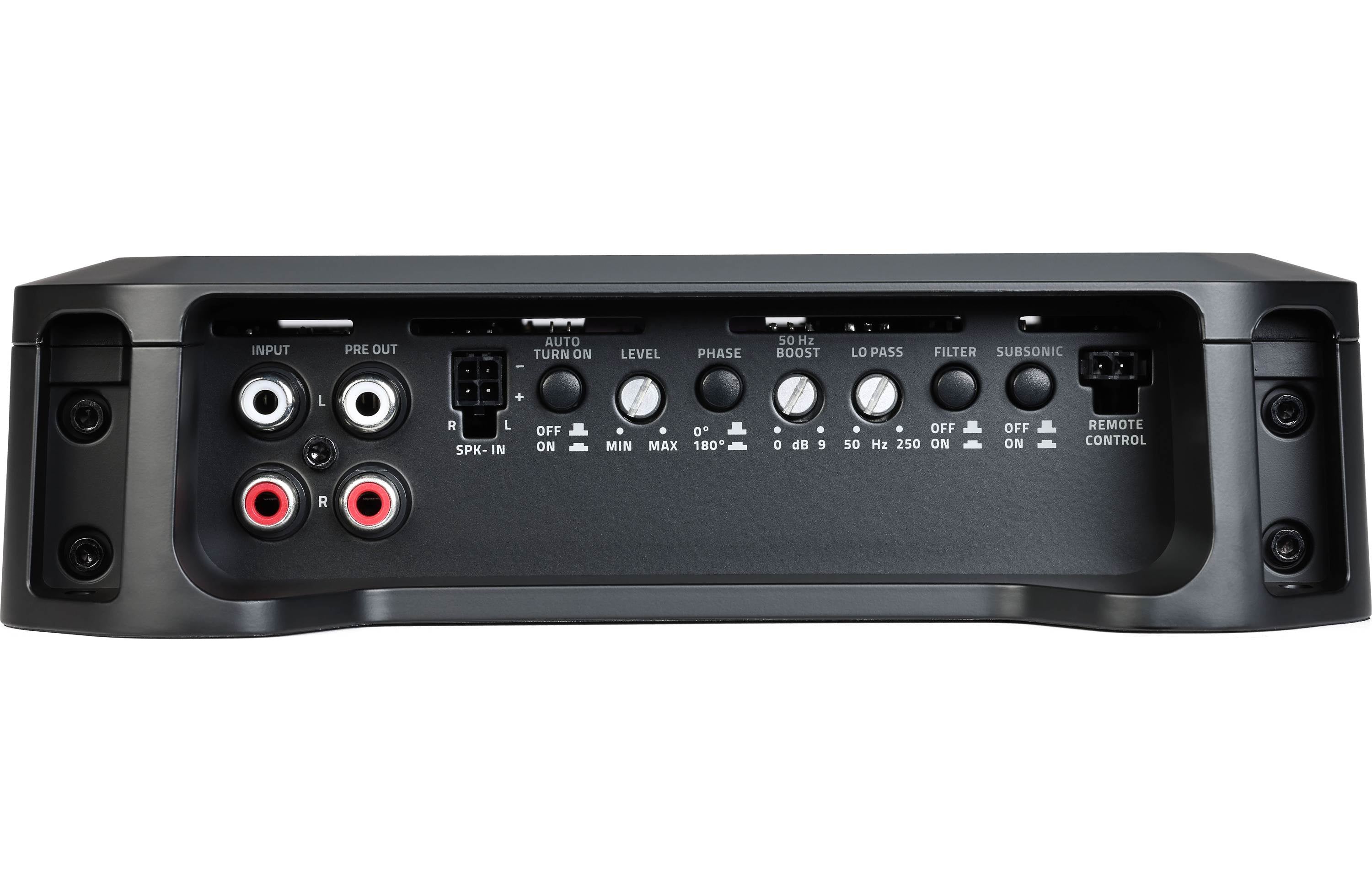

• Full set of controls: adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost to fine-tune the sound according to your preferences.
• Automatic Remote Turn-On/Off: driven by OEM radio speaker outputs.
• Full-Range pre-outs: available both when using Speaker-In and Pre-in level inputs.
• HRC 02 Remote Control Ready: provides the ability to tune the subwoofer level for any preference.

Specs

General Specs
Channels    1
Amp class    D
POWER SUPPLY
Nominal power supply voltage (fuse)    11 ÷ 15 VDC (1 x 30 A)
Operating power supply voltage    6.5 ÷ 17.5 VDC
Idling current    1 A
Standby current draw    50 uA
Consumption, MIN load impedance (Max Musical Power)    21 A
Remote IN    4 ÷ 17 VDC (1 mA)
ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only)    1.5 VDC
Efficiency    86%
AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 70% Rated Power    0.2%
Damping factor @ 1 kHz, 1W    180
Bandwidth @ -3 dB    10Hz ÷ 500Hz
S/N ratio (A-weighted @ 1 V Input)    99 dBA
Minimum load impedance
@ 1 Ch:    2 Ω
Adjustable Crossovers    yes

INPUTS / FILTERS
Inputs    Pre-In / Speaker-In
Pre Out    Full Range
Pre-In sensitivity    0.32 ÷ 8 VRMS
Speaker-In sensitivity    1.6 ÷ 40 VRMS
Lo-Pass    OFF / 50÷ 250Hz 24dB/Oct.
Subsonic    OFF / 25 Hz @ 24 dB/Oct.
Phase    0 / 180°
Bass Boost 50Hz    0 ÷ 9 dB
SUB Remote Volume Control HRC 02    -20 ÷ 6 dB

Output Power
Output power (RMS) @ 1% THD:
1Ch @ 4Ω    280 W x 1
1Ch @ 2Ω    500 W x 1
Output Power (RMS) @ 14.4 VDC, THD 10%:
1Ch @ 4Ω    350 W x 1
1Ch @ 2Ω    590 W x 1
Total Power    590 W

Physical Specs
Height: 1.96"
Width: 7.48"
Depth: 7.48"

Brand Hertz
