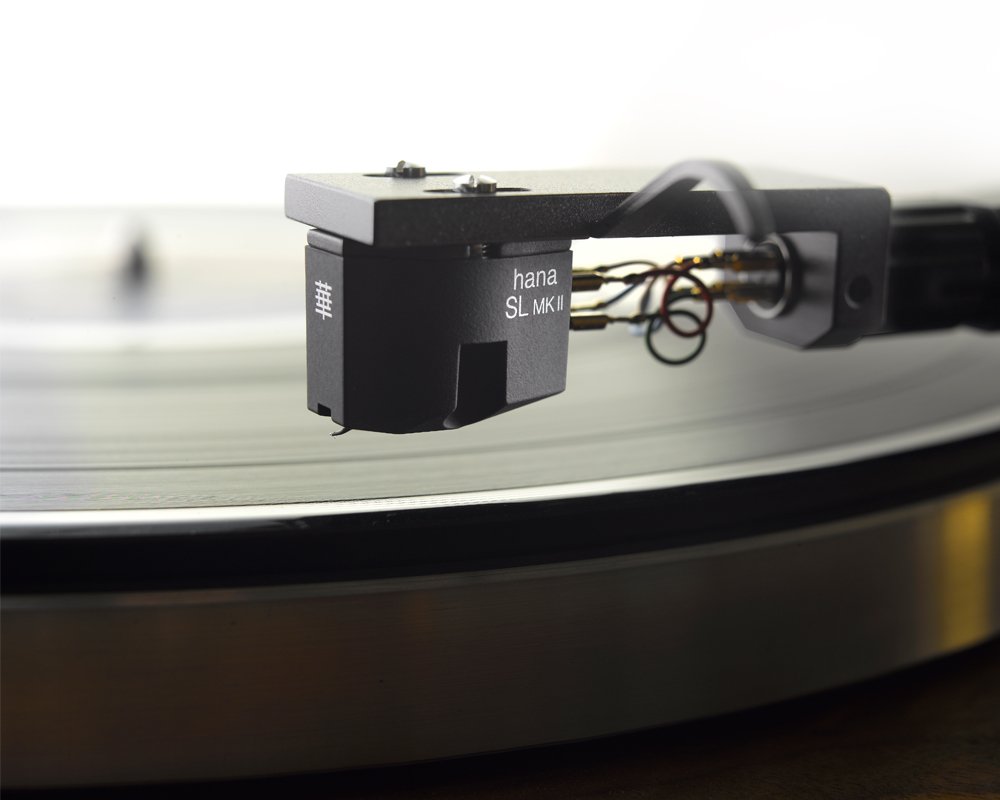

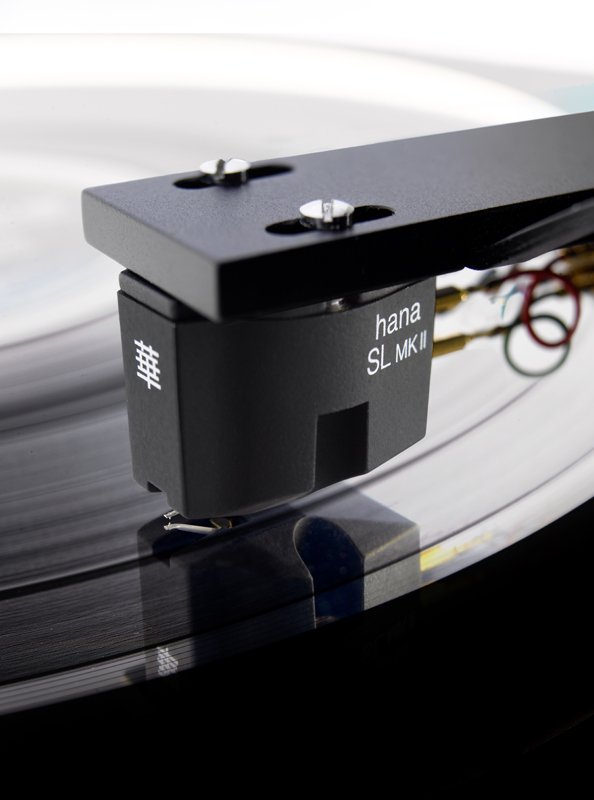

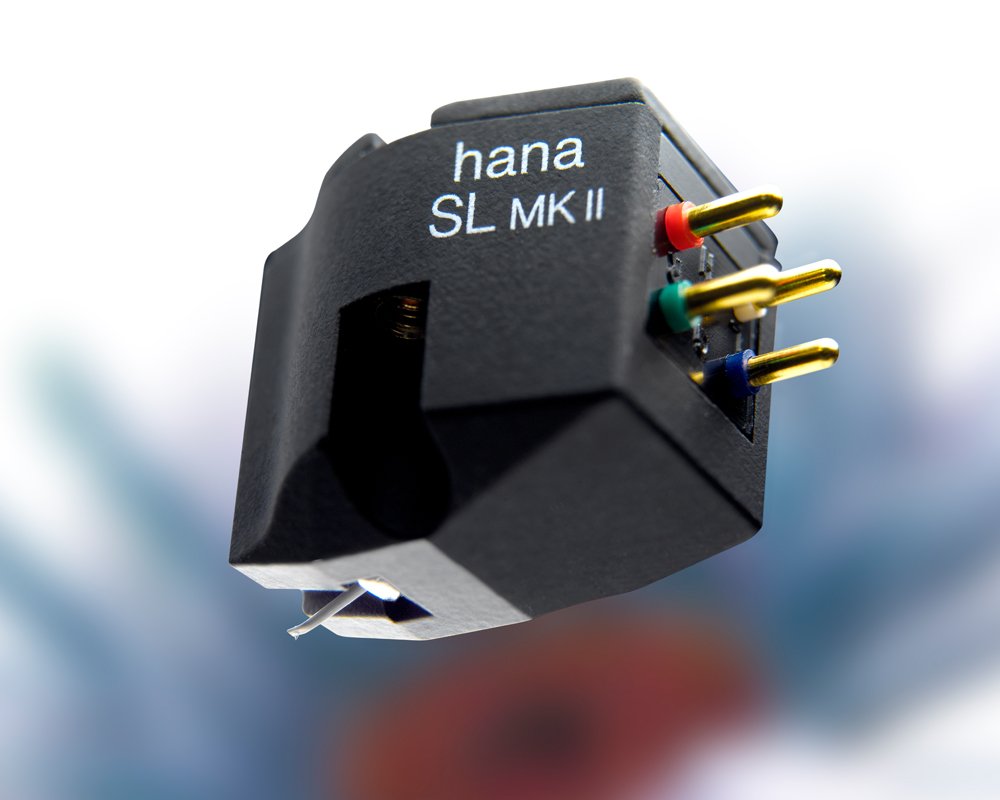

Hana SL S Series MK II Low-Output MC Phono Cartridge

The MK II upgrade to our globally best-selling Hana S series cartridges enhances their musical performance and value. Master cartridge designer Masao Okada-san implements a new tapered Aluminum cantilever with increased rigidity, resulting in a remarkable improvement in transferring groove modulation from the vinyl record to the cartridge generator. The S Series MK II cartridges feature higher specified parts, advanced materials, and unique technical processes from Hana’s higher-priced elite cartridge models, furthering the Hana “brilliant and gorgeous” sound.

Hana S Series MK II cartridges use a new tapered aluminum cantilever with higher rigidity and effective mass reduction at the stylus tip. This results in greater clarity and increased music transfer from vinyl records to cartridge generator.

Critical parts, including the Yoke, Pole-pieces, and gold Terminal pins, have been cryogenically treated for a more natural sound.

The improved, non-resonant body shape, modeled after the Hana M Series, is damped with a matte Soft Feel Black elastomeric resin paint and features a brass cap with threaded cartridge mounting fittings. The heavier MK II cartridges offer better coupling and expanded compatibility with a wider range of tonearms, improving bass and dynamics.

The SL MK II generator, as found in the Umami Blue and ML, incorporates an Alnico magnet and cross-coil using high-purity 30-micron copper wire with an 8Ω impedance. This improves signal-to-noise, reduces moving mass for higher resolution and trackability, and optimizes performance for a broader range of phono stages.

specs

Stylus    Shibata
Cantilever    Tapered Aluminum
Output Level    0.4mV/1KHz
Output Balance    <1.5dB/1 KHz
Vertical Tracking Force    2g
Trackability    70 µm/2g
Channel Separation    28dB/1kHz
Frequency Response    15-32,000Hz
Impedance    8Ω/1kHz
Suggested Load Impedance    >80Ω
Cartridge Weight    8.6g
Body Color    Black
Warranty    2 years
