Focal 100 ICW8-T In-Wall/In-Ceiling 2-Way Coaxial Speaker (Each)

by Focal
UPC: 3544054692073
Call for Availability


Product Qualifies for FREE Ground Shipping

Focal 100 ICW8-T In-Wall/In-Ceiling 2-Way Coaxial Speaker (Each)

A Vast Listening Area

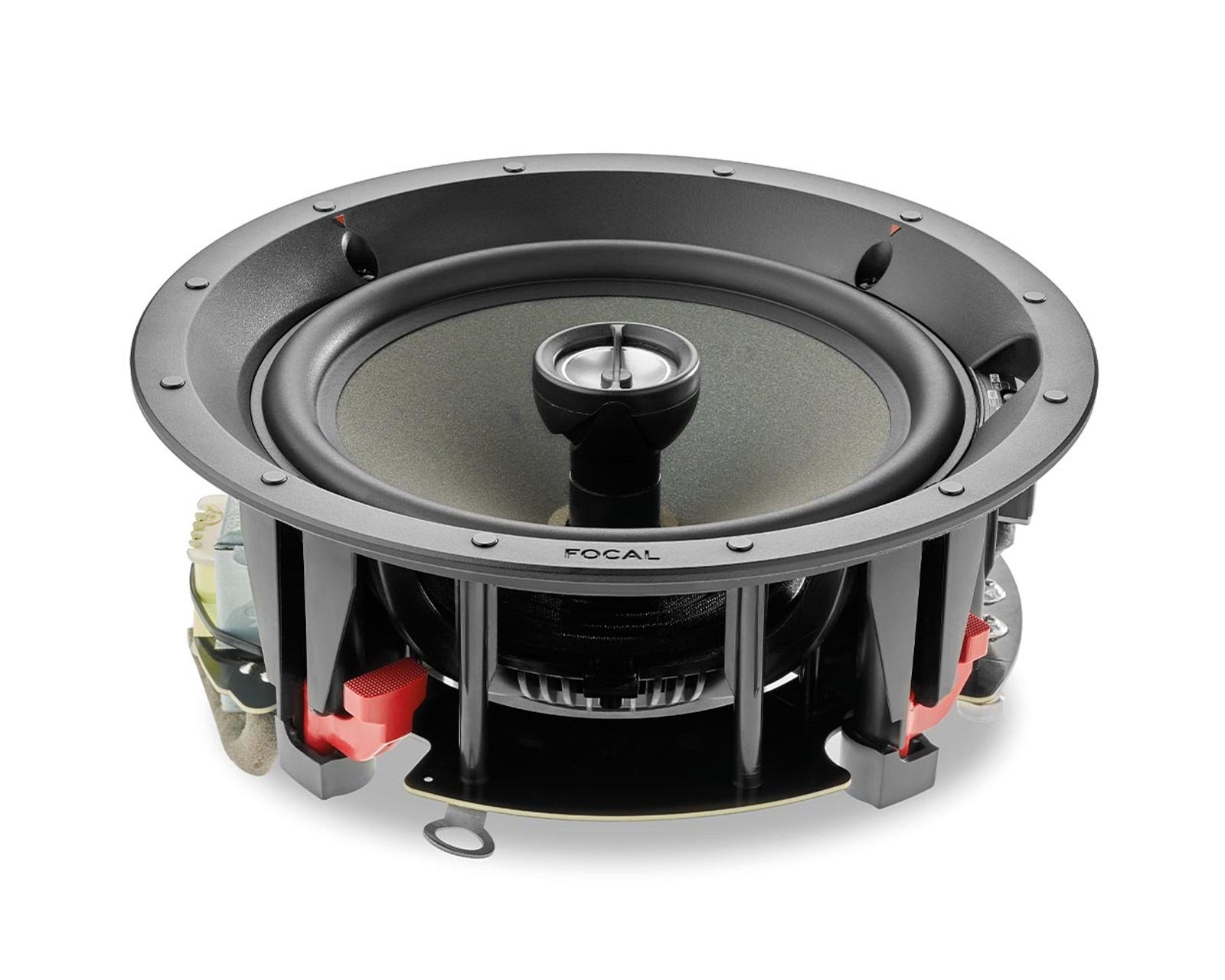

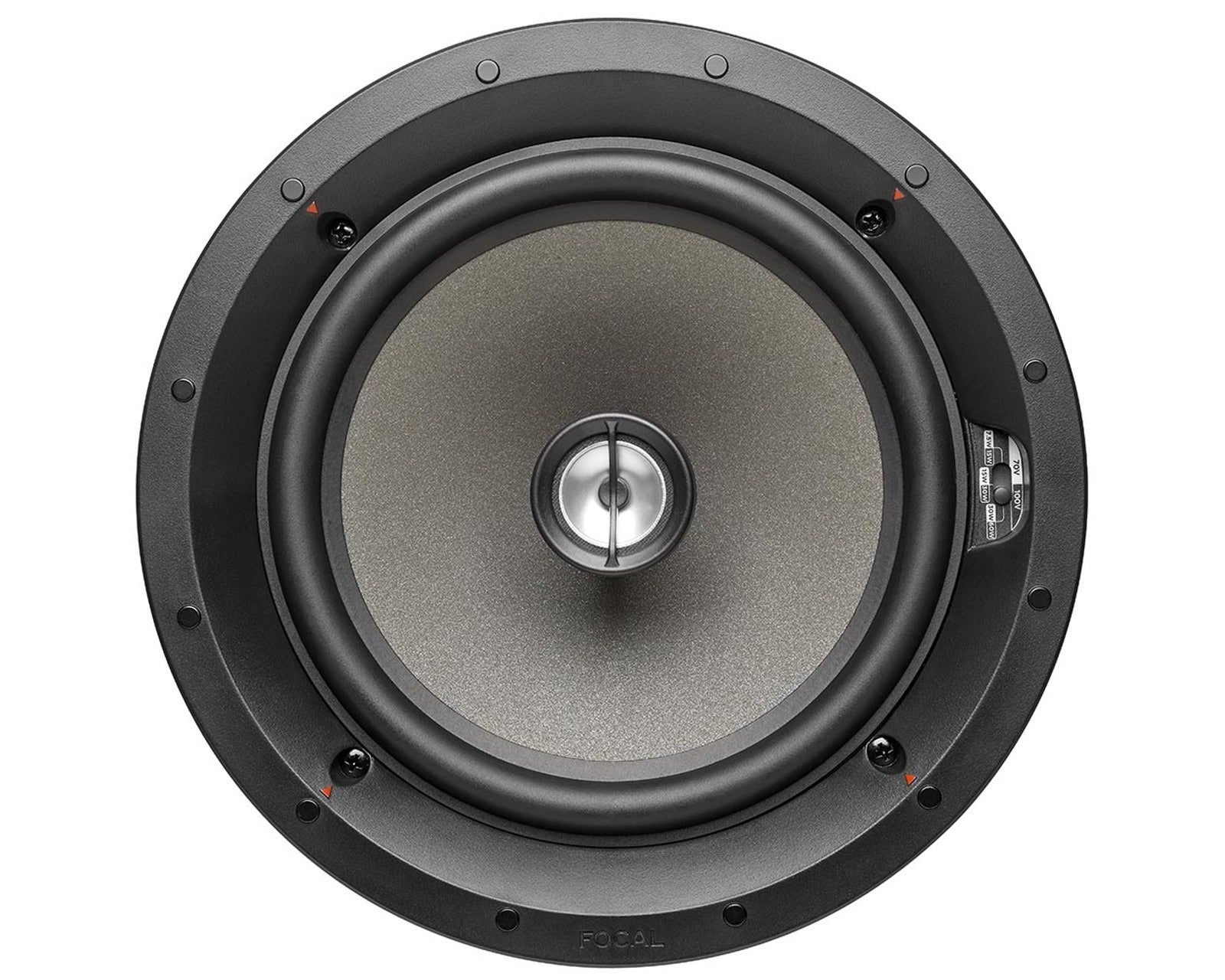

Designed and developed in France by Focal, the 100 ICW8-T loudspeaker is composed of a 8’’ (21cm) mid-range speaker driver with Polyglass cone and a 1’’ (25mm) Aluminum tweeter. Like all the products in the 100-T Series, it has an adjustable transformer which adjusts the power for a 70 volt/100 volt system. The transformer thus makes it possible to link the loudspeakers together and cover a vast listening area!

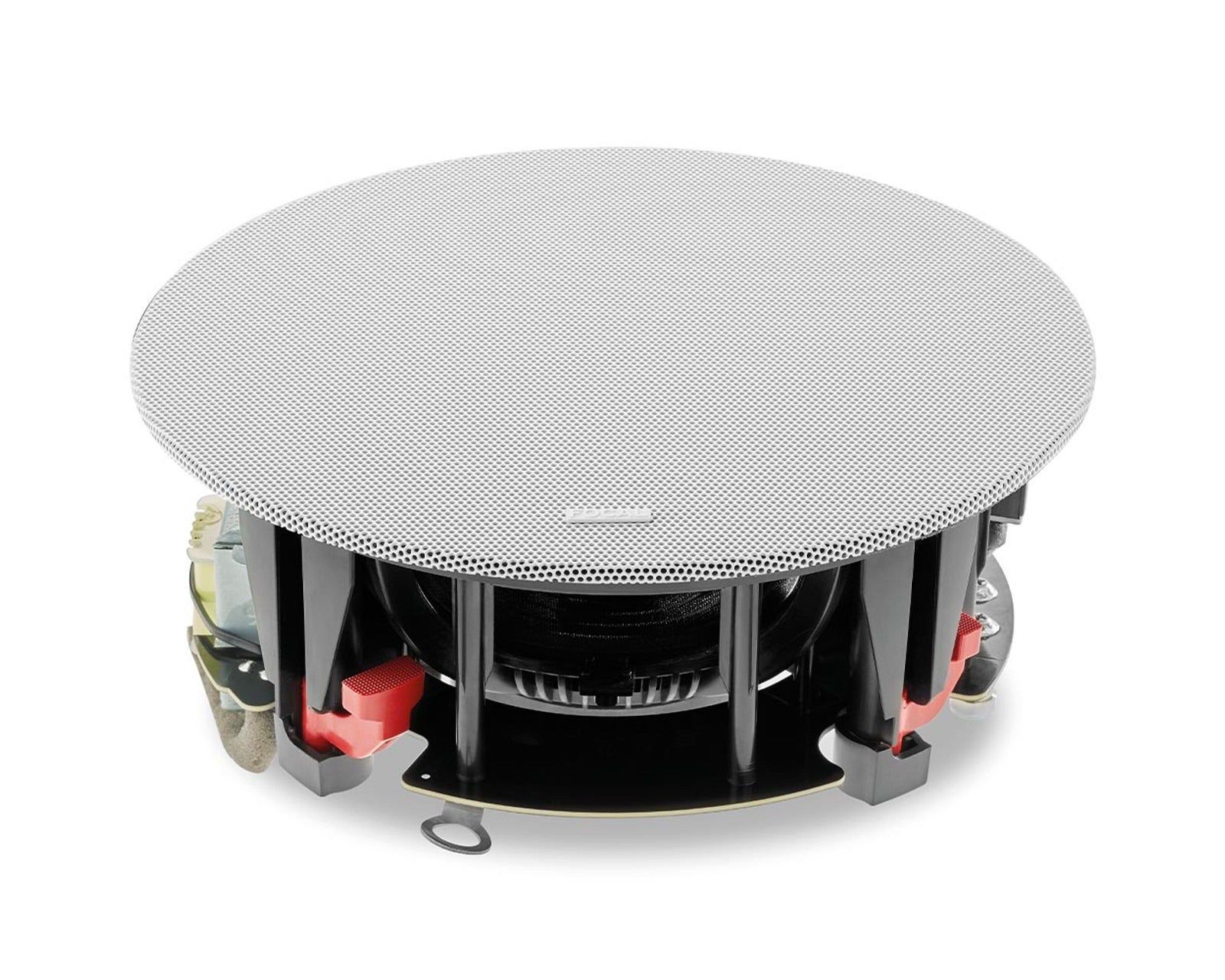

The 100 ICW8-T speaker driver also has very low directivity, which removes any “shower effect” and creates high-quality, uniform sound throughout the whole space. Compact and with a round or square ready-to-paint grille, the 100 ICW8-T is easy to install and discreet wherever it is positioned.

Focal Technologies
The speaker driver's Polyglass membrane offers a natural mid-range, without coloration, and rich bass. It is linked with the Aluminum inverted dome tweeter that delivers a silky treble and guarantees optimum sound dispersion.
For 70V/100V systems

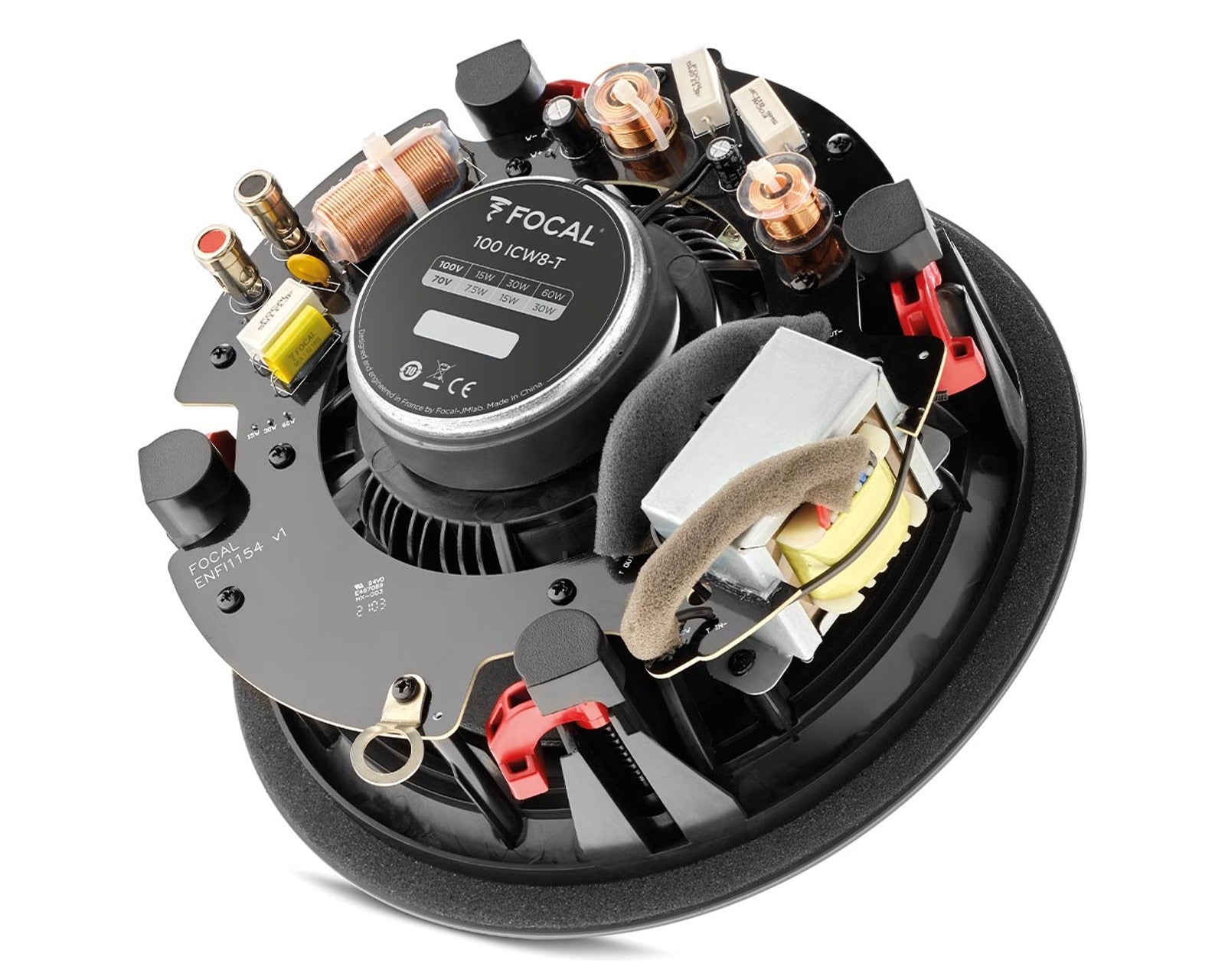

The 100-T Series loudspeakers incorporate an adjustable power transformer which adjusts the power of each loudspeaker enabling them to be linked together within a 70V/100V system. As such, they can cover a large listening area, with crystal clear sound, by minimizing the number of necessary amplification channels.
Compact and discreet
The 100-T Series in-wall and in-ceiling loudspeakers are very discreet, being compact and with a shallow mounting depth. And installation is made even easier thanks to the mounting brackets available with optimized grip for each product.

Key Points
Product designed and developed in France by Focal
Compact product with shallow mounting depth

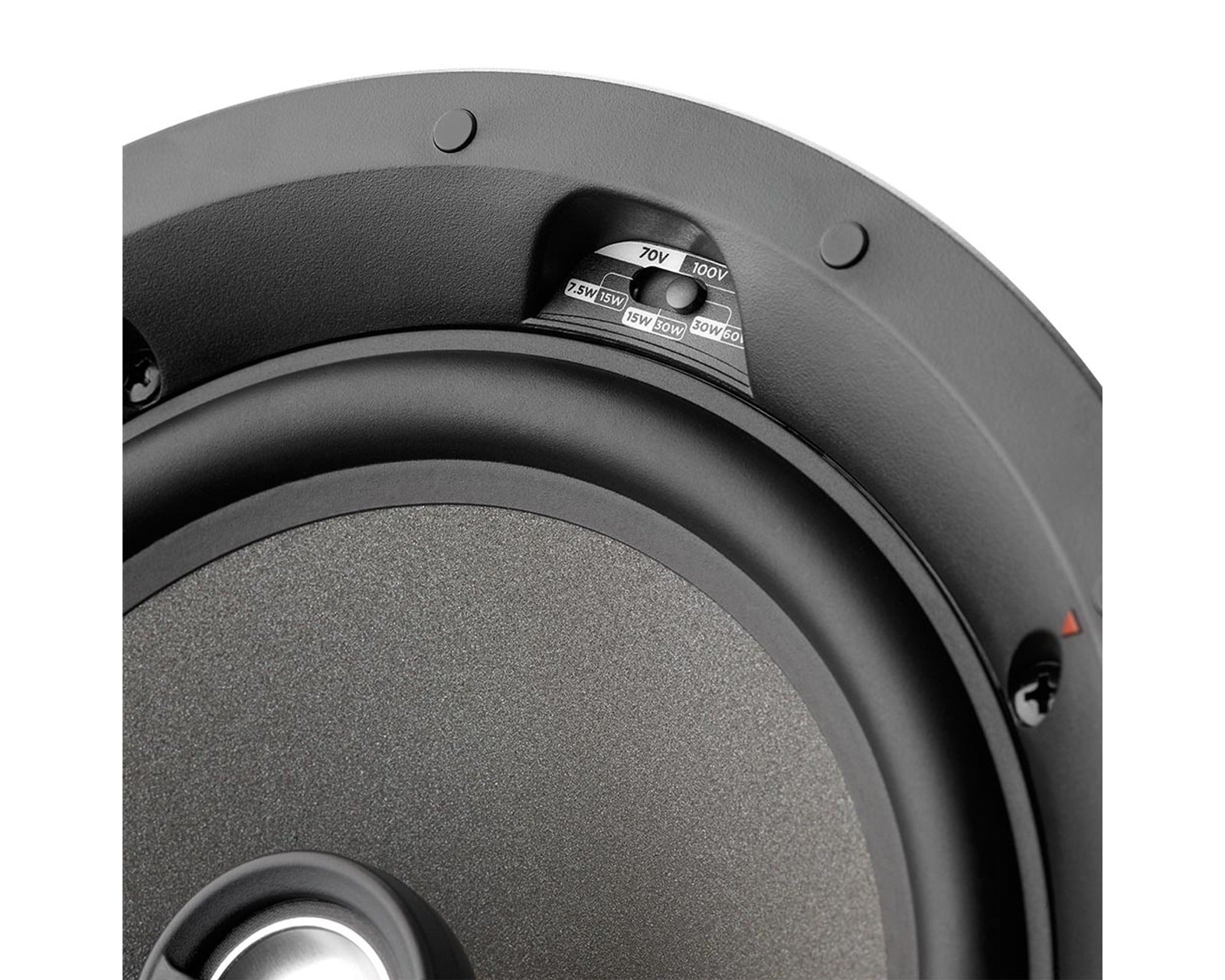

100V/70V mode by switch
Ready-to-paint grille


Type In-wall/In-celling - 2-way coaxial
for 100V/70V line installation
Drivers 8" (21cm) Polyglass Midbass
1" (25mm) Aluminum inverted dome Tweeter
Sensitivity (2.83V/1m) 90dB
Frequency response (+/-3dB) 53Hz - 23kHZ
Low frequency point (-6dB) 40Hz
Power in 70V 7.5/15/30W
Power in 100V 15/30/60W
Recommended amplifier power 15 - 100W
External dimensions (Ø/Depth) 9 3/4 x4 3/8" (248x111mm)
Cut-Out diameter 8 13/16" (224mm)
Depth from wall 4 1/4" (107mm)
Net weight (with front grille) 5lbs (2.3kg)
Packing dimensions (WxDxH) 12 3/16" x 12 3/16" x 7 1/4" (310x310x185mm)
Total weight (with packaging) 8lbs (3.6kg)
