Plug them in, turn them up, and then get a friend round. We’d put money on your pal asking where’s the rest of the speakers are. That’s when you smile, shrug and invite them to sit down in the sweet-spot on your sofa. And then turn it up a bit more.
We’ve been creating speakers that perform out of all proportion to their physical size for over 40 years, and Evoke 10 is no exception. These are serious hi-fi… built for serious entertainment.
The new Evoke family will be on-sale in Europe in February 2019. It will arrive in other markets in April.
Classic Dynaudio heritage… with a twist
Each speaker’s single 14cm long-throw mid/bass driver is made from MSP (Magnesium Silicate Polymer), just like all Dynaudio speakers have used for decades. They use new surrounds to extend their throw, their frequency response and their low-frequency dynamics – all while maintaining stellar midrange performance.
Want to know the woofer’s secrets? The diaphragm is 0.4mm thin, which provides exactly the right combination of lightness, stiffness and damping to ensure optimum performance. It’s made of one piece (the dust-cap is part of the playing surface), and is bonded directly to the rigid glass-fibre voice-coil former directly under the Balance Ribs you’ll see around the centre dome. That means the whole unit moves as one, in a predictable (and carefully tuned) way, for a performance that strikes the ideal balance between bass and midrange.
The 38mm voice-coil itself is made from aluminium, making it extremely light. That means we can use more windings. More windings gives us more control over the cone’s movement, which means more control over the sound – even at high volumes and high frequencies. It’s kept stable, centred and true by the Nomex spider (the circular spring assembly that stops the cone moving when it shouldn’t, and lets it move when it should).
And the whole assembly is driven by one of our new, powerful strontium carbonate Ferrite+ ceramic magnet systems.
Cerotar: a brand-new tweeter
Up top is the brand-new 28mm Cerotar soft-dome tweeter. Our engineers looked behind the curtain of the award-winning Special Forty and money-no-object Confidence tweeters and cherry-picked some key technologies to bring to Evoke. The headline-grabbing component is the Hexis – an ingenious inner dome that refines the airflow behind the playing surface to smooth-out its frequency response and eliminate unwanted resonances.
The Cerotar, like the woofer, is powered by a powerful Ferrite+ ceramic magnet assembly.
Linking the drivers together is a high-grade second-order crossover that uses the Confidence’s design with different components. So, yes, when we say you’re getting high-end tech, we mean it.
Honest Danish design

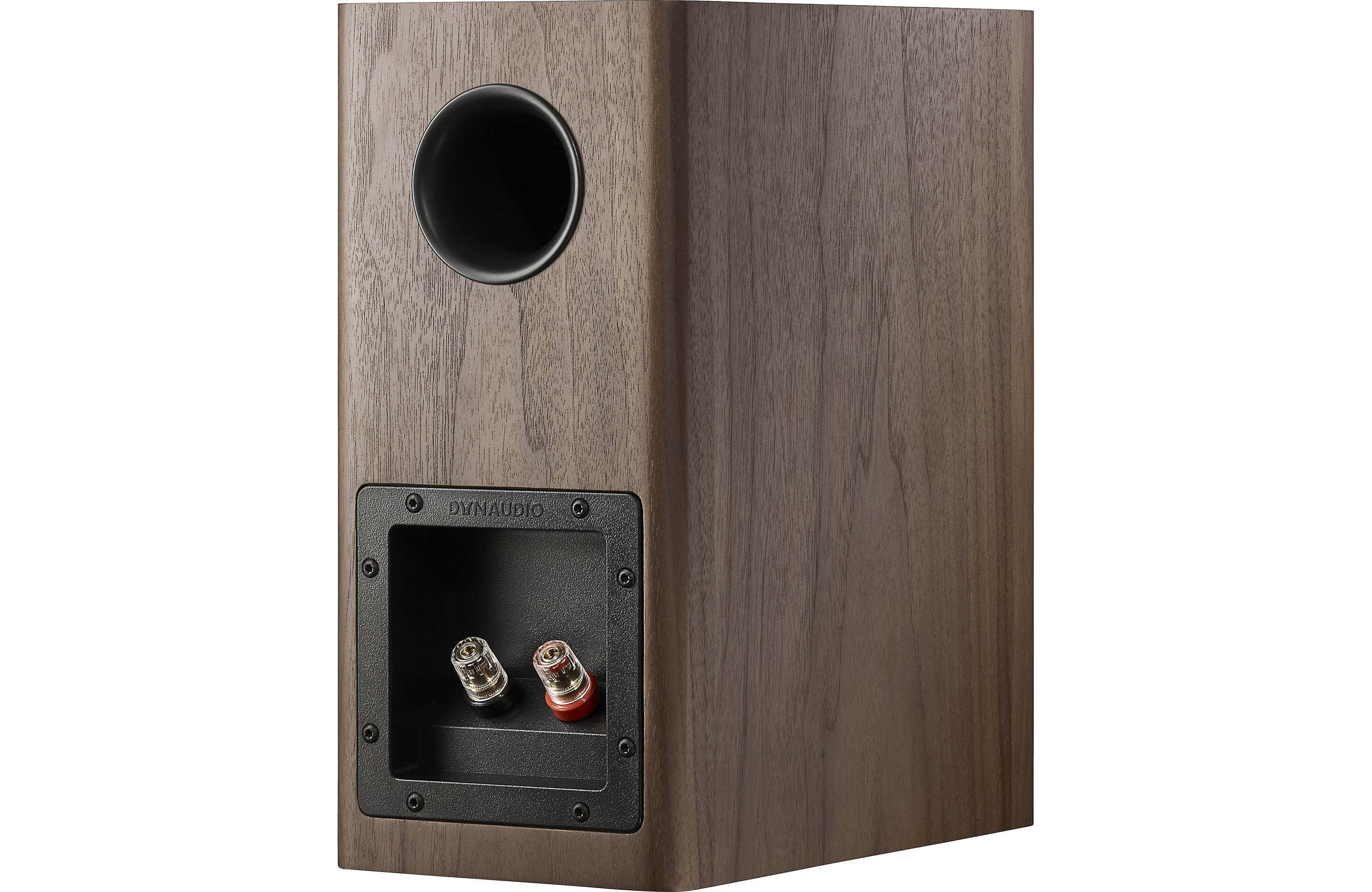

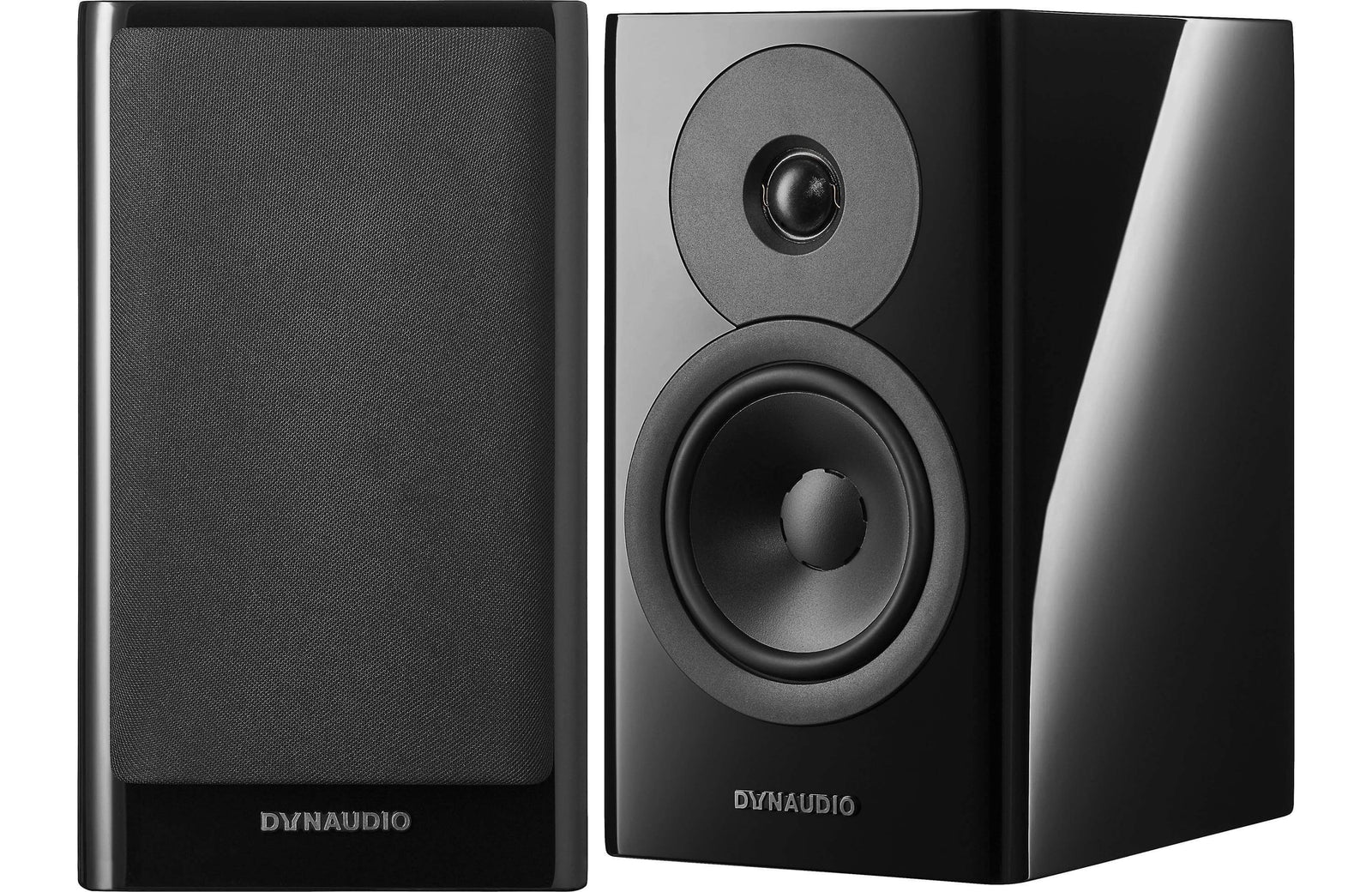

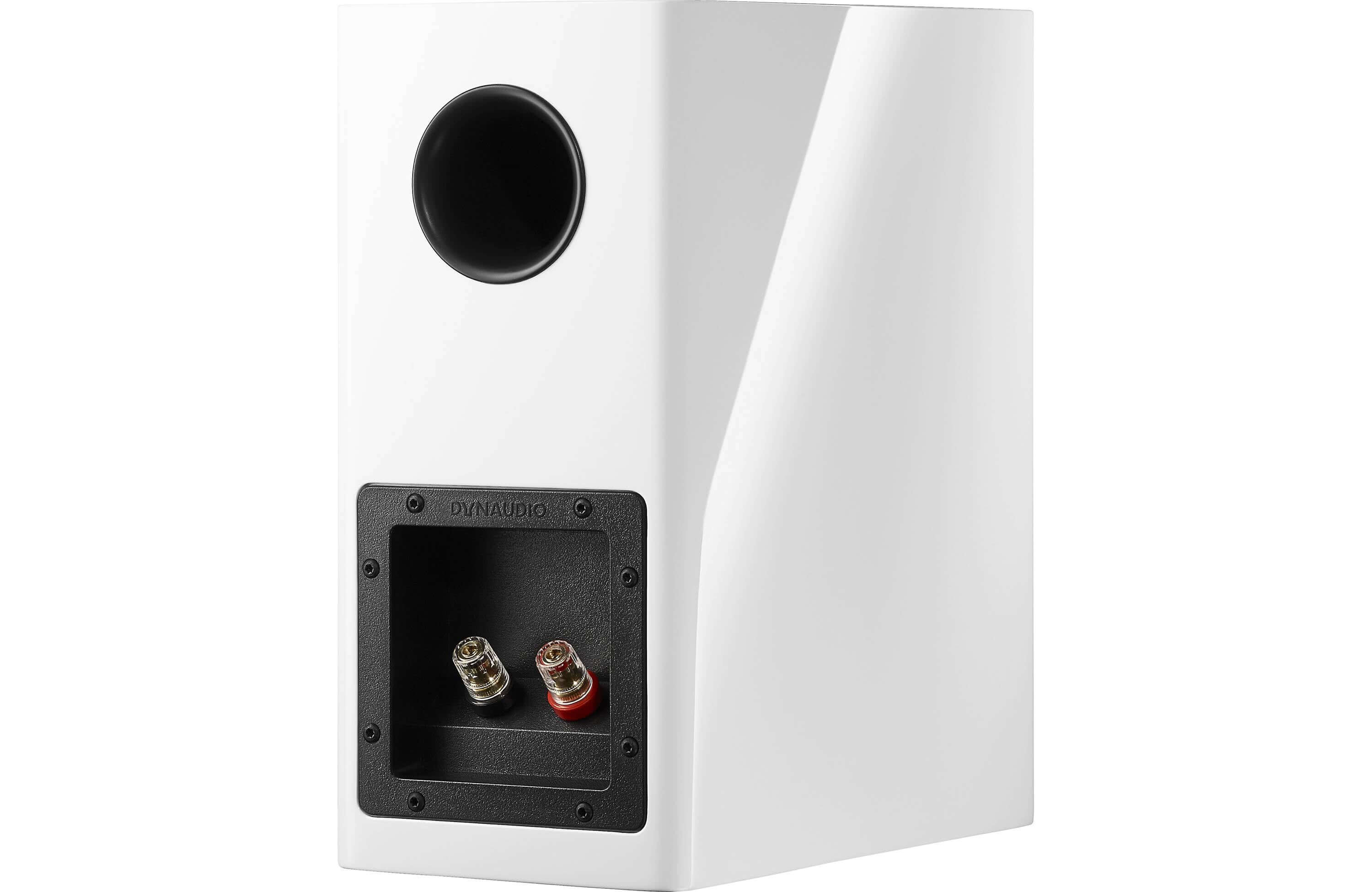

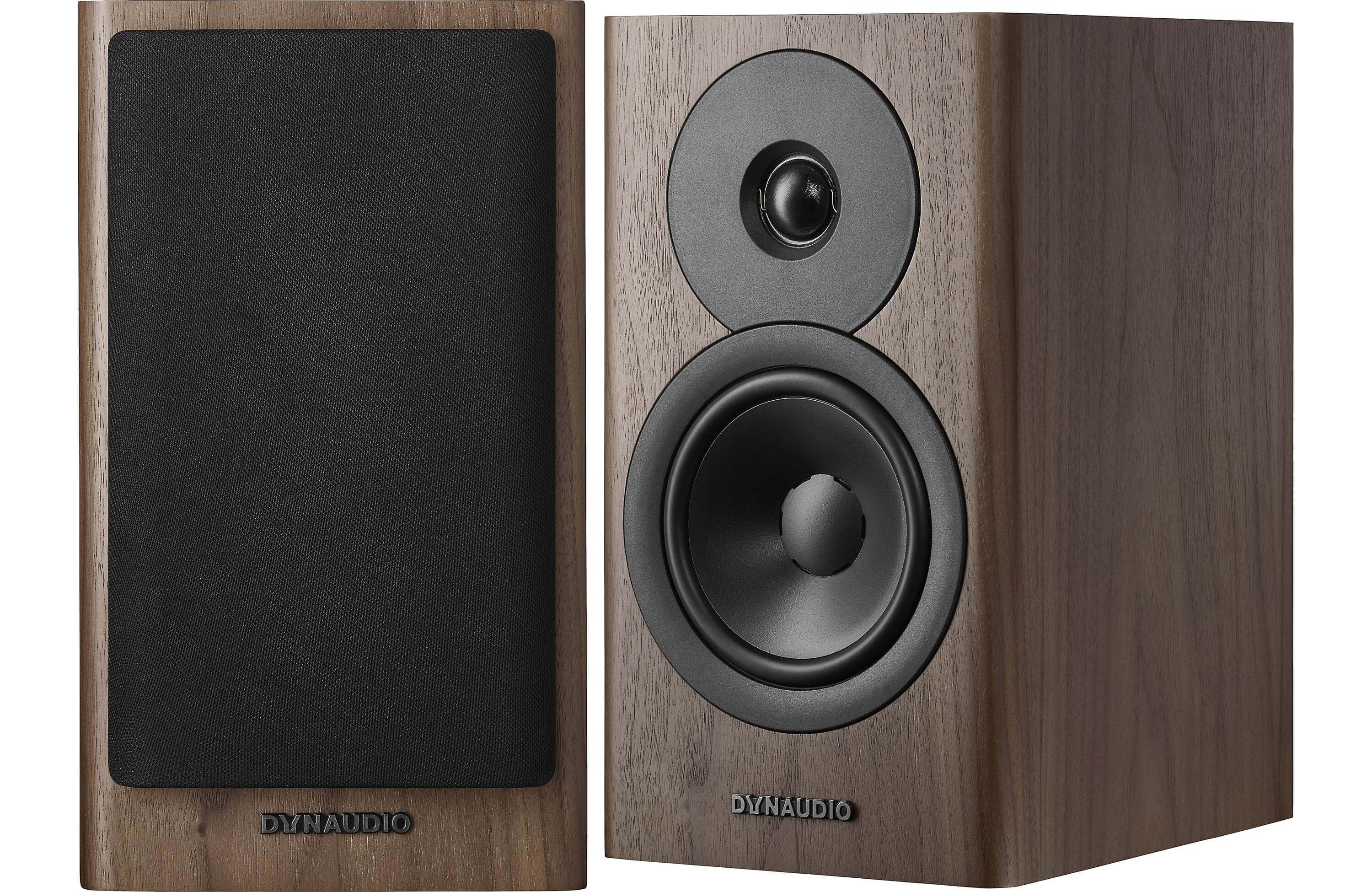

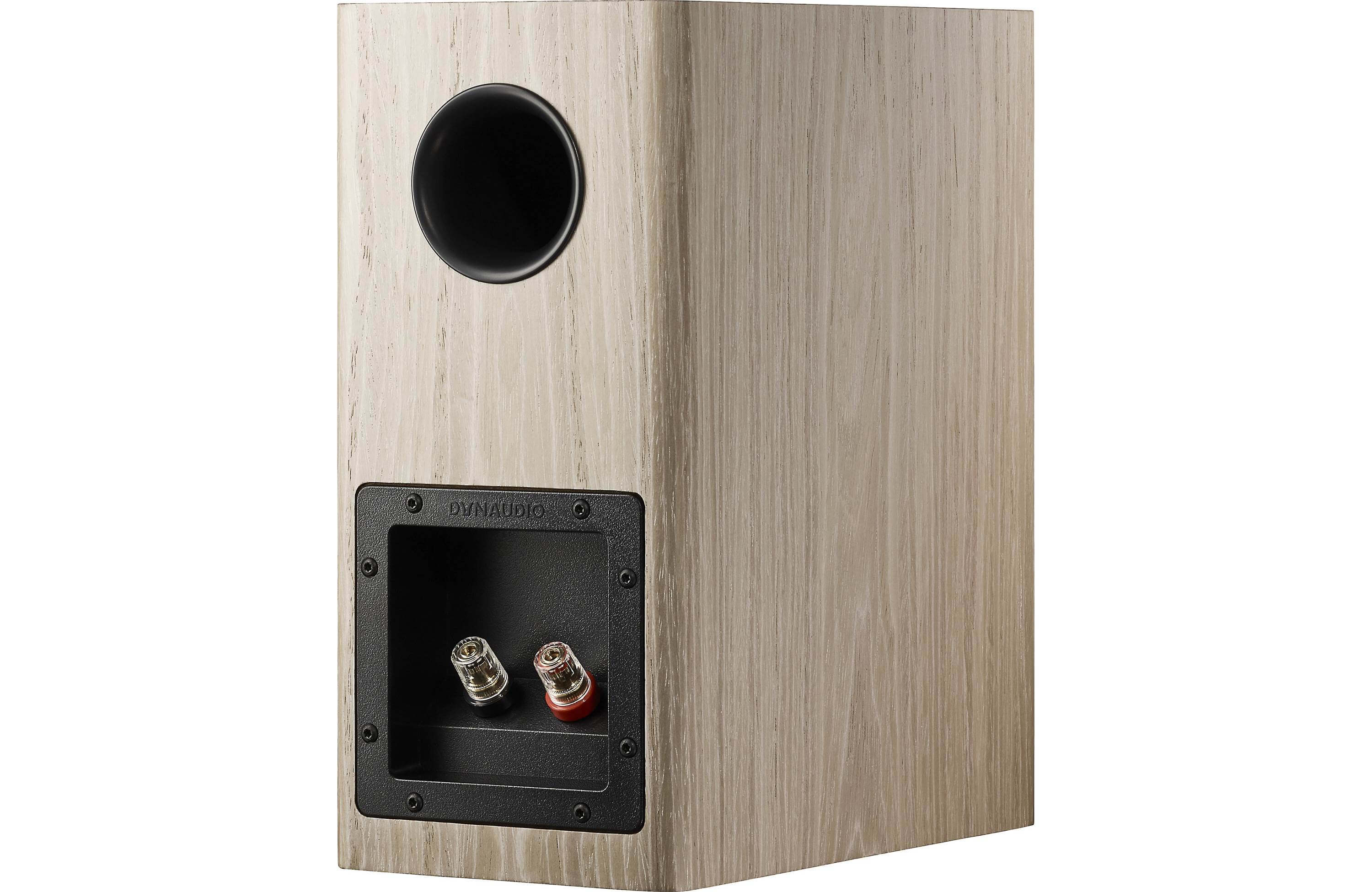

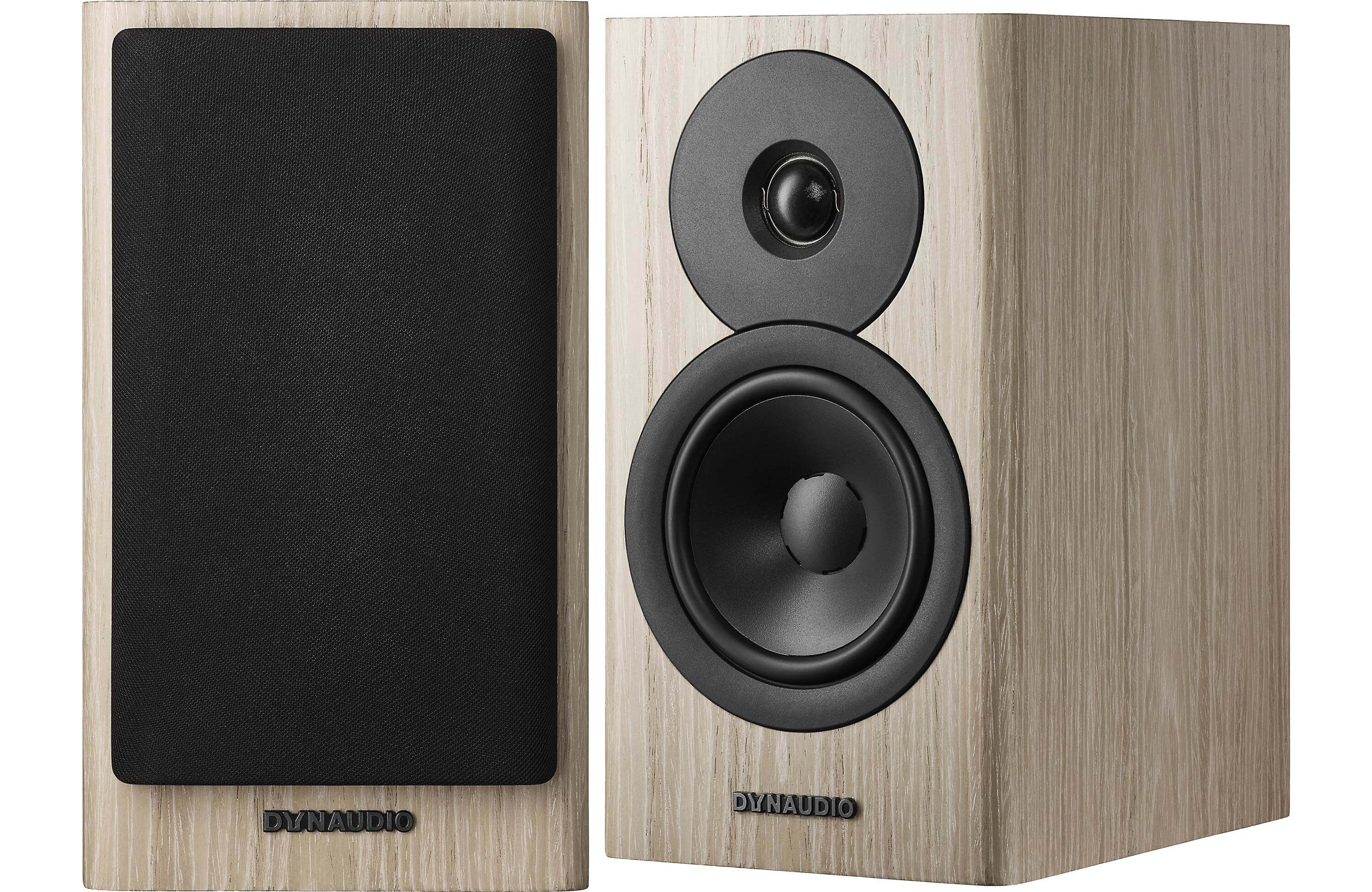

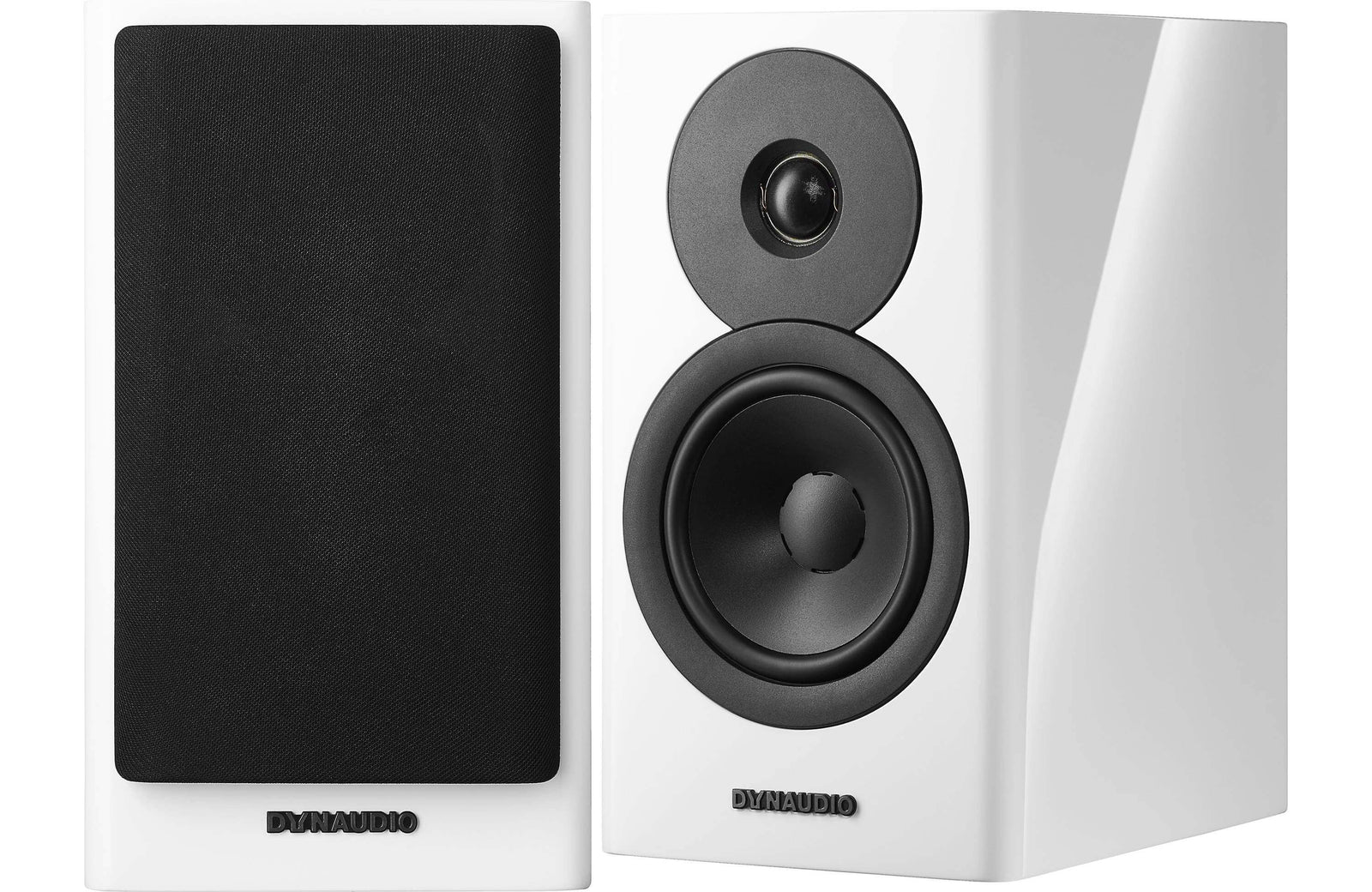

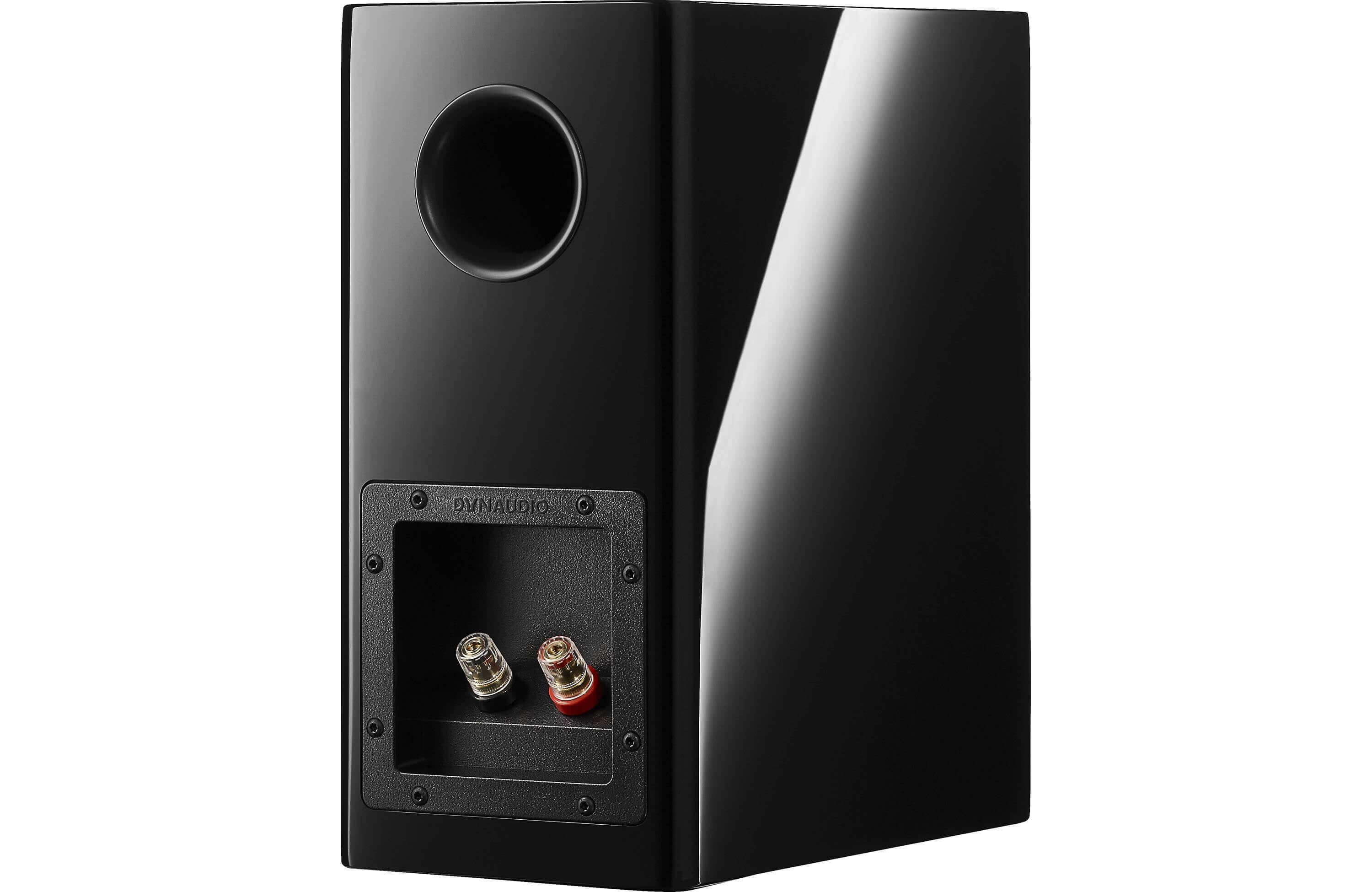

Evoke 10 is available in four beautiful finishes: Black High Gloss, White High Gloss, Walnut Wood and Blonde Wood. The shiny versions really are just that: new lacquering techniques have resulted in a sumptuous, almost glass-like finish. The wood versions use a tactile, open natural veneer for either a warm, dark tone or a light apricot look.
You might notice that you can’t see any mounting screws. Evoke has simple, clean trim rings that emphasise the cabinet’s finish as well as the moving parts of the drivers. The rings are one-piece moulded, with the surface finish embedded in the moulding process – so what we make is what you get.
Clean, beautiful and honest. How very Danish.
It means you can take them with you when you move… and, we trust, enjoy them for a lifetime.
New Cerotar tweeter
A brand-new 28mm Ferrite+ soft-dome tweeter inspired by Special Forty and Confidence
Hexis
An ingenious resonance-defeating inner tweeter dome, trickled down directly from our most exclusive ranges
New Esotec+ woofer
A long-throw 14cm one-piece MSP design with an aluminium voice-coil and strontium carbonate Ferrite+ ceramic magnet
Crossover
High-grade Dynaudio topology with select components – just like all our high-end hi-fi speakers
Danish design
Timeless, honest and beautiful: subtly curved MDF with hidden screws and four beautiful, clean finishes
Sensitivity: 84dB (2.83V/1m)
IEC power handling: 160W
Impedance: 6 Ω
Frequency response (±3dB): 47Hz–23kHz
Box principle: Bass reflex rear ported
Crossover: 2-way
Crossover frequency: 1400Hz
Crossover topology: 2nd order
Specification sheet for Evoke part 1
Woofer: 14cm MSP cone
Tweeter: 28mm Cerotar with Hexis
Weight: 6.7kg/14.8lb
Dimensions (W x H x D): 180x315x266mm
7.1x12.4x10.5in
Dimensions with feet/grille (W x H x D): 180x315x277mm
7.1x12.4x10.9in
